High strength steel,Strong loading capacity,Advanced manufacture technology,High quality parts,Unique Electrophoresis Painting Technology,Specially designed anti-Tire abrasion suspension system
1.SINOTRUK brand and CCC/ISO9001 certificate approved;
2. BPW/FUWA/HJ brand 12/13/14/15/16 ton axles optional;
3. Heavy duty air/spring suspension optional;
4, Gooseneck strengthened for heavy load.

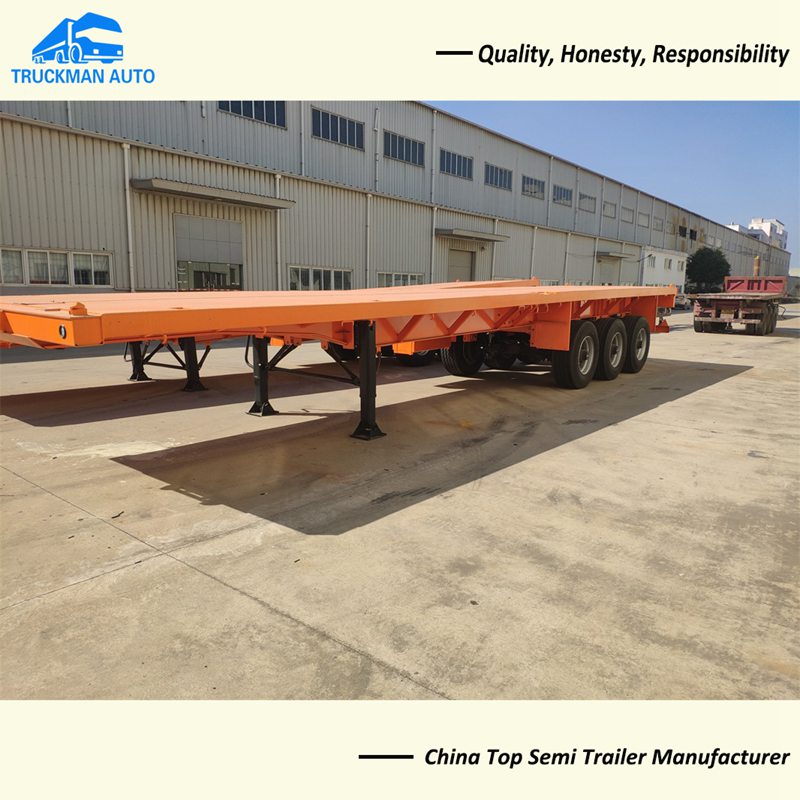

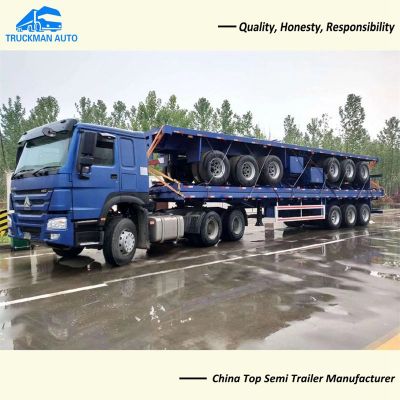

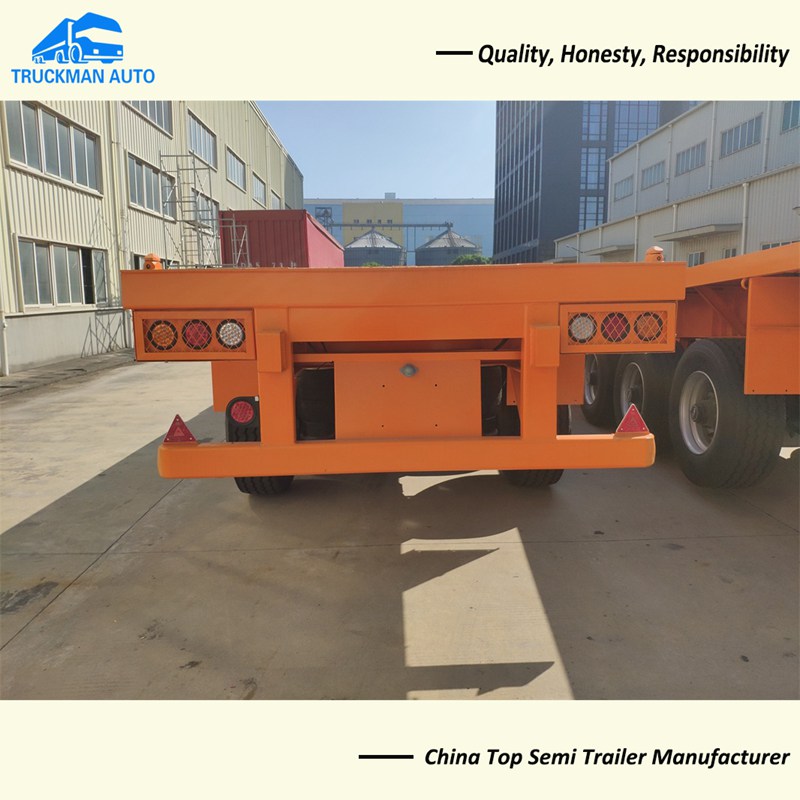

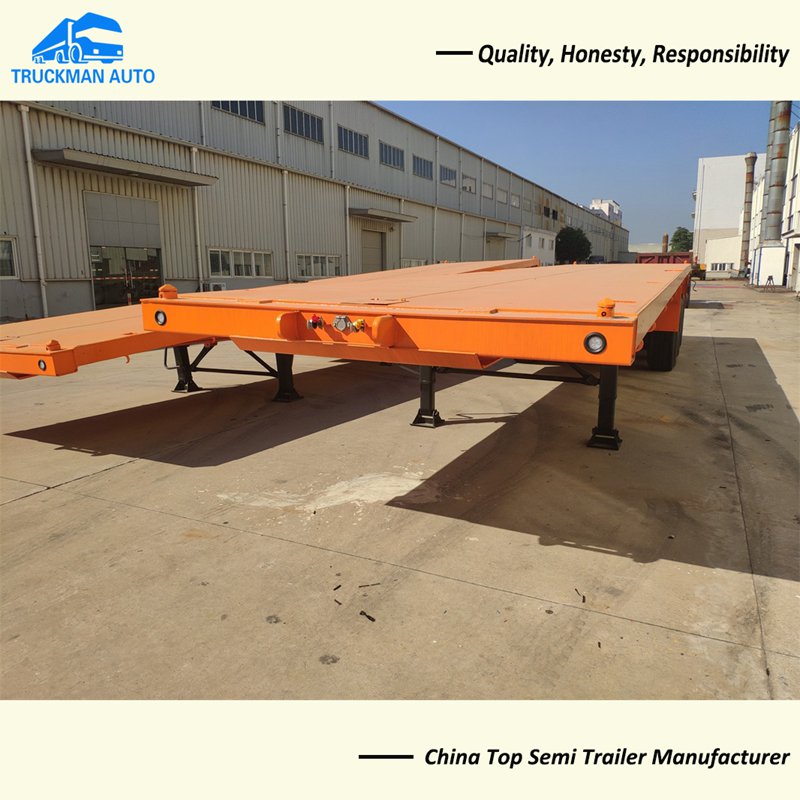

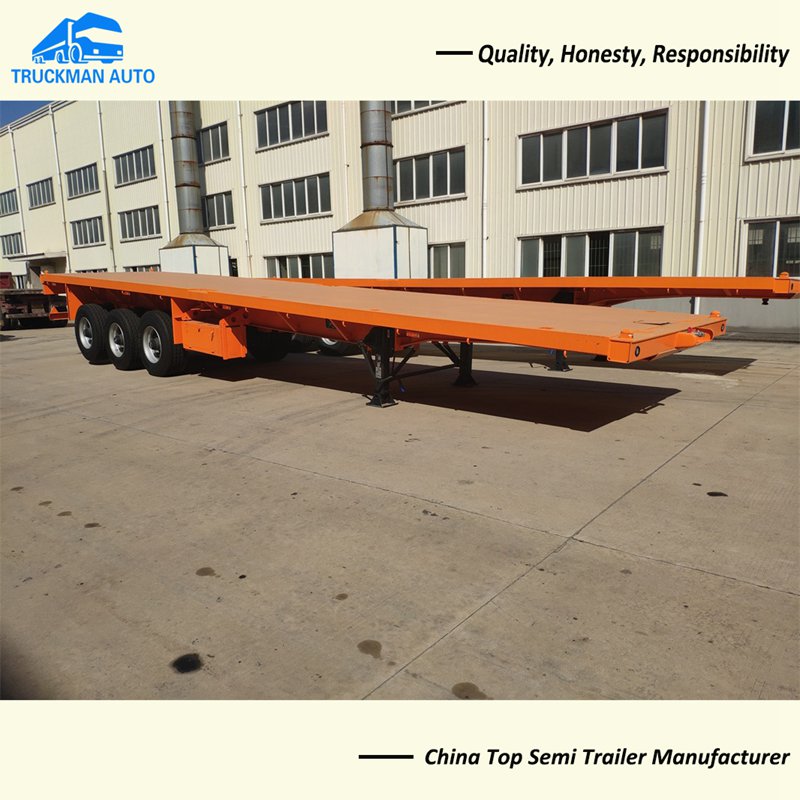

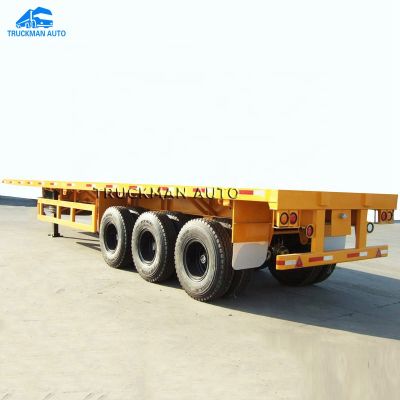

| Trailer Name | Truckman brand 3 axle 40ft 20ft 45ft flatbed container truck semi trailer for transportation |
| Dimensions | 12500mm*2500mm*1550mm |
| Loading | 30T, 40T, 45T, 50T, 60T |
| Tire | 11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle/Hankook brand |
| Material | Main beams Q345B, upper flange:14mm, middle:8mm, down:16mm |
| Axles | 13T/16/20T BPW or FUWA brand |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | WABCO Valve with big chamber |
| LandingGears | JOST brand two-speed, Manual operating heavy duty 28ton |
| Suspension | Bogie suspension, spring suspension, Air suspension |
| Floor | 3mm,4mm,6mm diamond steel plate |
| ElectricalSystem | 24v, 7core socket, lights according to European standards (suitable for all market) |
| Twist lock | 8 or 12 sets |
| Other parts | 1 tool boxs, 1 spare tire rocket |
| Functions | Transport container, loose cargo, bulk cement, bulk rice,etc |
