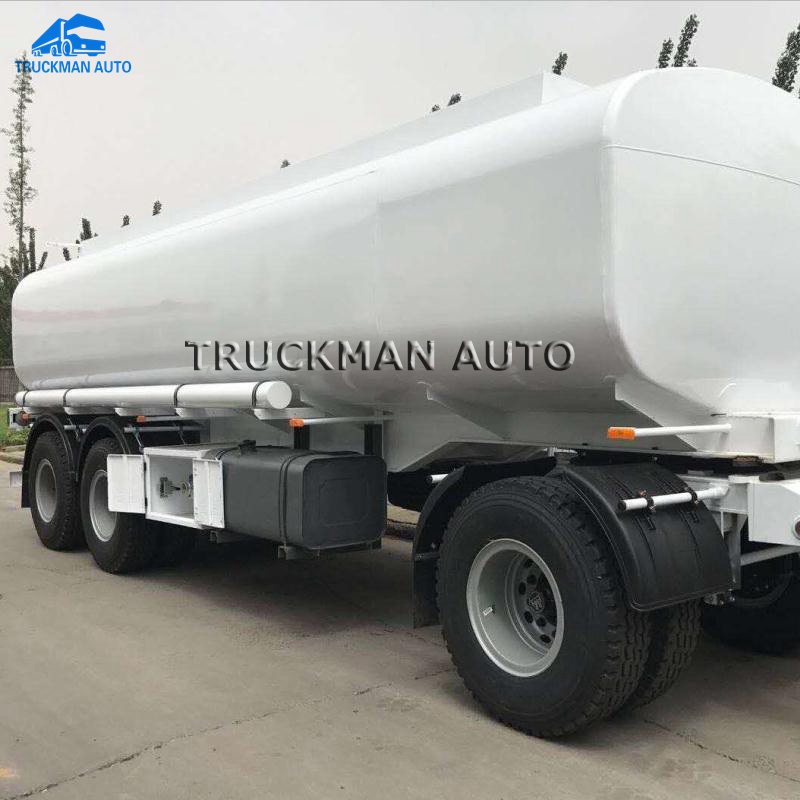

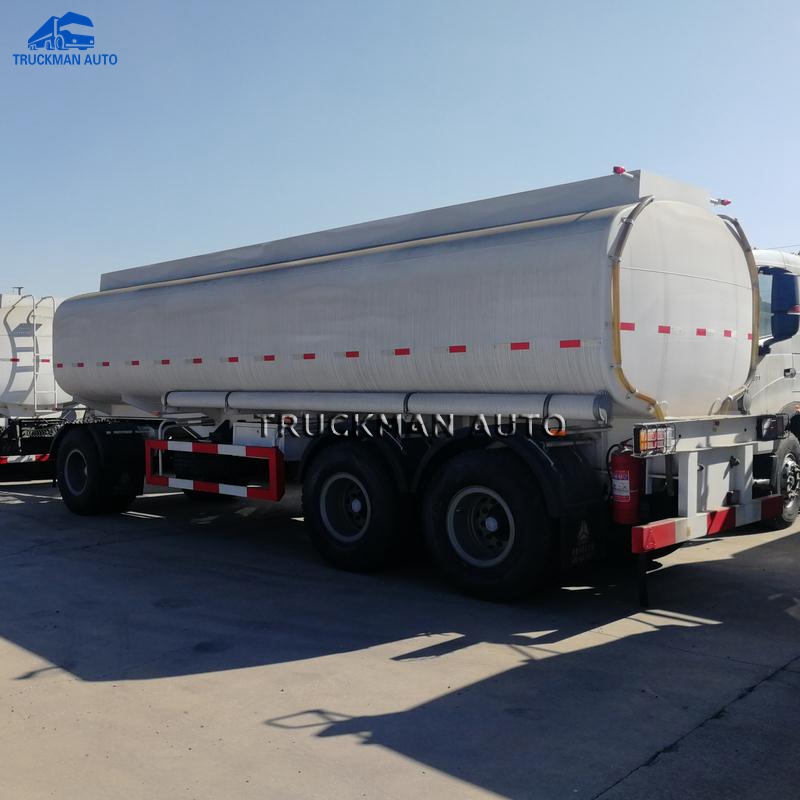

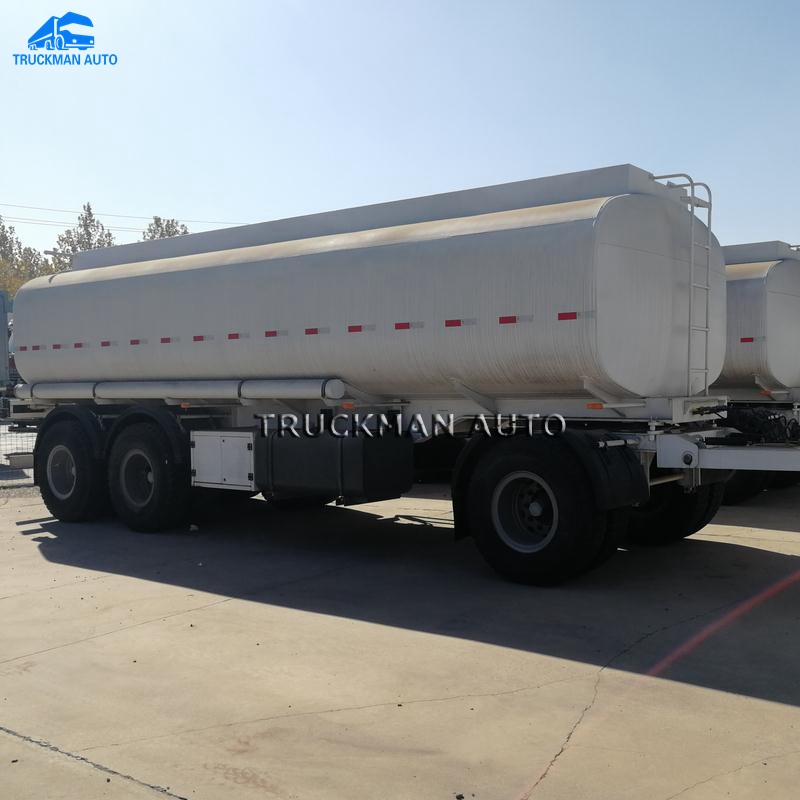

Fuel tank full trailer with 22000 liter tank body, the main parts use the FUWA axles, LINGLONG tire, and with the manhole.
Fuel tank full trailer with 22000 liter tank body, the main parts use the FUWA axles, LINGLONG tire,
and with the manhole. The tank body have 3 comdepartments for transport the different liquid, such
as oil, gasoline, diesel etc. Material adopt the high strength steel Q345B, automatic welding. The
delivery time also is quick, only 10 days. and supply the spare parts for the after sales service.
The Main Specification For Full Fuel Tank Trailer.
Dimension: 7500mm*2500mm*1575mm
Loading Capacity: 25-30 Tons
Axle: 13T, FUWA/BPM Brand
Rim: 9.00-22.5/8.00-20/8.5-20
Tire: 12.00R22.5, 315/80R22.5, 11.00R20,12.00R20 Brand can be Optional
Tank Body: 22000 Liters, with 3 comdepartments.
Suspension: Mechanical suspension (Germany Type or America Type)
Brake chamber: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks.
The Specification Only For Reference, We Could Accept The Custom Made.
