Low flatbed semi trailer could transport all kind of civil engineering equipment, such as roller, loader, excavator, bulldozer etc.
Low Flatbed Semi Trailer Main Advantage.
-. Use the high strength steel, with strong bearing capacity.
-. All cross beams are completely reinforced, full welding.
-. Meet BV, SGS, FORM E etc certificate request.
-. Heavy duty type suspension, axle, rim etc.
Low Flatbed Semi Trailer Main Specification.
Product Name: Low Flatbed Semi Trailer
Loading Weight: 60,000kg
Tare Weight: 10,500kg
Axle: 3 axle, 3x13 tons
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 12R22.5, 12 pcs, tubeless tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: Upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam.
Material: Q345, high strength steel.
Dimension: 13000x3000x3200mm.
The low flatbed semi trailer could design according to your request.

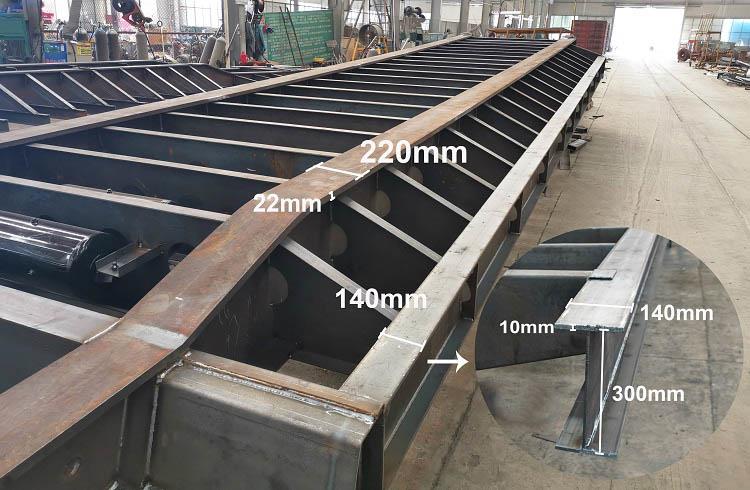

Thickness Of Low Flatbed Semi Trailer Chassis.
The trailer chassis thickness is designed according to the low flatbed semi trailer loading tons. And main structure of trailer will adopt the high strength steel, which with the high yield and tensile strength advantage, see picture
