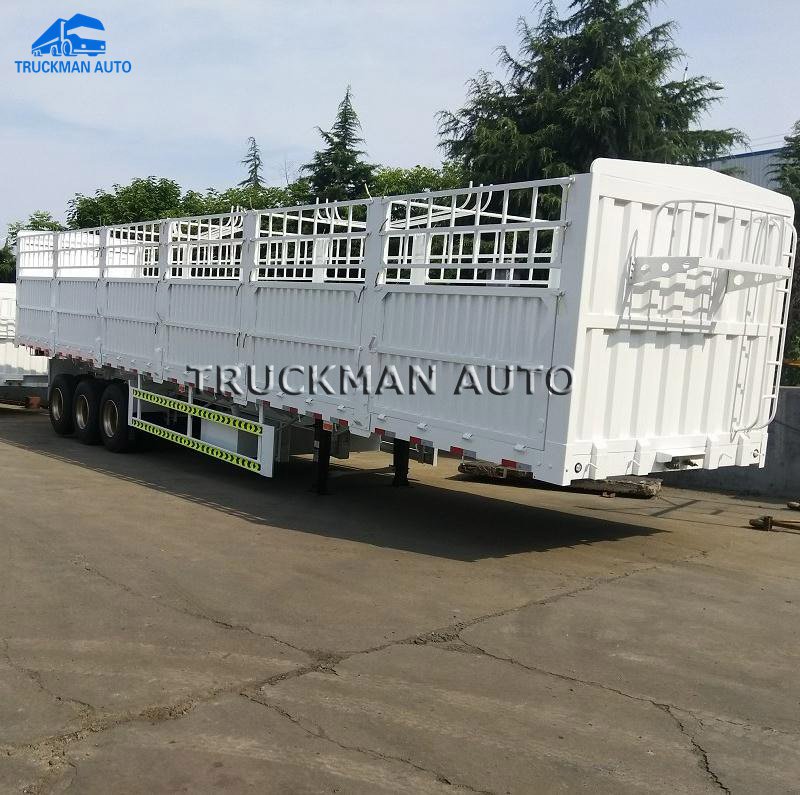

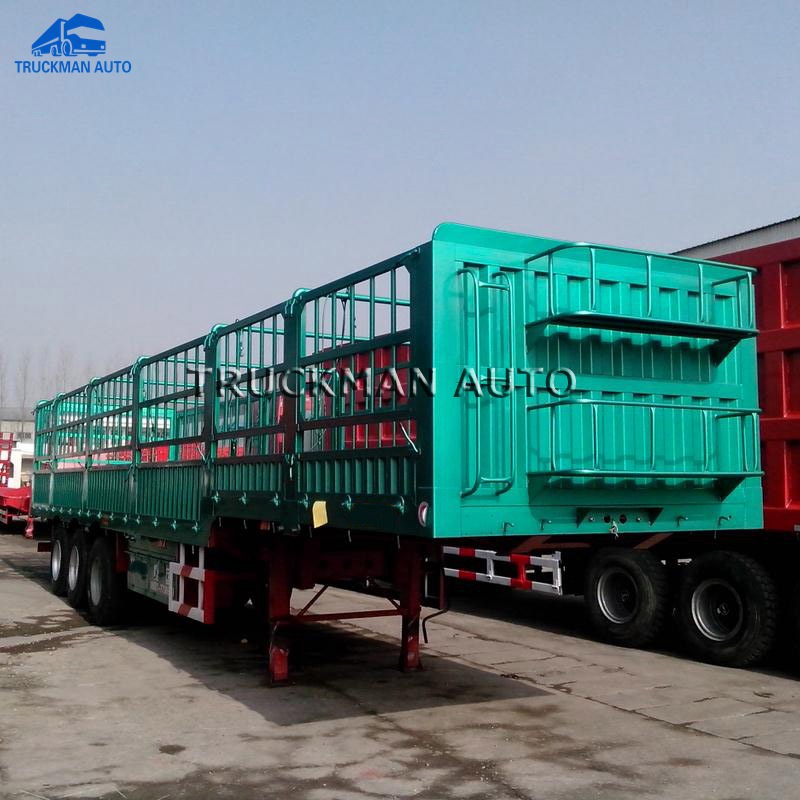

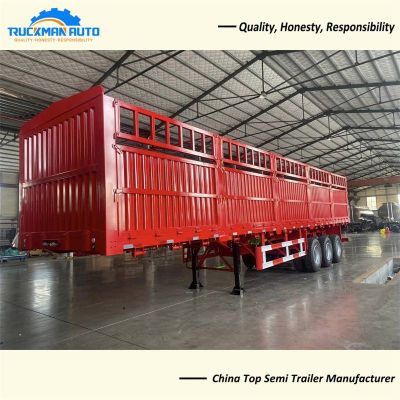

What is Fence Semi Trailer?
The semi-trailer with a fence structure design is used in the warehouse-type semi-trailer truck. It is mainly used for the transportation of agricultural and sideline products and other light foam goods.
| Model No. |
TMA360TWT125FT |
| Overall Size |
12600*2600*3200mm |
| Flatbed |
Mn Plate 3mm, leaves checked |
| Sidewall |
800+600mm, 1.5mm thickness,corrupated |
| Cable Holders |
20 Sets |
| Landing Gear |
JOST A400 |
| Traction Pin |
3.5" JOST brand |

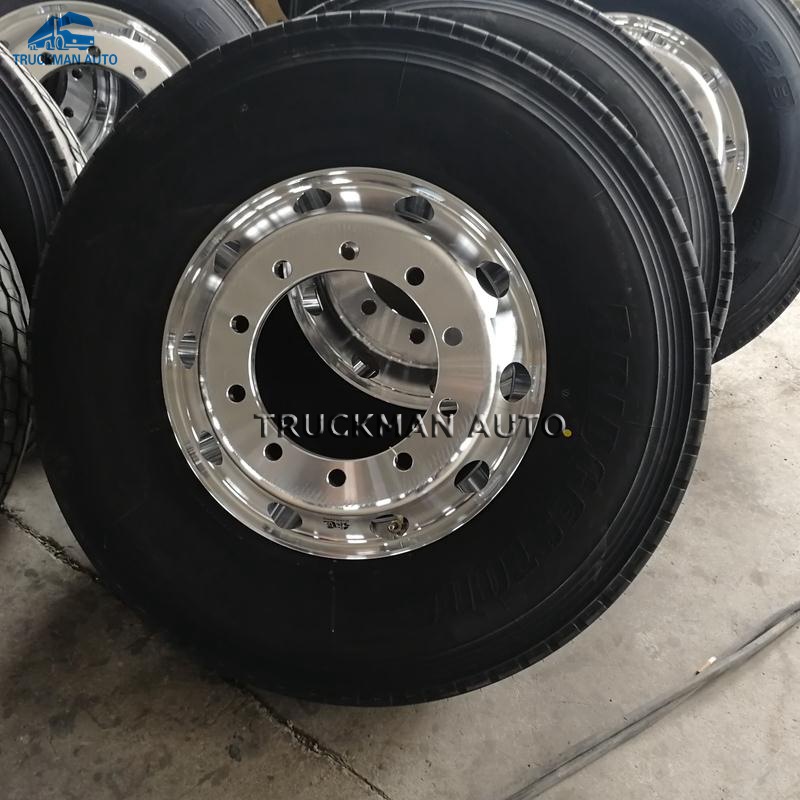

| Tires |
12R22.5,Linglog Brand |
| Lights |
24V LED lights |
| Others |
Tool box,spare tire carrier,patch |
- The design process of the vehicle model and fence structure is combined with the user's cargo category, and is reasonably designed to fully reduce the weight of the carriage under the load condition. The structure is simple and applicable and easy to disassemble, which reduces the investment cost for the user and creates more profit value.
- Frame: a space frame structure made by welding the longitudinal beams and the integral penetrating beams. It can balance the strength, rigidity and toughness of the frame, and has strong bearing capacity without permanent deformation.
- The series of warehouse grid semi-trailers are all through-beam structure, and the longitudinal beam adopts straight or gooseneck type. The web height is from 400 to 500. The longitudinal beam is welded by automatic submerged arc welding. The frame is shot blasted. The beam penetrates the longitudinal beam and is welded as a whole.

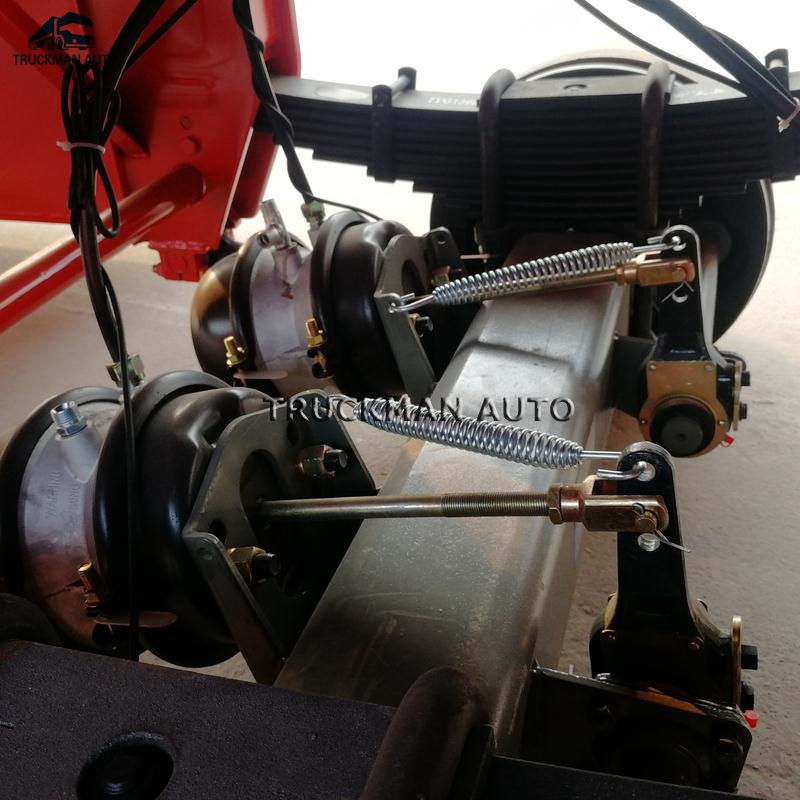

- Suspension system: The new suspension system is adopted, which has high strength and strong impact resistance; the axle load is balanced and the system rod angle is reasonably designed to reduce the friction slip distance between the tire and the ground during frequent bumps , Can effectively reduce tire wear, and at the same time can adjust the tie rod, can adjust the wheelbase, and effectively avoid the phenomenon of tire running-in.
