1.12months for main parts (engine, axle, body and beam, etc). 2. Technical Support by phone Whatsapp or email around the clock. 3. Lifelong Parts Supports. 4. Engineer available service oversea.

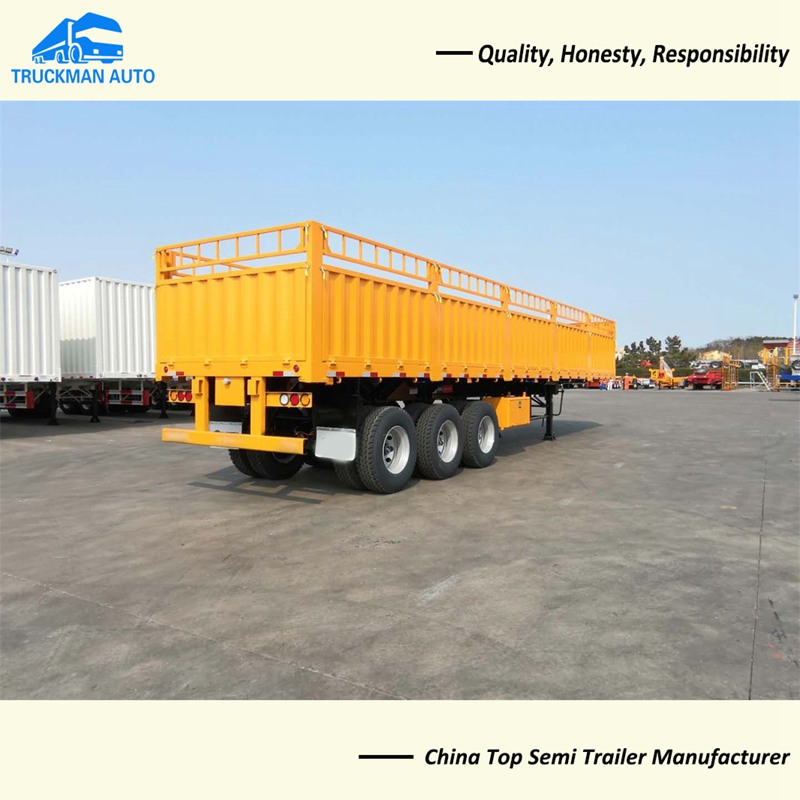

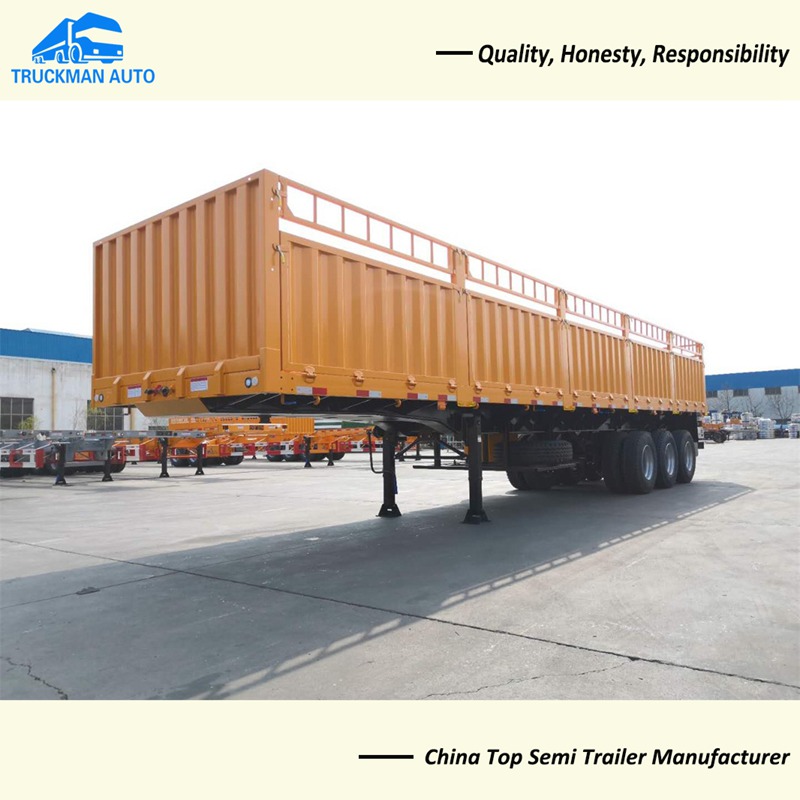

Fence cargo trailer can be used to transport many kinds of objects, from boxes to bulk cargo. Its side panel can be opened, and it is more convenient to unload cargo.
| Dimension (L*W*H) | 13000*2500 (fence height 1600 / 1800) |
| Tare Weight | 7.5t |
| Axle | 13T, 1-4 pcs, BPW or FUWA or ZY or Huajin Brand |
| Leaf Spring | 90*13-10, 6/8 sets, FUWA alxe Funiu alxe Taiyue axle etc. |
| Suspension system | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
| Main Beam | Material: Q 345 Carbon Steel. Beam height: 500 mm. Upper plate: 14 mm, Bottom Plate: 16 mm, Middle: 6/8 mm |
| Side Beam | 14#/16# channel steel (Q235) |
| Cross member | 8#/10# channel steel (Q235) |
| Platform | 3mm checker Plate or flatbed |
| Side wall height | 600mm/800mm/1000mm etc |
| Tire | 12R22.5-18, 12units |
| Landing Gear | Standard 28Ton, JOST or FUWA etc. |
| Brake system | WABCO available. 4 sets T30/30+2 sets T30 chamber; Two 40L tanks, ABS Optional |
| Electrical system | 1. Voltage:24V, LED lights 2. Tail light, brake light & reflector, side lamp etc. 3.Receotacle:7 ways (7 wire harness) |
Axle:
Famous Brand Axle Support
Trailer Durable and High Truck Attendance Rate
Chassis:
China Best Q345B-T700 support Stronger Trailer Skeleton
Tire:
Good Quality Tire support Trailer Running Safety&Smoothly
King Pin:
JOST Detachable Type support Durable and Fast&Easy Replace
Emergency Valve:
Fast Response,Low Failure support Safetly&Protect Tire Longer Time Use
Mode of transport: bulk cargo, ro-ro transport, container transport
We can arrange the most cost-effective transportation solution according to the number of semi-trailers required by customers.
