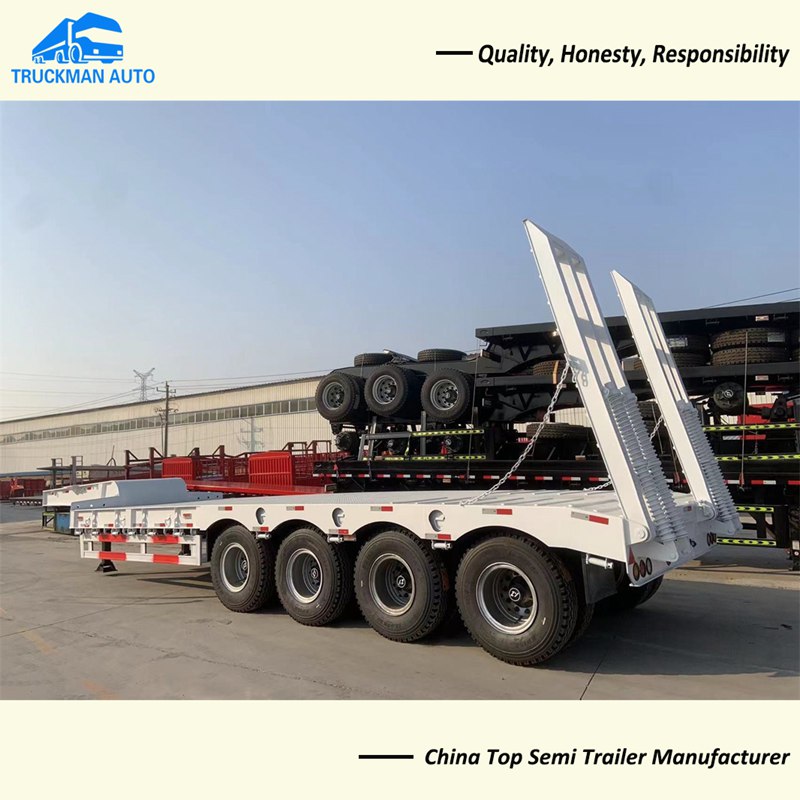

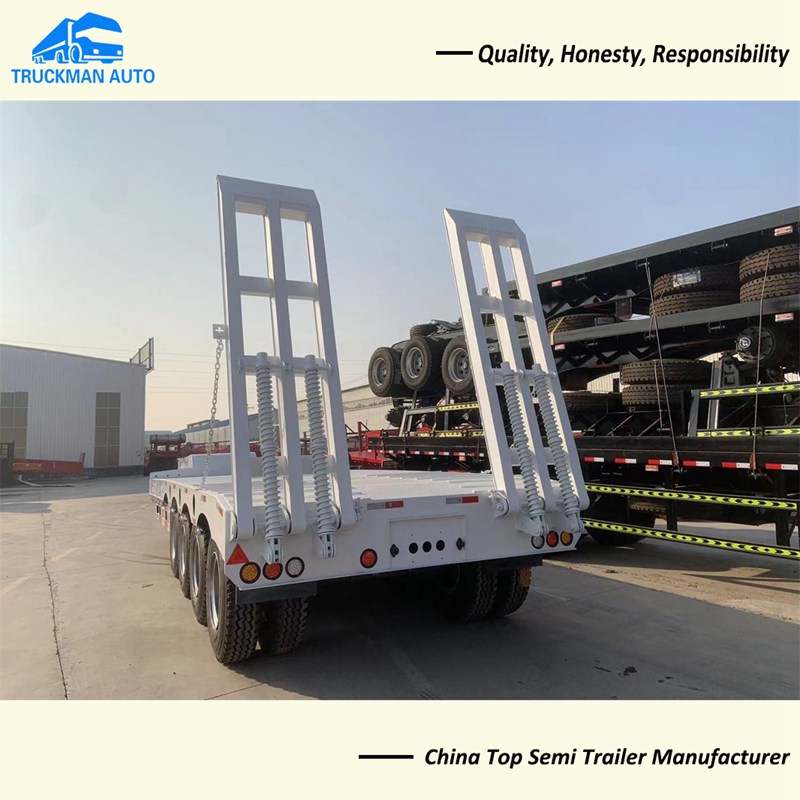

- Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.
- Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
- Anti-slip strip on tail and rear of platform to ensure loading safely.

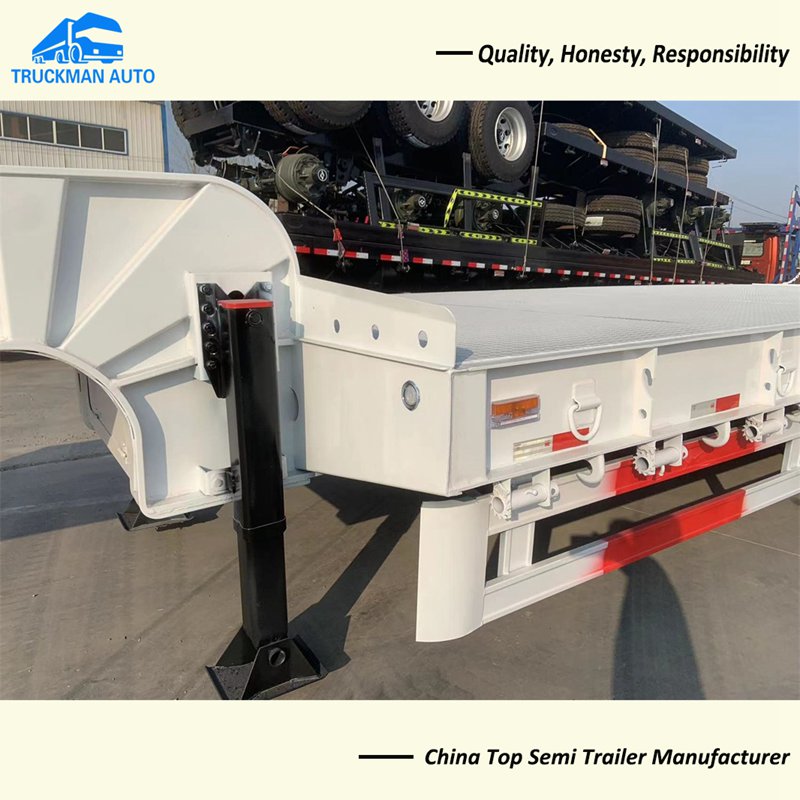

- Optional landing gear under tail to ensure trailer to be stable when loading.
- H-beam for side beam instead of channel steel.
|
Dimension
|
13m×3m×1.75m (Outside)
|
Payload
|
Max.80T
|
Tare weight
|
About 9.0T
|
Ramp
|
Mechanical ramp(Custom's Requirement)
|
Main beam
|
Q345B carbon steel “H” beam
|
Frame Floor
|
The thickness is 3mm pattern
|
Axle
|
FUWA / BPW brand
|
Landing Gear
|
JOST brand 28T lifting capacity
|
King Pin
|
2.00 or 3.5 inch bolt-in king pin
|
Suspension
|
Mechanical suspension
|
Leaf Spring
|
90mm(W)*16mm(T)*10Layer
|

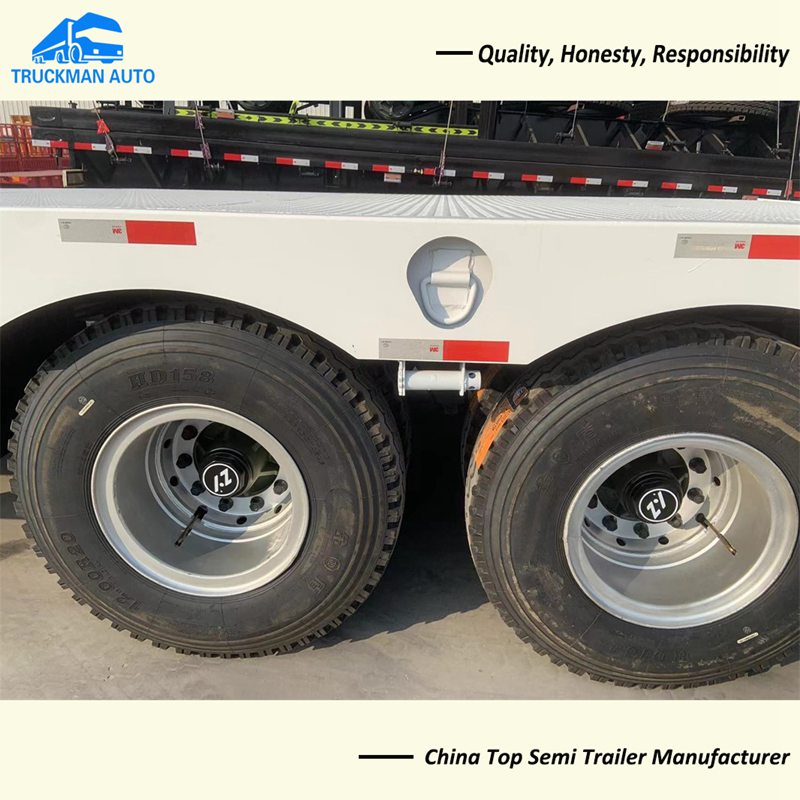

Tire
|
12R22.5, 13R22.5, 12.00R20, 315/80R22.5, 385/65R22.5 optional
|
Accessories
|
One standard tool box
|


The trailer will with nude and wax,shipped in bulk cargo ship ,flat deck or RO-RO
(1)Wax
Do wax spray process to against the trailer body suffer seawater corrosion during shipping.
(2)Package
Stable fixing with steel wire,to protect the trailer during shipping.
(3)Shipping
Reliable logistic service from famous freight supplier makes transport process safely
and promptly .
