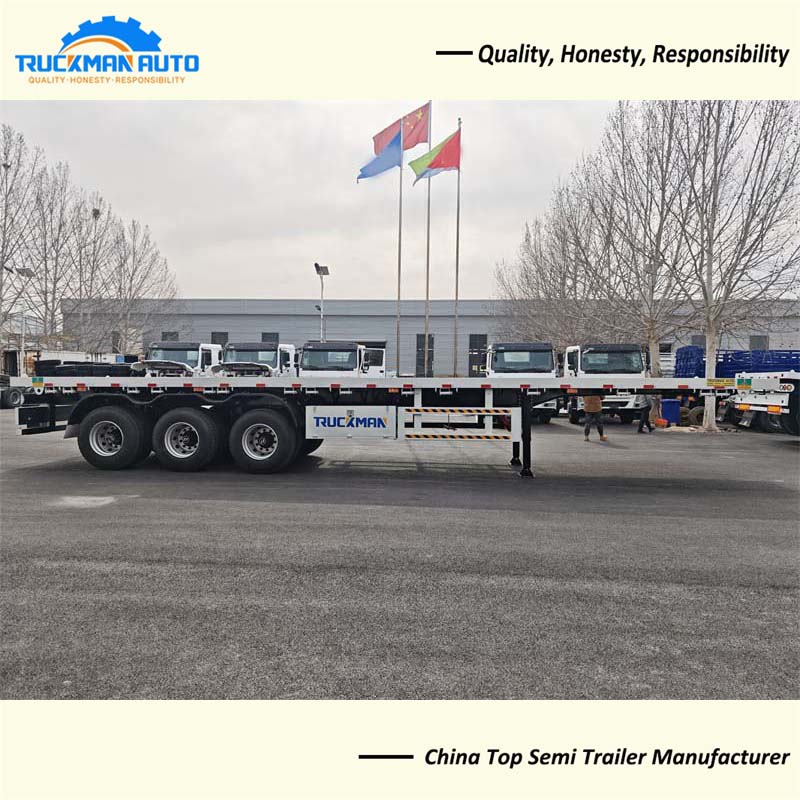

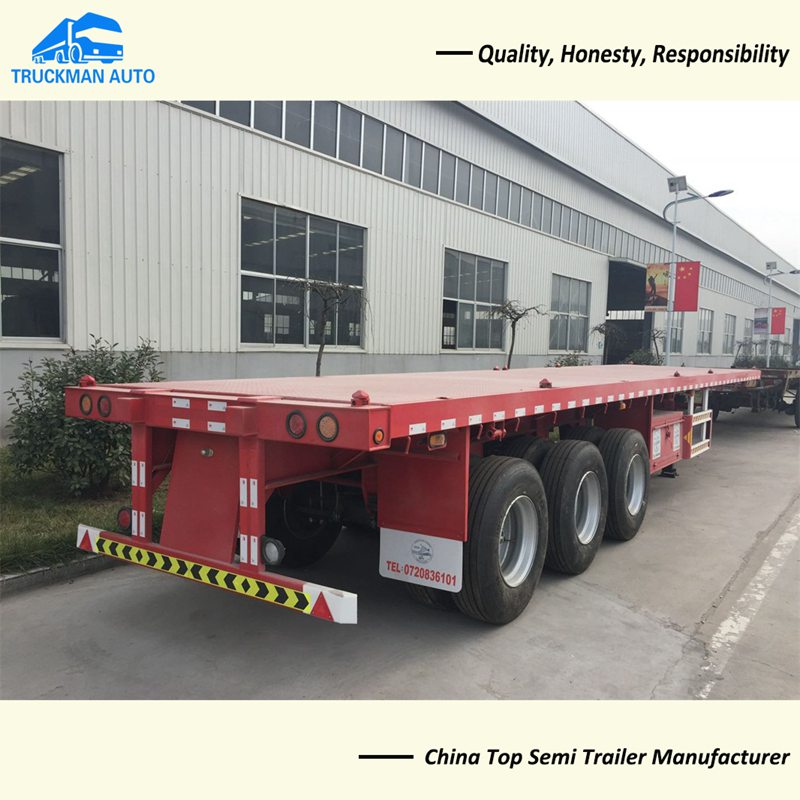

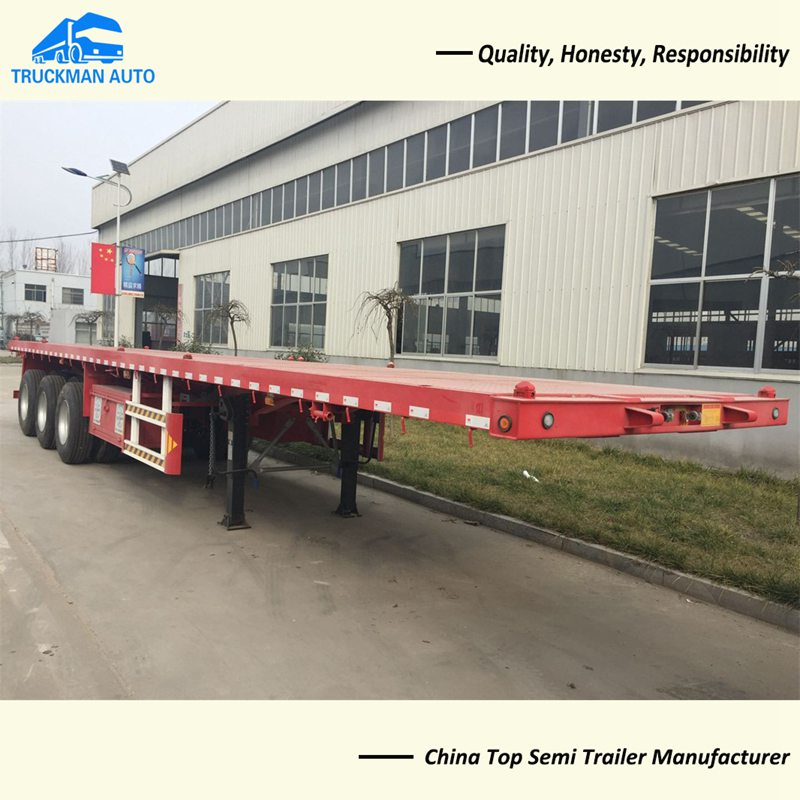

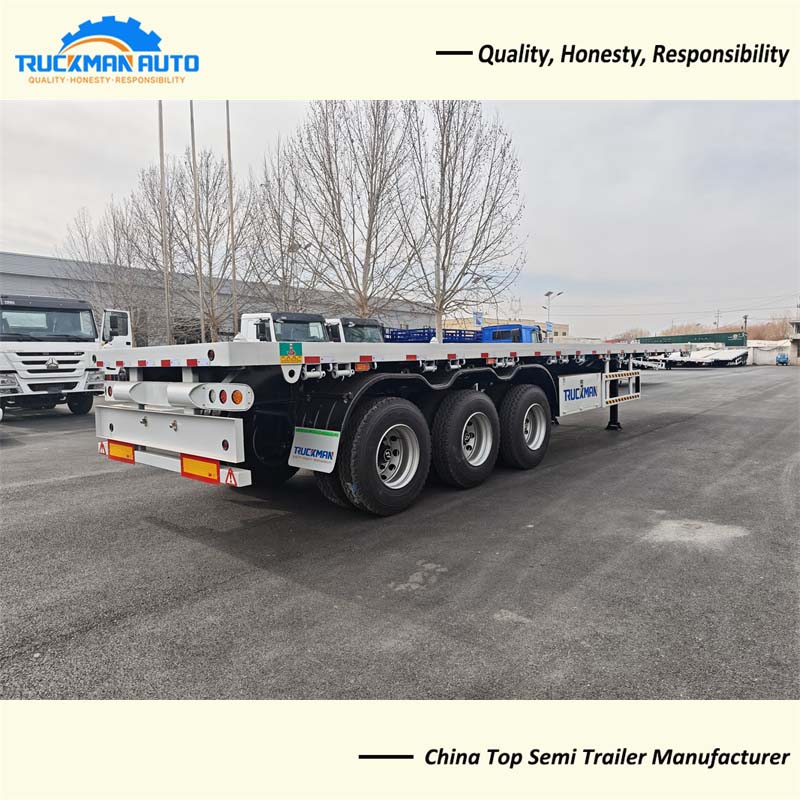

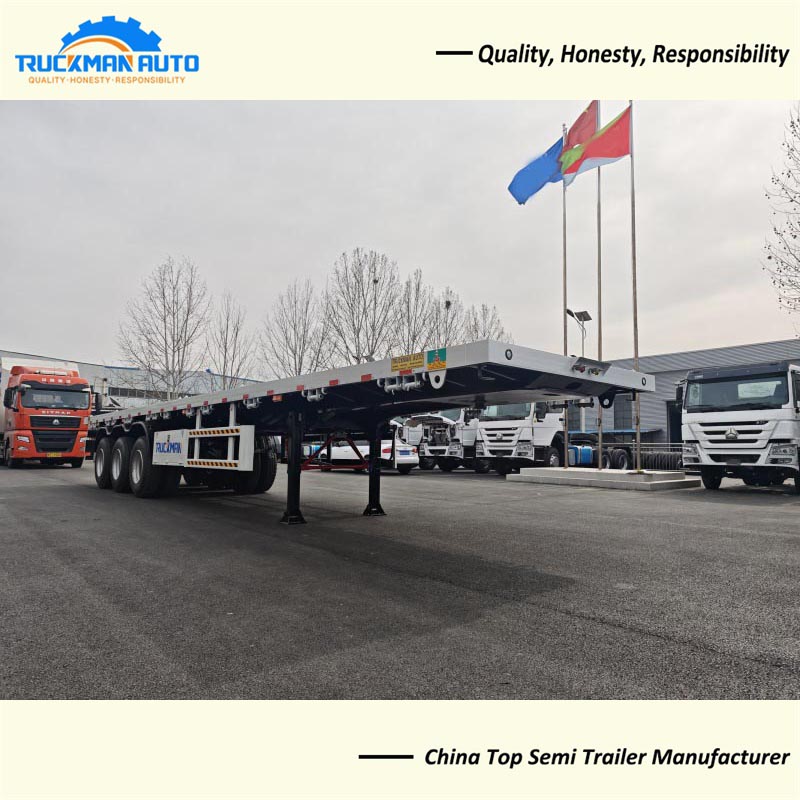

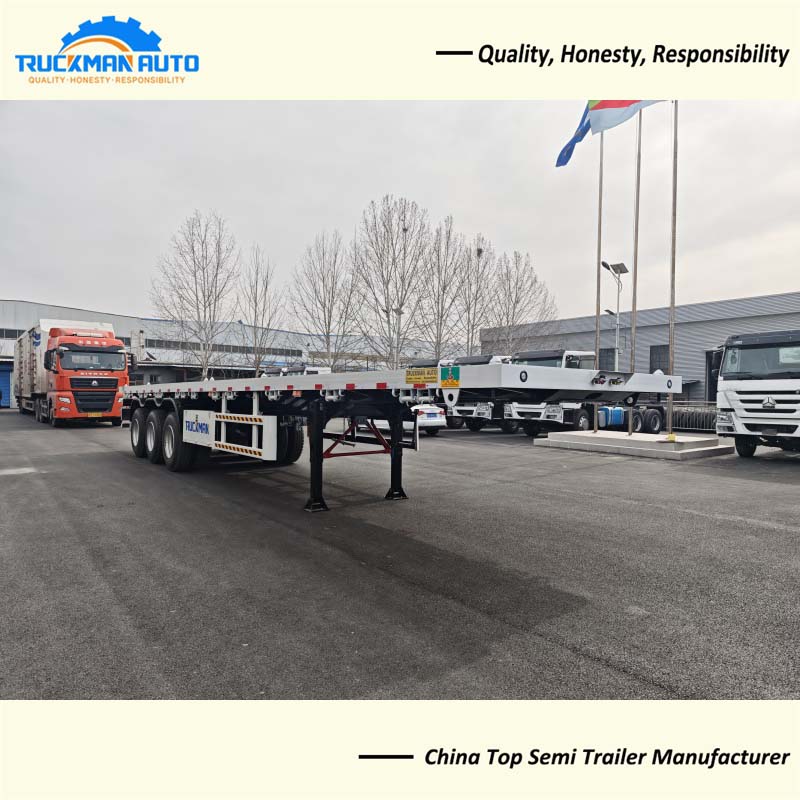

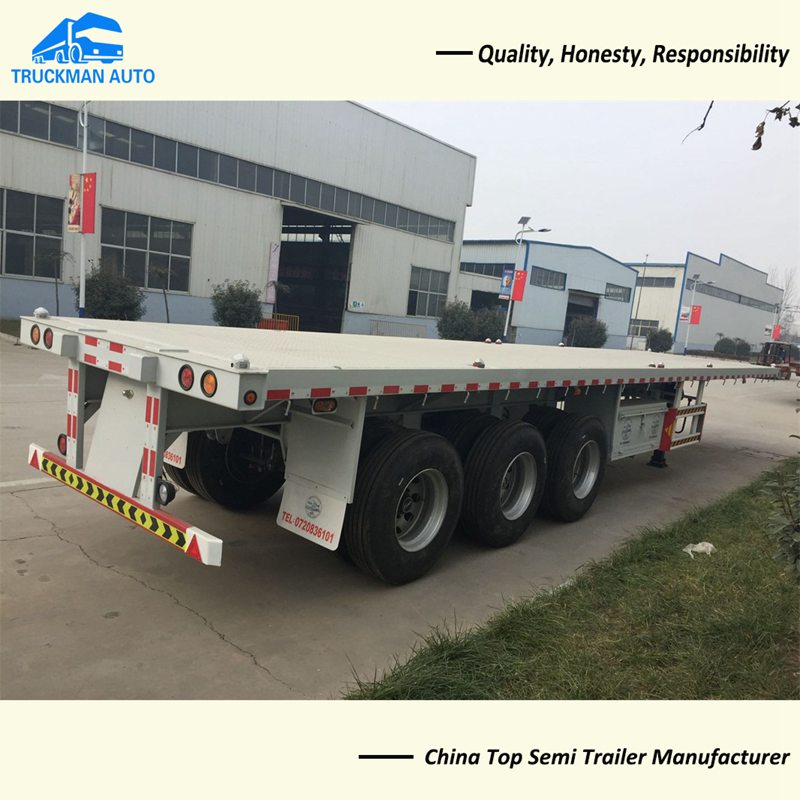

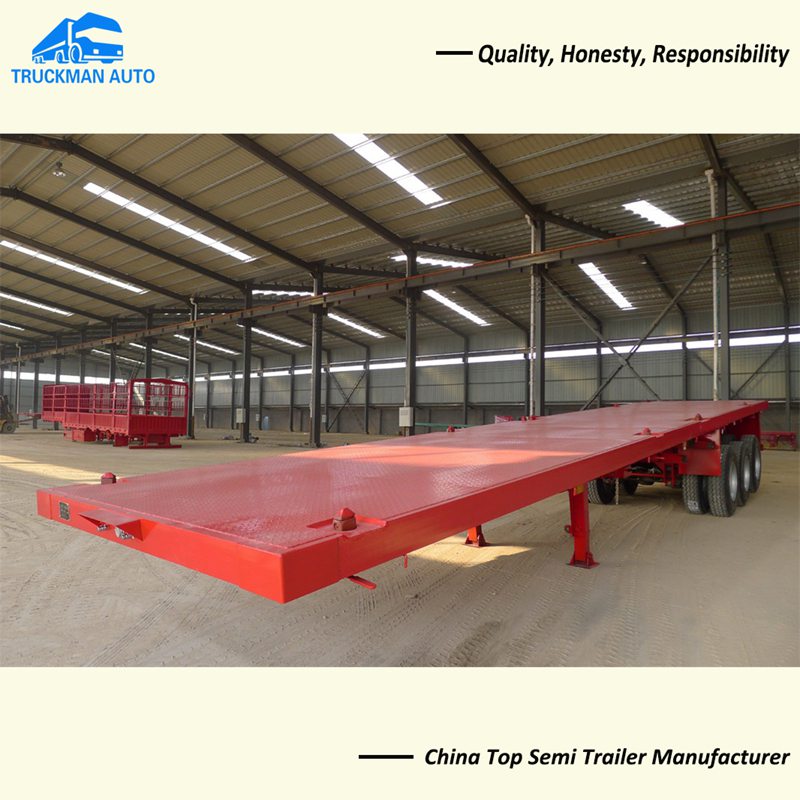

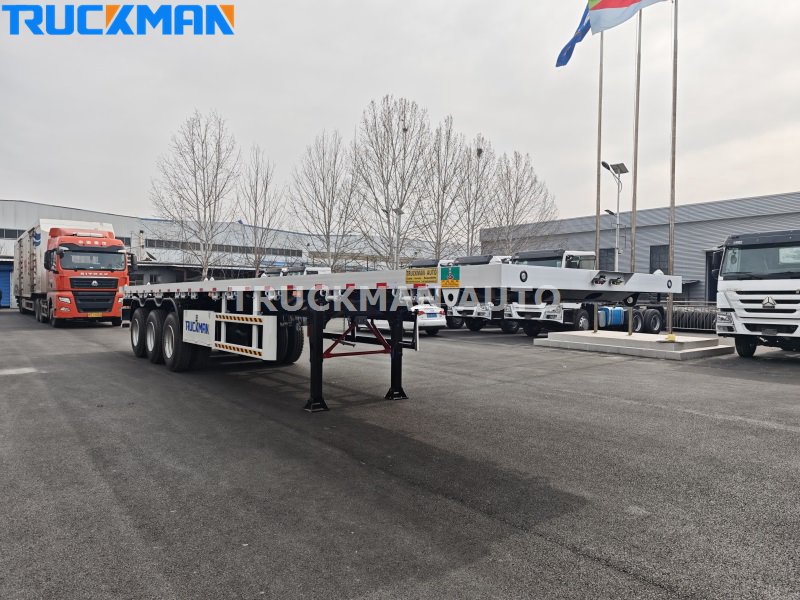

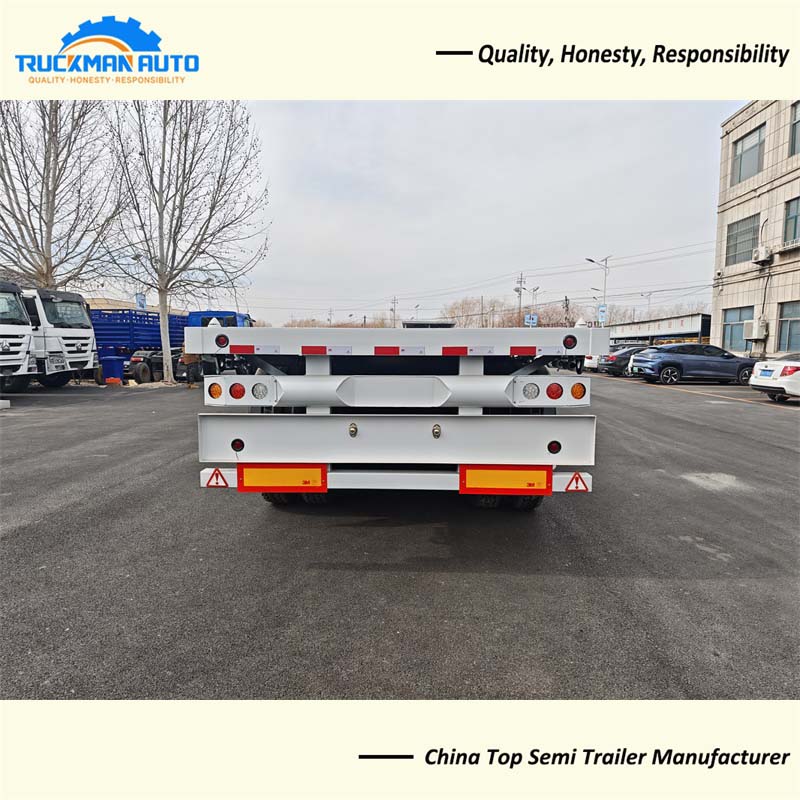

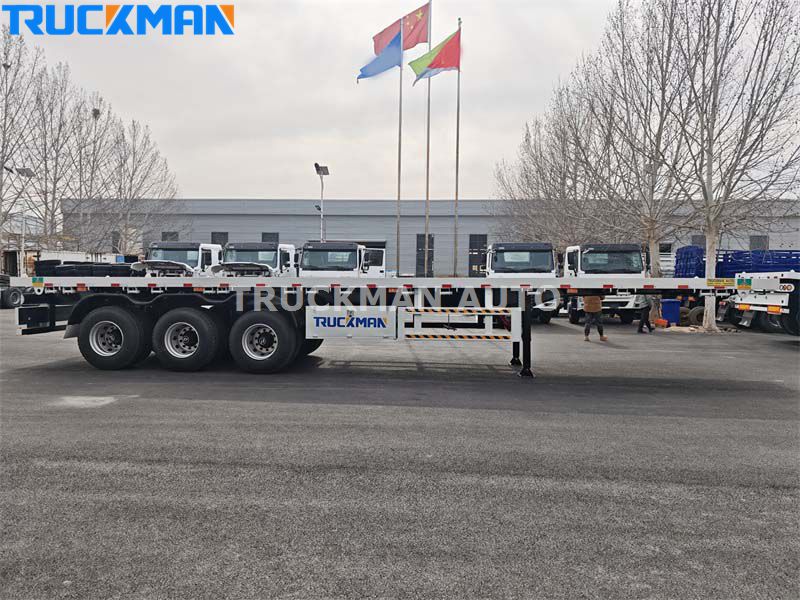

Container flatbed semi trailer mainly transport 20FT, 40FT and 45FT container
Container Flatbed Semi Trailer Advantage.
-. 1550mm low height, low centre of gravity, more safety.
-. Trailer adopt the polyurethane paint, more beautiful.
-. Trailer chassis more stronger, due to upgrade the leaf spring, suspension.
-. Adopt the high strength steel, make sure the stable and safety when transport at bad road condition.
Container Flatbed Semi Trailer Main Specification.
Product Name: container flatbed semi trailer
Loading Weight: 40,000kg
Tare Weight: 7,500kg
Axle: 3 axle, 3x13 tons
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 18mm thickness
Landing Gear: JOST, 28 tons.
Tire: 12R22.5, 12 pcs, tubeless tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: Upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam.
Material: Q345, high strength steel.
Dimension: 12500x2500x1550mm.
The container flatbed semi trailer could design according to your request.

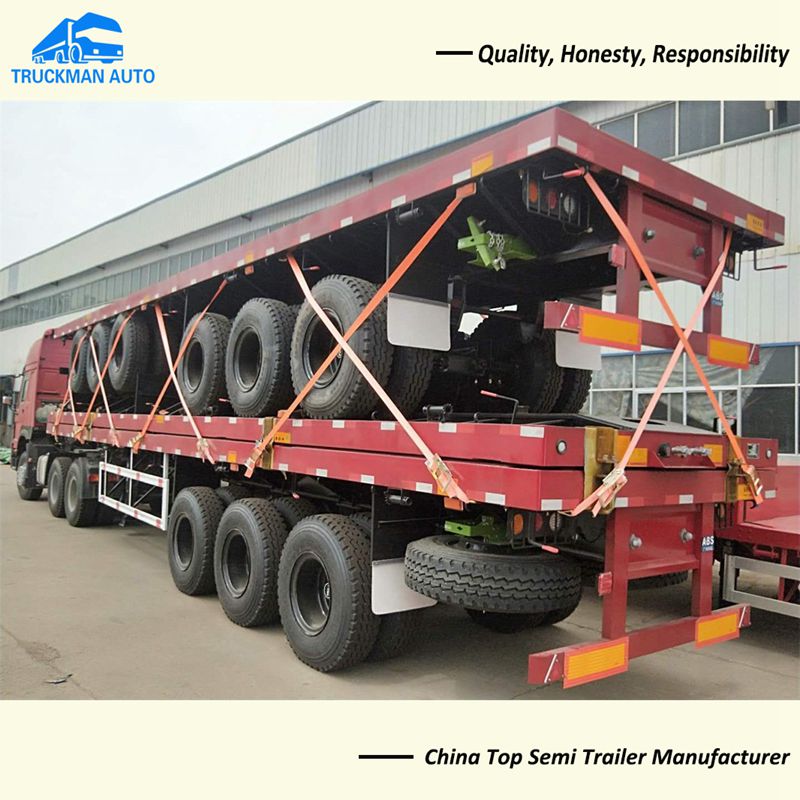

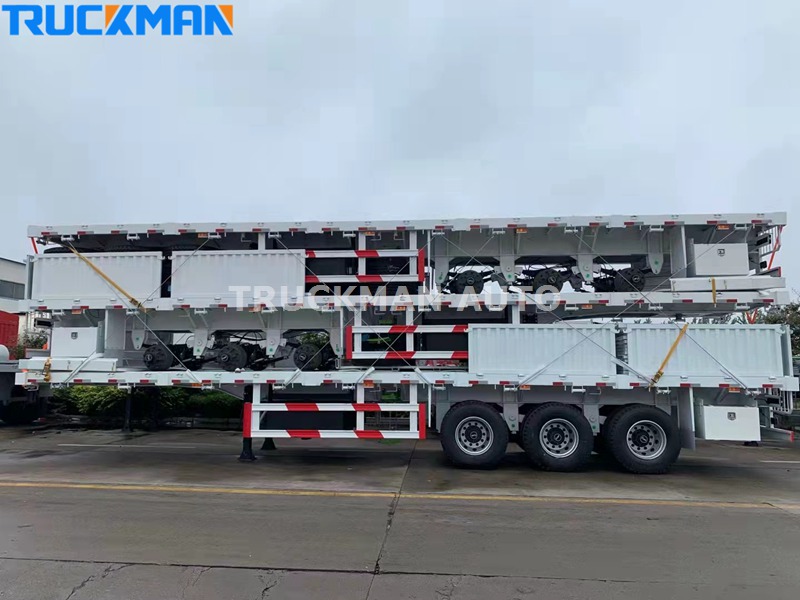

Container Flatbed Semi Trailer Shipment Picture.
Now the bulk cargo, ro-ro and flat rack container freight cost increased a lot, consider help customers save the freight cost, we put two pcs or three pcs container flatbed semi trailer make one group, reduce the total volume. And iron wire fix container chassis trailer.
