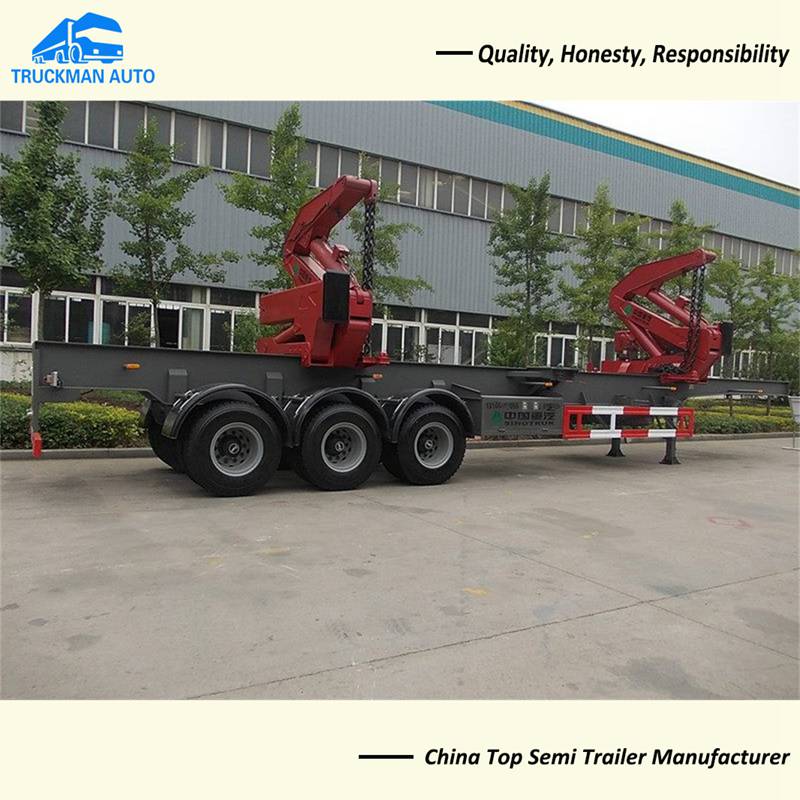

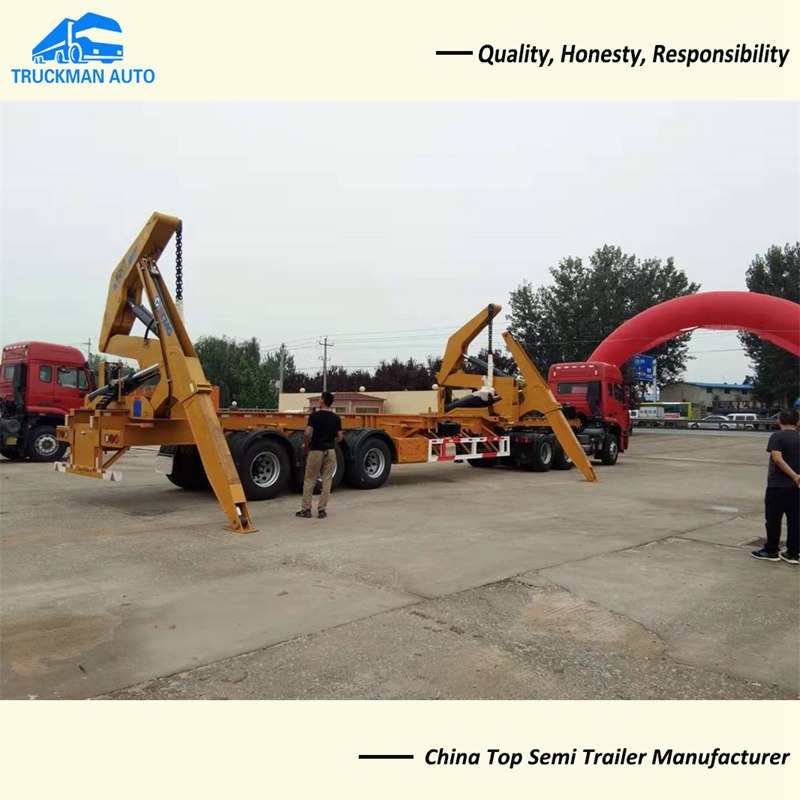

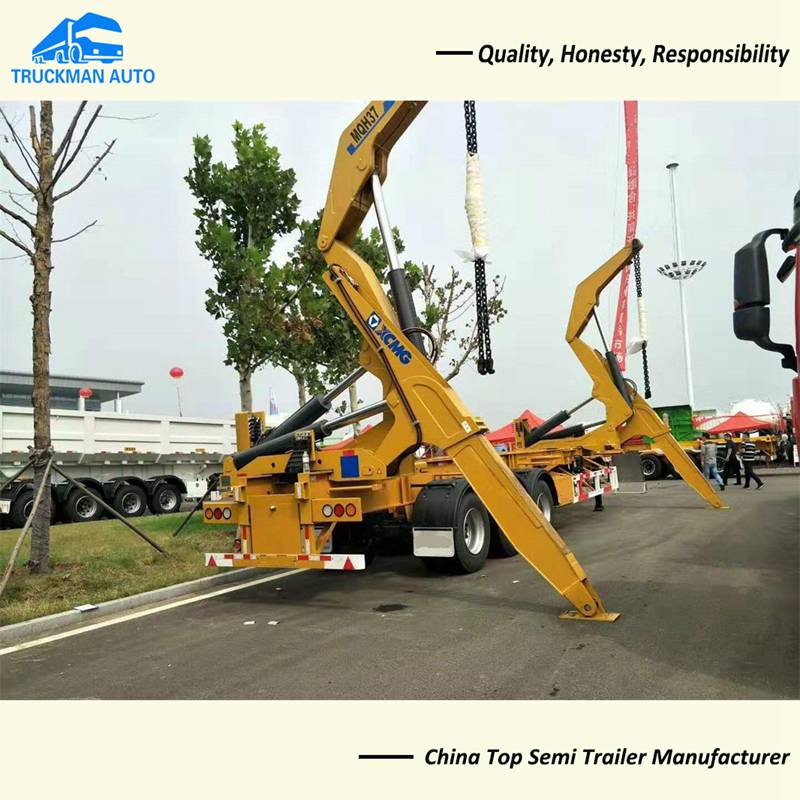

The semi trailer is used for lifting and carrying two 20 feet or one 40 feet container in port,station and freight yard,the trailer's hydraulic system is from PTO in tractor truck,it can be operated both wireless remote control or manuel operation.
| Specifications for 40/ 45 ft Container Trailer | ||
| Type | 3 Axle Chassis Container Semi-Trailer, 45 ft | |
| Dimensions | ||
| Length | 13,500 MM | |
| Width | 2,500 MM | |
| Height | 1,510 MM | |
| Front Overhang | 1,450 MM | |
| Wheelbase | 9,350 MM | |
| Rear overhang | 2,600 MM | |
| Tare weight | 6,500 ± 3% KG | |
| Main Chassis | FAB steel, 1-500 x 146 x 6 x 14 x 16 MM, Tensile strength: 50 Kg/ mm² | |
| Container lock | Twist lock, Qty: 10 sets | |
| Angle lock, Qty: 4 sets | ||
| King pin | JOST: KZ1010 (Bolt on type), 2 inch, Retention plate 2 sets, Cover plate | |
| Landing gear | FUWA, FW2819E00, Capacity: 80,000 Kg | |
| Side guard | Aluminium | |
| Mudguard | Plastic | |
| Axles | KH: FP2403, 10 Studs (Capacity: 13,000 Kg) Qty: 3 pcs | |
| Suspension | Over slung leaf spring, 7 layers for 3 axle | |
| Disk wheel | Steel rim: 8.25 R 22.5, Qty: 13 pcs | |
| Tyre | 11R 22.5 (Tubeless) Qty: 13 pcs Brand: Double coin (RR202) | |
| Brake system | Dual lines pneumatic brake system | |
| Emergency relay valve, excluded if install ABS, EBS | ||
| Philip glad hand | ||
| Slack adjuster | ||
| Service brake system, Type 30, Qty: 2 pcs | ||
| Spring brake system, Type: 30/30, Qty: 4 pcs | ||
| ( ) ABS: 4S/2M ( ) EBS: 4S/2M | ||
| Air tank | 40 Litre, 2 pcs, Need one more tank for air suspension | |
| 24 V Electric system | ||
| Electrical and Lighting system | Install lighting system as per standard of land transport department | |
| Philips 7 ways socket | ||
| Reverse alarm: 1 set | ||
| All lamps are LED | ||
| Painting | Surface clean by sand blasting, Primer (Top coating paint), Colour code: | |
| Stricker | UNECE R104, Reflected stricker following to UNEE R104 (Thailand regulation. | |
| Reflected plate as Thailand regulation | ||
| Standard equipment | Plastic mud flap, 2 pcs | |
| Spare tyre bracket | ||
| Tool box: 1.0m. Qty: 1 pc | ||
| Optional equipment | Hubodometer: Stemco | |
| Others (To mention) | ||
