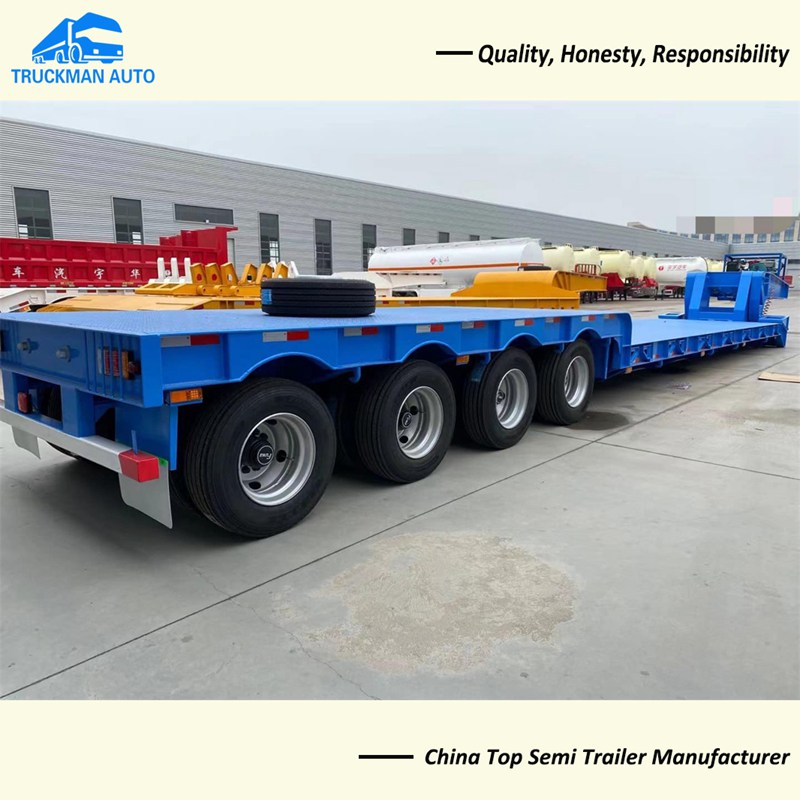

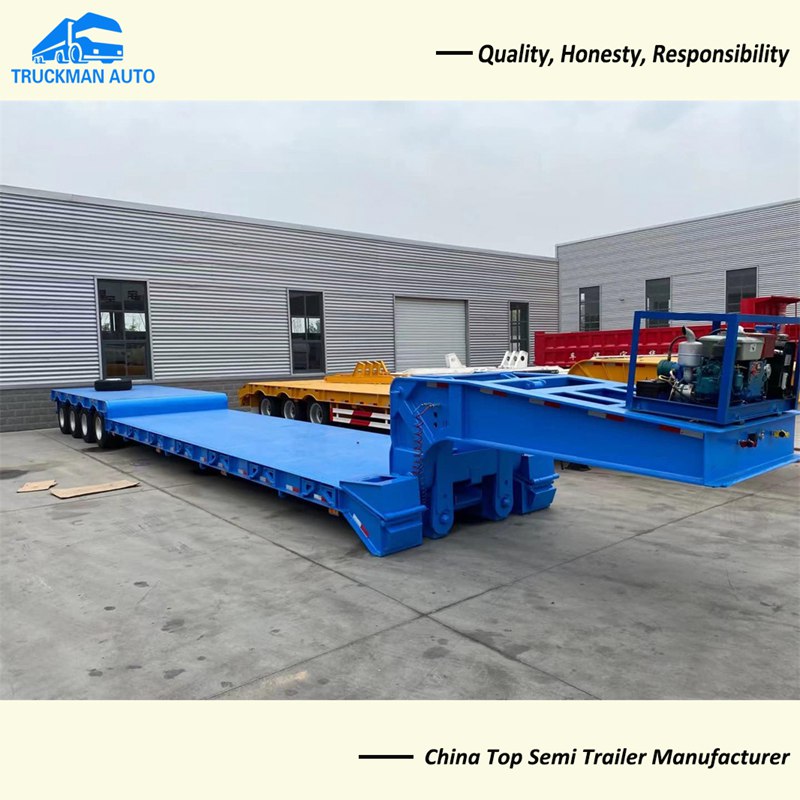

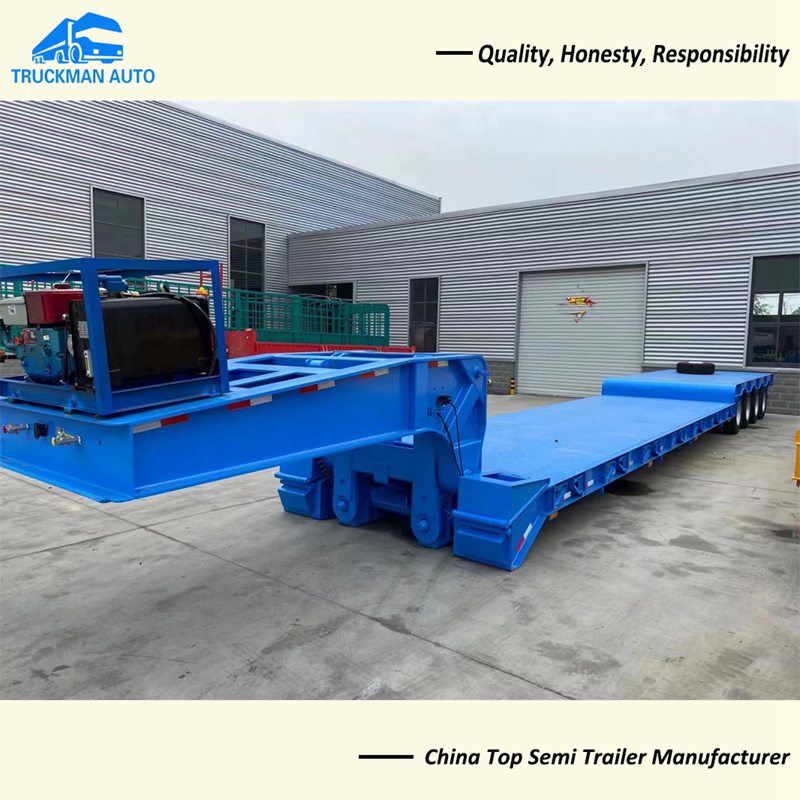

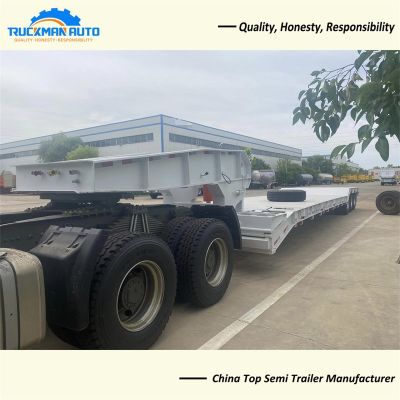

Detachable Hydraulic Gooseneck 4 Axles lowboy Semi Trailer

Product ID : TMA470TO135LBT

Product Attributes :

1. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.

2. Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.

3. Anti-slip strip on tail and rear of platform to ensure loading safely.

4. Optional landing gear under tail to ensure trailer to be stable when loading.

5. H-beam for side beam instead of channel steel.

Product Description

Advanced manufacturing technology Laser cutting, robot automatic welding, reliable quality 2. Advanced painting techniques KTL electrophoresis + powder spraying, instead of the traditional painting process, has a good anti-corrosion effect, long service life. 3. Assembly structure The frame parts adopt assembly structure, which is easy to replace and maintain, and reduce the maintenance cost. 4. Custom design There are many types of low chassis semitrailers available: unloaded, exposed tire design, single tire, twin tire, back or front ramp to meet the different needs of customers. 5. Warranty Main beam: 2 years 6. Global semi-trailer accessories brands such as BPW,WABCO,JOST and Micheli

Dimensions	135003000(700mm-1200mm) (According to customer demand)
Axle number	Four
Axle specs	FUWA ,ZY,CIMC or BPW Brand
Suspension	Mechanical supension (American or German type)
Rim	6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20
King Pin	JOST 2" or 3.5" traction pin
Support legs	JOST, FUWA or JOST brand 28T
Wheelbase	7480+1310+1310mm
Steel Spring	10/10/10, 12/12/12 pieces per axle
Ladder	Manual or hydraulic automatic
Electrical system	24V, 7 pin socket, One set 7-core standard Cable
Tire	8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20
Number of Tire	8 or 12 or 16 pieces
Spare Tire Carriers	2 pieces
Brake Chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks
The material of Main beam	Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm;
	Material is Q345 Carbon Steel.
	Side beam 16mm-25mm channel steel (Material is Q235 carbon steel)
	Platform plate 5/6/7 mm Diamond Plate
Lights	Tail lamp with turn signal, brake light & reflector, side lamp etc
Tool box	1 sets(waterproof type)
Spare tire carrier	1 sets(Patent type)
Color and logo	According to customer demand
Painting	Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint
Packing	Polish with wax before shipping

 Jinan Truckman Automobile Co.,Ltd is one of the most professional trailer manufactures in China. Main Products are Cement Bulker, Tanker, Tipping, Cargo Trailer, Port Trailer, Gas Tanker, wheel loader, etc, 9 series 100+ models vehicle and mechanical.

TRUCKMAN will try our best to support our cooperators, building a common future!
