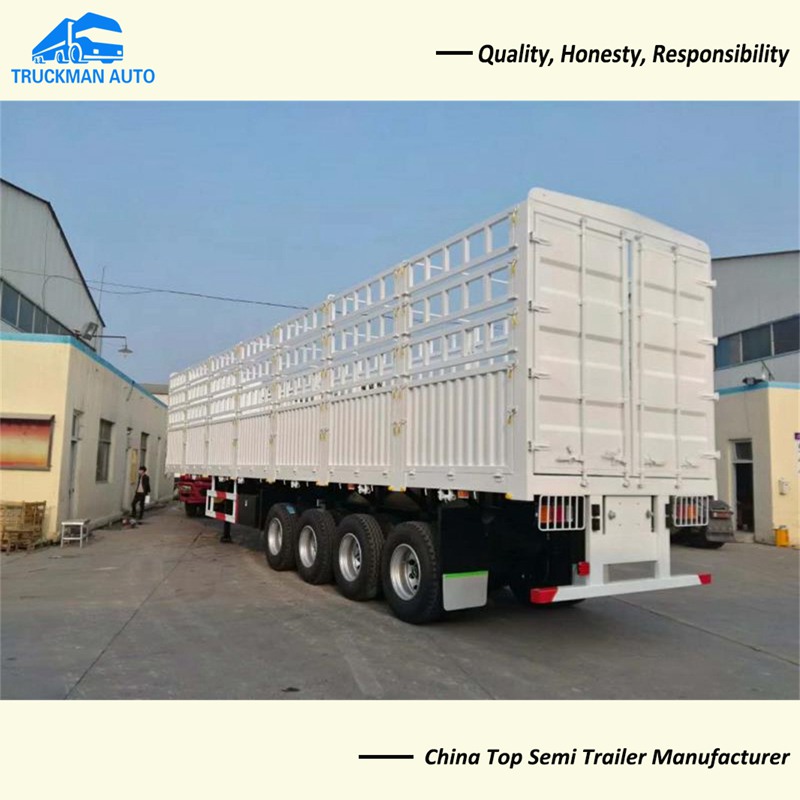

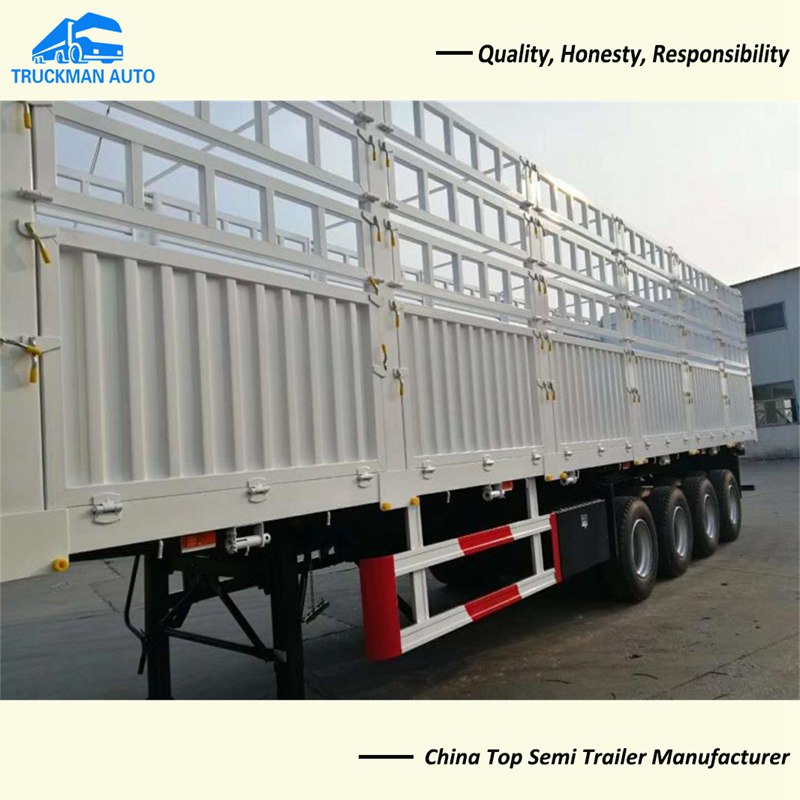

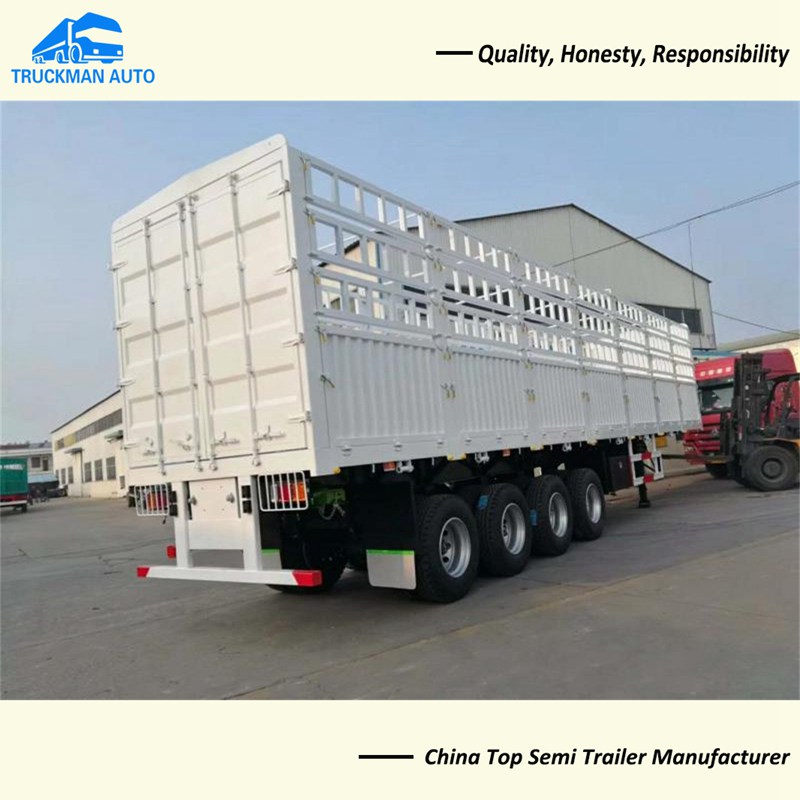

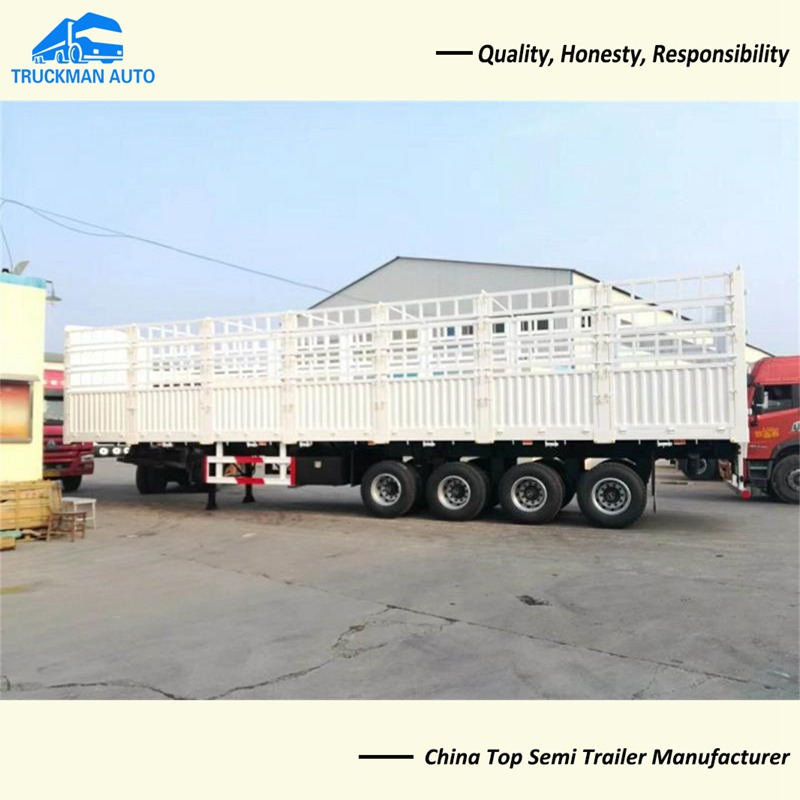

4 axle fence cargo trailer transport all kind cargoes, such as fruit, crops etc
4 axle fence cargo trailer mainly used for the bulk cargoes, with the height 800+600+600mm, the fence would removable. And add 12 pcs container lock could transport all kind of model container. Also side wall thickness reach to 1.5mm or more, adopt the automatic welding for long service time.
4 Axle Fence Cargo Trailer Main Specification.
Product Name: 4 Axle Fence Cargo Trailer
Loading Capacity: 60,000kg
Tare Weight: 10,500kg
Axle: 4 axle, 4x13,000kg
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx8sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 12.00R20 and 315/80R22.5, 16 pcs tire.
Brake System: WABCO brand, ABS and 8 pcs brake chamber.
Thickness Of Frame: upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam.
Cargo Box: 12300x2300x800+600+600mm, bottom 3mm, side 1.5mm,
Dimension: 12500x2500x3800mm.
The 4 axle fence cargo trailer could design according to your request.

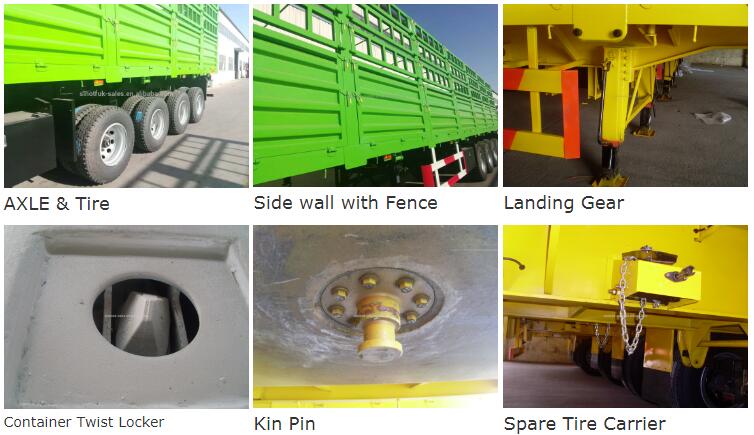

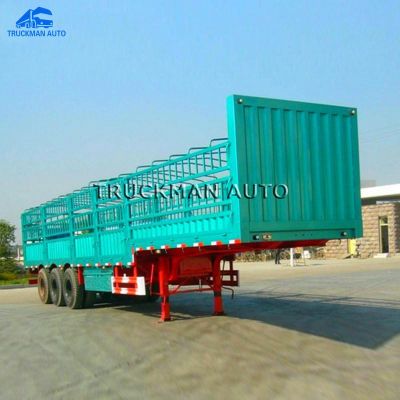

4 Axle Fence Cargo Trailer Detail Picture.
4 axle fence cargo trailer main spare parts work with famous brand factory, such as LINGLONG or TRIANGLE brand tire, WABCO brand brake system etc. Confirm the long service time.
