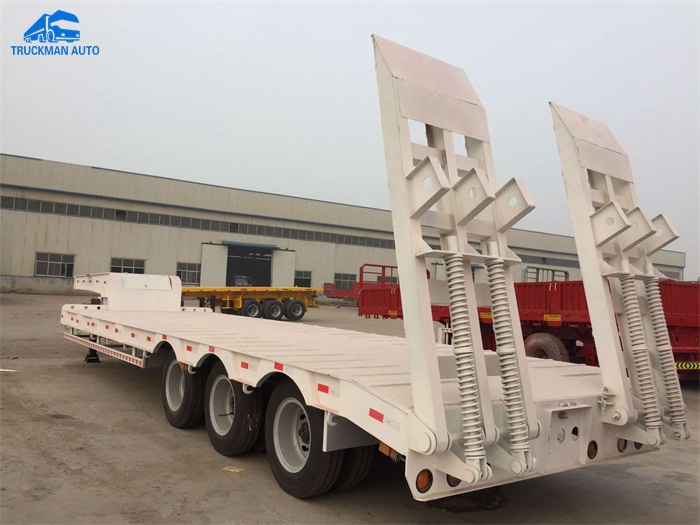

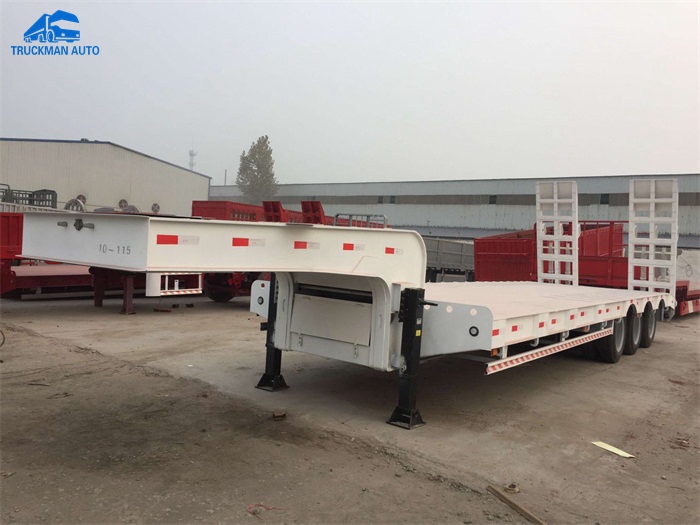

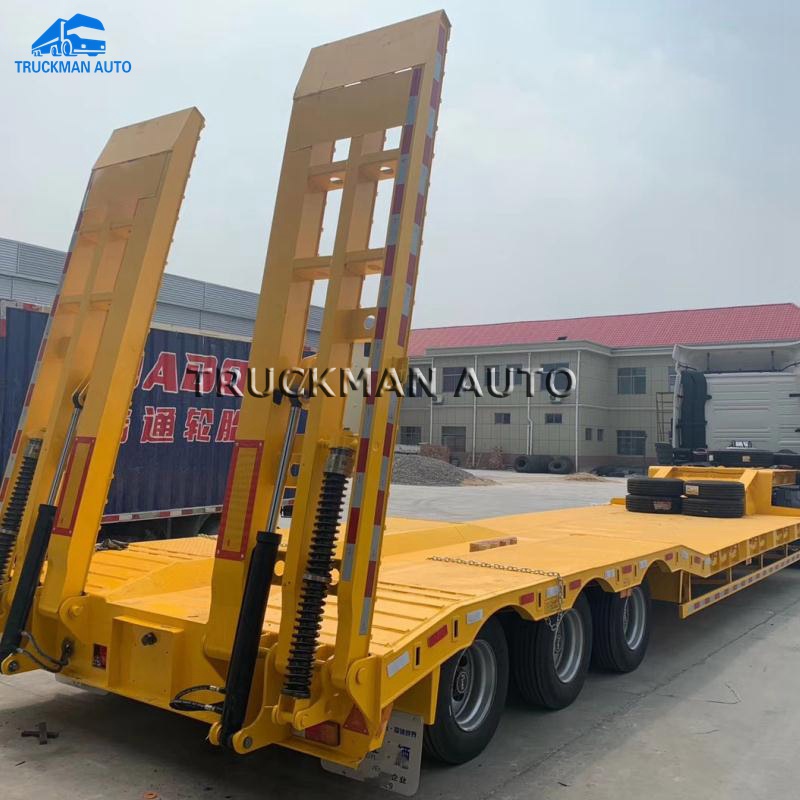

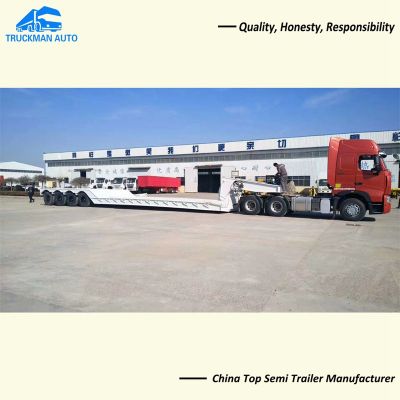

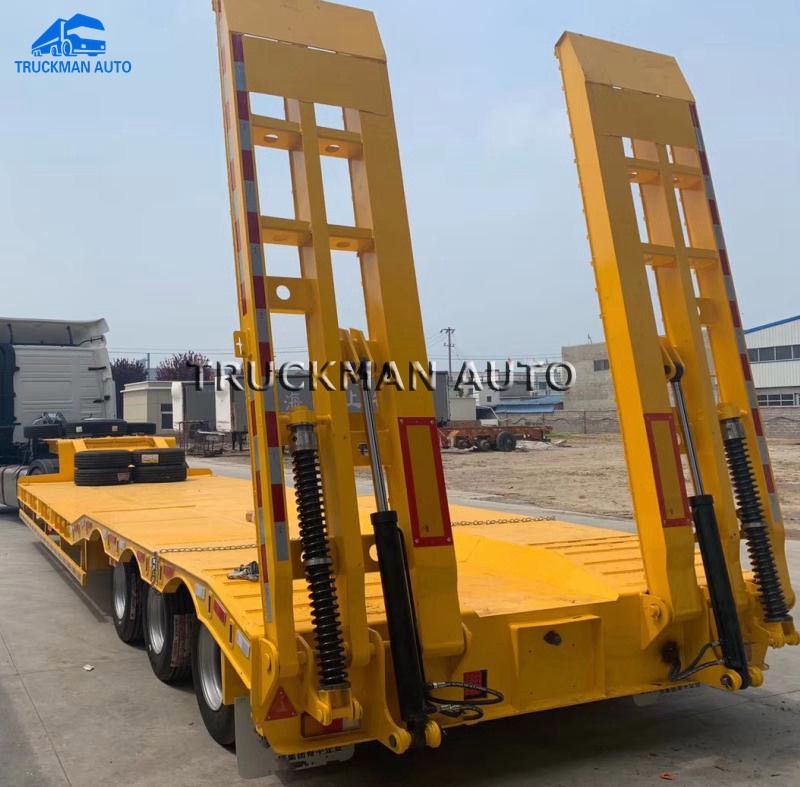

Low bed semi trailer is used for the heavy machinery transport, meet all kind of work condtion request and with durable chassis.
-1. Flat Bed Semi Trailer Main Specification.
With the 70 tons loading capacity, the chassis is very stronger.
The axles optional from 2 axles to 10 axles.
WABCO brand brake valve, and 6 pcs big brake chamber.
JOST support leg, 28 tons double operating speed.
-2. Main Specification For The Flat Bed Semi Trailer.
Loading Capacity: 70 Tons
Main Beam Spec.: Q345 Steel, Height: 500mm, upper palte is 16mm, middle is 10mm, side is 18mm.
Suspension: mechanical suspension
Leaf Spring: 120mmx16mmx10pcs

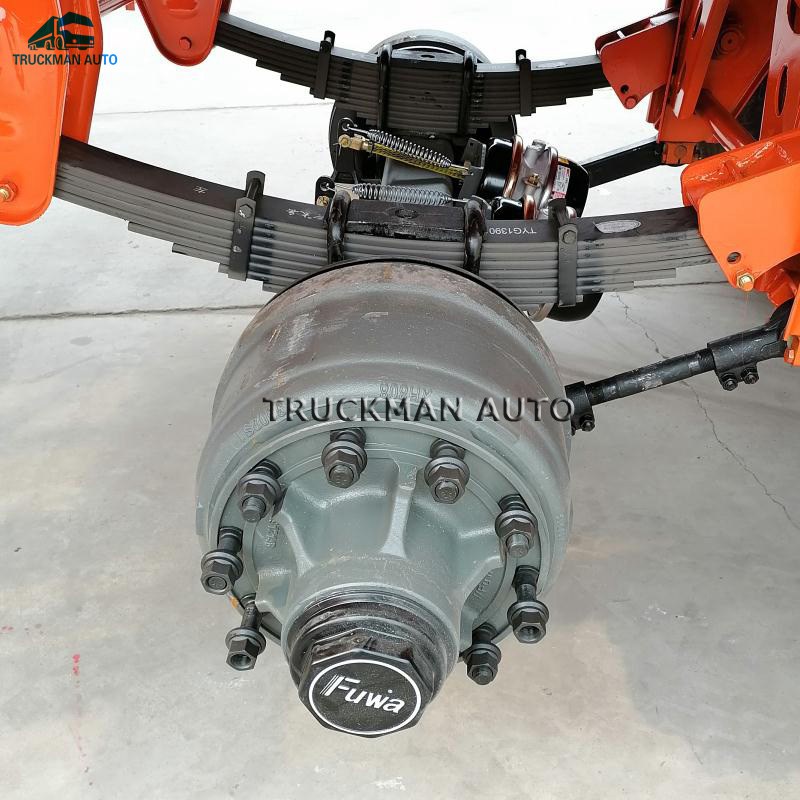

Axle Spec: 3x16 tons, FUWA
King Pin: 3.5"(90mm) JOST Brand
Tire: 315/80R22.5, 12.00R20, LINGLONG brand.
Brake Chamber: 6 sets

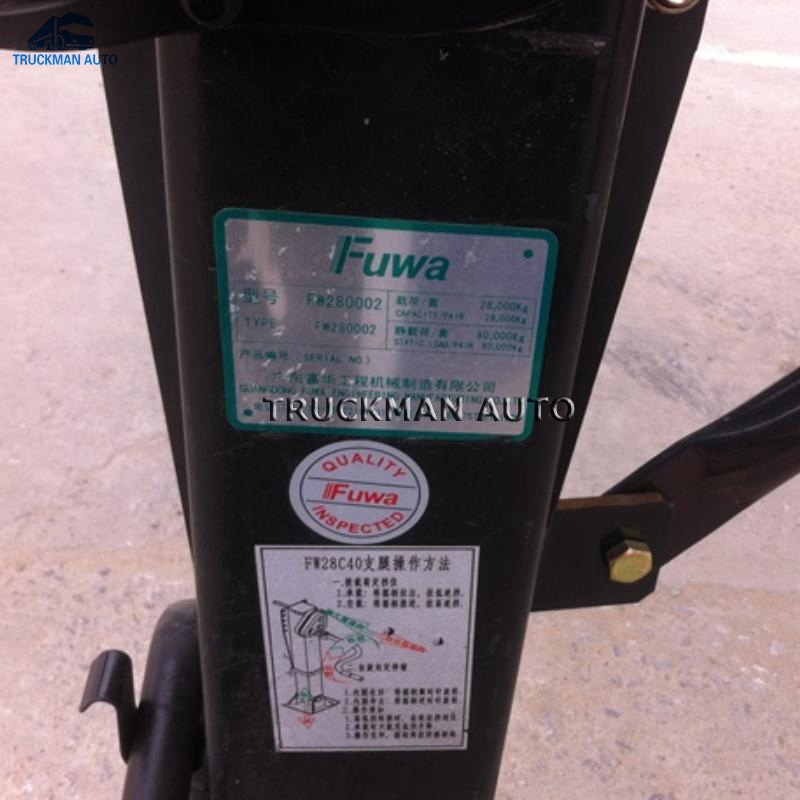

Landing Gear: JOST E100, 28 tons.
Electric System: 24V, One Set 6-core Standard Cable
Light: Tail lamp with turn signal, brake light & reflector, side lamp etc
-3. Delivery Details.

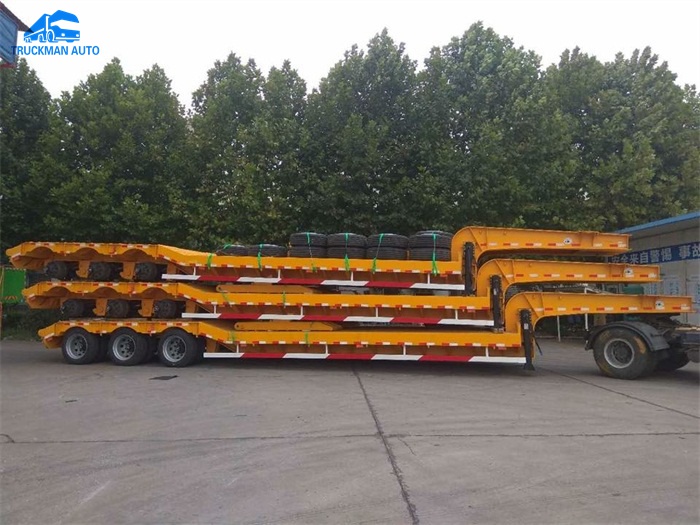

The low bed trailer could optional the BULK vessel, RO-RO vessel, FRAME vessel etc.
With the fast delivery time and suitable cost, very safety no rusty issue.
