Oil tank truck (oil tank truck): also known as mobile fuel truck, computer tax-controlled fuel truck, fuel tank truck, fuel truck, fuel truck, oil truck, oil truck, edible oil truck, mainly used for petroleum The transportation and storage of its derivatives (gasoline, diesel, crude oil, lubricating oil and coal tar).

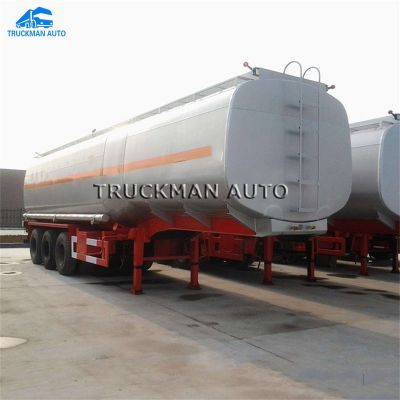

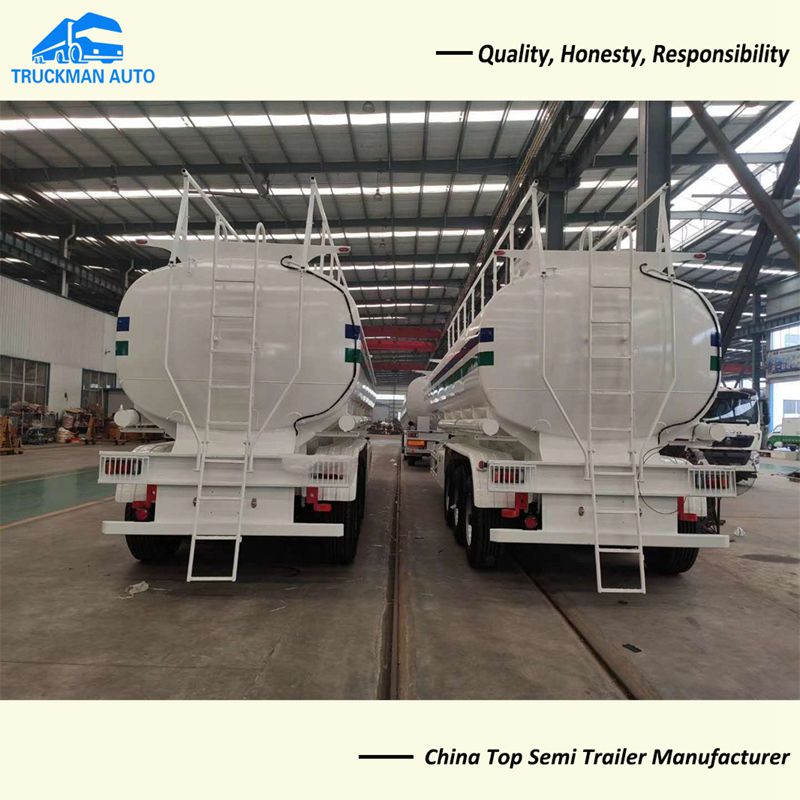

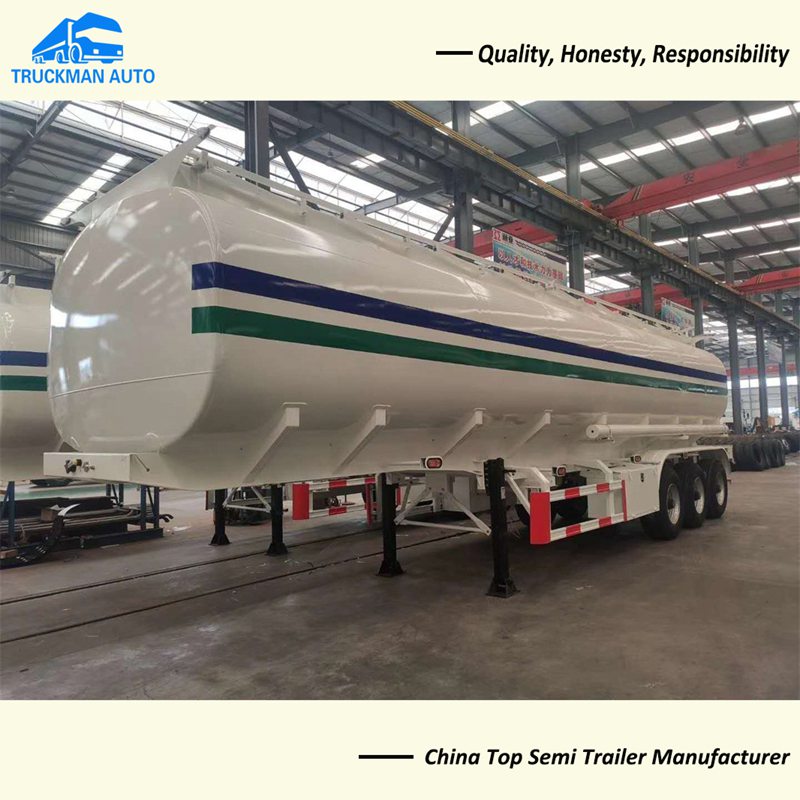

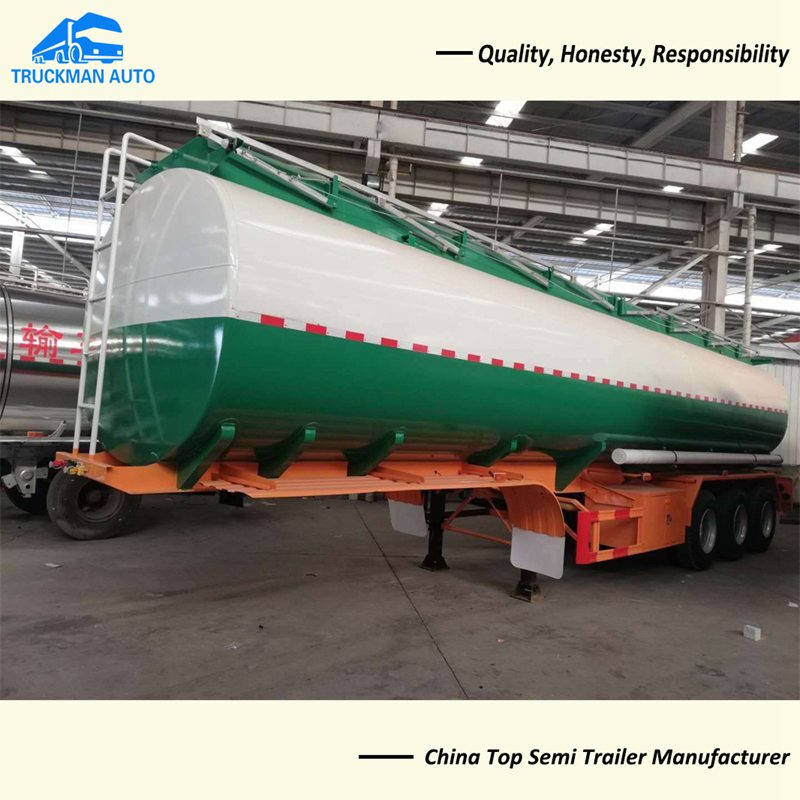

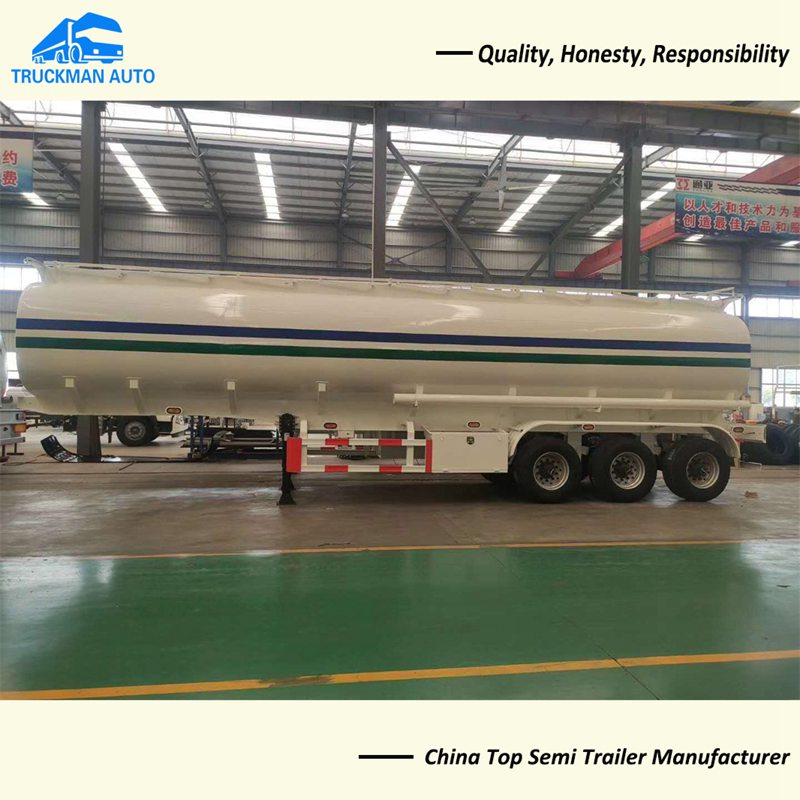

TRUCKMAN Brand 3 Axles 50m³ Oil Tank Trailer
50 cubic semi-trailer tanker vehicle model TMA350TO130OT fuel semi-trailer, total mass: 40000kg, rated load mass: 30000kg, curb weight: 10000kg, overall vehicle dimensions: 10500×2500×3880mm
50 cubic semi-trailer tanker running part: The overall frame is made of Q235 carbon steel, 13 tons of Fuwa three-axle 8 leaf springs, 12 sets of Chengshan brand 12R22.5 tubeless iron steel rims, 28 tons of outriggers, One 90# or 50# traction pin (select model according to demand);
The tank volume of 50 cbm semi-trailer tanker: 50 cbm, made of national standard carbon steel steel, the thickness of the tank is 5mm, the seal head is 6mm, and 5 silos are divided equally, 5 carbon steel tank openings on the top, 5 self-draining openings on the bottom, and other standards. Match.
The tank truck has various functions of refueling or transporting oil according to different purposes and use environments. It has the functions of oil absorption, pumping, and various oil filling and discharging functions. The special part of the oil truck is composed of tank body, power take-off, transmission shaft, gear oil pump, pipe network system and other components. The pipe network system consists of oil pump, three-way four-position ball valve, two-way ball valve, strainer and pipeline.
