4 axles 100 tons heavy duty gooseneck low bed semi trailer

4 axles 100 tons heavy duty gooseneck low bed semi trailer

Product ID : TMA360TO125LBT

Product Attributes :

Thickened suspension and leaf spring suit to Africa bad road

spare tyre rack design on goosencek , more convenient

strength spring ladder , can control by one person

according to your request design with width extnder

Product Description

1. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.

2. Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.

3. Anti-slip strip on tail and rear of platform to ensure loading safely.

4. Optional landing gear under tail to ensure trailer to be stable when loading.

5. H-beam for side beam instead of channel steel.

Specifications

Dimension

13mx3mx1.75m(Outside）or customized

Payload

40-100T

Tare weight

About 9.5T

Main beam

Q345B carbon steel "H"beam

Frame Floor

The thickness is 4mm pattern

Axle

3 axles / 4 axles   FUWA/BPW / L1 / FD brand

Landing Gear

JOST brand 28T lifting capacity

King Pin

2.00 or 3.5 inch bolt-in king pin

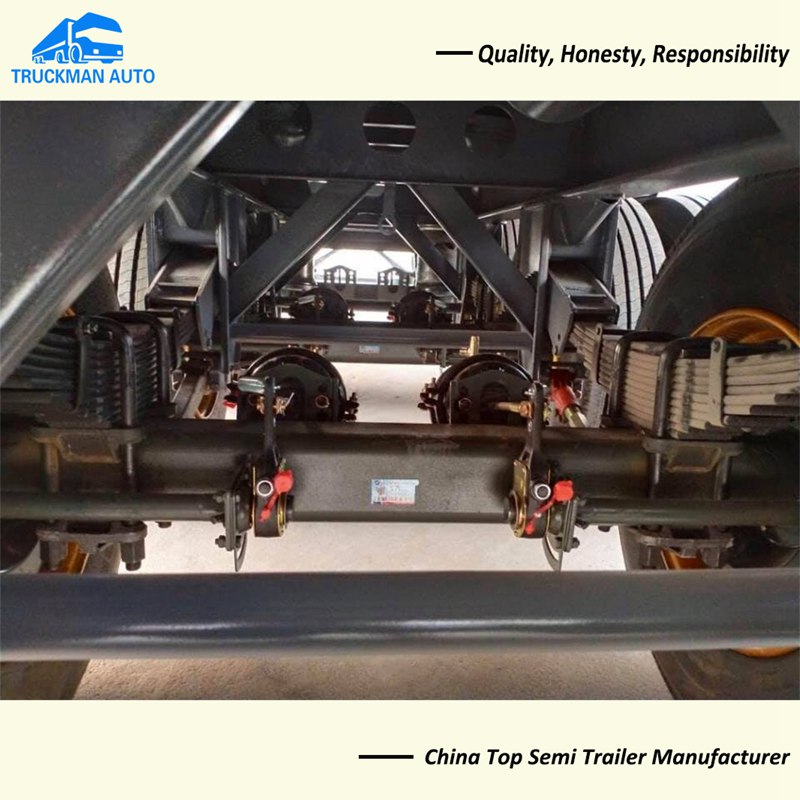

Suspension

Mechanical suspension

Leaf Spring

90mm(W)*16mm(T)10Layer

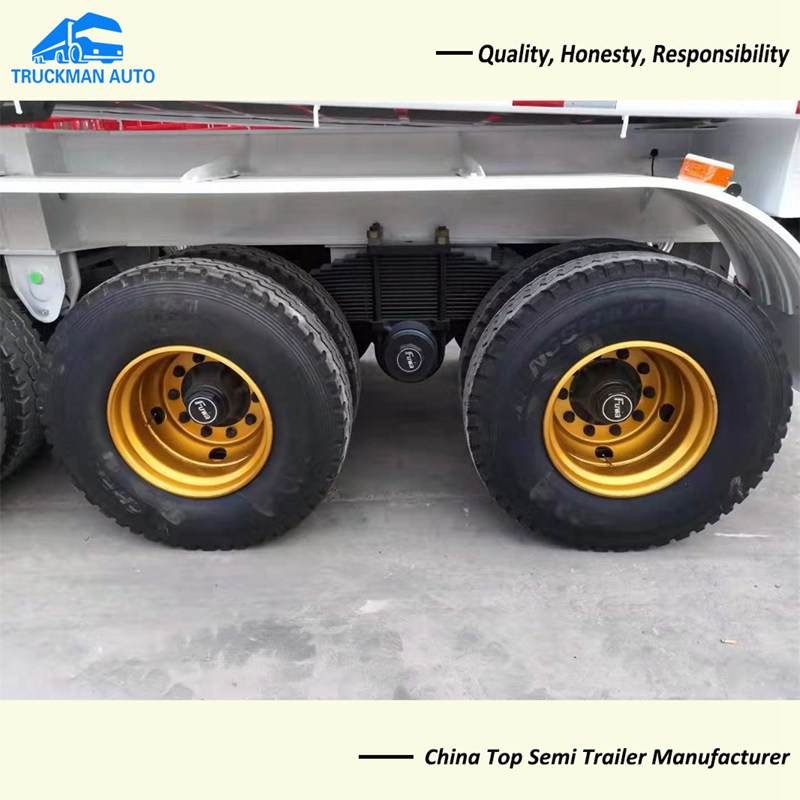

Tire

12R22.5, 13R22.5, 11.00R20, 12.00R20, 315/80R22.5, 385/65R22.5 optional

Accessories

One standard tool box

Shipment:
one unit lowbed trailer reomve ladder arrange shipping , reduce total volume , save shipping cost
one unit lowbed trailer reomve ladder arrange shipping , reduce total volume , save shipping cost
one unit lowbed trailer reomve ladder arrange shipping , reduce total volume , save shipping cost
