Oil tank trailer (oil tank truck): also known as mobile fuel truck, computer tax-controlled fuel truck, fuel tank truck, fuel truck, oil truck, edible oil truck, mainly used for petroleum The transportation and storage of its derivatives (gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products).
5 Compartments 3 Axles 45 M³ Oil Tank Trailer
Semi-trailer tanker vehicle model TMA345TO125OT
Total mass: 40000kg, rated load weight: 30000kg, curb weight: 10000kg,
overall vehicle dimensions: 11500×2500×3880mm, 45 square semi-trailer tank

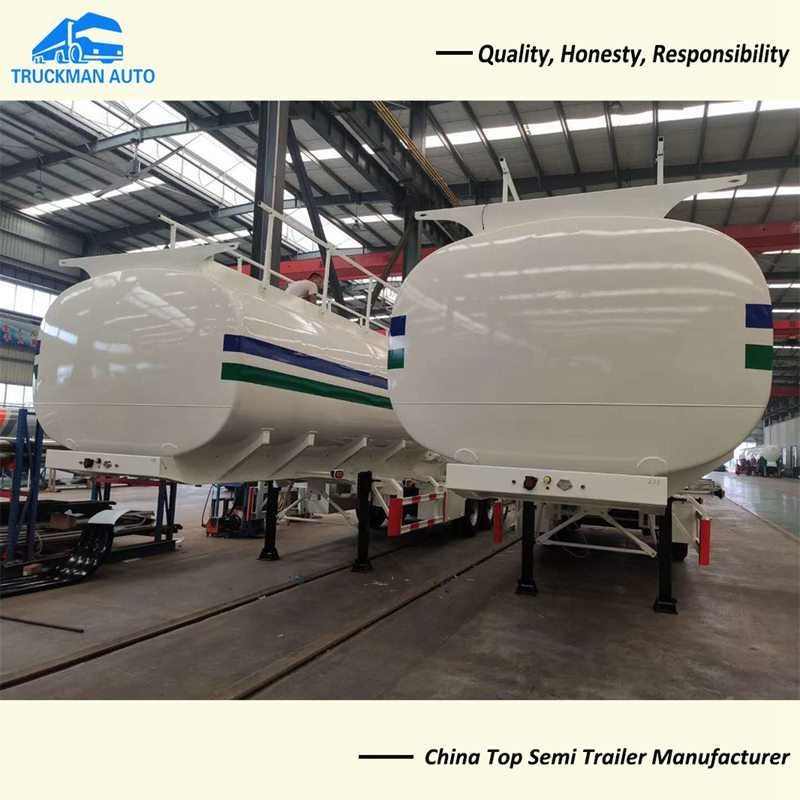

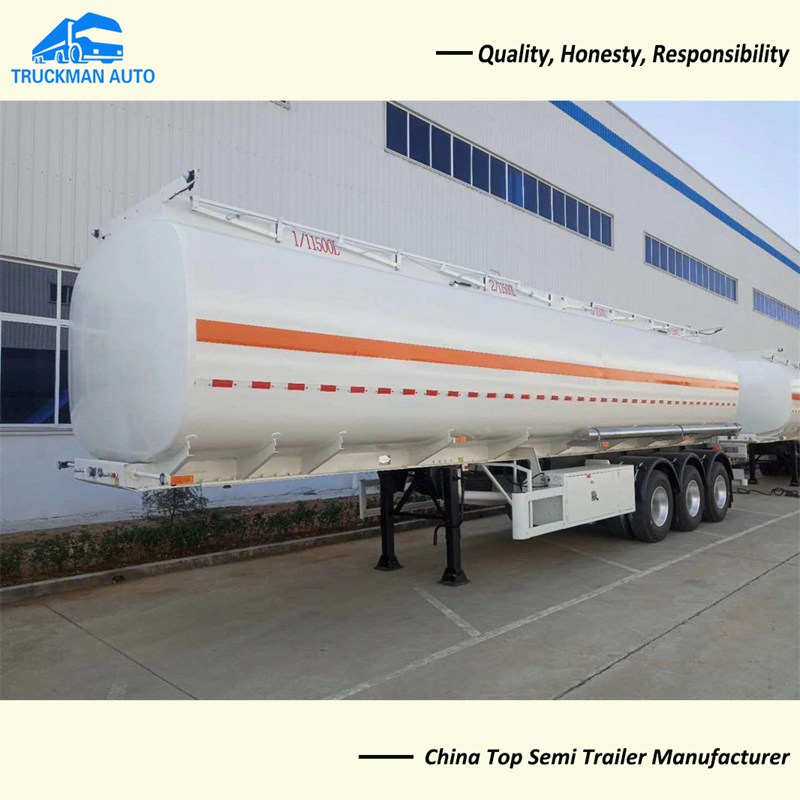

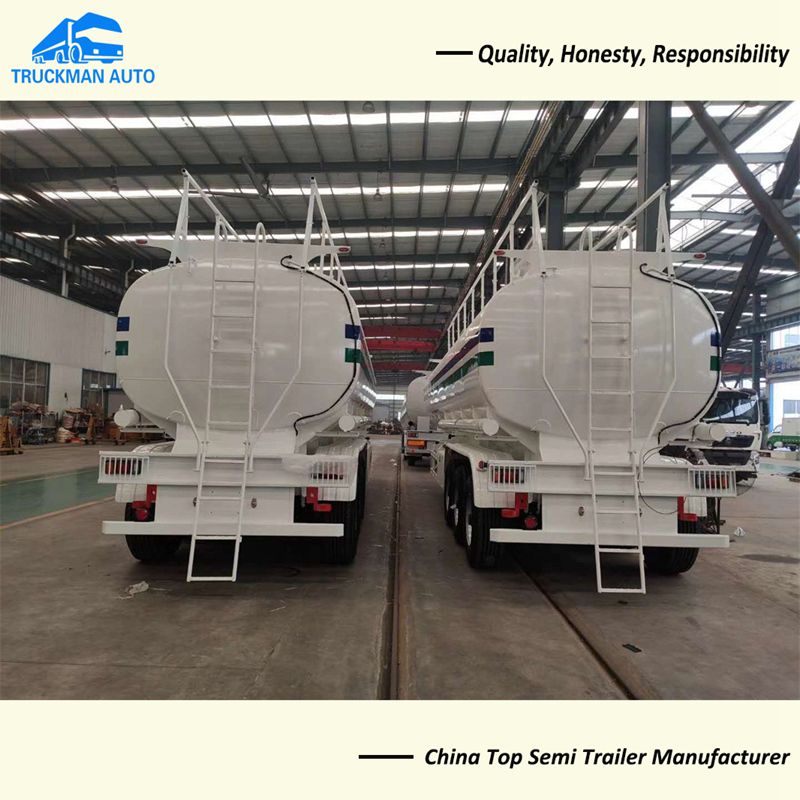

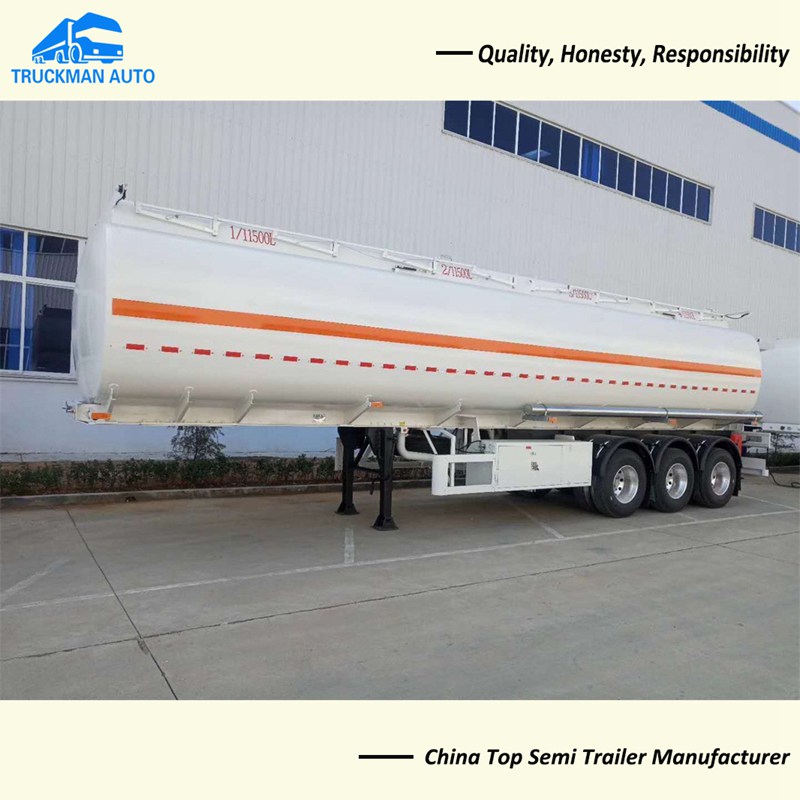

The car is exported to Eastern Africa (as shown below):
45 cubic semi-trailer tanker traveling part: the overall frame is made of Q345 national standard carbon steel, 13 tons of Fuhua three-axis 8 leaf springs, 12 sets of Chengshan brand 12.00 tubeless iron steel rims, 28 tons of outriggers, One 90# or 50# traction pin (select model according to demand);
45 cubic semi-trailer tanker tank volume: 45 cubic meters, made of national standard carbon steel steel, the tank body thickness is 5mm, the head is 6mm, 5 silos are divided equally, the top 5 carbon steel tank openings, the lower 5 artesian openings, other standards Match.
The tank truck has various functions of refueling or transporting oil according to different purposes and use environments. It has the functions of oil absorption, pumping, and various oil filling and discharging functions. The special part of the oil truck is composed of tank body, power take-off, transmission shaft, gear oil pump, pipe network system and other components. The pipe network system consists of oil pump, three-way four-position ball valve, two-way ball valve, strainer and pipeline.
