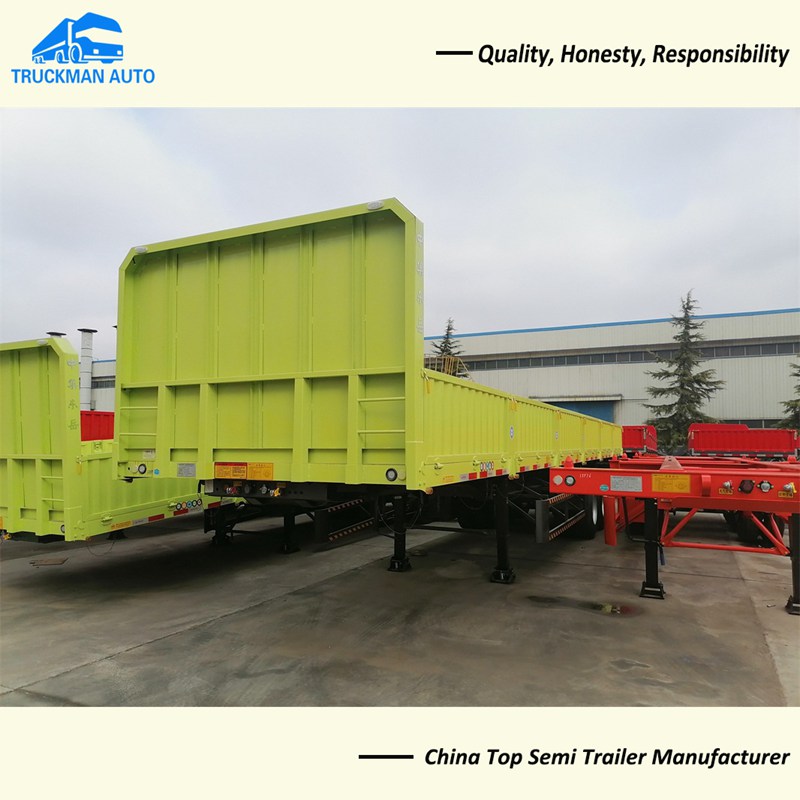

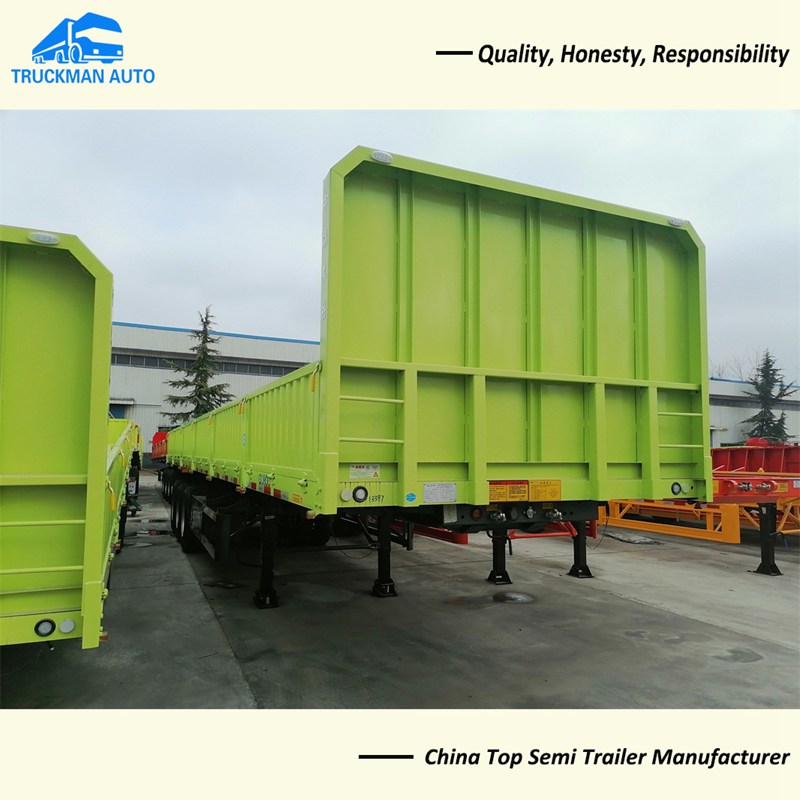

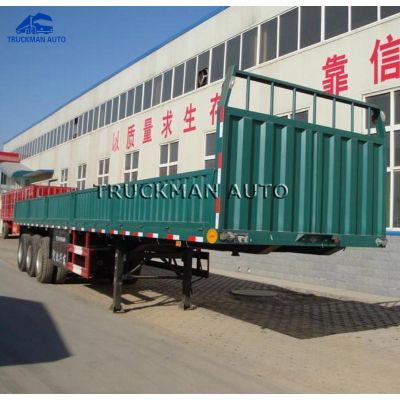

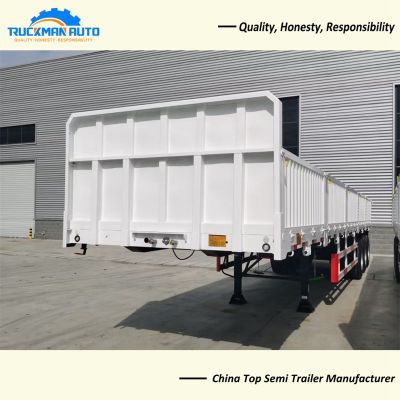

The semi-trailer of the fence type semi-trailer is a semi-trailer with a fence structure. It has a wide range of uses, mainly suitable for medium and long-distance transportation of medium and heavy-duty and bulk cargo. It has strong applicability and has become the first choice for medium and long-distance freight vehicles.
1. The vehicle body is made of high-quality steel, advanced technology, and strict production. The structure of the vehicle is reasonable, the performance is reliable, the operation is simple, and the appearance is beautiful.
2. The frames of series semi-trailers are all beam-through structures, and the longitudinal beams are straight or gooseneck. The web height ranges from 400mm to 550mm by welding with manganese plates, the longitudinal beams are welded by automatic submerged welding, the frame is shot blasted, and the beam penetrates the longitudinal beams and welds the whole.
3. The suspension adopts non-independent steel plate stamping rigid suspension, which is made of tandem steel plate springs and suspension supports; the structure is reasonable, with strong rigidity and strength, and is used to support the load and reduce the impact.
Axles 13T*3,FUWA Brand
Tires 12R22.5,Linglong brand
Cargobox 12500*2500*600mm,Bottom 3 Side 1.5mm
Lockset 12 Sets
Landing Gear 28T
Main Beam Top Flange Plate 12mm Bottom Flange Plate 14mm,Middle Flange plate 8mm,Q345
Kingpin 3.5" JOST Brand
Brake valve WABCO
