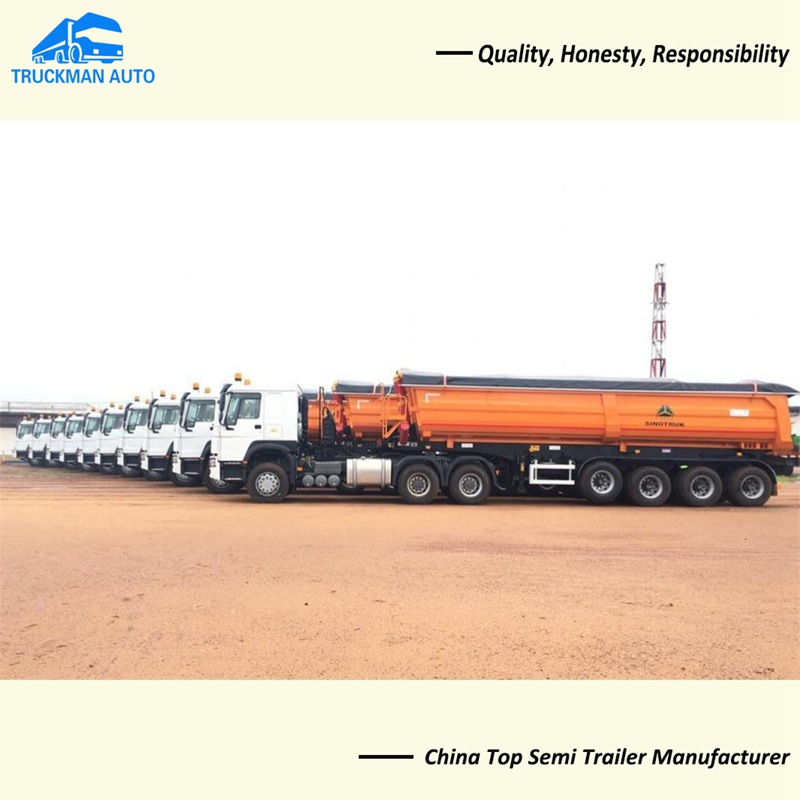

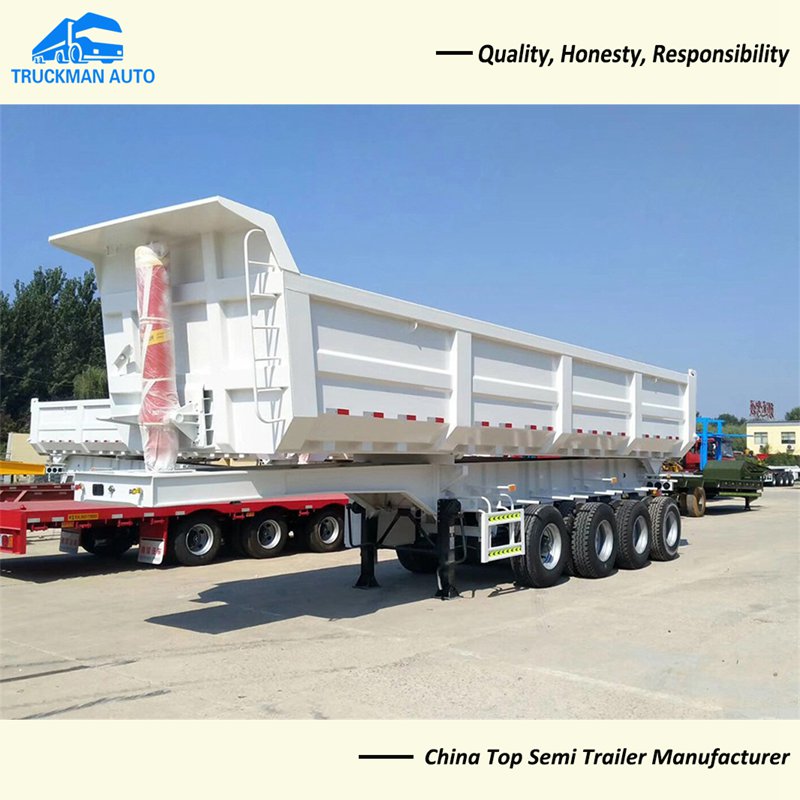

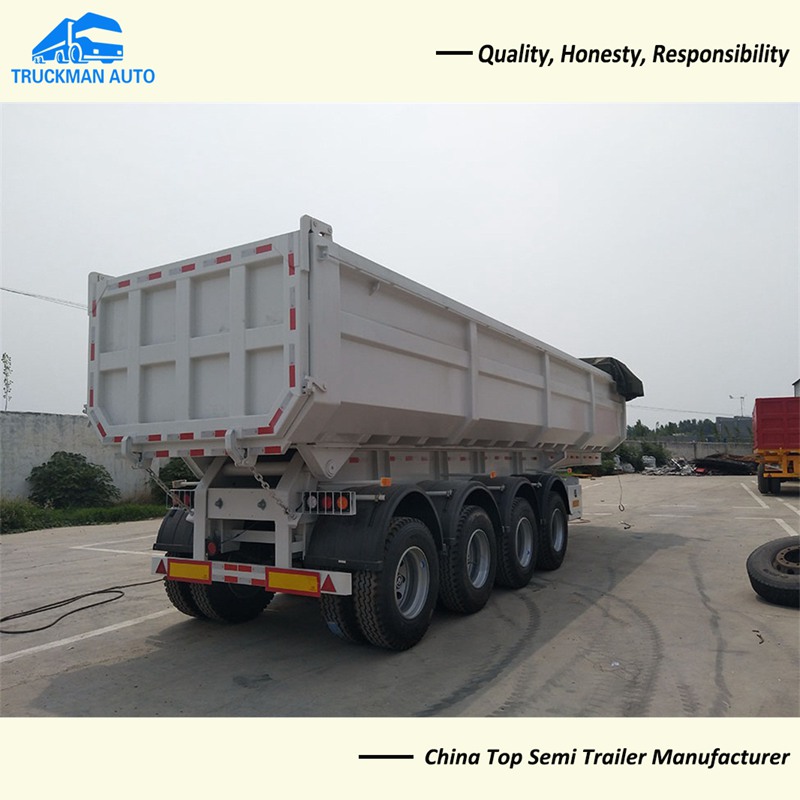

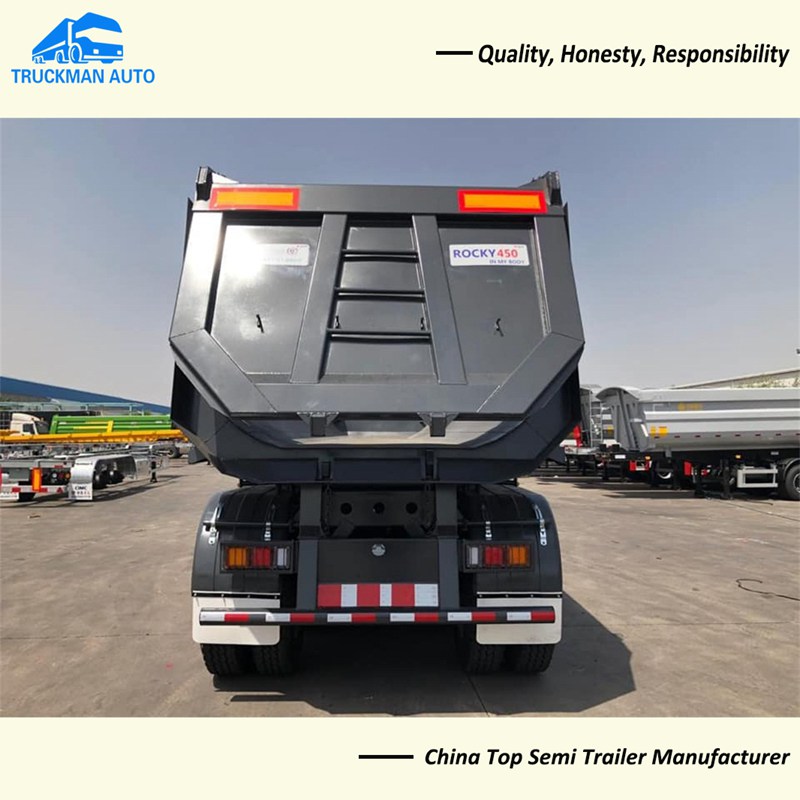

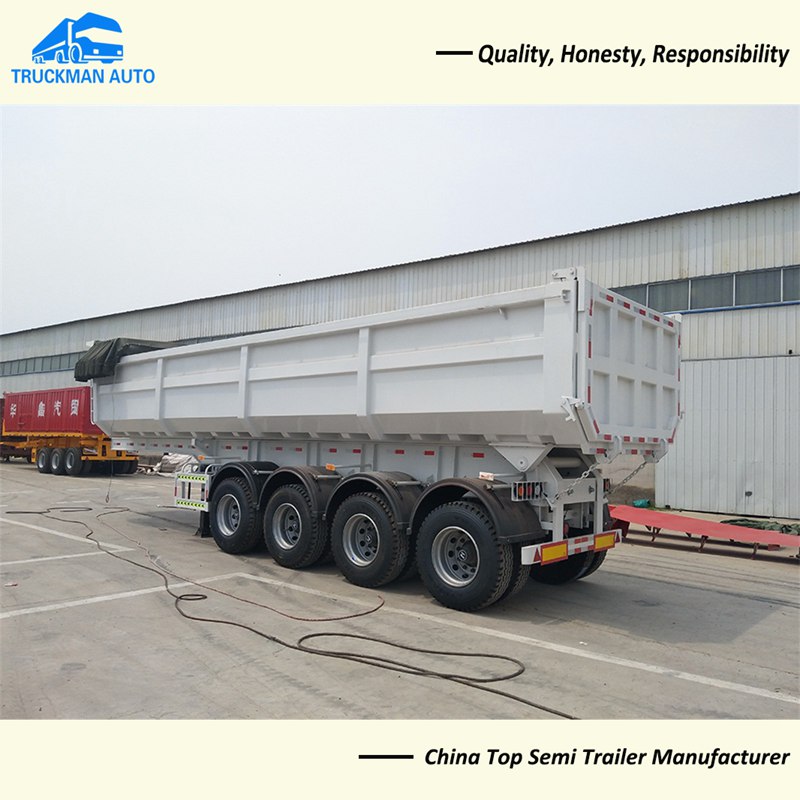

TRUCKMAN Brand U type 4 Axles Dump Semi Trailers

Configuration: beam height 500mm, upper wing plate 14mm, lower wing plate 16mm, web 5+5mm, the axle is a Fuwa13-ton axles, equipped with 28-ton outrigger external reducer, 90# traction pin; Shanghai Boshan light steel. 6 double-chamber air chambers; 2 spare tire racks; 2 tool boxes.

The principle of the back-dumping semi-trailer. The high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the oil pipe.

　　The engine drives the hydraulic pump through a transmission and a power take-off device. The hydraulic tilting mechanism of the carriage is composed of an oil tank, a hydraulic pump, a distribution valve, a lifting hydraulic cylinder, a control valve, and an oil pipe. 　The hydraulic tilting mechanism of the car plate is composed of an oil tank, a hydraulic pump, a distribution valve, a lifting hydraulic cylinder, a control valve and an oil pipe.

　The engine drives the hydraulic pump through the transmission and the power take-off device, and the high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the oil pipe, and the rod is pushed to make the carriage tip over. Lateral tilting is more common, and the vehicle board can be stopped at any required tilt position by manipulating the control lever. The car plate uses its own gravity and hydraulic control to reset. It greatly saves time and labor for container flatbed trucks operating in ports. There is a lot of space and value for promotion. Improve labor efficiency.
