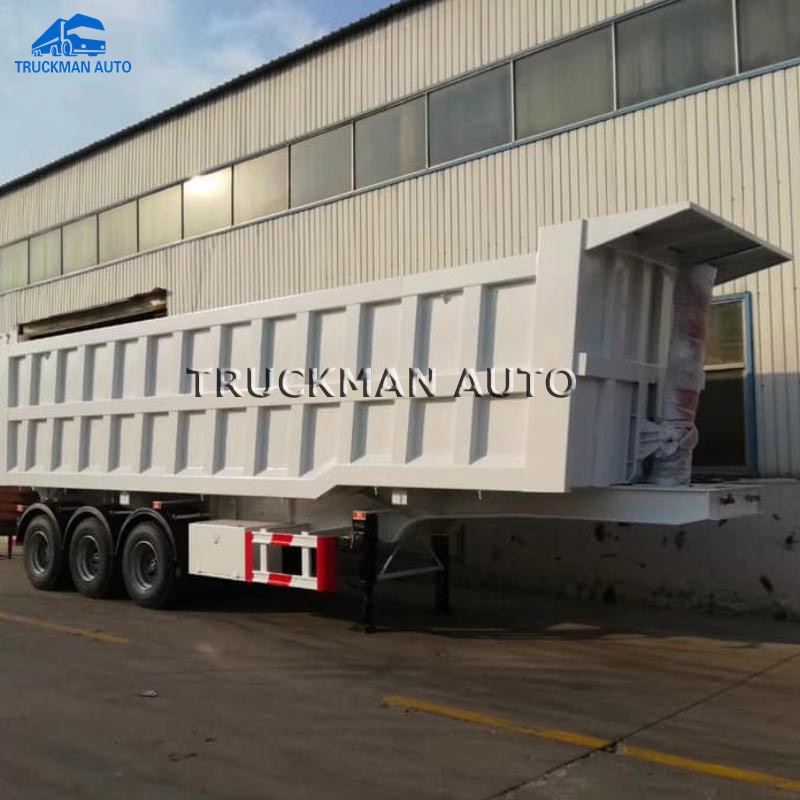

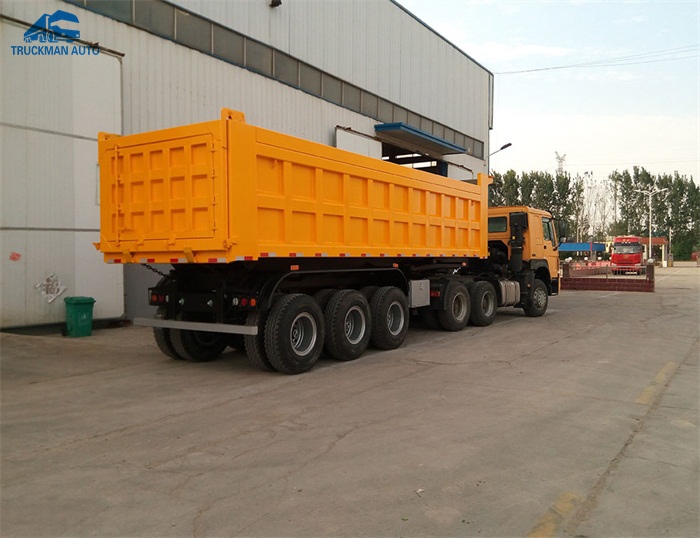

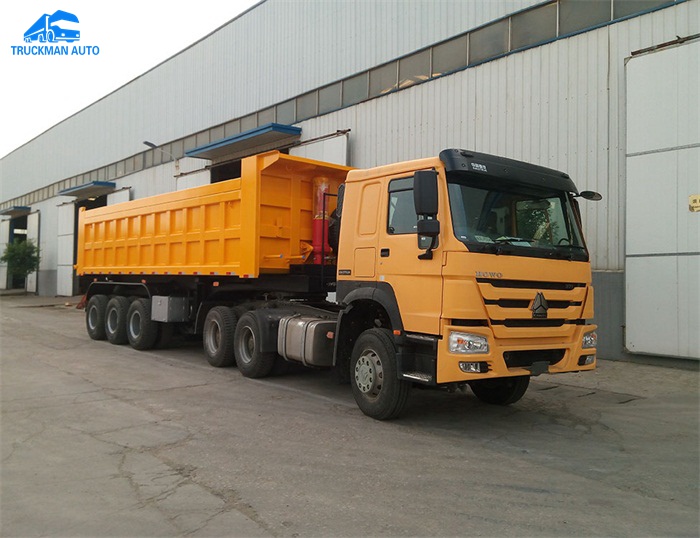

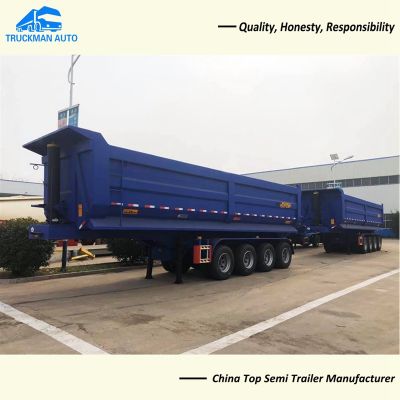

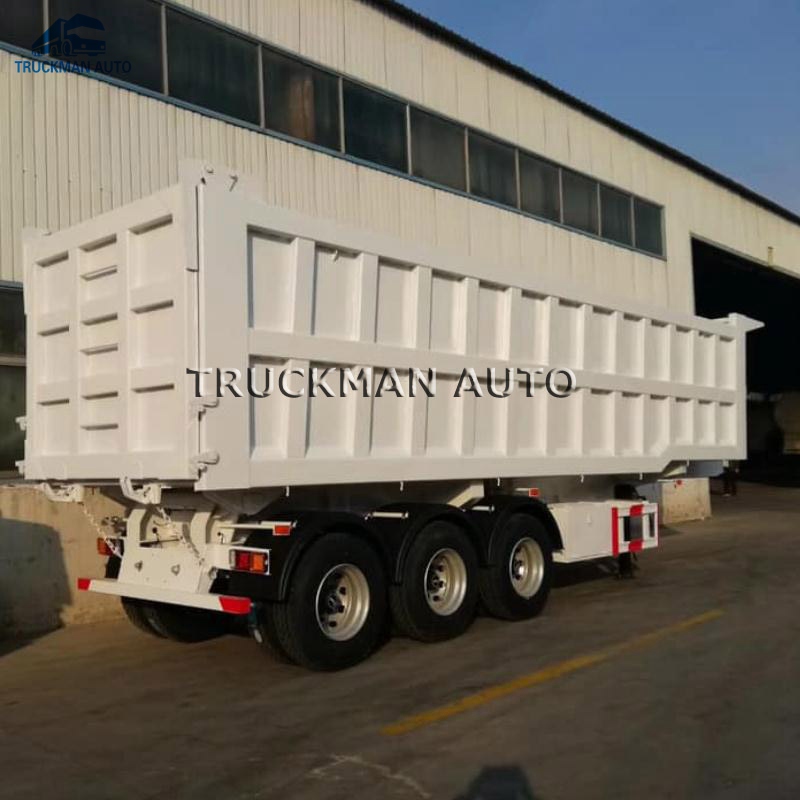

Tipper trailers cargo box have normal shape and U shape, suitable for transport the different goods.
Tipper trailers can take different Materials including: Crush Stone, Rock, Sand / Sandy Loam, Gravel,
Masonry Aggregates, Mulch, Recycled Products, Fill Dirt, Fill Materials, Specialty Aggregates, Base Rock,
Topsoil, Custom Soils Mixes, Clay and Construction Materials, L andscape Materials, Asphalt, Oil, Field
Materials, Dump Sites for Dirt, Concrete, Asphalt, Rubble, Dredge and Contaminated Materiales.
Main Specification For The Tipper Trailers
Dimension: 8000-12000×2500×3890mm (Outside)
Cargo Box: 7500-11500x2400x1500-1700mm
Payload: 40 Tons - 80 Tons

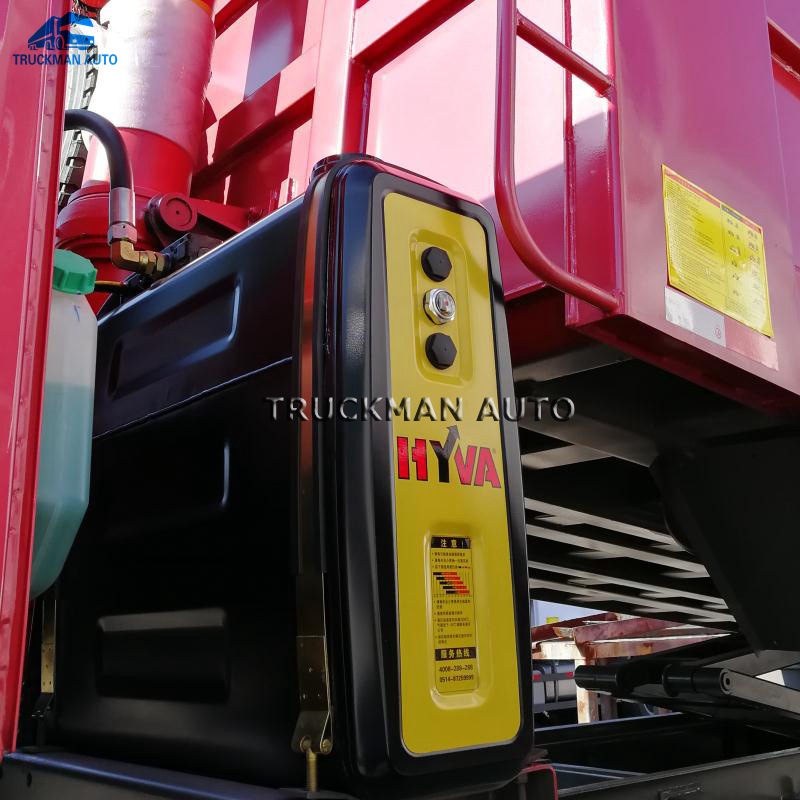

Lifting system: HYVA hydraulic system or Chinese brand
Frame: Automatic welding design I beam, Q345B carbon steel material
Thickness: Upper and lower plate is 18mm, middle is10mm. height is 500mm
Axle: 2, 3, 4, 5, 6 axles, BPW/FUWA/HJ brand
Landing Gear: JOST CHINA BRAND 28T
King Pin: JOST 2.00 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension/Germany or America type/air suspension
Leaf Spring: 120mm(W)*16mm(T)*10 Layer

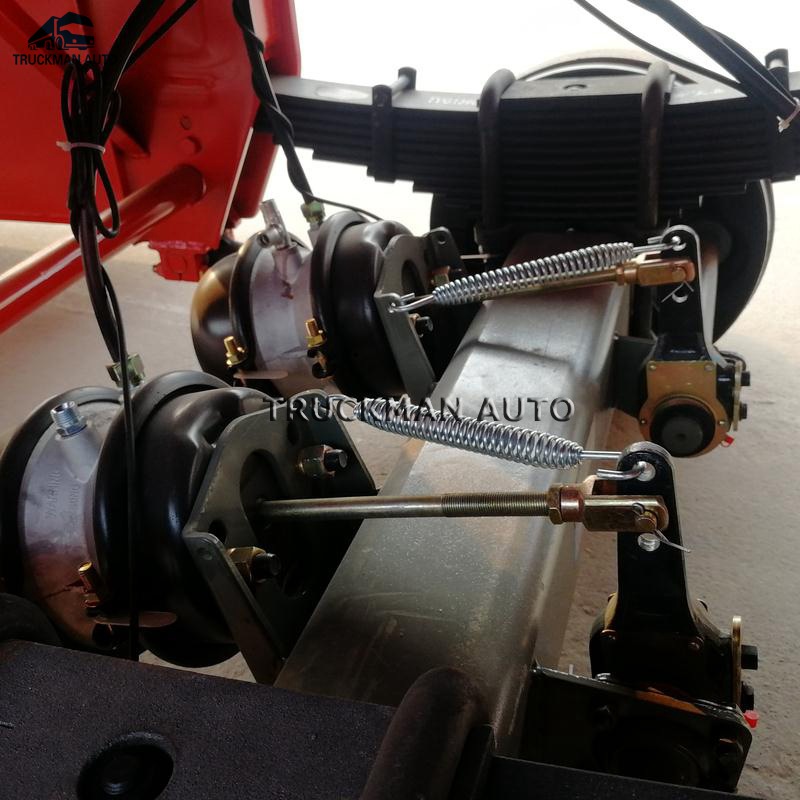

Braking System: WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim: 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire: 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
Accessories: One standard tool box
Voltage: 24V
The Specification Only For Your Reference, We Could Accept The Custom Made.
