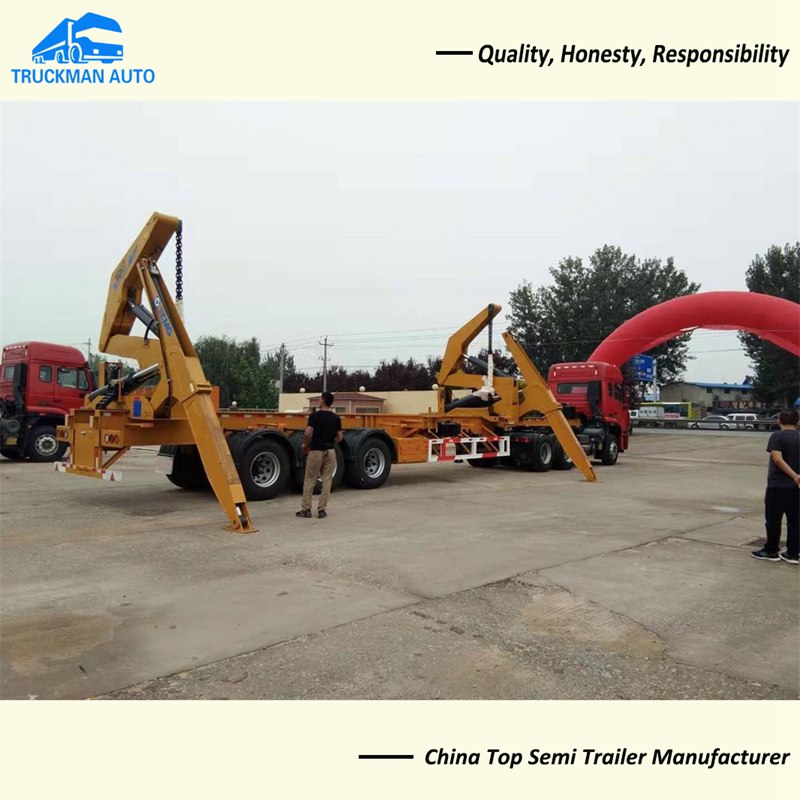

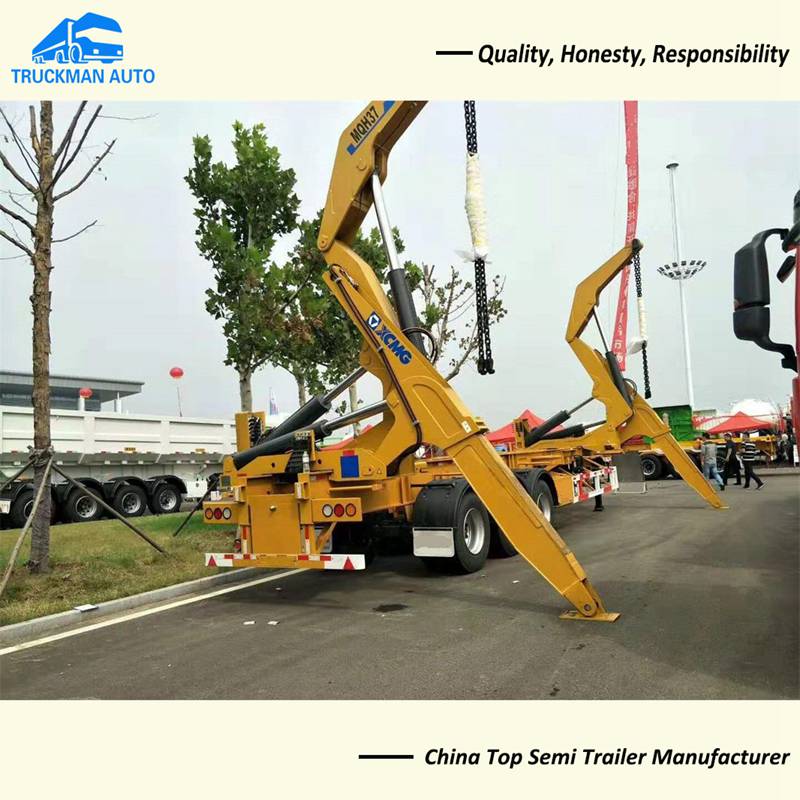

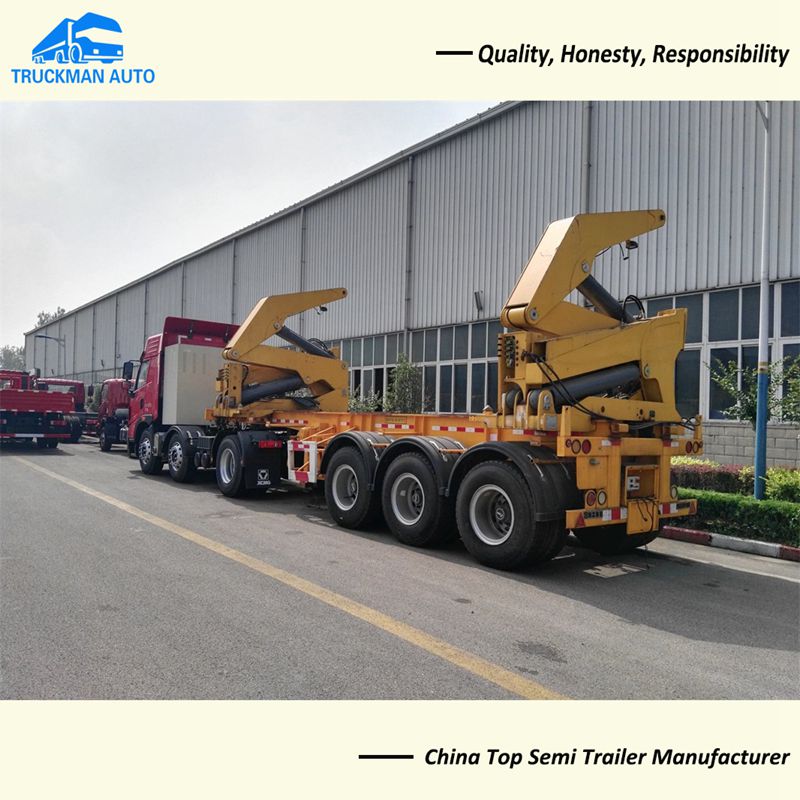

TRUCKMAN Brand 3 Axles Self-Lifting Container Semi Trailer Technical characteristics
1. The whole vehicle integrates the functions of loading, unloading and transporting containers, which is efficient and reliable
2. The main supporting assembly is selected from well-known domestic brands, with reliable quality and safe operation
3. The longitudinal beam of the semi-trailer frame adopts a high-section variable interface design, and the crane structural parts are welded with high-strength steel plates, and the whole vehicle has undergone stress testing to meet the load-bearing requirements
4. The crane can slide back and forth, adapting to the loading, unloading and transportation of standard 20-foot containers and 40-inch containers
5. The lifting operation adopts a wireless remote control system, equipped with an imported remote control, which is easy to operate and reliable in micro-motion.
6. Keep manual emergency operation mode and safety insurance.
7. The crane is equipped with this proportional valve at the entrance point for precise control
8. No-load and heavy-load two-speed operation
9. The crane adopts a double-pump double-circuit hydraulic system, which is not affected by unbalanced load and operates reliably.
10. The lifting operation adopts the intelligent safety protection system to intelligently lock the dangerous operation.
11. The whole vehicle safety control system, install a key flameout switch
12. The crane is equipped with imported centralized lubrication system, electric control and simple operation.
Max.lifting capacity : 37 ton sidelifter
Application: Loading 20/40ft container
Whole Trailer Size: 14100mm * 2500mm *4100mm
Axles: 3 axles 13T*3 FUWA brand
Tire: 12 units, Linglong Brand 12R22.5
King pin: 90# or 50# Jost Brand
Landing gear: JOST E100
Power source：Power take offMax.lifting capacity : 37 ton sidelifter
Funtion: Load 20/40ft container trailer
Trailer Chassis: 14100mm * 2500mm *4100mm
Axles: 3 axles
Tire: 12 units
King pin: 90#
Landing gear: JOST
Power source：Power take off/Diesel APU
Operation: Wireless remote control and Manual operation
