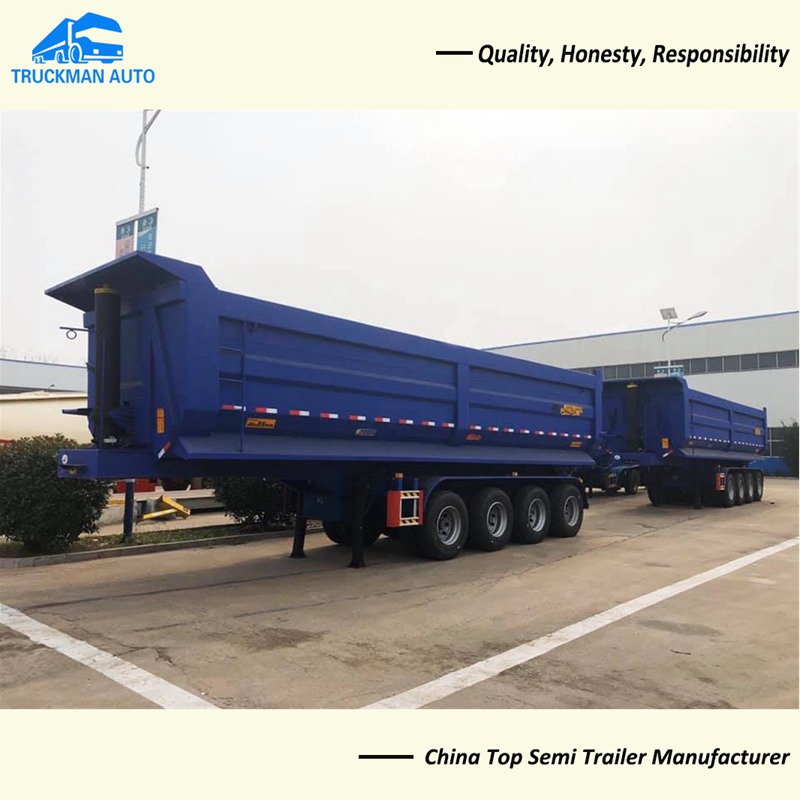

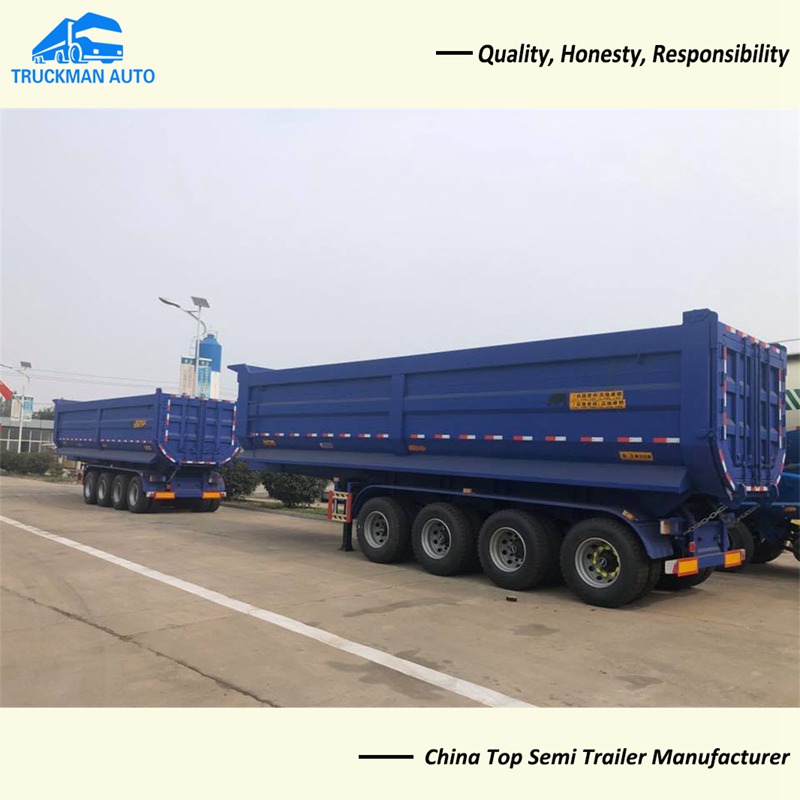

4 axle dump trailer special design for the Ghana, mainly used for haul the mining and construction material
TRUCKMAN AUTO 4 axle dump trailer meet the Ghana local trucking and haulage services request, it's mainly used for mining and construction material haul. With the heavy duty chassis design, famous brand spare parts and in time after sales service, now TRUCKMAN auto dump trailer is very popular in local.
4 Axle Dump Trailer Main Specification.
Product Name: 4 Axle Dump Trailer
Loading Tons: 50,000kg
Tare Weight: 10,500kg
Axle: 4 axle, 4x13 tons
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx8sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 315/80R22.5, 16 pcs, tubeless tire.
Brake System: WABCO brand, ABS and 8 pcs brake chamber.
Thickness Of Frame: Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam.
Cargo Box: 10000x2300x1700mm.
Dimension: 10500x2500x3750mm.
The 4 axle dump trailer could design according to your request.
Different Model Dump Trailer Meet Ghana Transport Industry Request.
TRUCKMAN AUTO also have 5 axle dump trailer and 6 axle dump trailer meet the different loading tons request, the front axle adopt the air lifting suspension. See the attached picture:

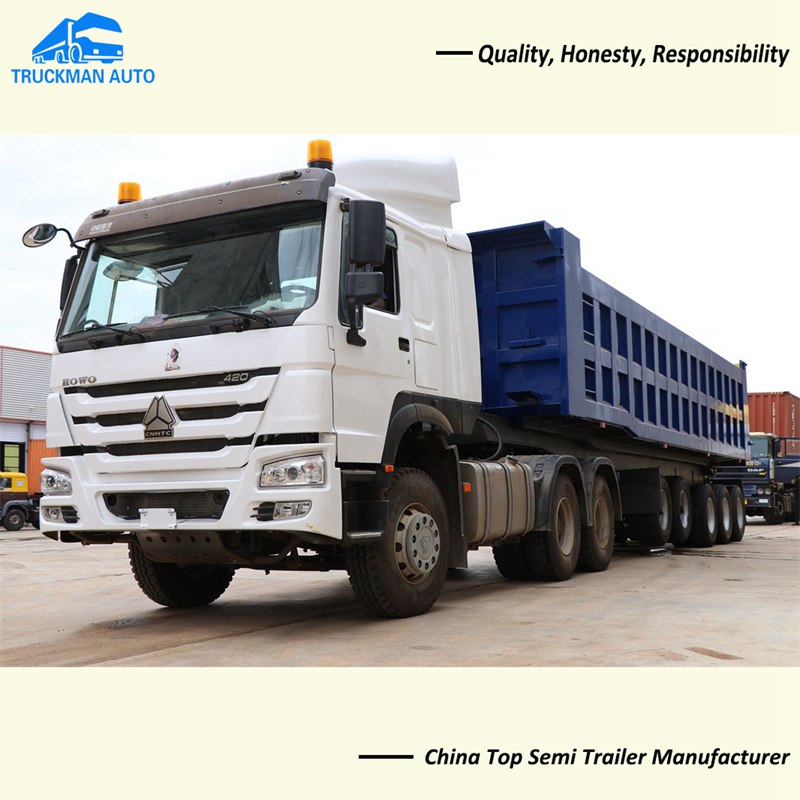

5 axle dump trailer

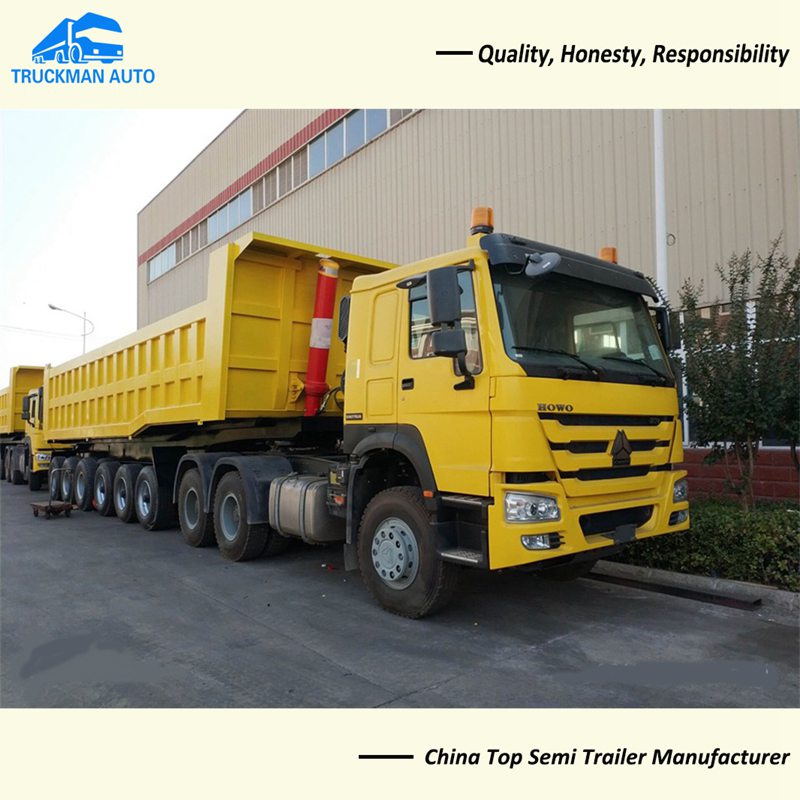

6 axle dump trailer
