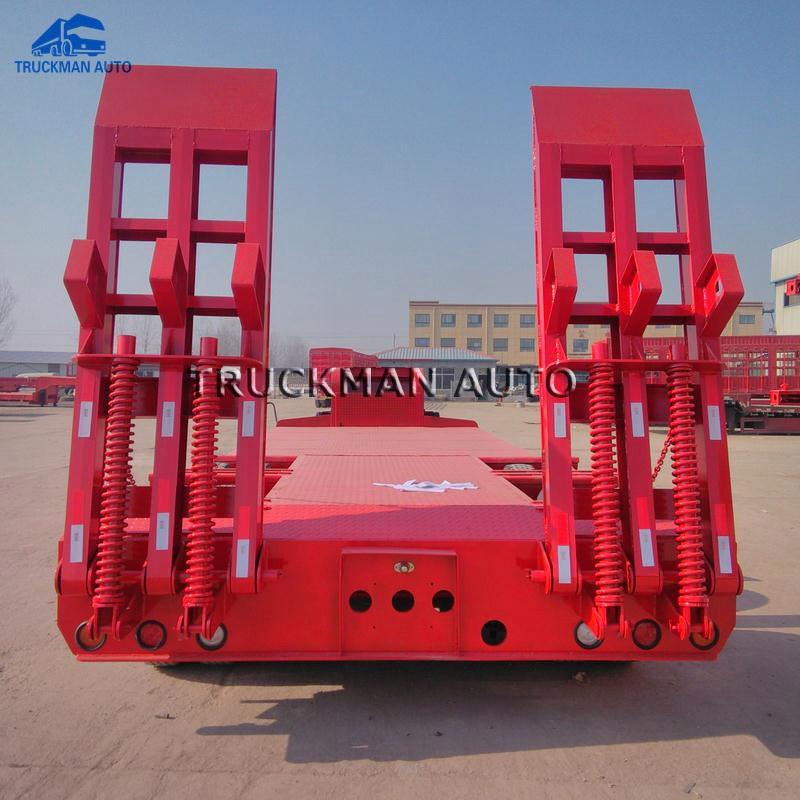

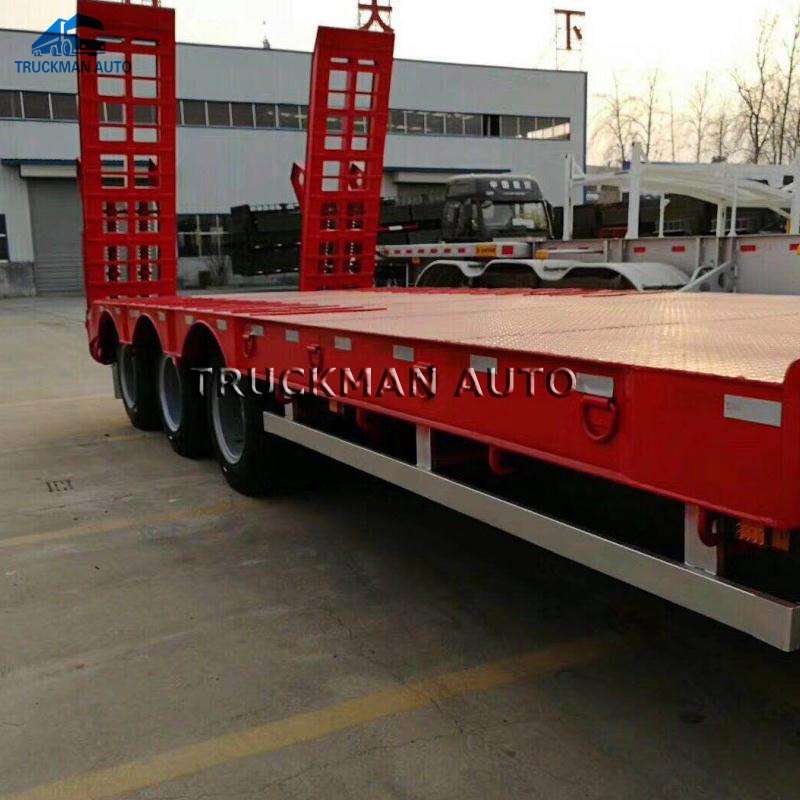

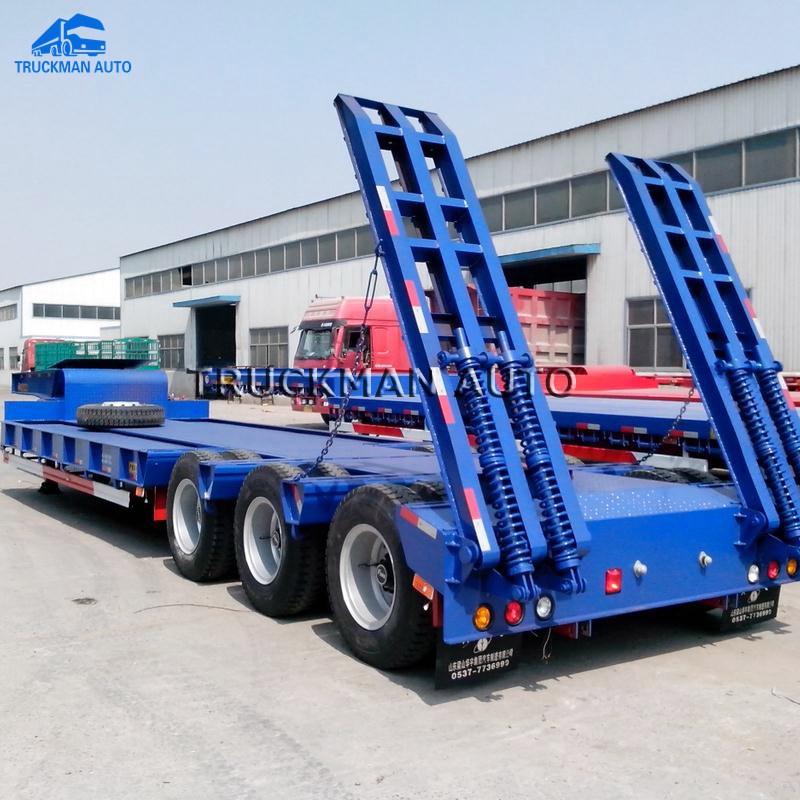

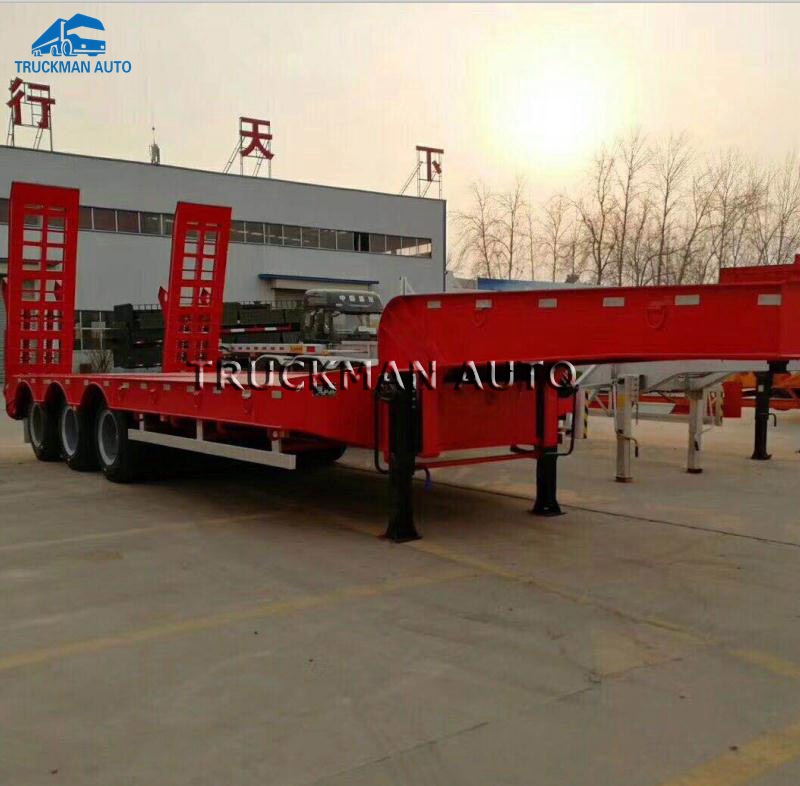

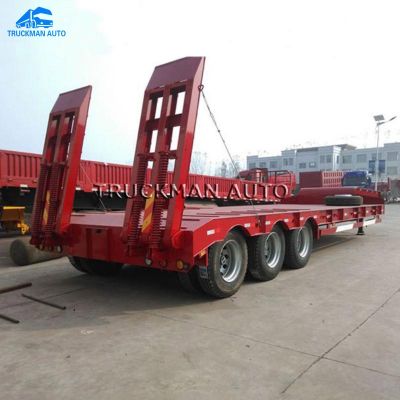

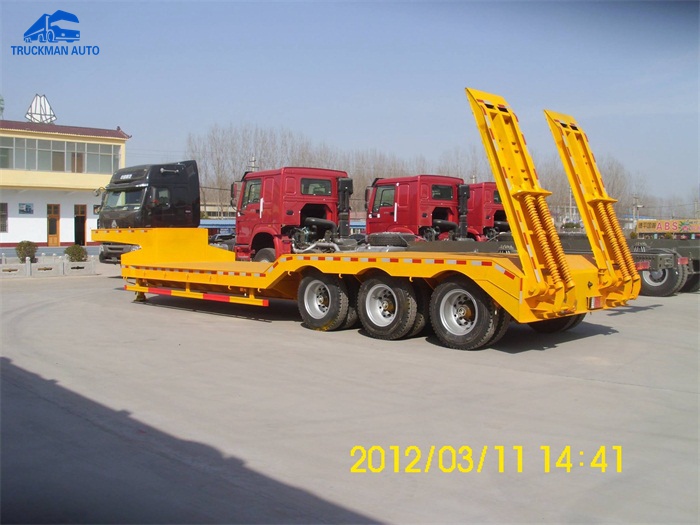

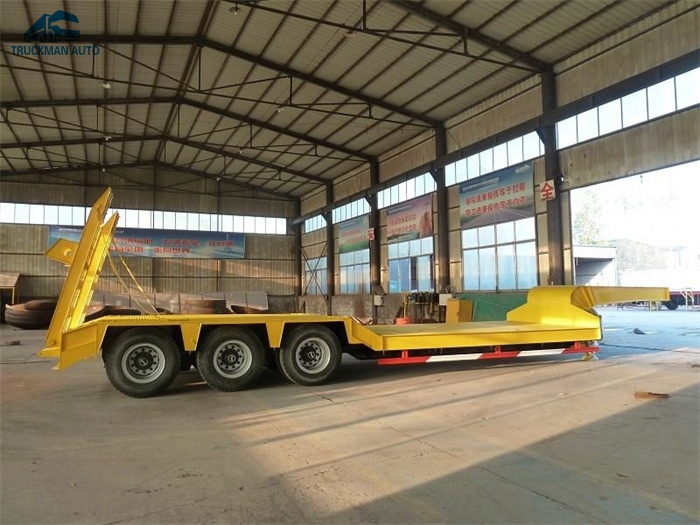

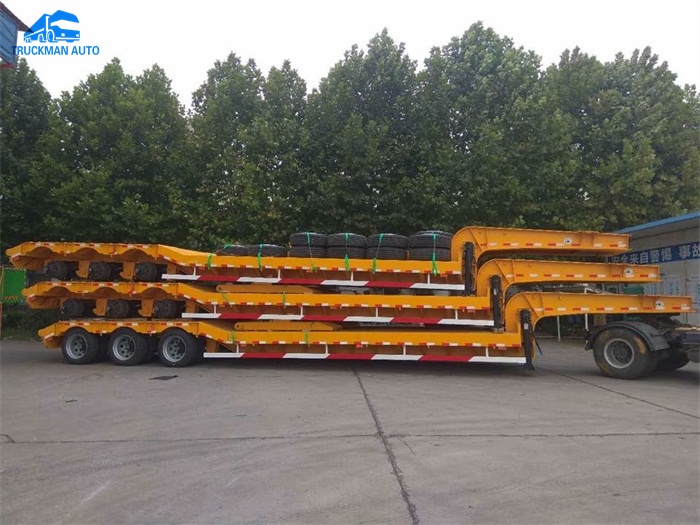

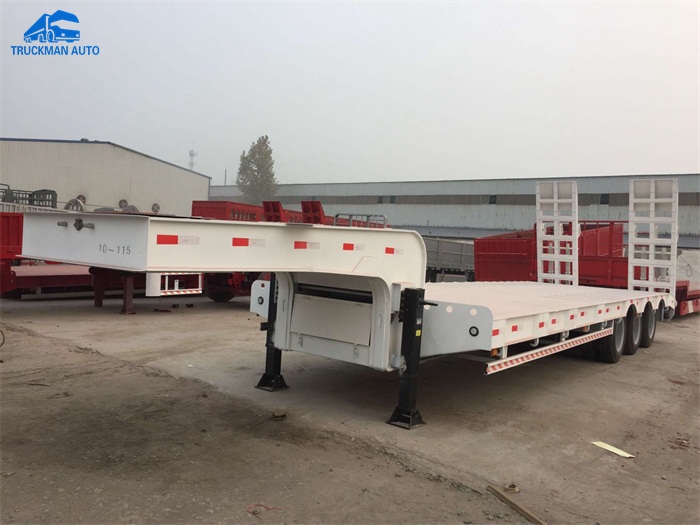

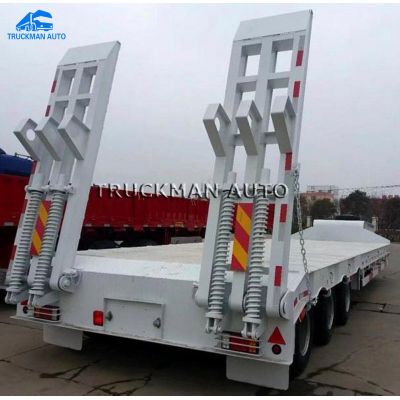

3 Axles 70 Tons Low Flat Bed Semi Trailer With Mechanical Spring Ladder

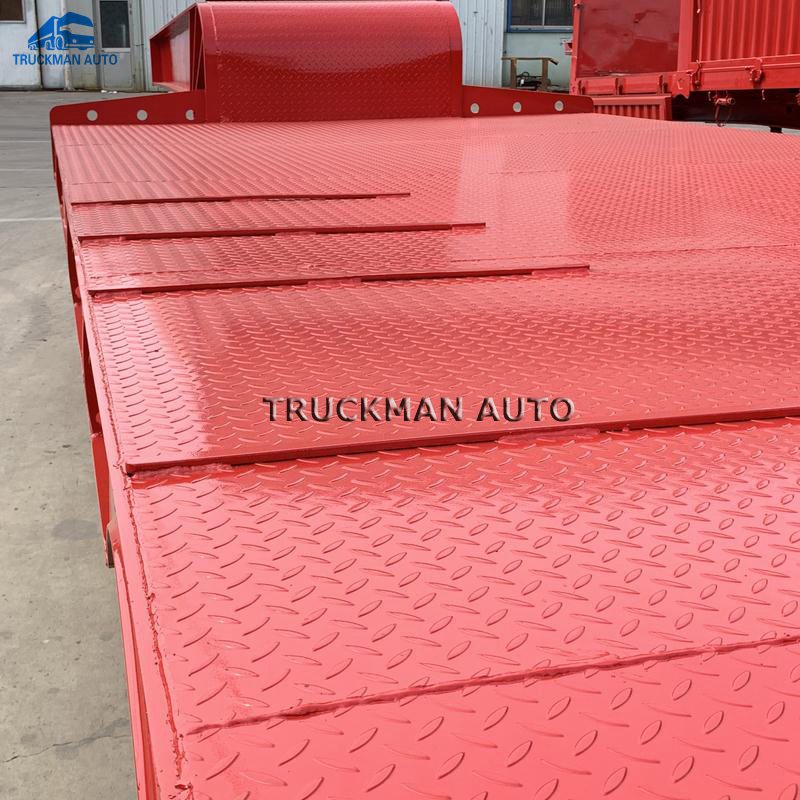

Low flat bed semi trailer used for the haulage construction machinery, suitable for the mining site,

construction site etc. The material is high strength steel Q345B, confirm the chassis long time use.

The thickness of chassis is upper plate is 18mm, lower plate is 20mm, middle is 10mm

(also could design according to your request). The low flat bed semi trailer also could transport the

bulk cargo etc, and could add the lock.

Main Specification For The Flat Bed Semi Trailer.

Loading Capacity: 50-70 Tons

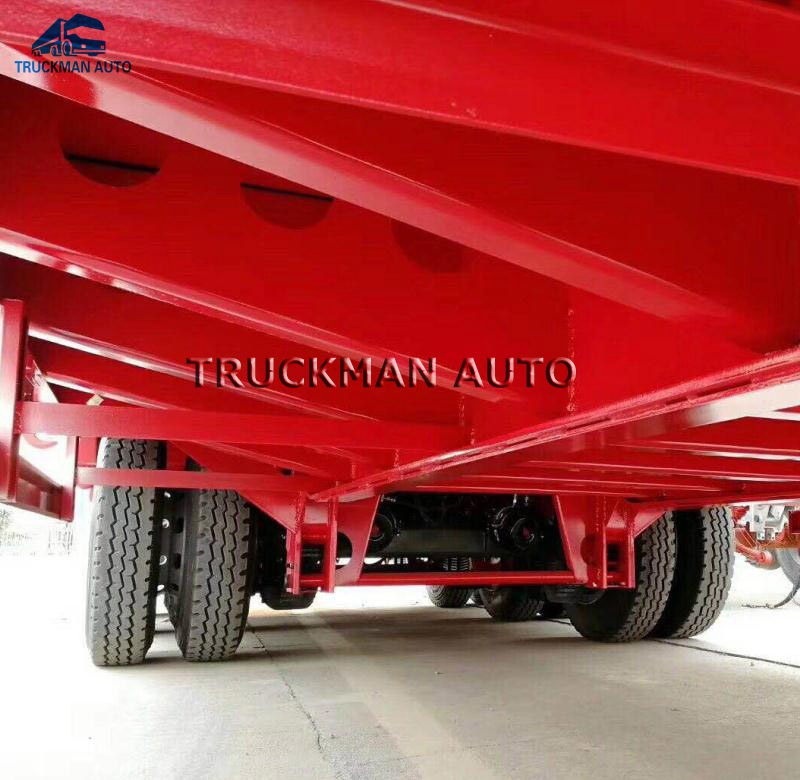

Main Beam Spec.: Q345B Steel, Height: 500mm, upper palte is 16mm, middle is 10mm, side is 18mm.

Suspension: mechanical suspension

Leaf Spring: 120mmx16mmx10pcs

Axle Spec: 3x13 tons, FUWA or BPW

King Pin: 3.5"(90mm) JOST Brand

Tire: 315/80R22.5, 12.00R20, LINGLONG brand.

Brake Chamber: 6 sets

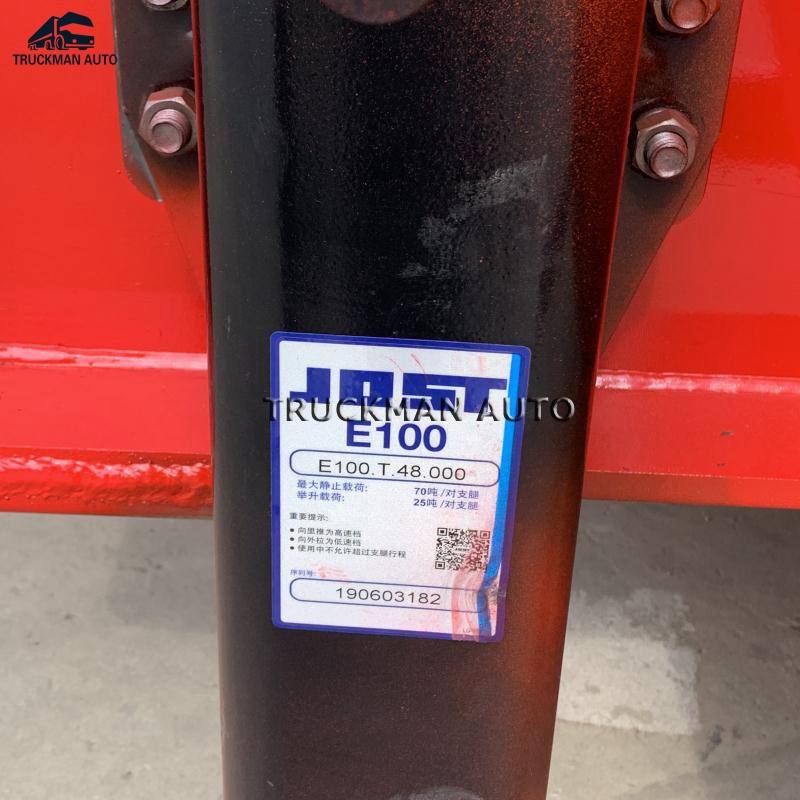

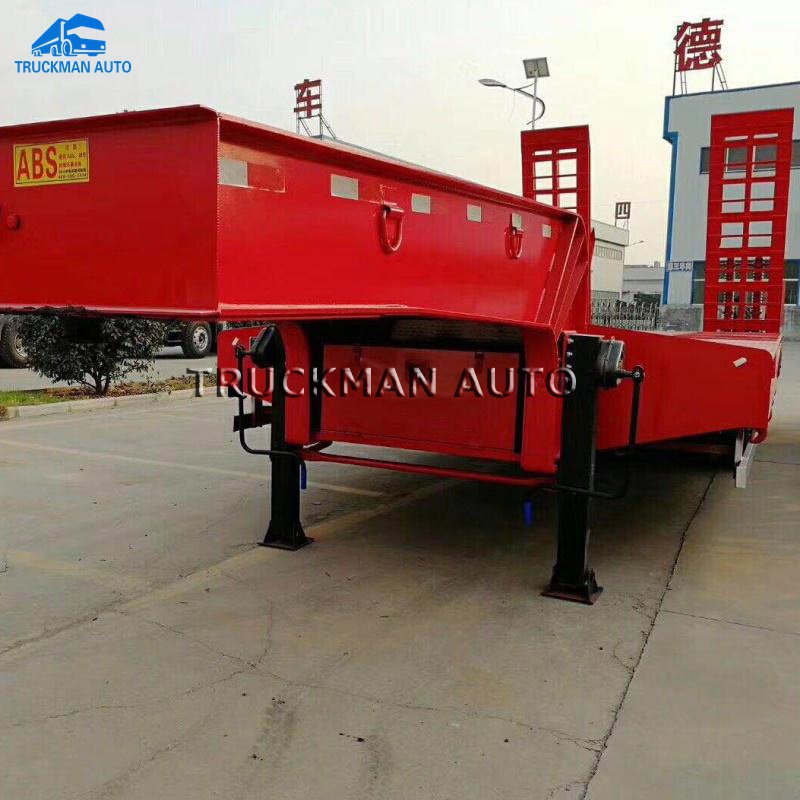

Landing Gear: JOST E100, 28 tons.

Electric System: 24V, One Set 6-core Standard Cable

Light: Tail lamp with turn signal, brake light & reflector, side lamp etc

The Specification Only For Reference, Could Design Trailer According To Your Request.
