60 Tons 4 Axles Dump Semi Trailer With HYVA Brand Lifting System

4 Axles Dump Semi Trailer Main Detail.

Dump semi trailer could transport more cargoes from mining site to shipment port or warehouse etc, there are have two type model cargo box, such as normal and U shape cargo box. U shape cargo box with many advantage, such as It is not easy to stick to the box when unloading, and unloading is cleaner and also lower the center of gravity and drive more safely.

4 Axles Dump Semi Trailer Main Specification:

Product Name: 4 Axles Dump Semi Trailer

Loading Capacity: 50,000-70,000kg

Application: Transport Iron ore powder and other bulk cargo.

Axle: 4x13000kg, 4 axle.

Suspension: heavy duty air and mechanical suspension.

Support Leg: JOST brand 28 tons manual model.

Brake System: With 8 pcs brake chamber, WABCO brand brake valve.

Tire: 12.00R20, 16 pcs + 1 spare tire.

Others: Spare tire carrier, repair tools and tool box.

Cargo Box: 10000x2300x1700mm, bottom 8mm, side 6mm, U shape.

Dimension: 10700x2500x3750mm.

The 4 axles dump semi trailer specification for your review only. We could recommend

other model dump semi trailer according to your request.

Other Model Dump Semi Trailer Picture For Reference.

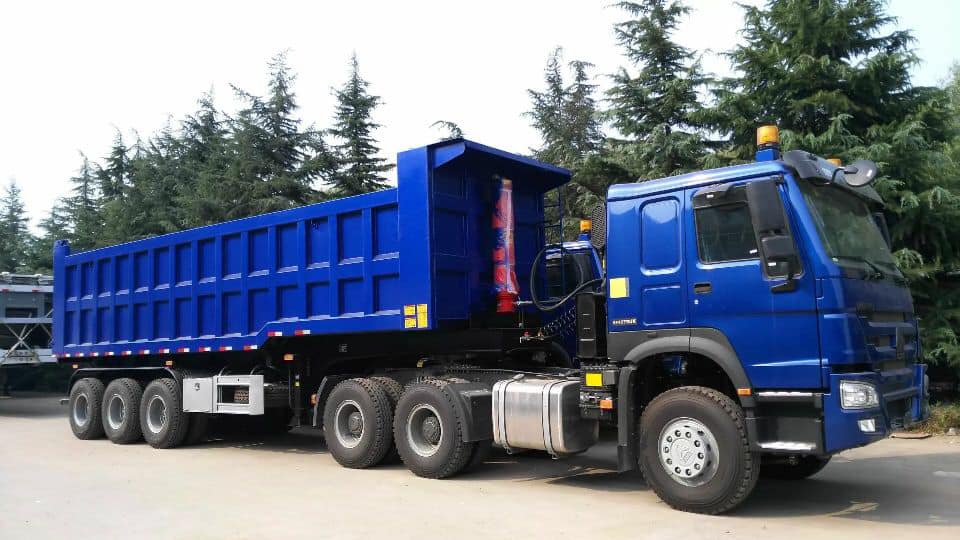

3 axle dump semi trailer with 50 tons loading capacity.

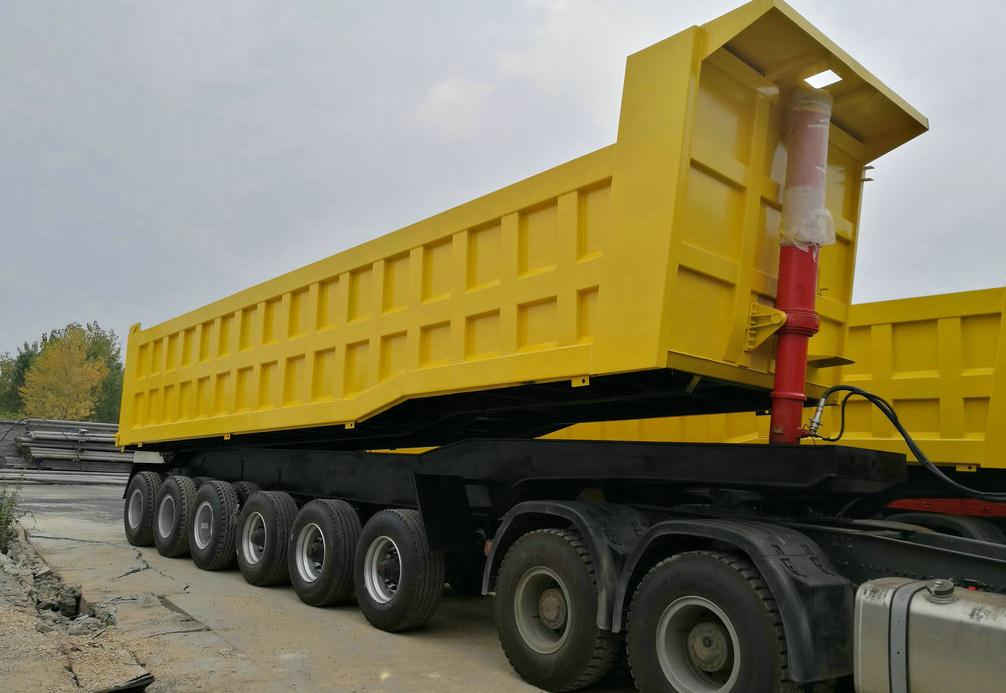

5 axle dump trailer with HYVA brand hydraulic lifting system.

6 axle dump trailer with air and mechanical suspension.
