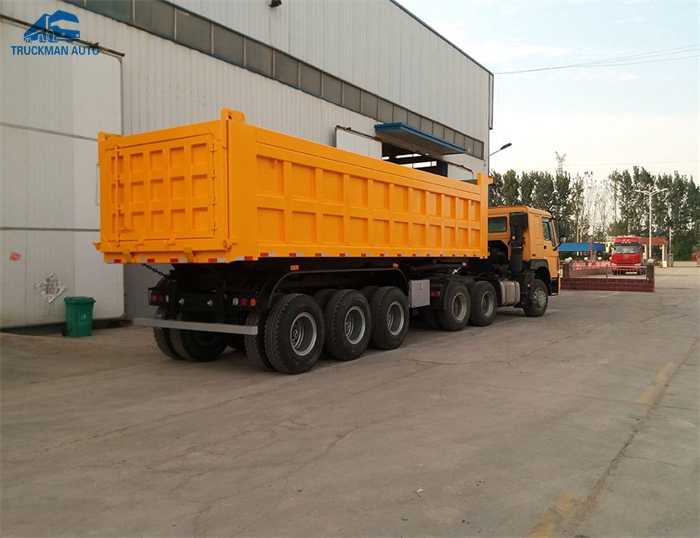

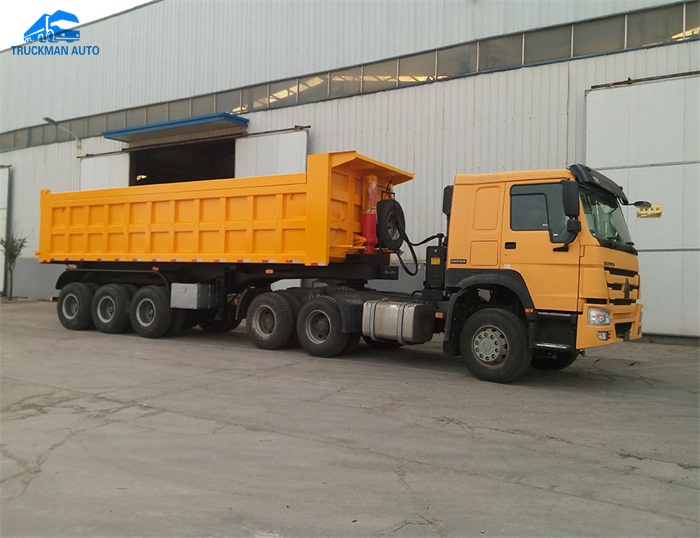

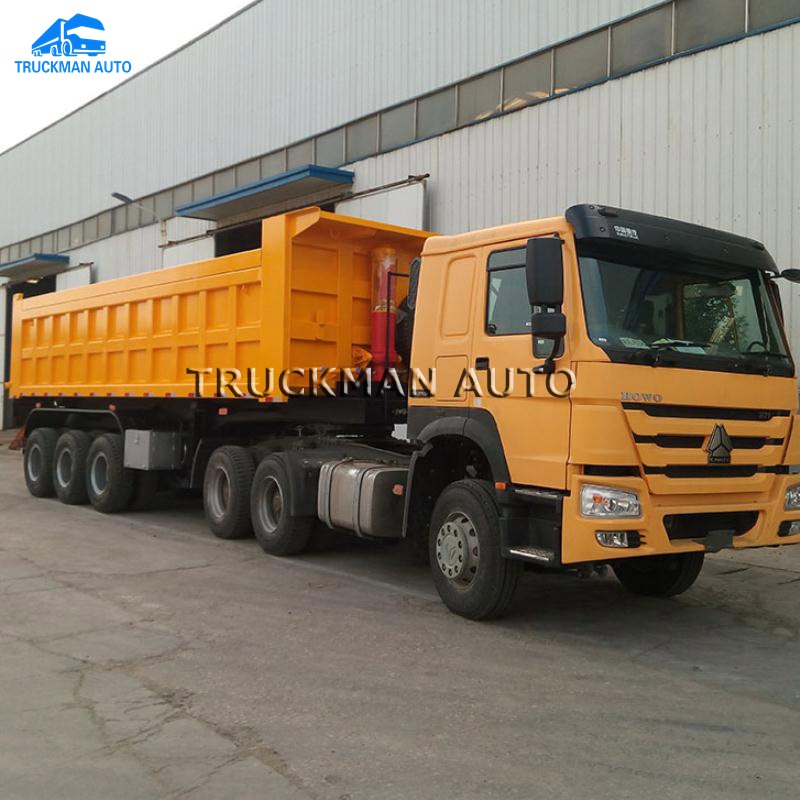

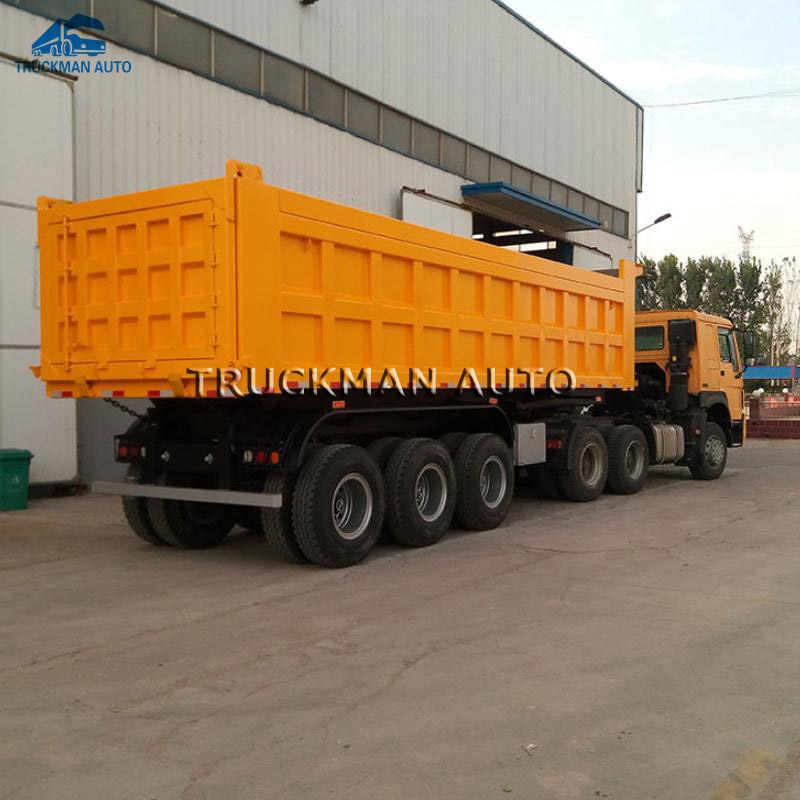

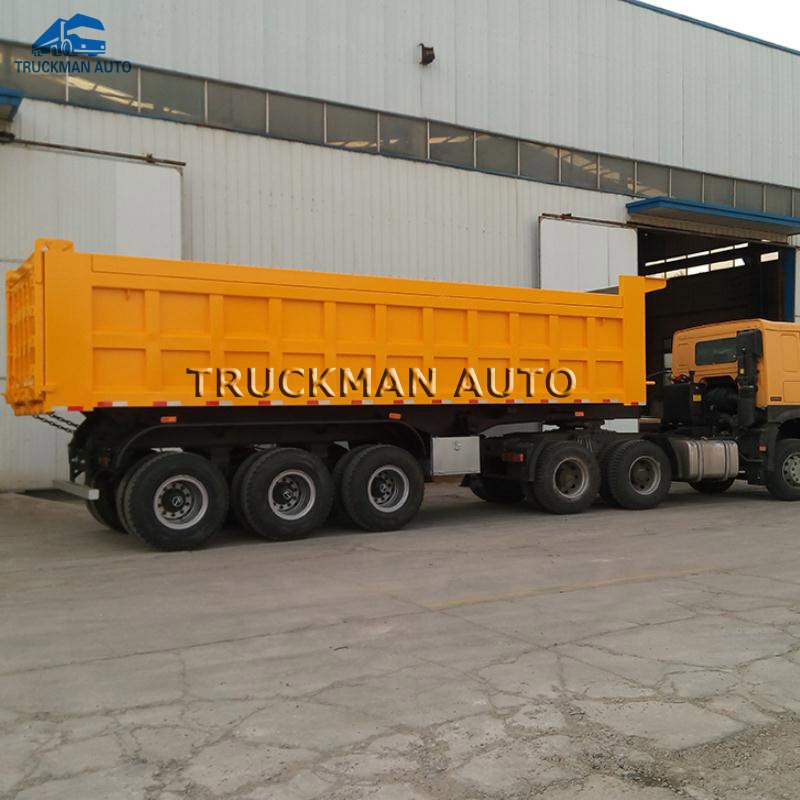

Tipping semi trailer loading tons from 50 tons to 80 tons, the main material adopt the high strength
steel, suitable for the different goods transport. and the tipping semi trailer lifting system choose the
HYVA brand hydraulic lifting system, confrim the discharge goods quickly, save time. We also could
accept the custom made, such as make more axles tipping trailer, make big cargo box etc.
The Main Specification For The Tipping Trailer
Dimension: 9000×2500×3890mm (Outside)
Cargo Box: 8500x2400x1500mm
Payload: 50 Tons
Lifting system: HYVA hydraulic system or Chinese brand
Frame: Automatic welding design I beam, Q345B carbon steel material
Thickness: Upper and lower plate is 16mm, middle is10mm. height is 500mm

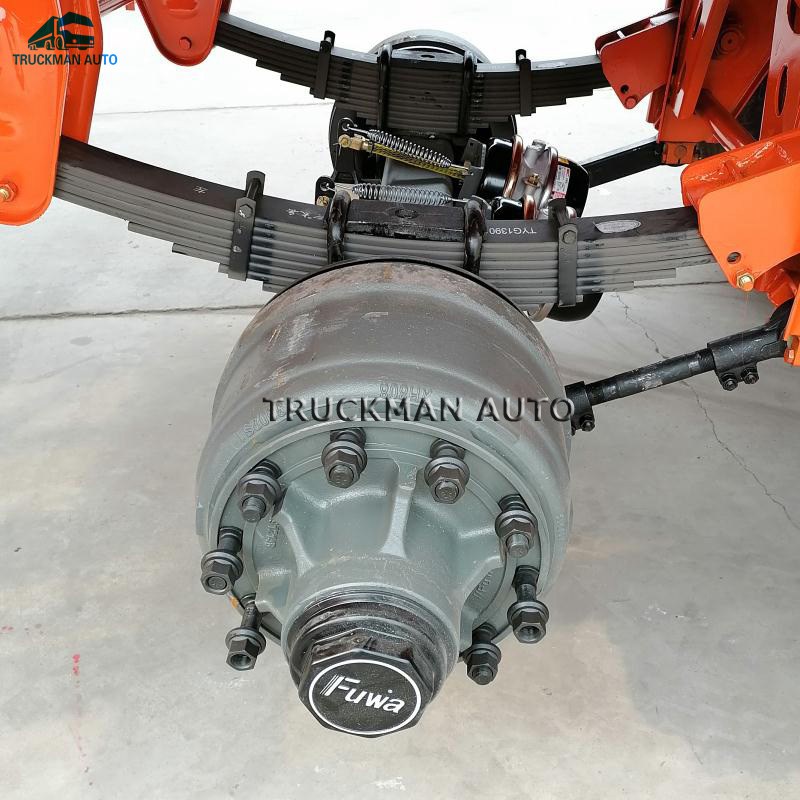

Axle: 2, 3, 4, 5, 6 axles, BPW/FUWA/HJ brand
Landing Gear: JOST CHINA BRAND 28T
King Pin: JOST 2.00 or 3.5 inch bolt-in king pin

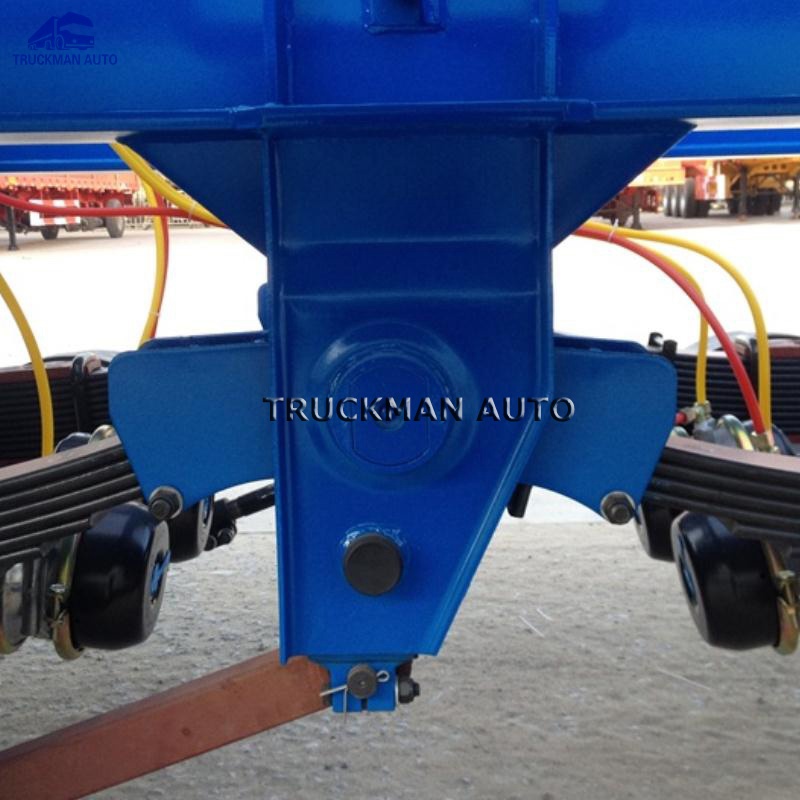

Suspension: Mechanical suspension/Germany or America type/air suspension
Leaf Spring: 120mm(W)*16mm(T)*10 Layer
Braking System: WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim: 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire: 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
Accessories: One standard tool box
Voltage: 24V
The Specification Only For Your Reference, We Could Accept The Custom Made.
