Overall Diamension:11800*2500*3950mm
Front Lifting Cylinder:HYVA brand
Buckets: U type for mining,Bottom 6mm side 5mm
Front Three Axles: Air bag suspension
Rear Three Axles: Mechanical Suspension.
What is Dump Semi-trailers?
Dump semi-trailers are suitable for the transportation of bulk and scattered cargo such as coal, ore, and building materials. Dumping semi-trailers can be divided into two categories according to their purpose: one type is heavy and super heavy-duty trailers for off-highway transportation, which are mainly responsible for large-scale mining and engineering transportation tasks, and are usually used with excavators. Another type of light and medium-sized ordinary dump trailers for road transportation is mainly responsible for the transportation of loose goods such as sand, earth, coal, etc., and is usually used in conjunction with loaders.
| Model No. | TMA680TWT115DT |
| Front Three Axles | FUWA 13T*3 with air bag suspension, Axles lifting up and down |

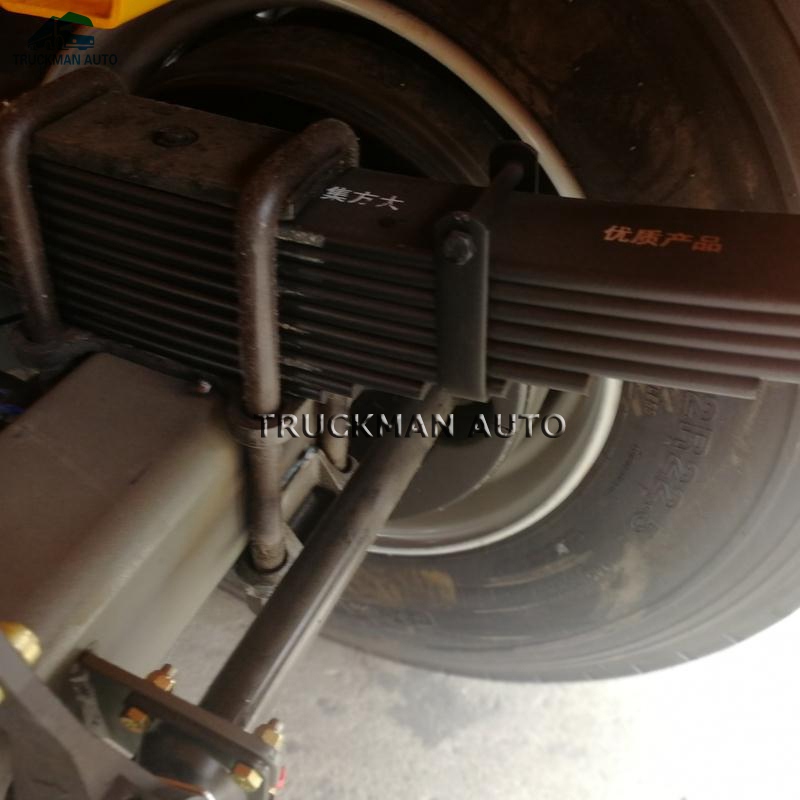

| Rear Three Axles | FUWA 13T*3 with mechanical suspension, 120mm*90mm spring |
| Tires | Front Three385/65R22.5, Rear Three 13R22.5,Tubeless Tires |
| Front Lifting Hydraulic Cylinder | HYVA Brand 214, Global warranty union |
| Buckets | 40 CBM,Bottom 6mm Side 5mm,Mn Plate Q345B,Full-welding |
| Landing Gear | JOST E100 |
| Kingpin | JOST 90# |
| Brake system | Air brake with WABCO relay Valve |
| Electric system | 24V |
