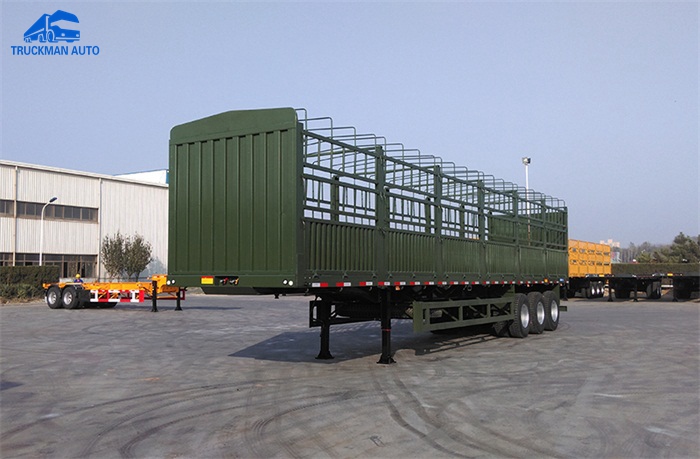

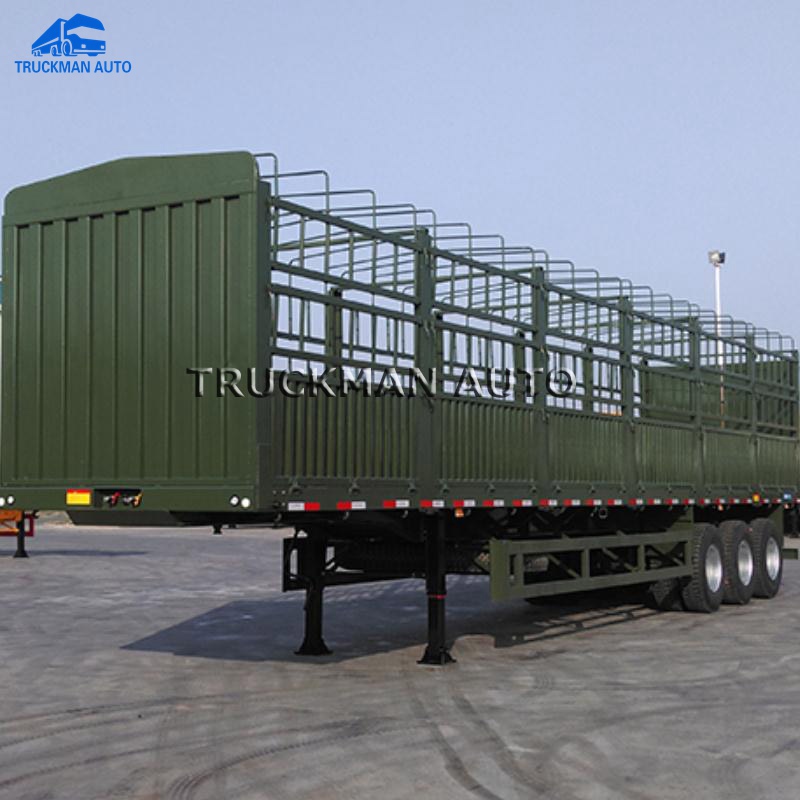

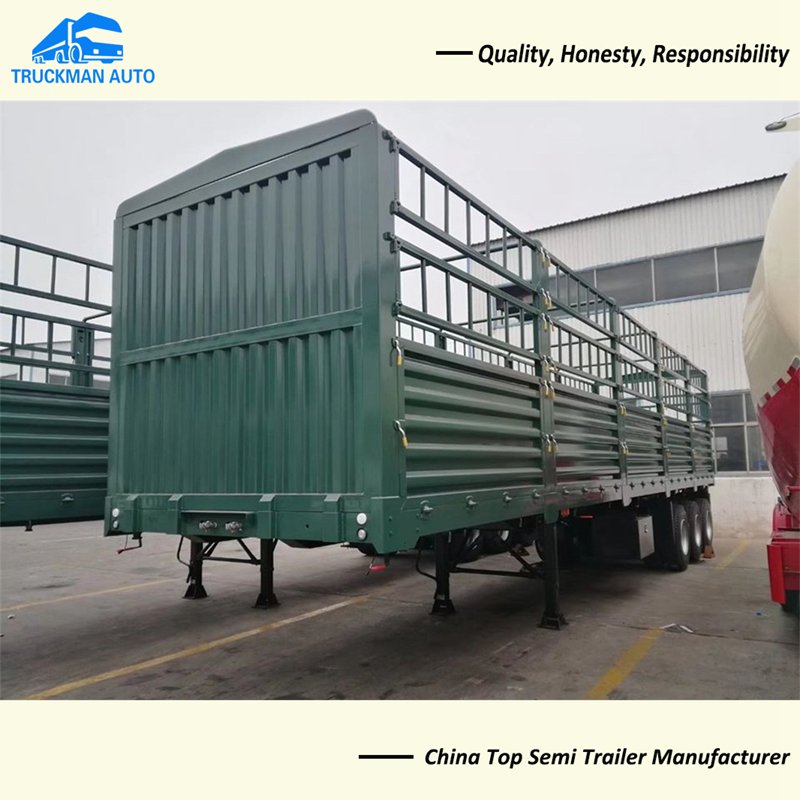

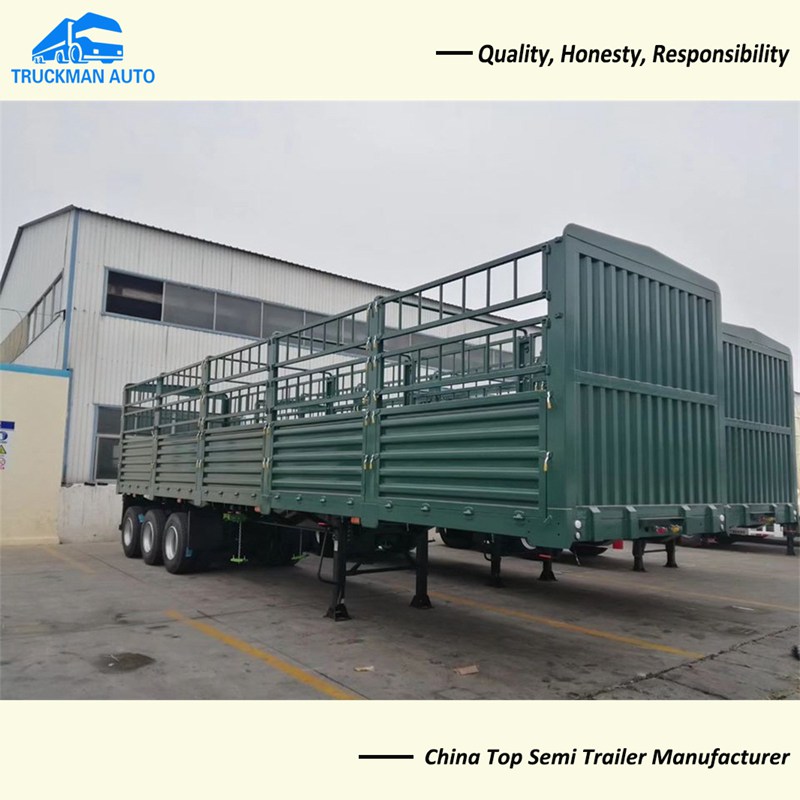

Fence semi trailer could using for transport all kind of goods, the chassis parts thickness increased due to bad road condition.
-1. 60 Tons Fence Semi Trailer Main Detail.
-. Suitable for 20 feet, 40 feet, 45 feet container transport.
-. With 12 pcs twist lock and 24 pcs rope tightener.
-. High strength steel with automatic welding for main parts.
-. Total 28 tons support leg.
-2. 60 Tons Fence Semi Trailer Main Specification.
Product Name: Fence Semi Trailer
Loading Weight: 60,000kg
Tare Weight: 10,500kg
Axle: 3 axle, 3x13 tons
Suspension: America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 16mm thickness
Tire: 12R22.5, 12 pcs
Brake System: WABCO brand, ABS and 6 pcs brake chamber
Thickness Of Frame: Upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam
Material: Q345, high strength steel
Other: With 12 pcs twist lock and tool box
Cargo Box: 12300x2300x600+1800mm, side wall 1.5mm, bottom plate 3mm thickness.
Dimension: 12500x2500x3200mm
The 60 tons fence semi trailer could design according to your request.

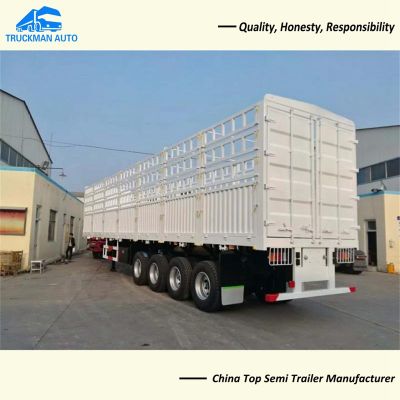

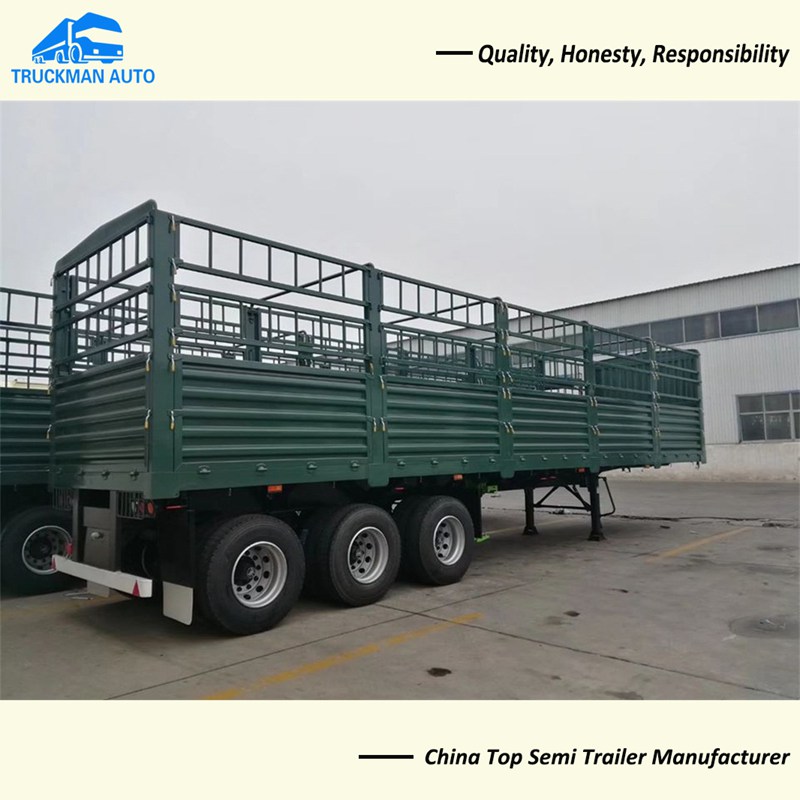

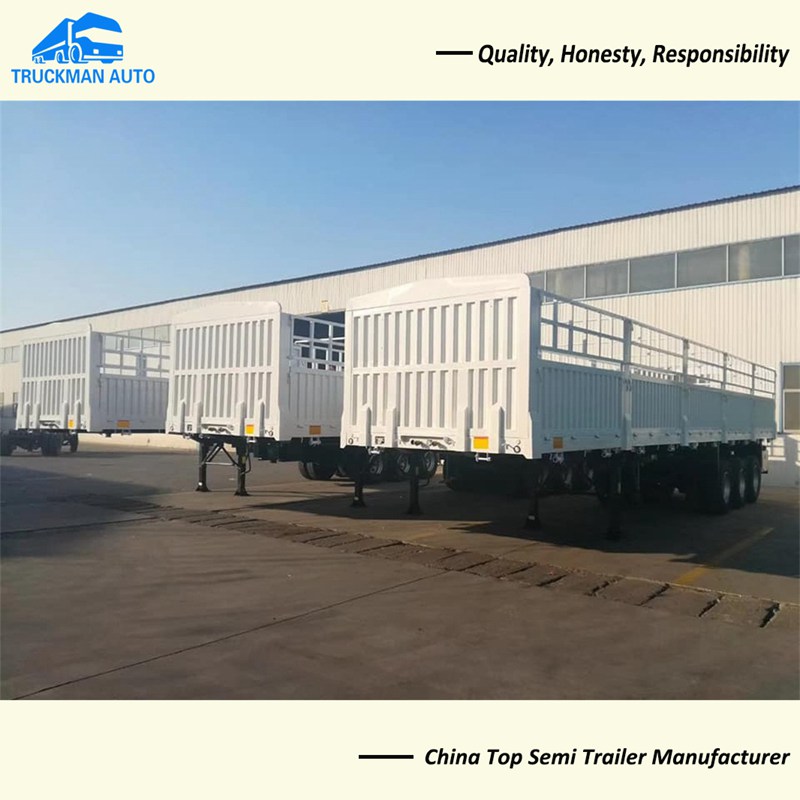

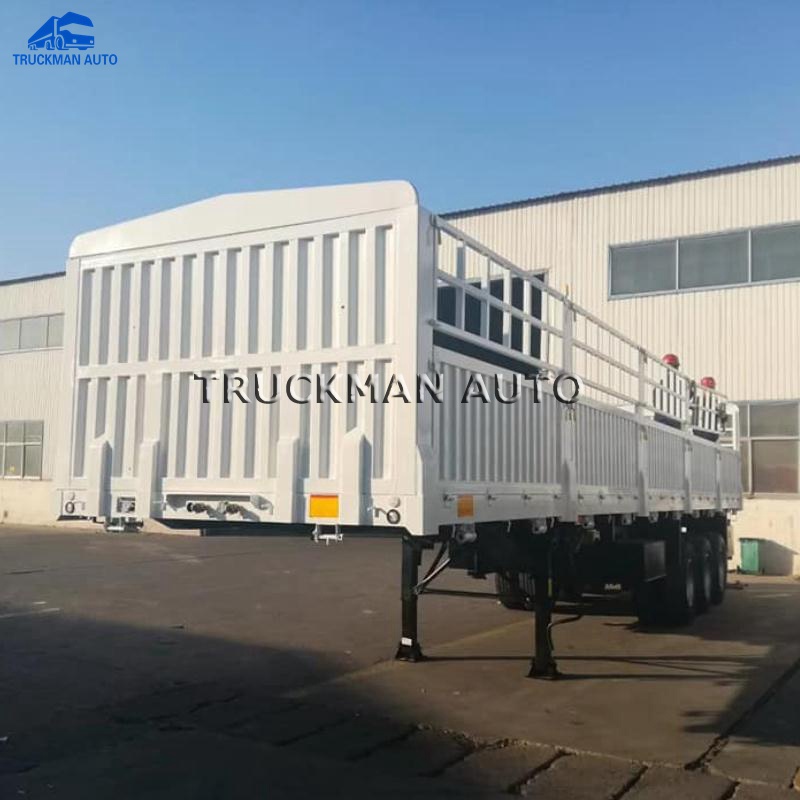

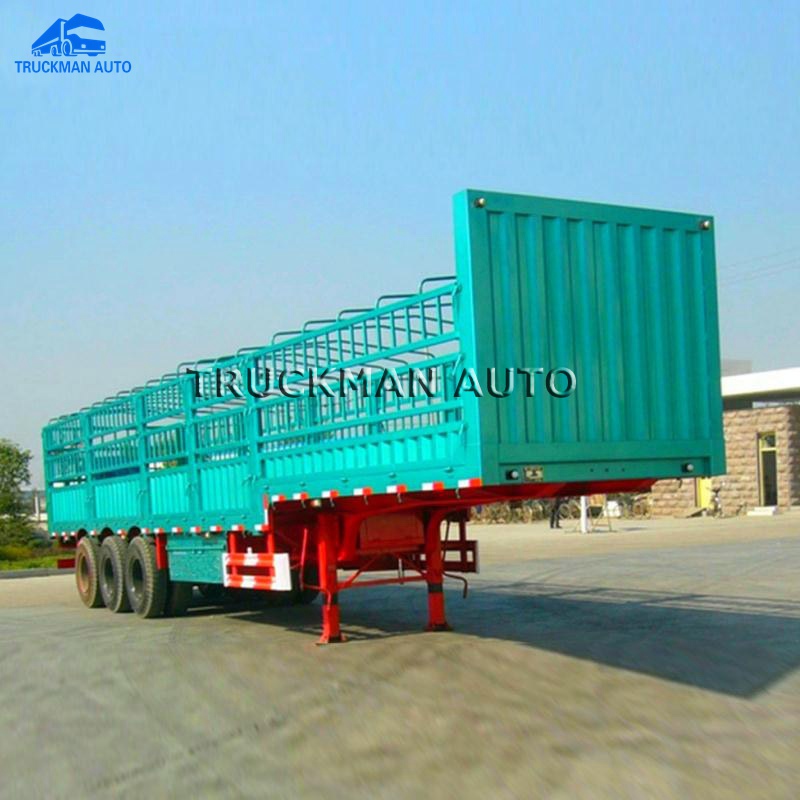

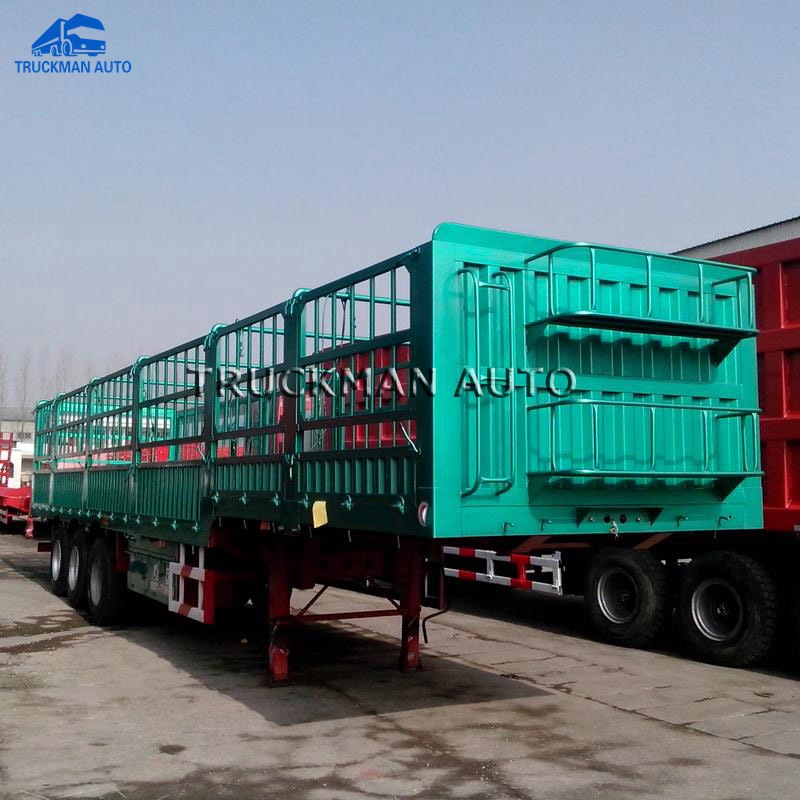

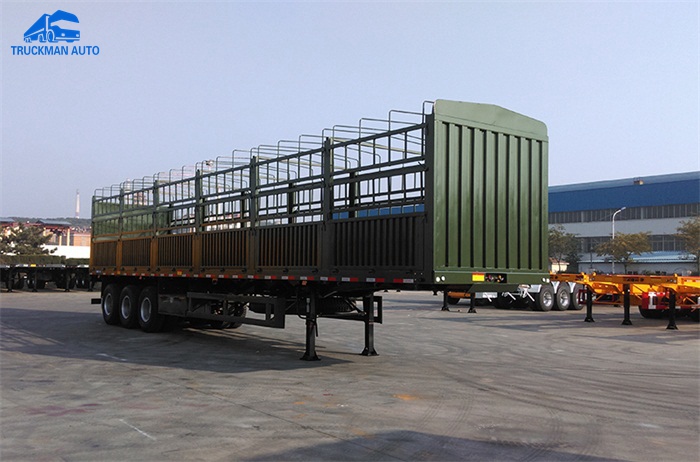

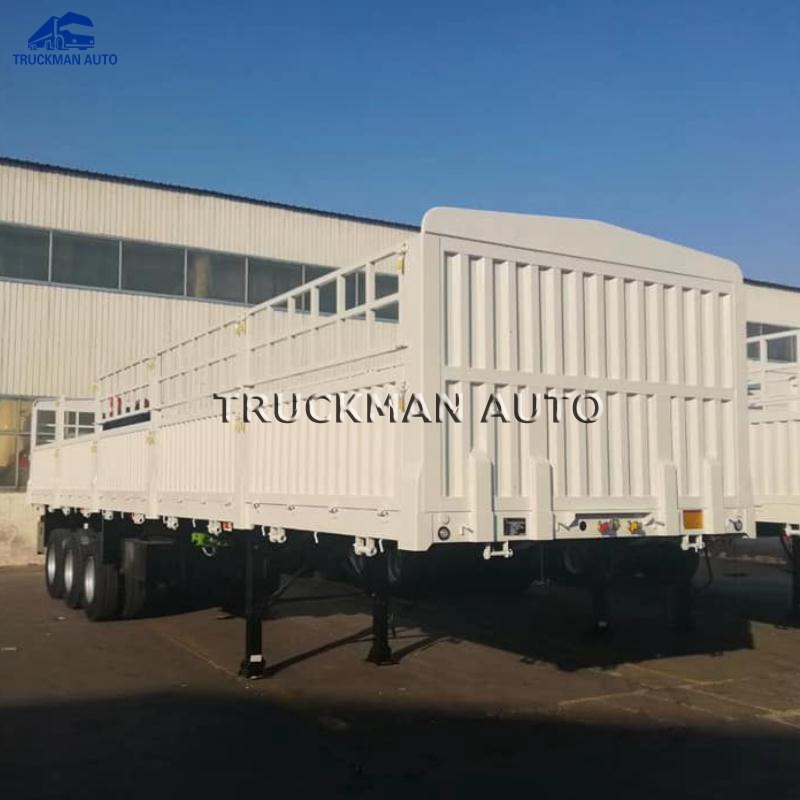

-3. Other Model Fence Semi Trailer Picture.

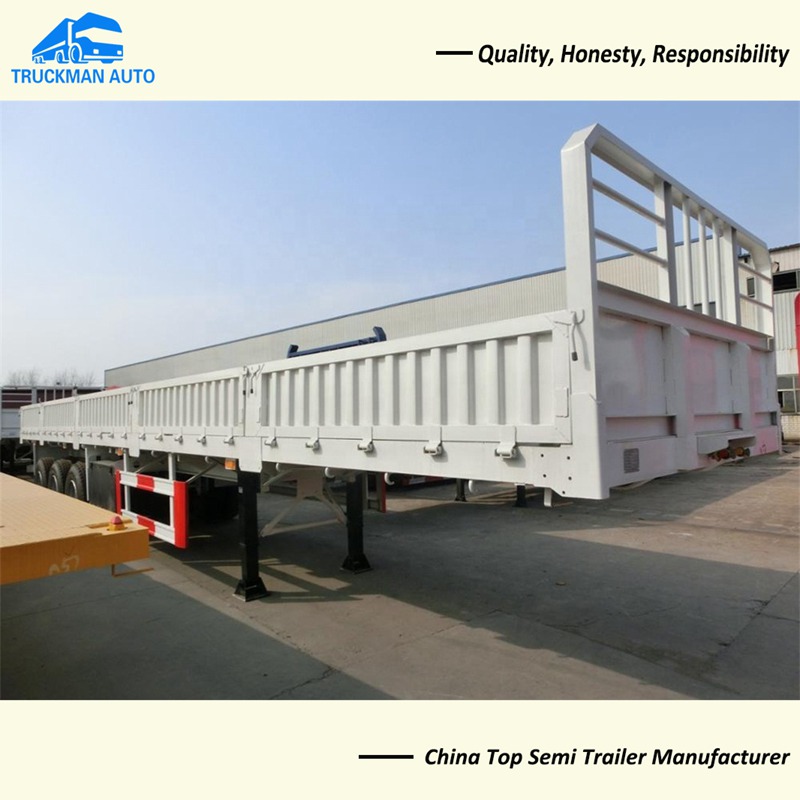

There are 600mm height fence semi trailer also, mainly used for transport the all kind of container,
but also transport bulk cargo sometime, see picture.
