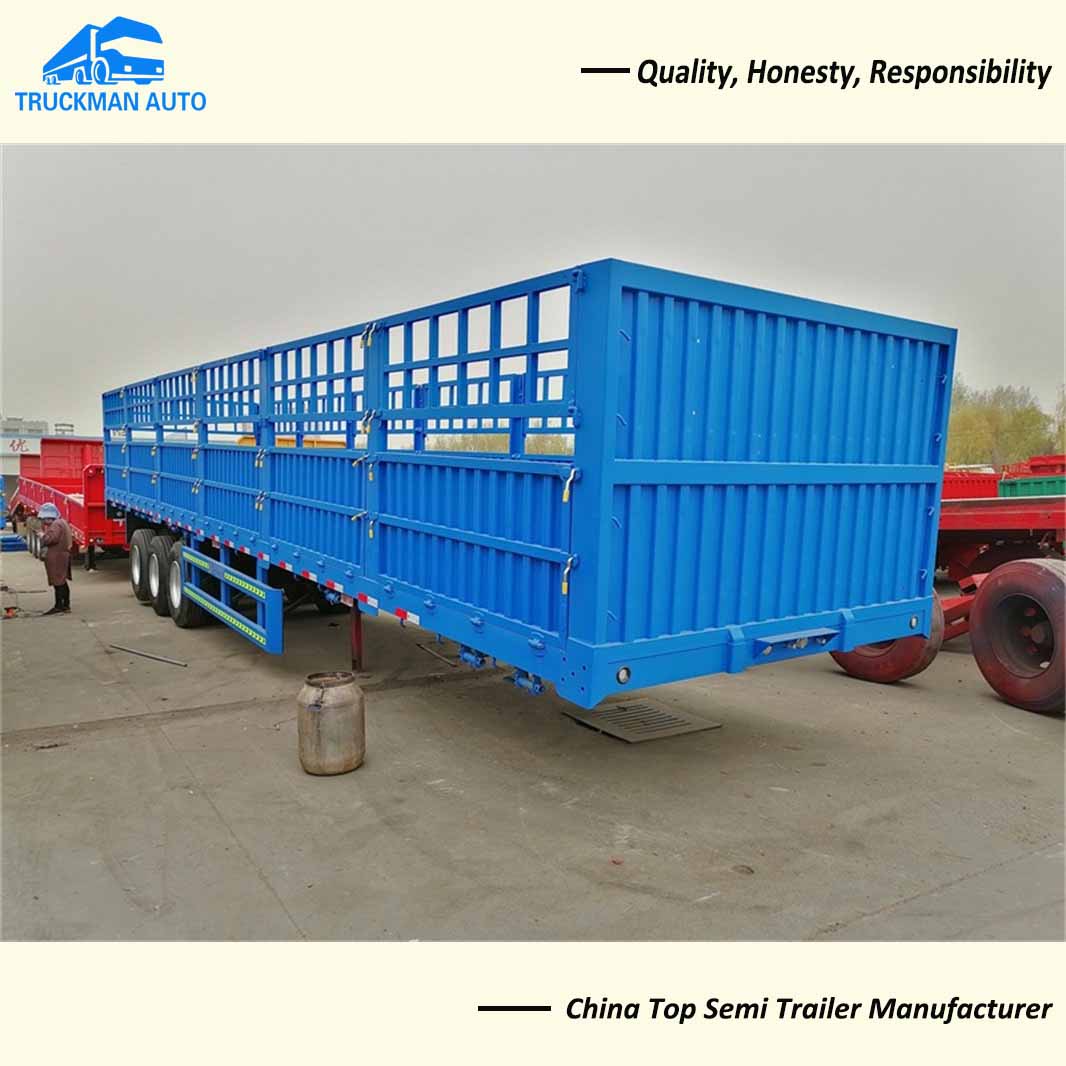

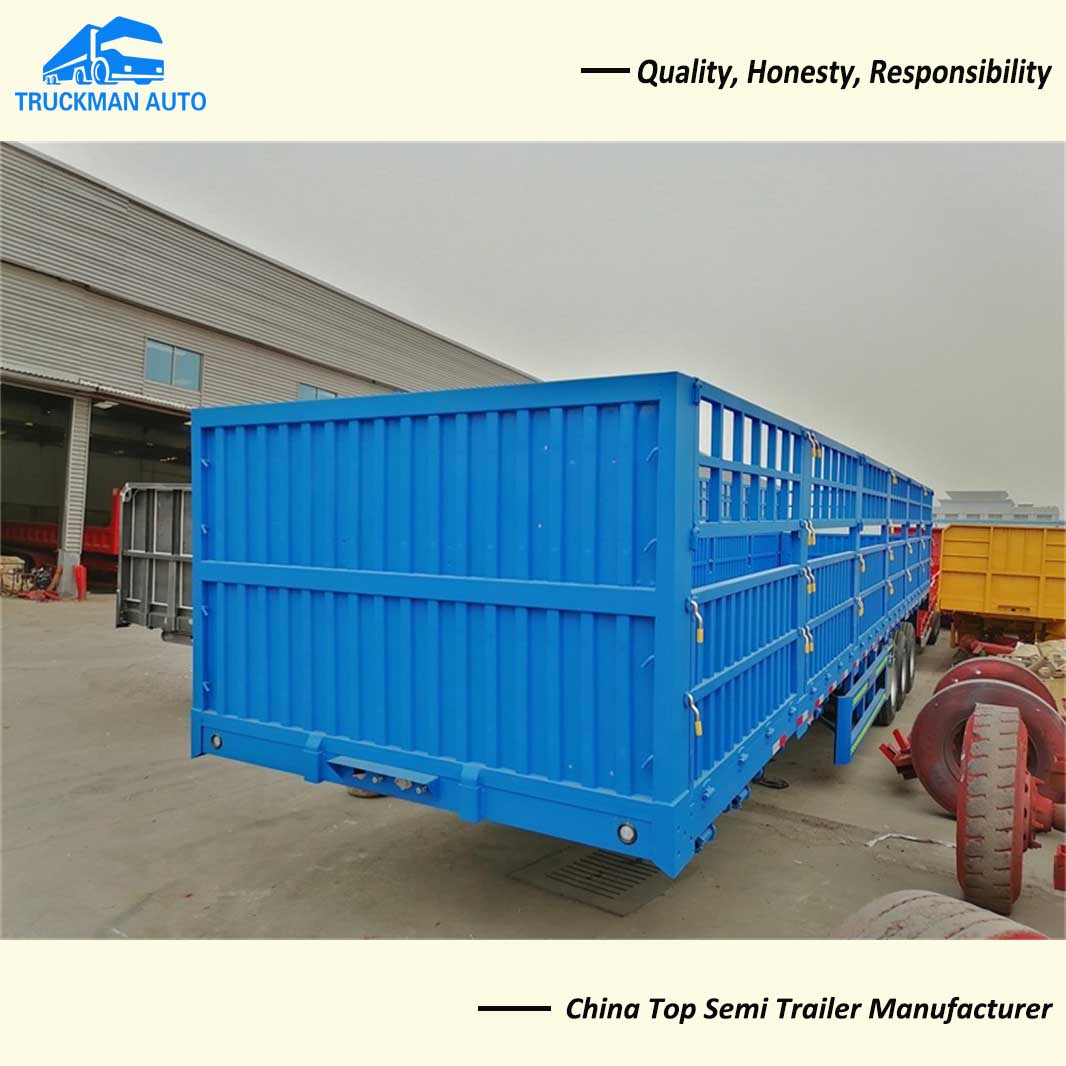

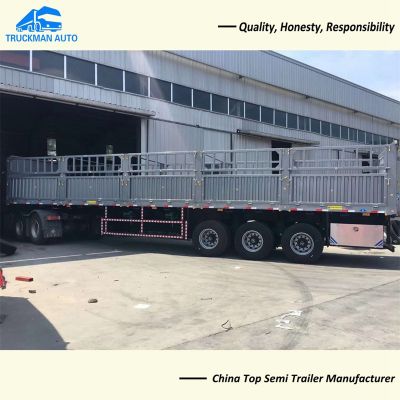

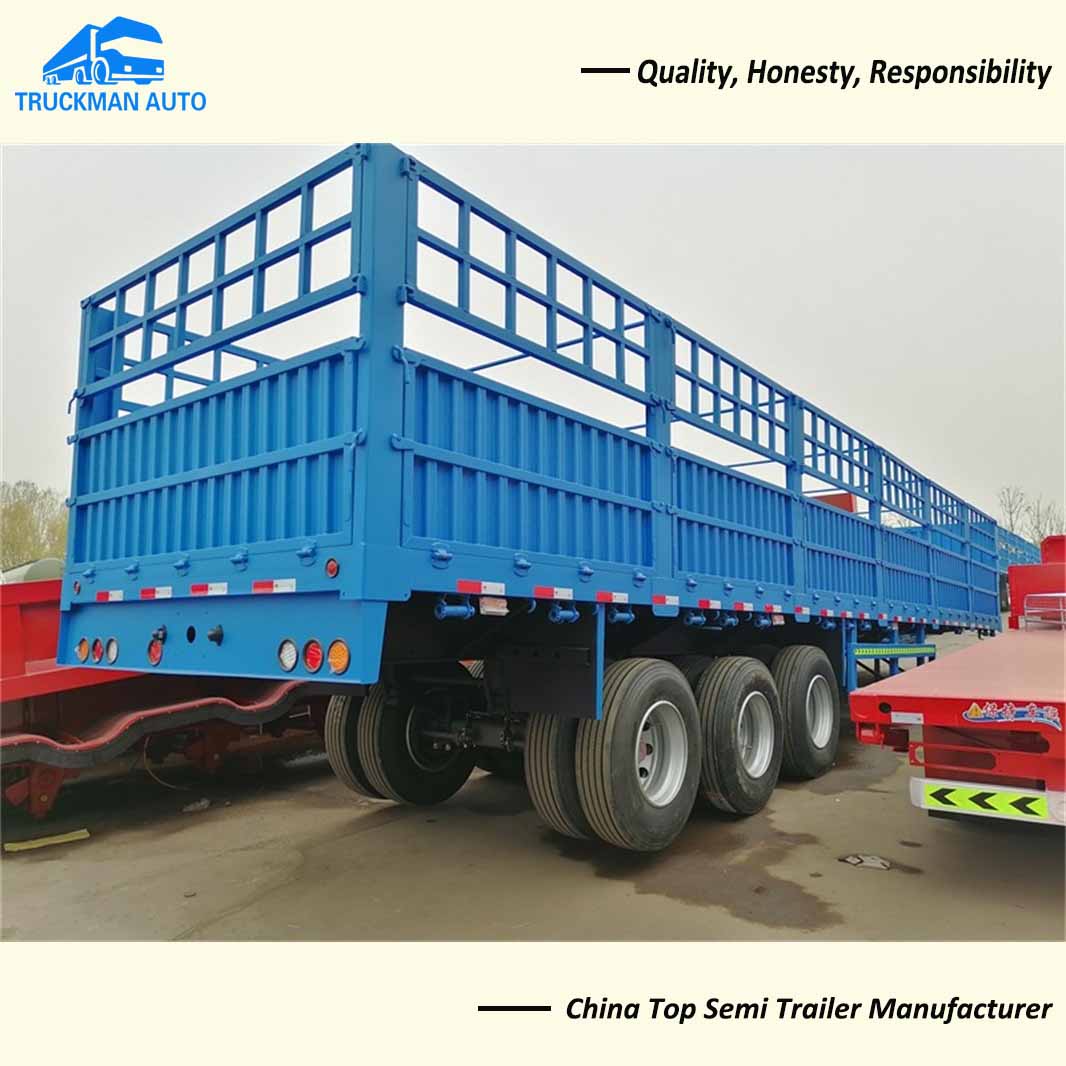

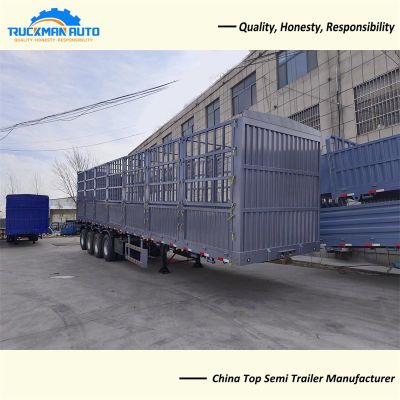

Fence cargo semi trailer is a little different with side wall semi trailer, fence cargo semi trailer fence height more higher than side wall semi trailer.
TRUCKMAN AUTO Brand Fence Cargo Semi Trailer Advantage.
-. Adopt the automatic welding.
-. 800+600mm side wall material use the high strength steel.
-. Axle, suspension, tire adopt the famous parts and with warranty.
-. Hooks material upgrade, could using with long time.
Fence Cargo Semi Trailer Main Specification.
Product Name: Fence Cargo Semi Trailer
Loading Weight: 60,000kg
Tare Weight: 10,500kg
Axle: 3 axle, 3x13 tons
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 12R22.5, 12 pcs, tubeless tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: Upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam.
Material: Q345, high strength steel.
Dimension: 12500x2500x3200mm.
The Fence Cargo Semi Trailer could design according to your request.
Fence Cargo Semi Trailer Shipment Picture.
Our TRUCKMAN AUTO brand fence cargo semi trailer shipment could via the container, bulk cargo and RO-RO vessel, the best optional is container vessel, with fast delivery time and more safety. The trailer need remove fence when loading into container, the picture for your reference:

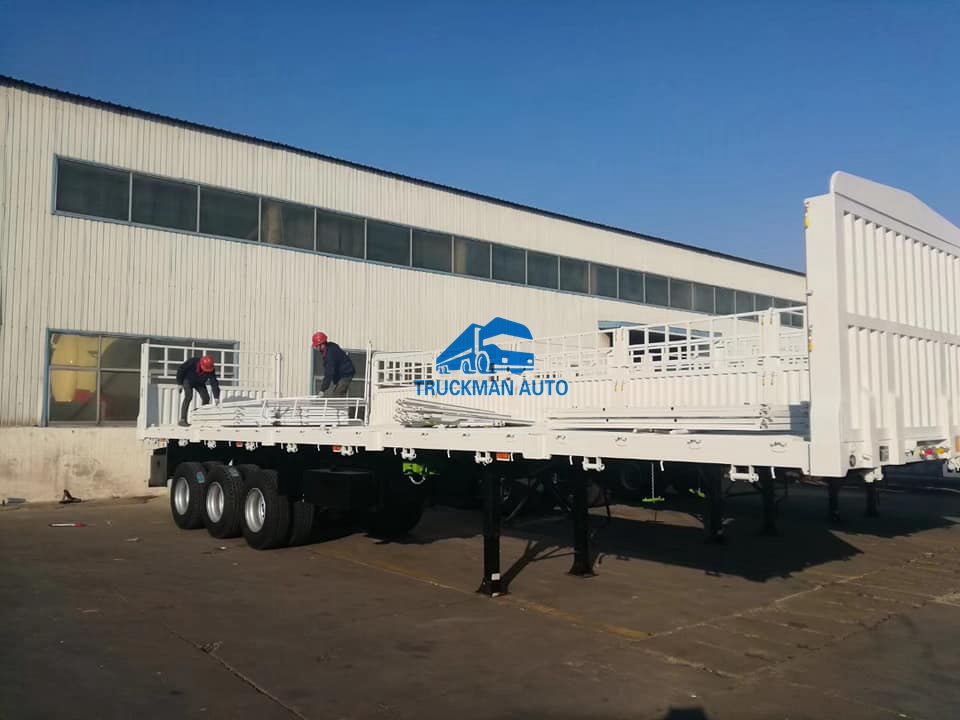

Disassemble the trailer fence before put into 40FT container.

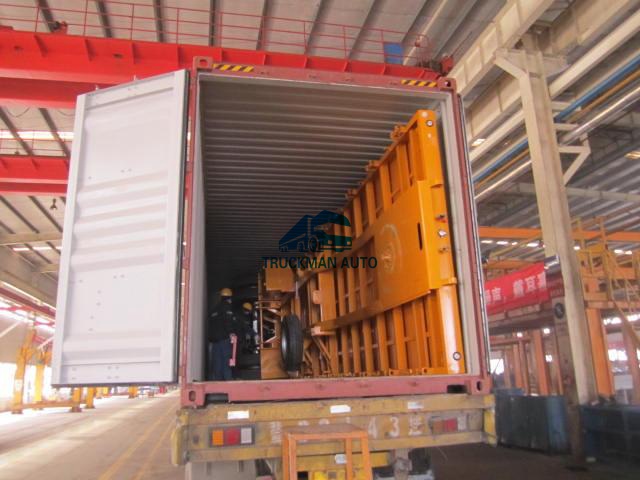

The fence cargo semi trailer after load in 40FT container picture.
