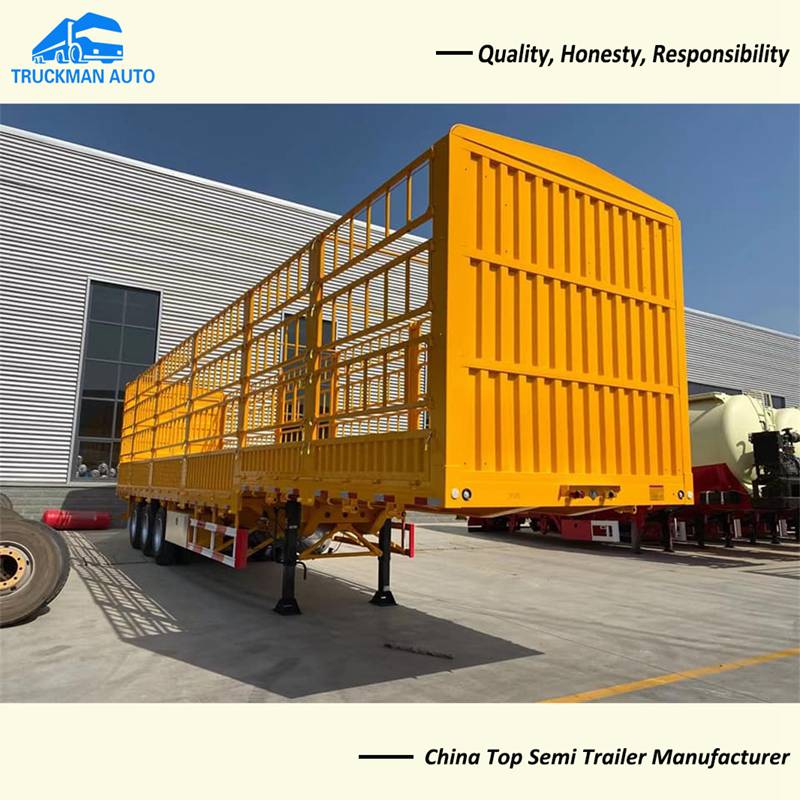

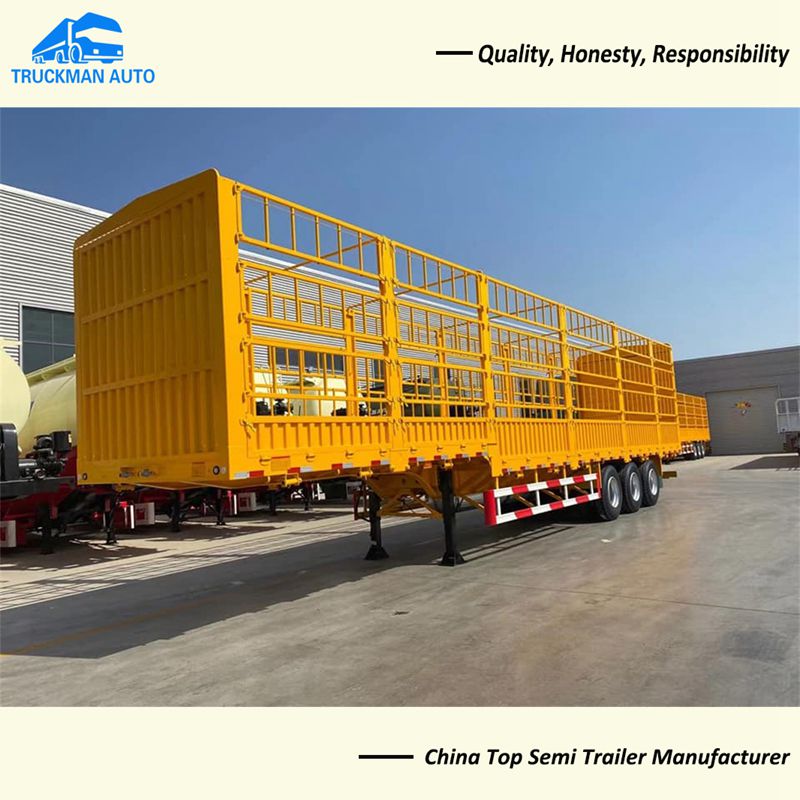

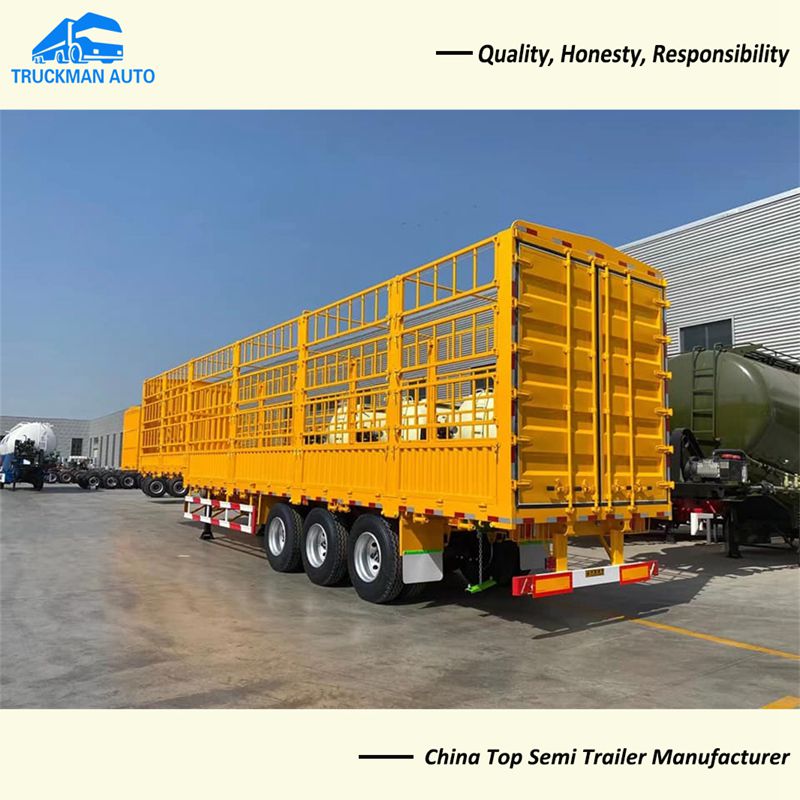

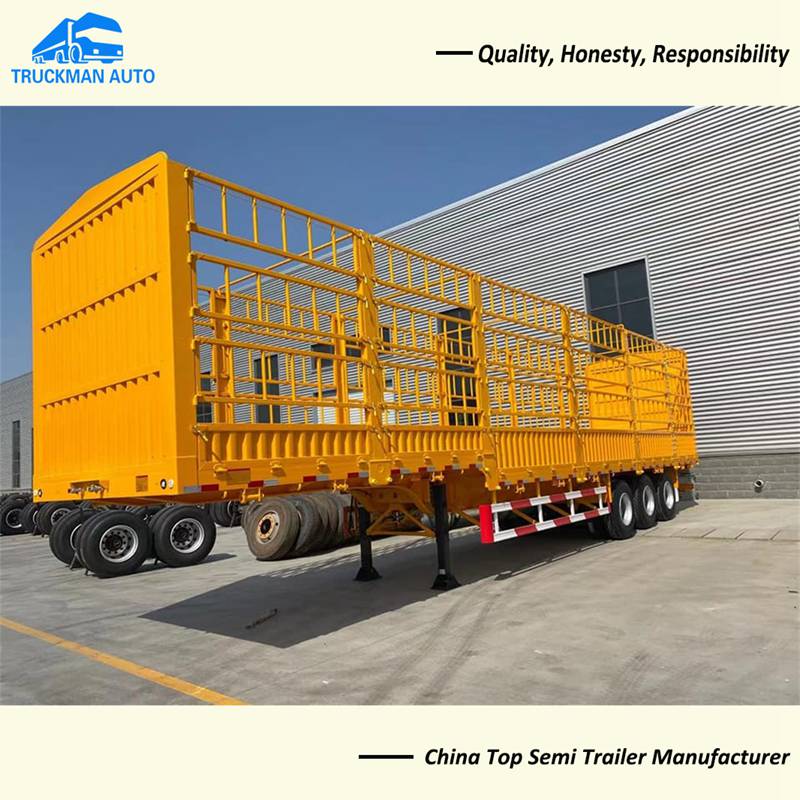

TRUCKMAN Fence Semi Trailer with Grill Details:
|
Manufacturer
|
Jinan Truckman Automobile Co., Ltd.
|
|
Type
|
Fence semi trailer
|
|
Tare Weight
|
Approx. 6.5 T
|
|
Dimension
|
12500*2500*1550mm
|
|
Loading Capacity
|
50-60T
|
|
Axle
|
13T/16T, FUWA/BPW/ZY, etc
|
|
Rim
|
9.00*22.5/8.00-20/8.5-20
|
|
Suspension
|
Mechanical suspension(Germany type or America type) Option:Air suspension
|
|
Leaf Spring
|
90(width)mm*13(thickness)mm*10 layer(especial for overseas market)
|
|
King pin
|
Jost brand 2.0 or 3.5 inch
|
|
Spport leg
|
Jost brand two speed
|
|
Main beam
|
Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm; Material is Q345B steel
|
|
Side beam
|
16mm channel steel (Material is Q235B steel)
|
|
Bottom Platform
|
3mm checquered steel plate
|
|
Side wall
|
600 mm height (can be customized)
|
|
Brake chamber
|
Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
|
|
ABS
|
Optional
|
|
Twist locks
|
8-12 units
|
|
Brake Valve
|
Wabco valve (especial for overseas market) Option: KEMI
|
|
Light
|
LED Light (especial for overseas market)
|
|
Voltage
|
24V
|
|
Receptacle
|
7 ways (7 wire harness)
|
|
Tool box
|
One piece 1m *0.5m*0.5m ( size can be customized)
|
|
Painting
|
Complete chassis sand blasting to clean rust, 1 cost of anticorrosive primer, 2 coats of final paint, color for option
|
|
Shipping terms
|
By RORO,BULK
|
