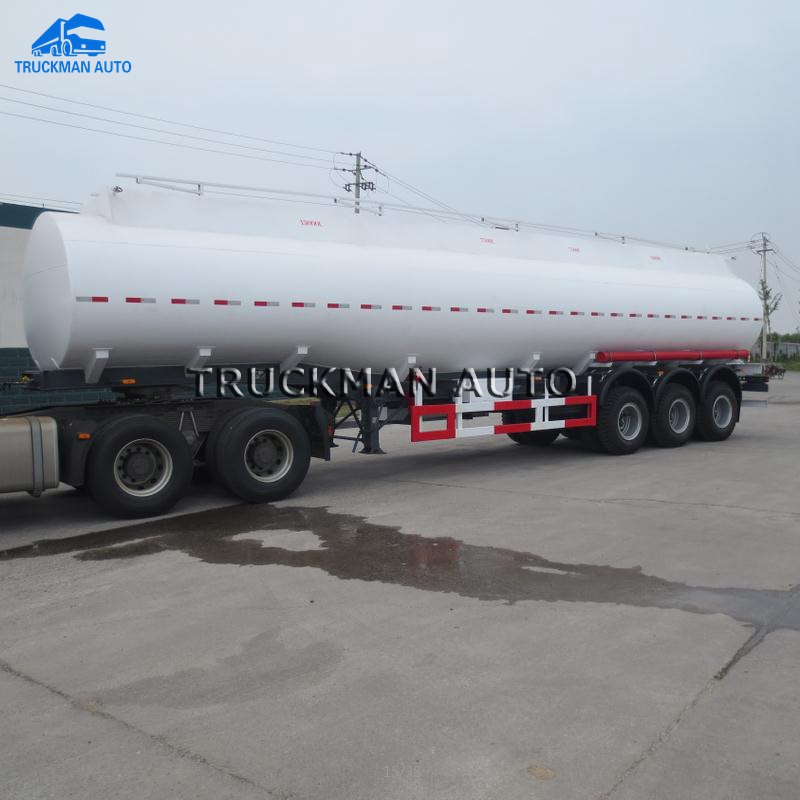

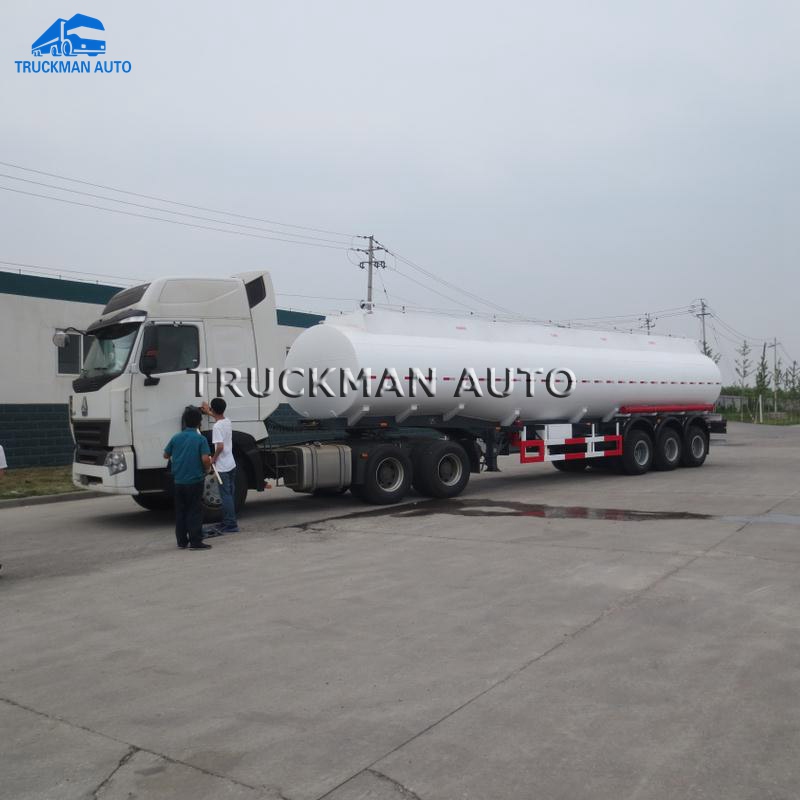

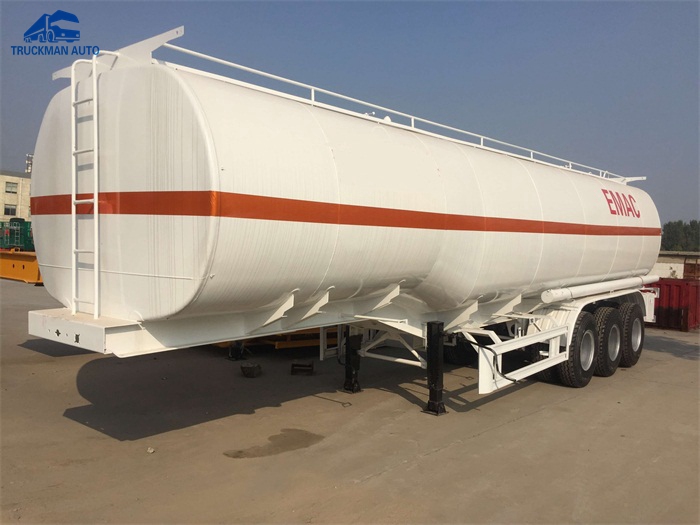

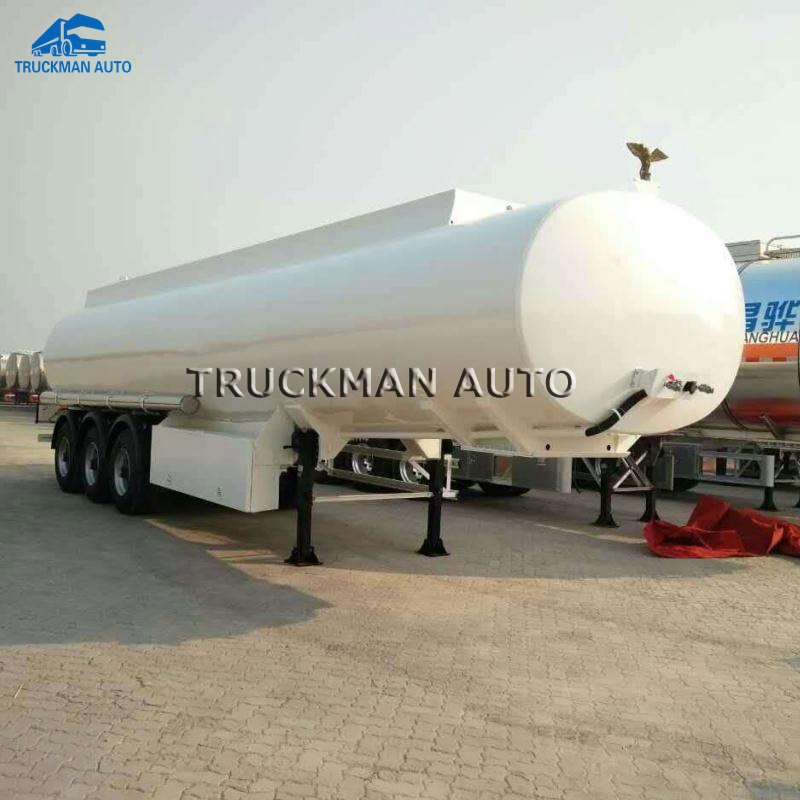

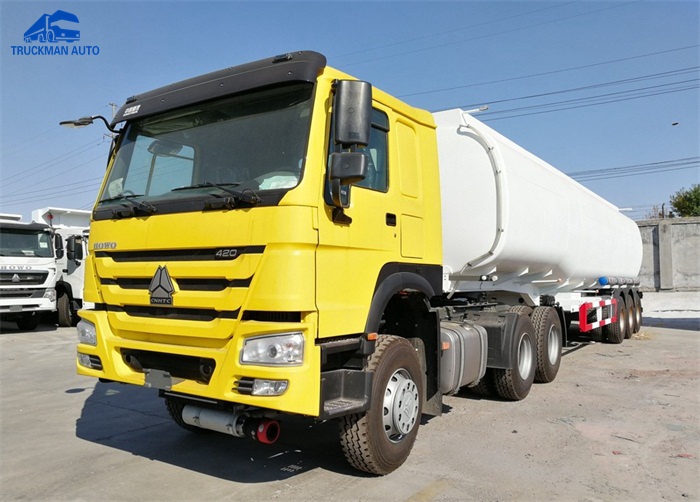

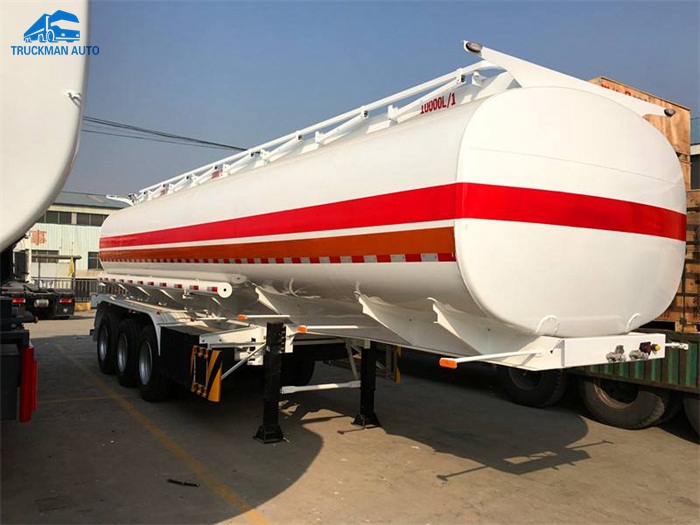

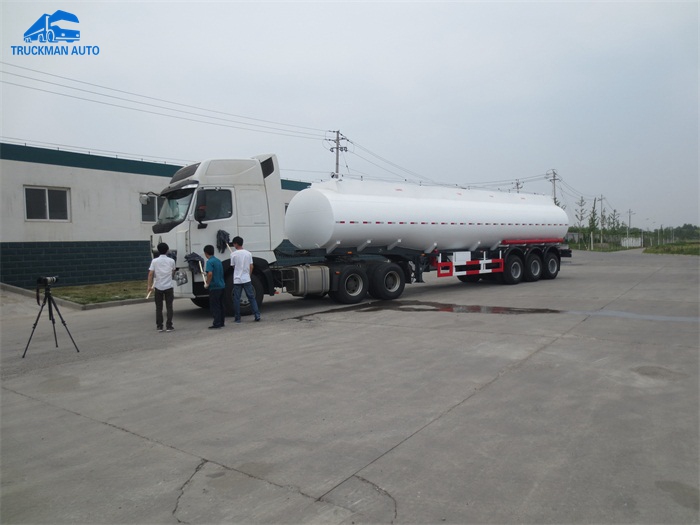

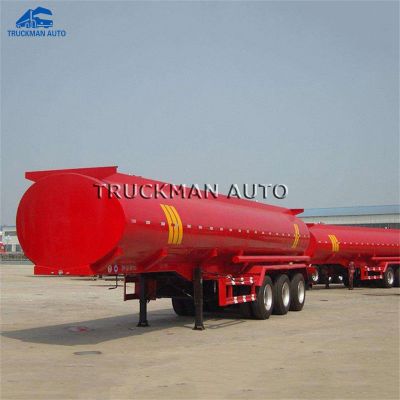

40m3 Fuel Oil Tank Semi Trailer With 5 Comdepartment

-1. Main Specification For The Fuel Tank Trailer.

Overall Dimension: (L*W*H) 11500*2500*3800mm

Volume: 40m3

Tare weight: 10500KG

Tank body: Q235/4mm steel, Q235/6mm steel sheet

Axle: 3 axle 13T Fuwa Brand

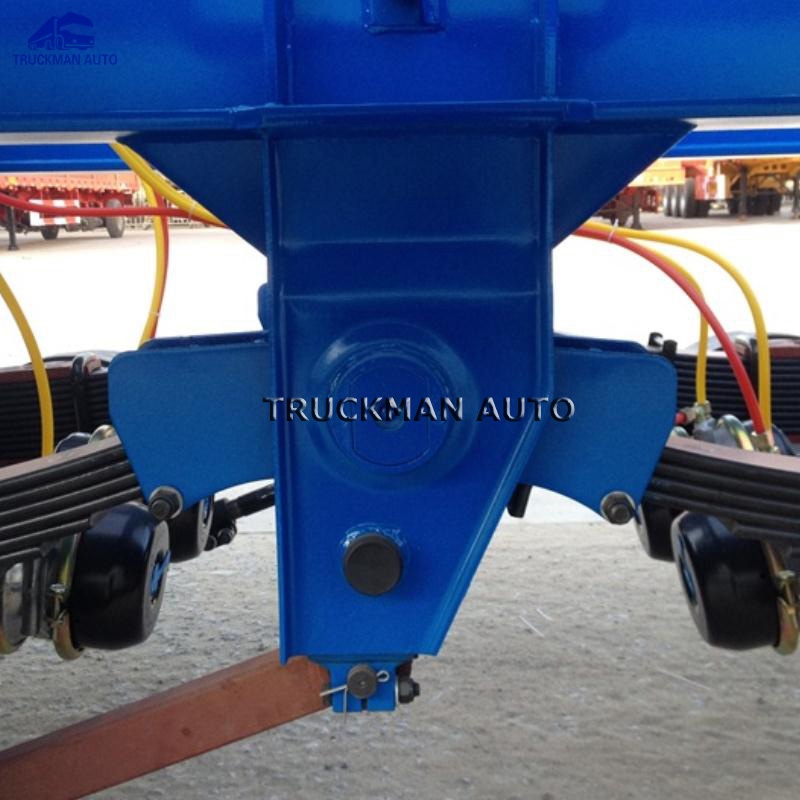

Suspension system: Mechanical Suspension

Steel Spring: 10/10/10 leaf spring suspension

Manhole cover: 500mm manhole cover 8 sets

Tire: 12.00R20  12pcs

Rims: 9.0, 12 pieces

Discharge valve: 4''disc valve ,8pcs

Discharge pipe: 4''seamless steel tube ,8pcs

Landing gear: Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t

Compartment: 8

-2. Main Optional Parts For The Fuel Tank Trailer.

Pump, dispenser, water box, tool box, EU subsea valve, static electricity wire coil, gasoline vapor

recovery unit, spill-free alarm, bottom loading devices, etc.

35000 Liter Fuel Tank Semi Trailer

45000 Liter Fuel Tank Semi Trailer

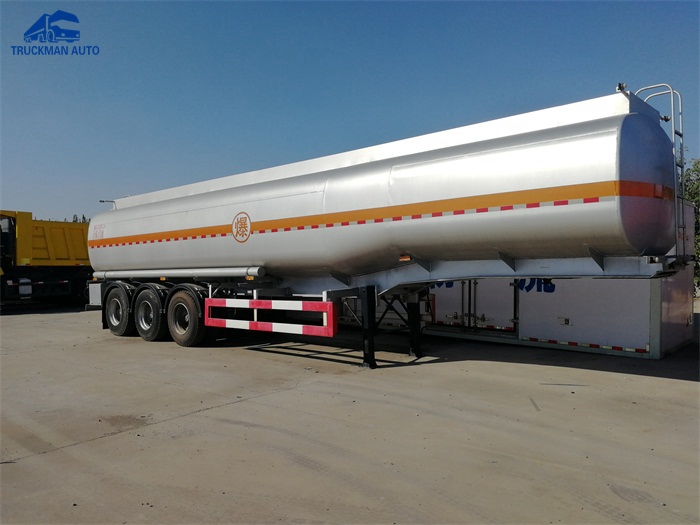

Aluminum Alloy Material Fuel Tank Semi Trailer.
