Low bed trailer also called lowboy trailer, used for transport roller, excavator, bulldozer etc.
TRUCKMAN AUTO Brand Low Bed Trailer Advantage.
-. High loading capacity and more big working area, 50-70 tons.
-. Suitable for all kind of model roller, excavator, bulldozer, wheel loader.
-. 3x13000kg axle or 16000kg could optional according to loading tons.
-. Main parts thickness increased, confirm the goods transport safety.
Low Bed Trailer Main Specification.
Product Name: Low Bed Trailer
Loading Weight: 70,000kg
Tare Weight: 11,500kg
Axle: 3 axle, 3x13 tons
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 18mm thickness
Landing Gear: JOST, 28 tons.
Tire: 12R22.5, 12 pcs, tubeless tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam.
Material: Q345, high strength steel.
Dimension: 13000x2500x1300mm.
The low bed trailer could design according to your request.
Low Bed Trailer Ladder Picture.
There are two model ladder could optional, most low bed trailer adopt the spring mechanical ladder, due to low cost and easier maintenance. Also there have hydraulic ladder, with more high cost but operating very easier, the picture about this type ladder as follow:

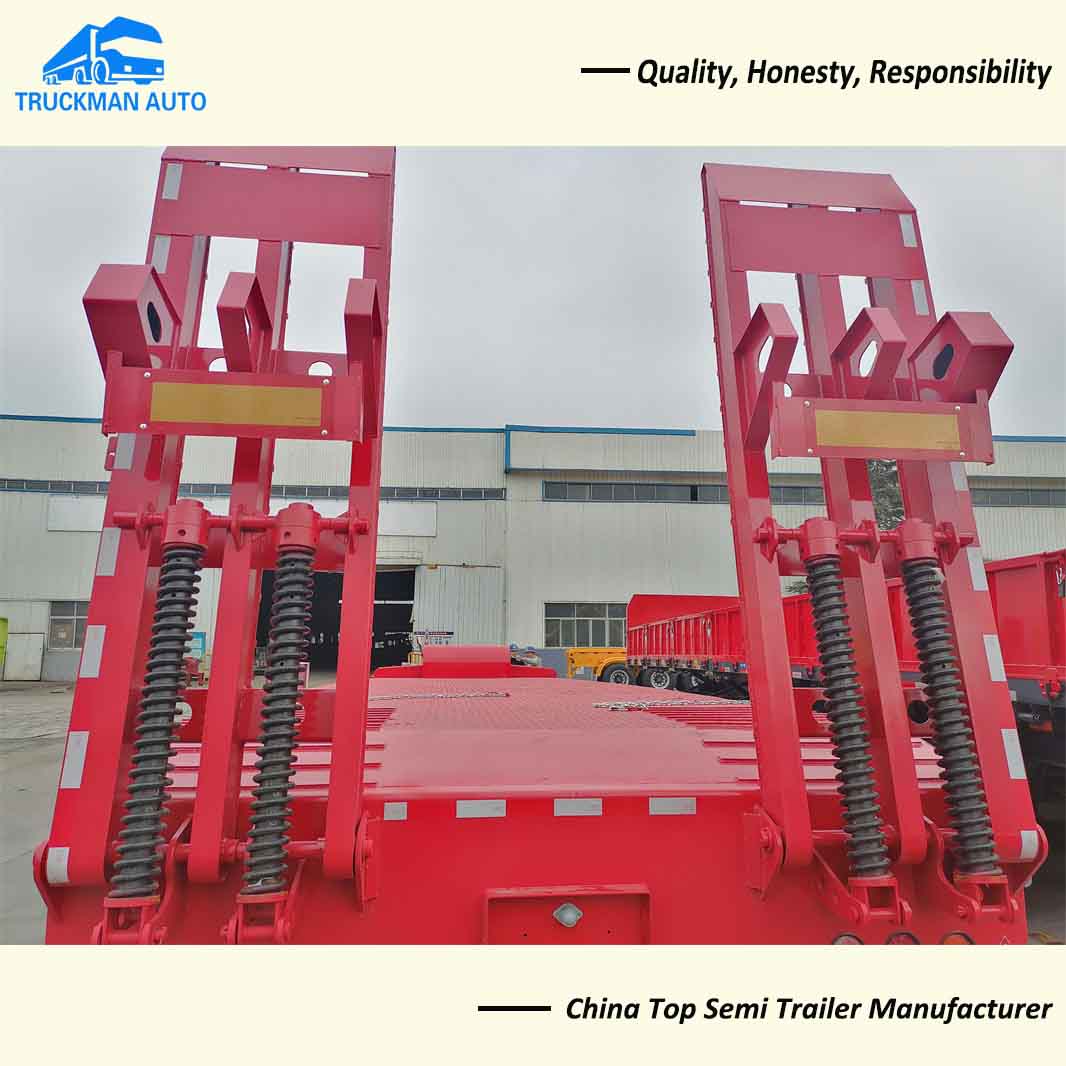

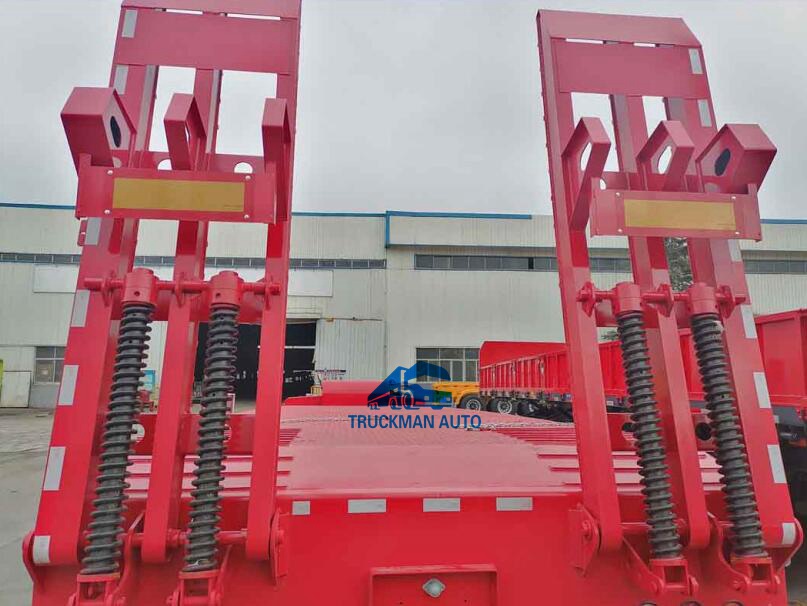

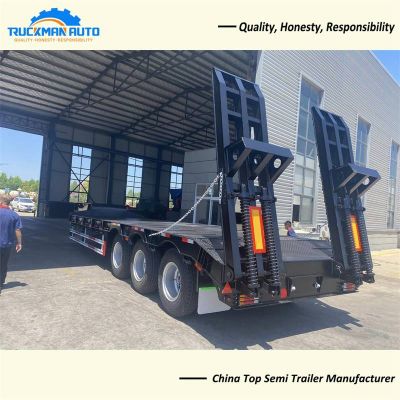

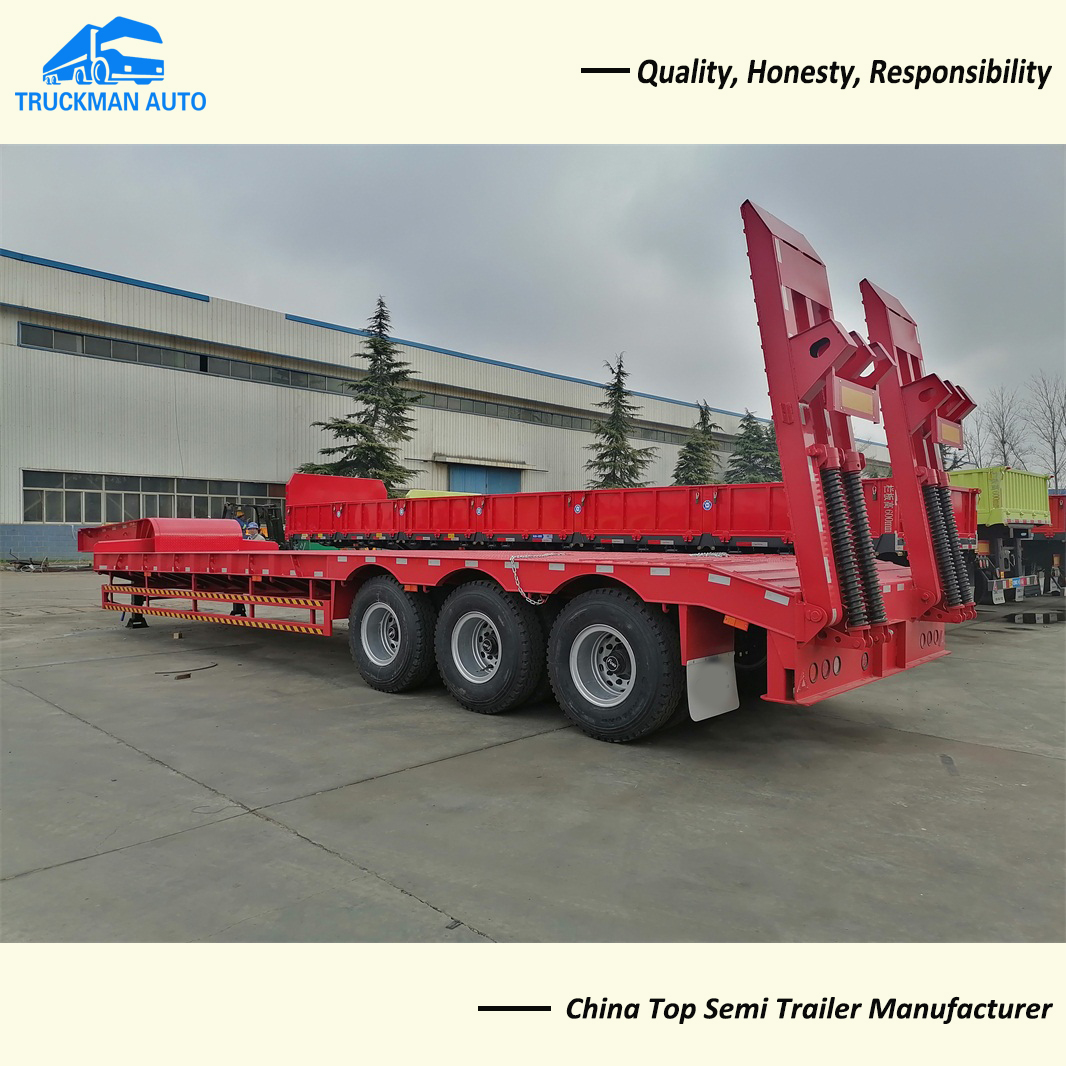

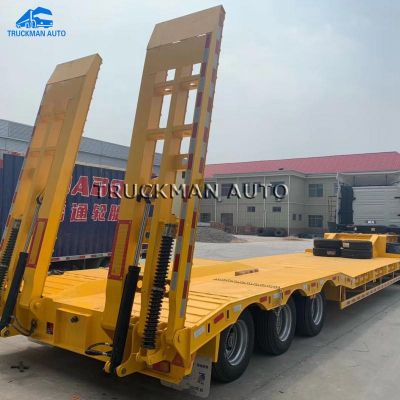

Low bed trailer with spring mechanical ladder

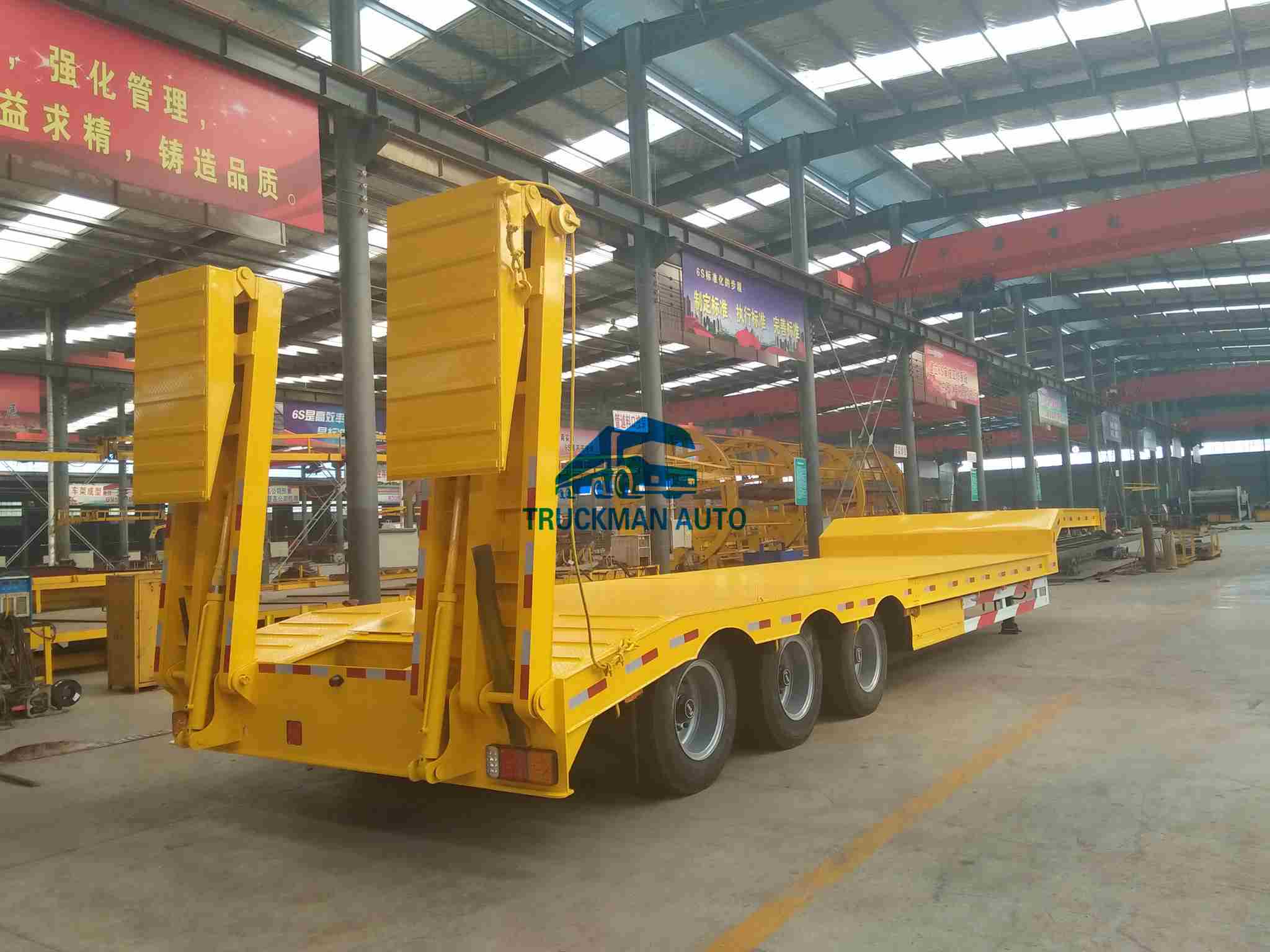

Low bed trailer with hydraulic ladder
