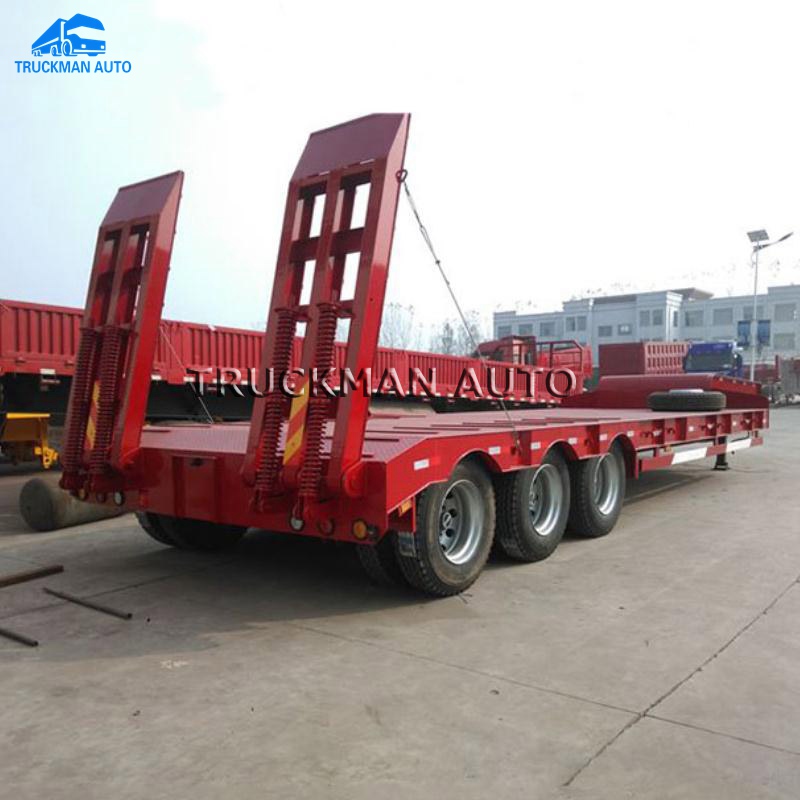

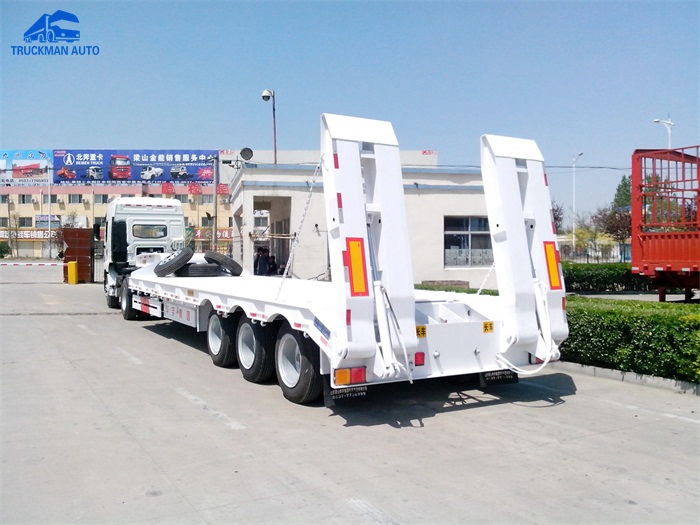

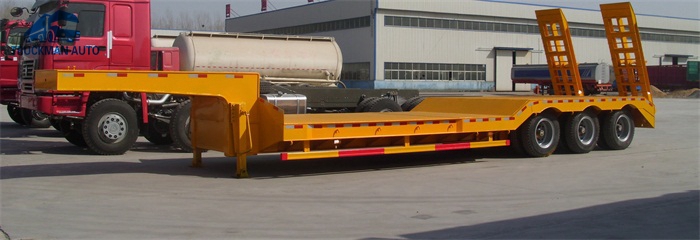

Our low bed semi trailer tire could choose the radial, tubeless model. The number is 12.00R20, 12R22.5, 315/80R22.5 etc.
Our flatbed semi trailer tire could choose the radial, tubeless model. The number is 12.00R20,
12R22.5, 315/80R22.5 etc. And the loading area height and width could design according to your

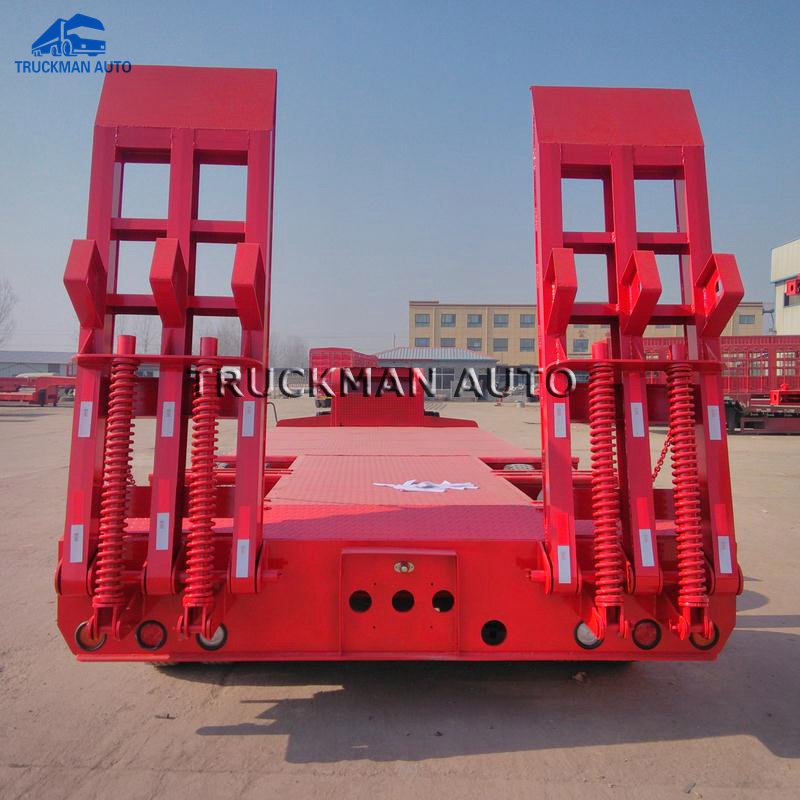

request. The ladder also have the mechanical spring and hydraulic type, the width from 600mm to
800mm. In order to help reduce the total transportation height we also could make the loading area
height to 600mm, see picture

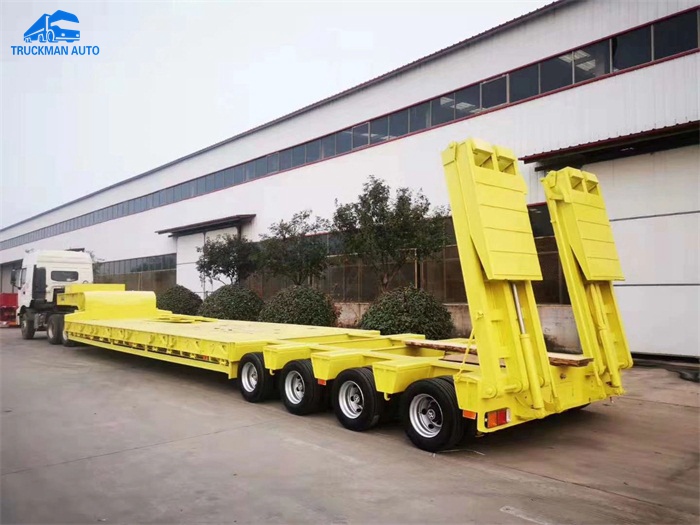

We also have other type flatbed semi trailer, such as the 4 axles 8 line flatbed semi trailer
Normal type 3 axles flatbed semi trailer
Main Specification For The Flat Bed Semi Trailer.
Loading Capacity: 50-70 Tons
Main Beam Spec.: Q345B Steel, Height: 500mm, upper palte is 16mm, middle is 10mm, side is 18mm.
Suspension: mechanical suspension
Leaf Spring: 120mmx16mmx10pcs

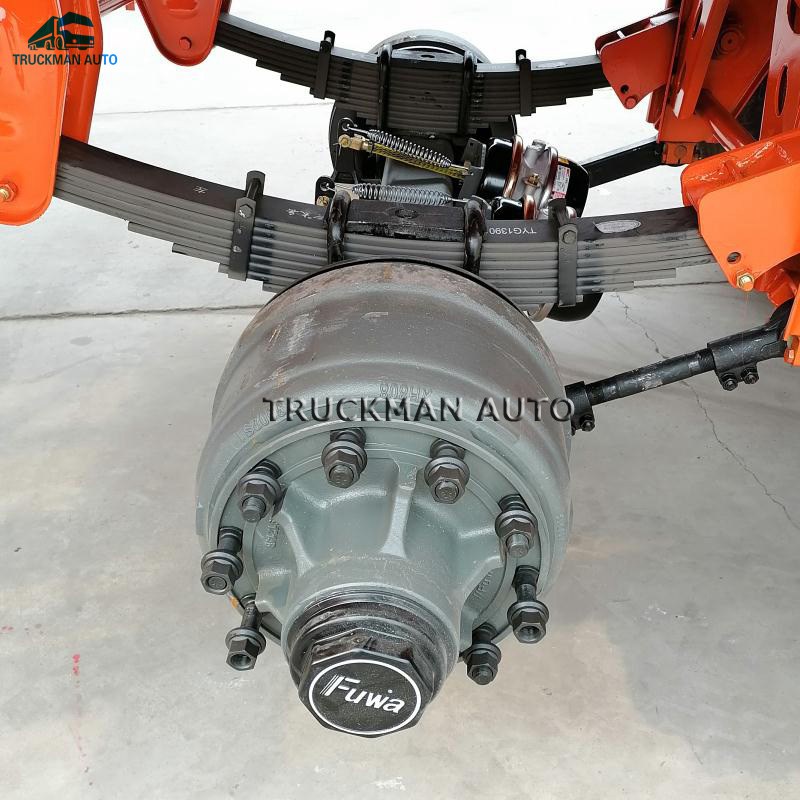

Axle Spec: 3x16 tons, FUWA or BPW
King Pin: 3.5"(90mm) JOST Brand
Tire: 315/80R22.5, 12.00R20, LINGLONG brand.
Brake Chamber: 6 sets

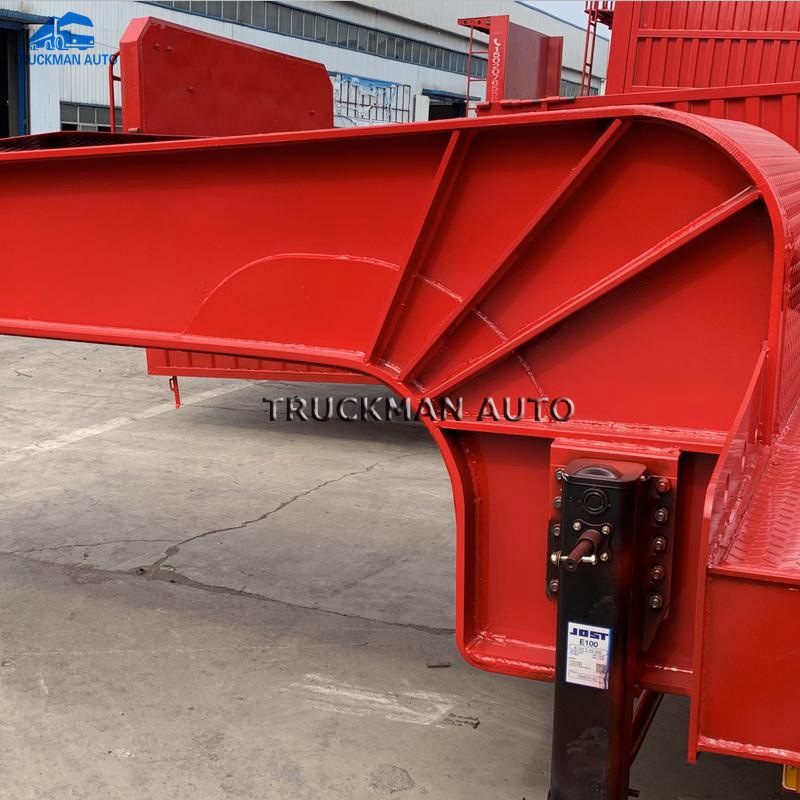

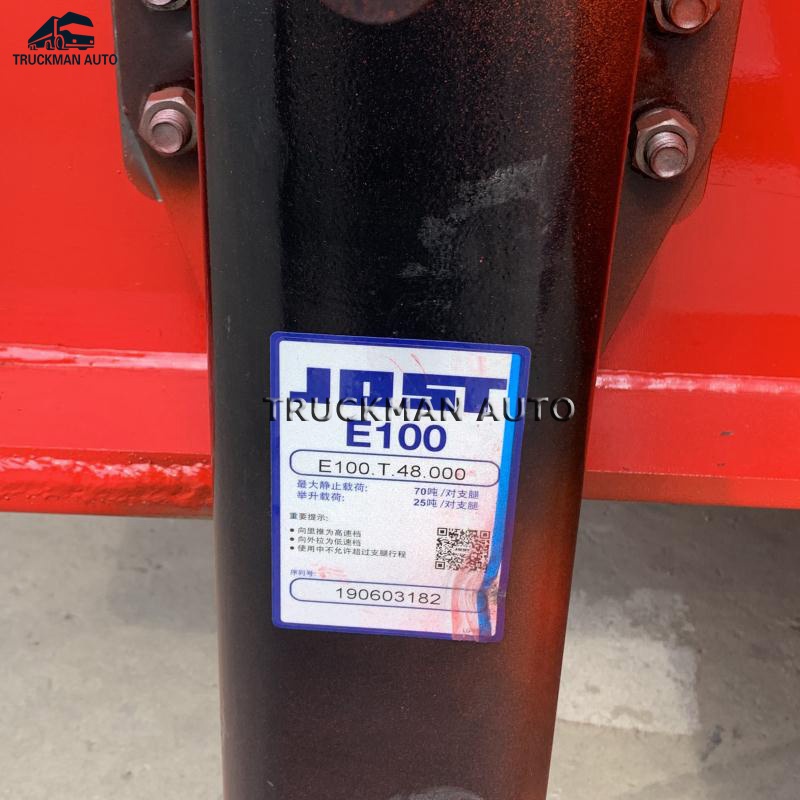

Landing Gear: JOST E100, 28 tons.
Electric System: 24V, One Set 6-core Standard Cable
Light: Tail lamp with turn signal, brake light & reflector, side lamp etc
