Side wall container trailer could transport bulk cargo and container also
Side wall trailer before only could transport the bulk cargoes, but there are some customers want to transport all kind of container also. So we add the container lock into the side wall trailer meet customers request. Now new name is side wall container trailer.
Side Wall Container Trailer Main Specification.
Product Name: Side Wall Container Trailer
Loading Capacity: 45,000kg
Tare Weight: 7,500kg
Axle: 3 axle, 3x13000kg
Suspension: mechanical suspension, america type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 12.00R20, 12 pcs, radial tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam.
Dimension: 12500x2500x1600mm.
The side wall container trailer could design according to your request.
Side Wall Container Trailer Packing & Shipment Detail.
A. Spray Wax & Rain Clothes:
Do wax spray and rainclothes process to against the trailer body suffer seawater corrosion during shipping.
B. Package:
Stable fixing with steel wire,to protect the trailer during shipping

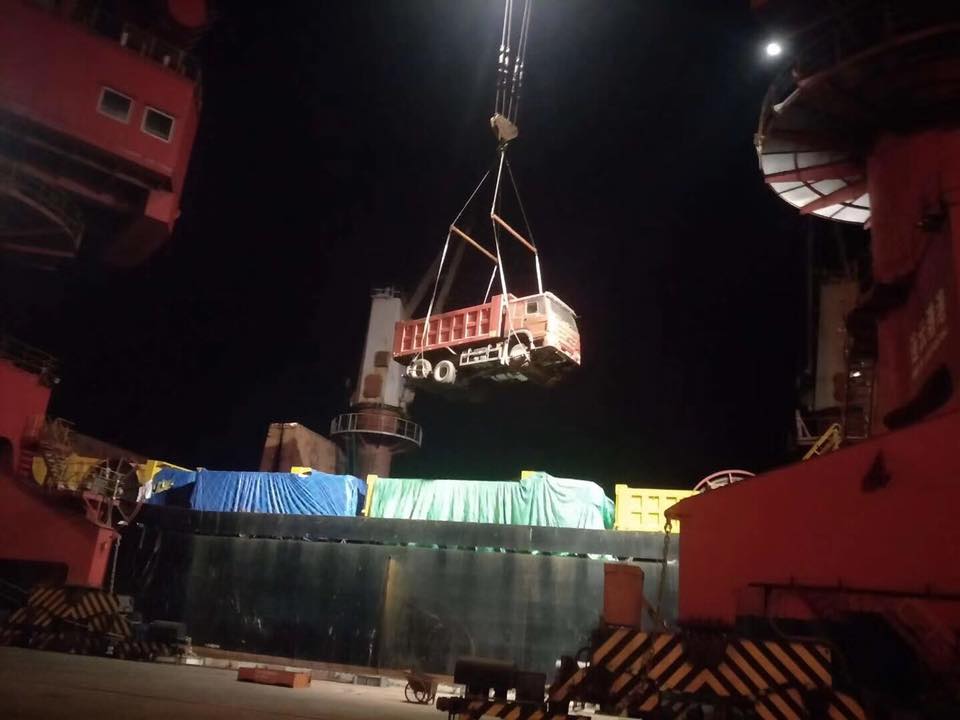

C. Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
