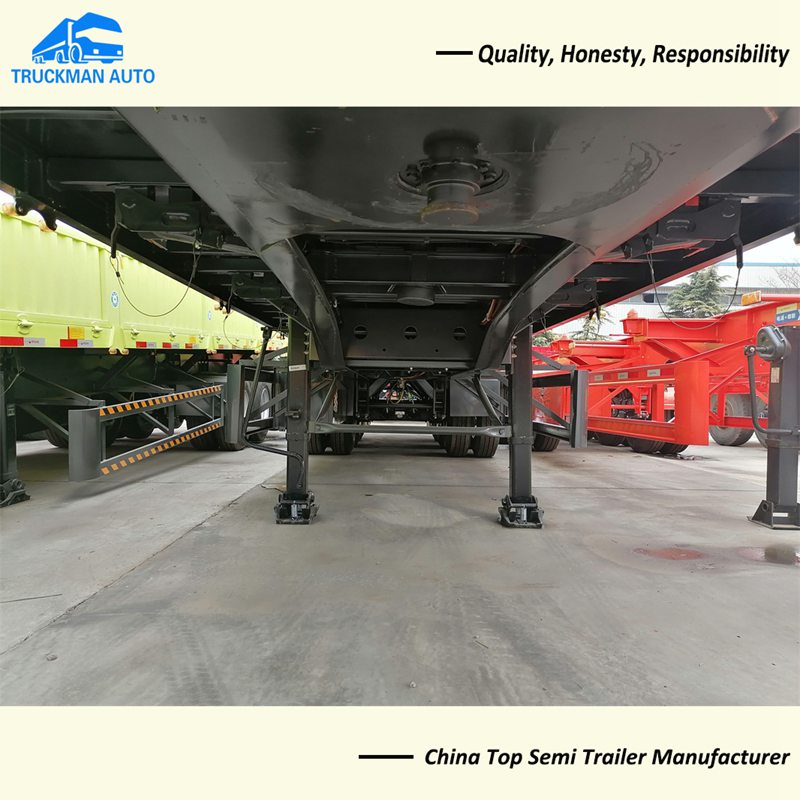

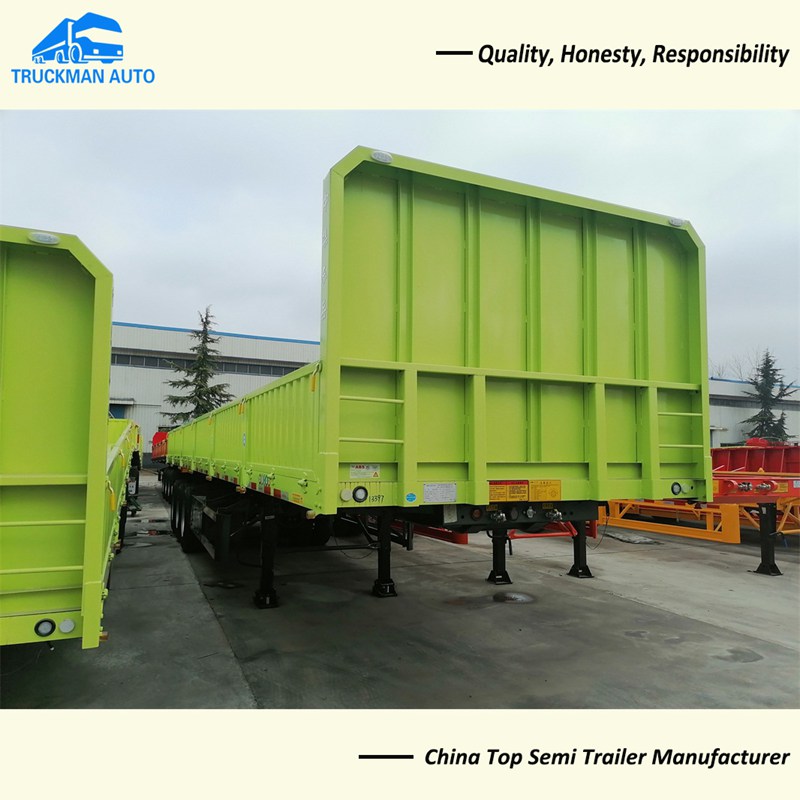

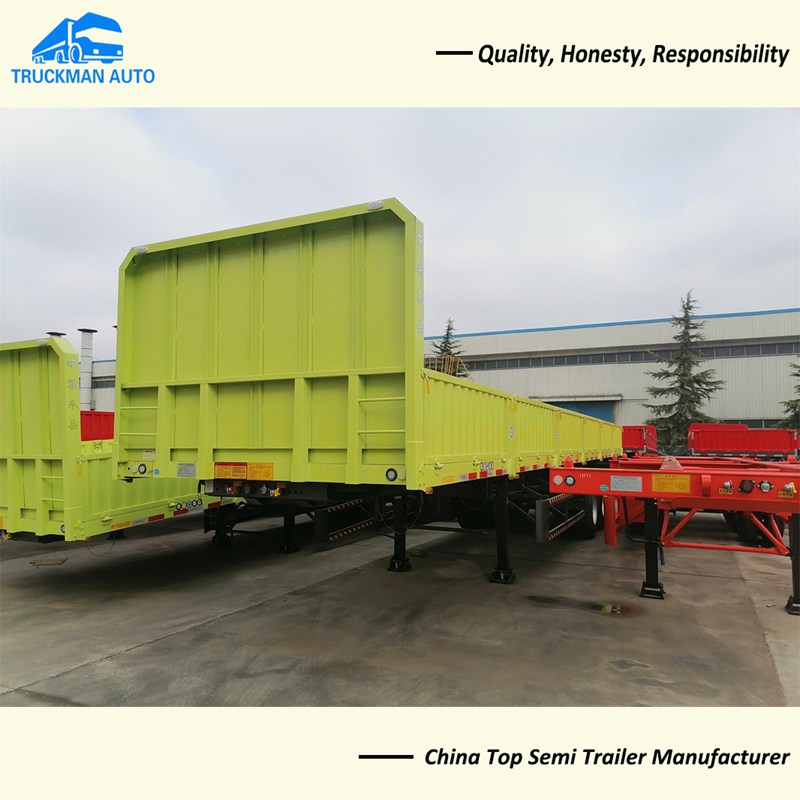

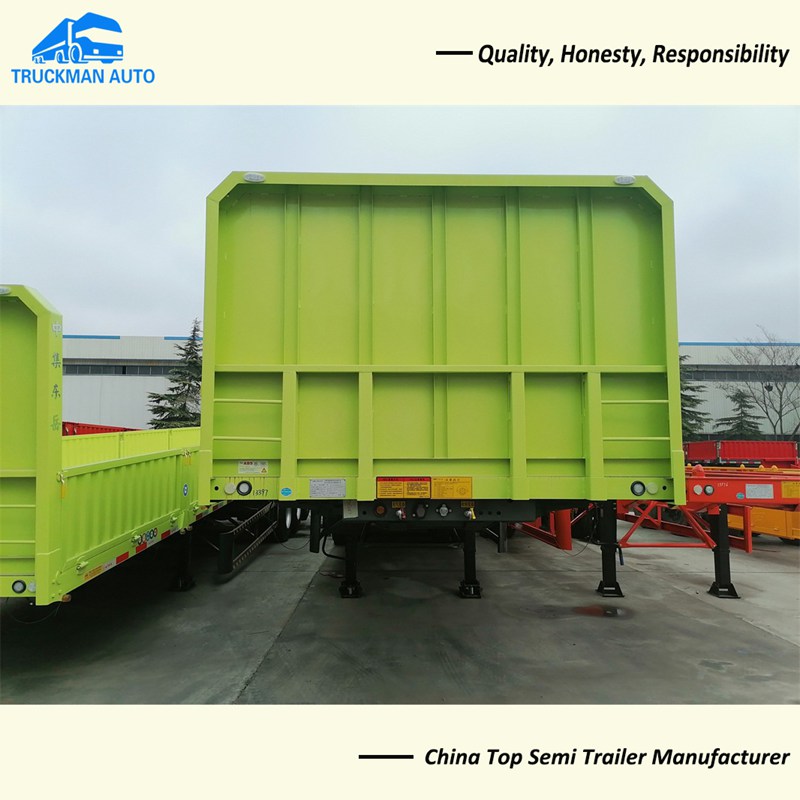

Side wall semi trailer used for the bulk cargo transport, like cocoa, soybean etc.
TRUCKMAN AUTO Brand Side Wall Semi Trailer Advantage.
-. Used for transport container, bulk cargo etc.
-. Supply 12 months warranty for main parts.
-. The paint adopt the polyurethane paint, more beautiful.
-. Total 12 pcs container lock, 24 pcs rope tightener and 36 pcs hooks.
Side Wall Semi Trailer Main Specification.
Product Name: Side Wall Semi Trailer
Loading Weight: 60,000kg
Tare Weight: 9,500kg
Axle: 3 axle, 3x13 tons
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 12R22.5, 12 pcs, tubeless tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam.
Material: Q345, high strength steel.
Dimension: 12500x2500x2800mm.
The side wall semi trailer could design according to your request.
Side Wall Semi Trailer Suspension Picture.
Our TRUCKMAN AUTO brand side wall semi trailer suspension have the single point, leaf spring and air suspension. As usual leaf spring is most recommend, due to low cost and easier maintenance. Here is three type suspension picture attached here for your review:

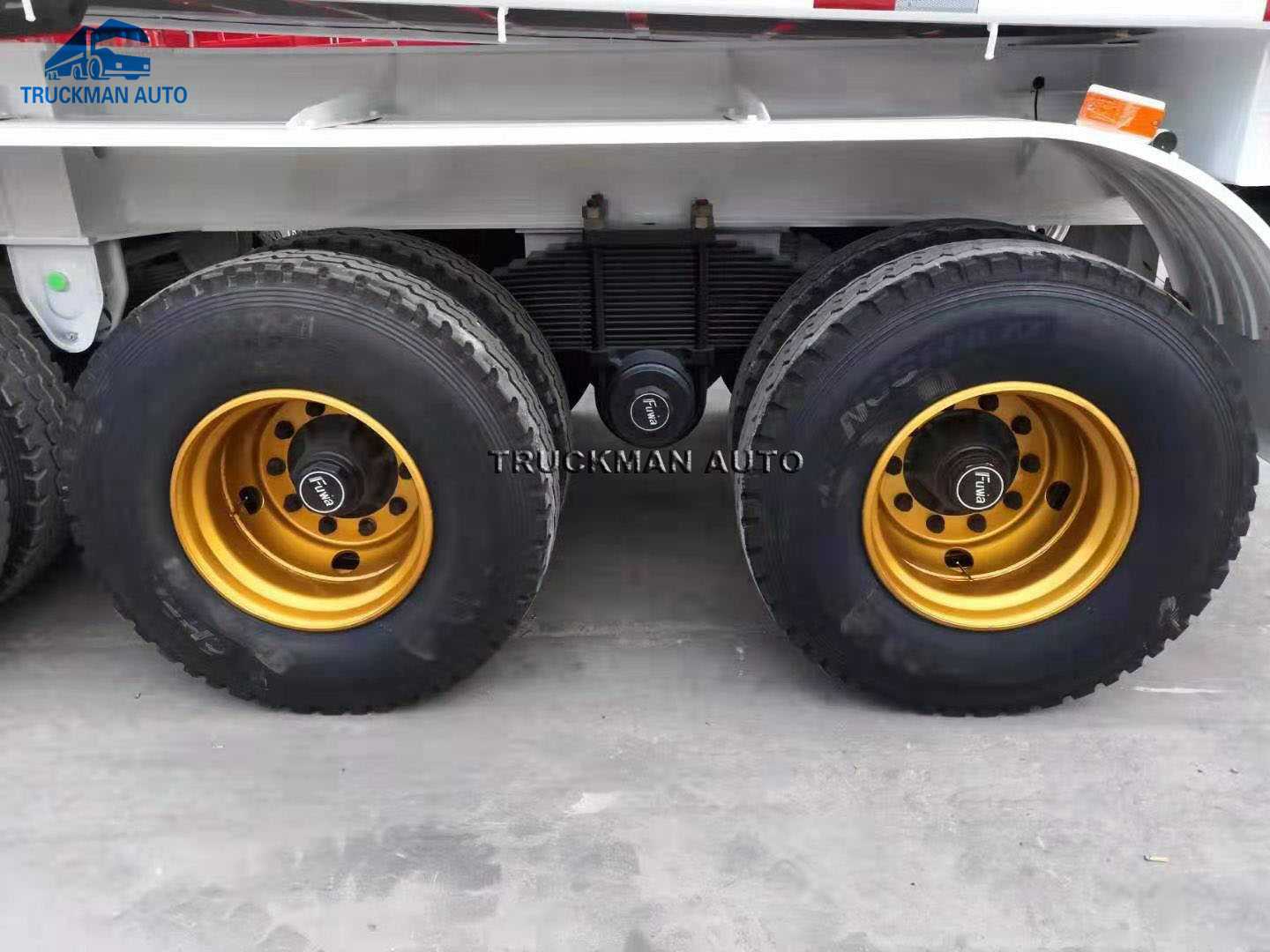

Single point suspension

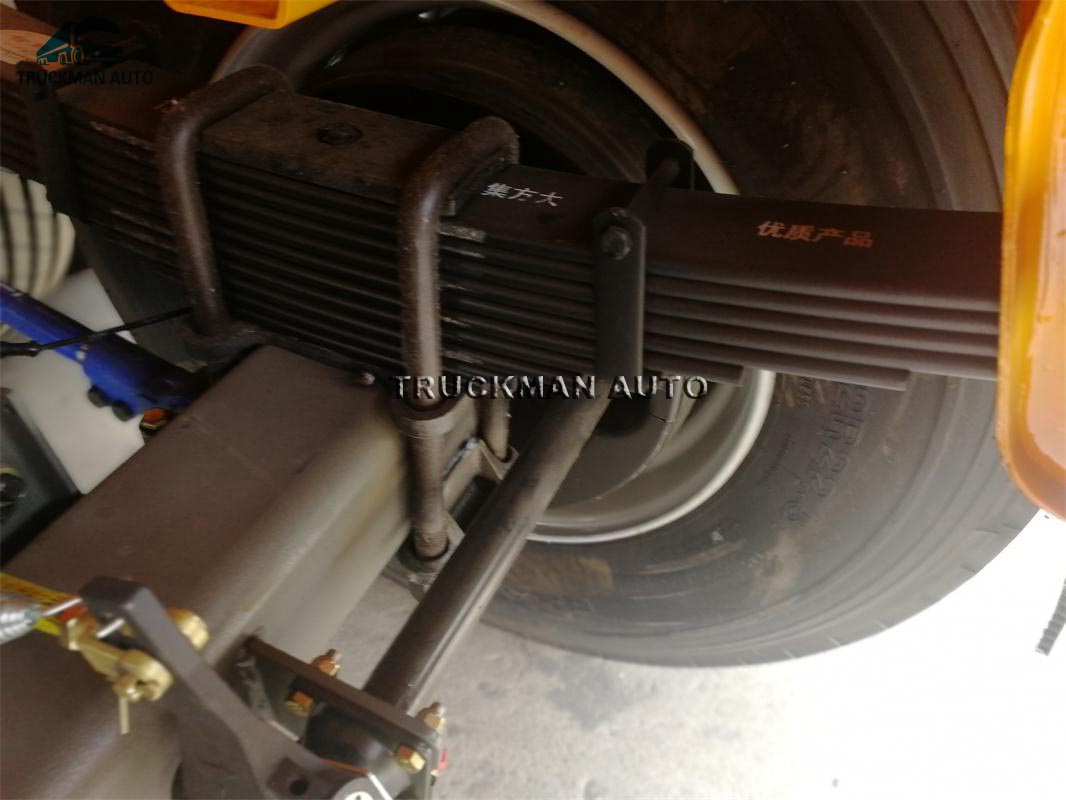

Leaf spring suspension

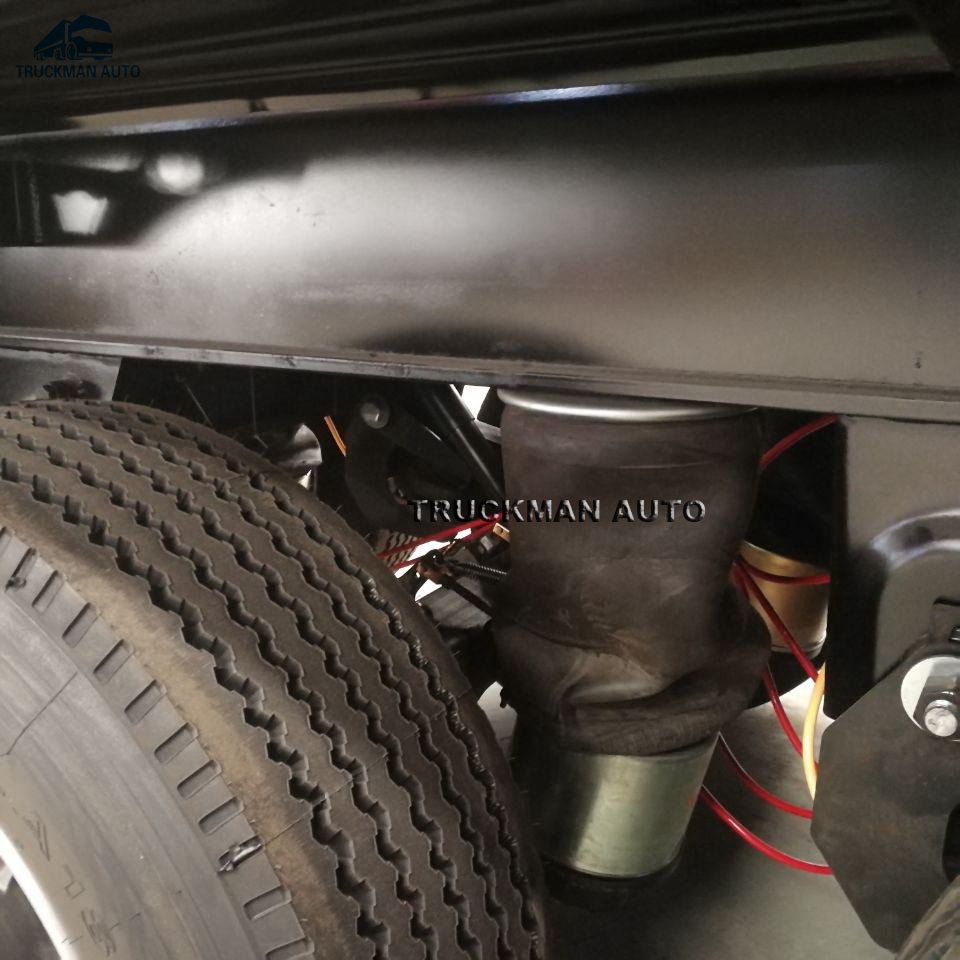

Air suspension
