1. Material Q345,Mn Steel
2. Sidewall 600/800 High
3. Loading Capacity: 60 Tons
4. Container Loading Available
The semi-trailer of semi-trailer type is a semi-trailer with a railing structure. It has a wide range of uses, and is mainly suitable for medium and long-distance transportation of medium-heavy and bulk cargoes. It has strong applicability and has become the first choice for medium- and long-distance freight vehicles.

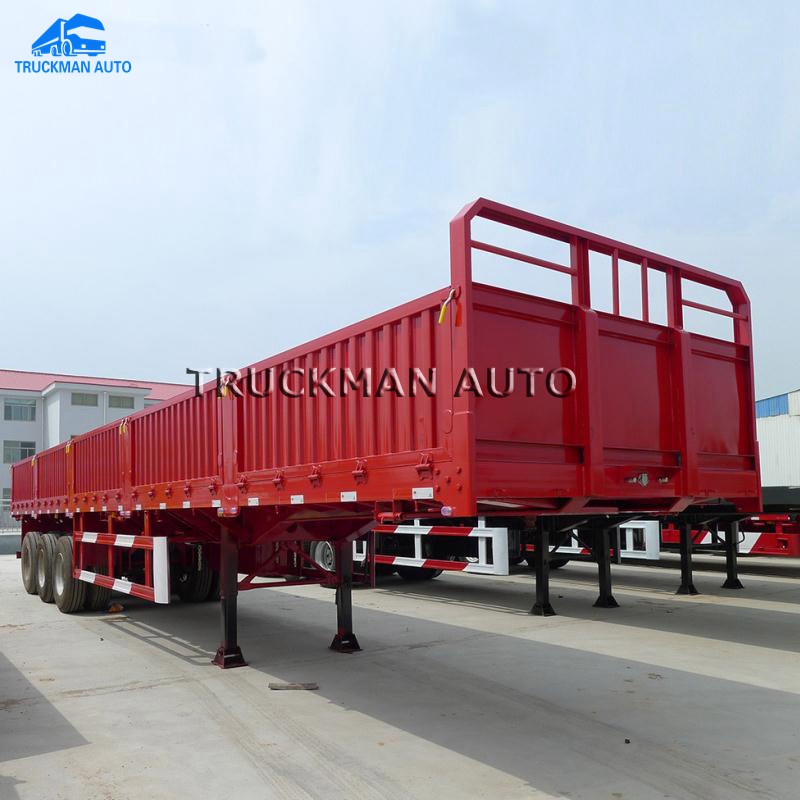

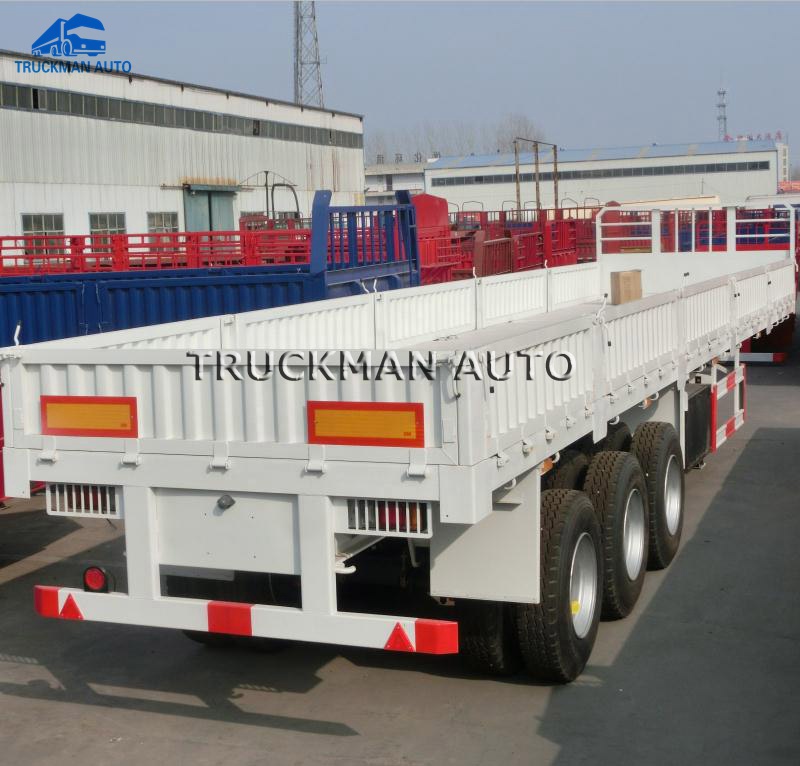

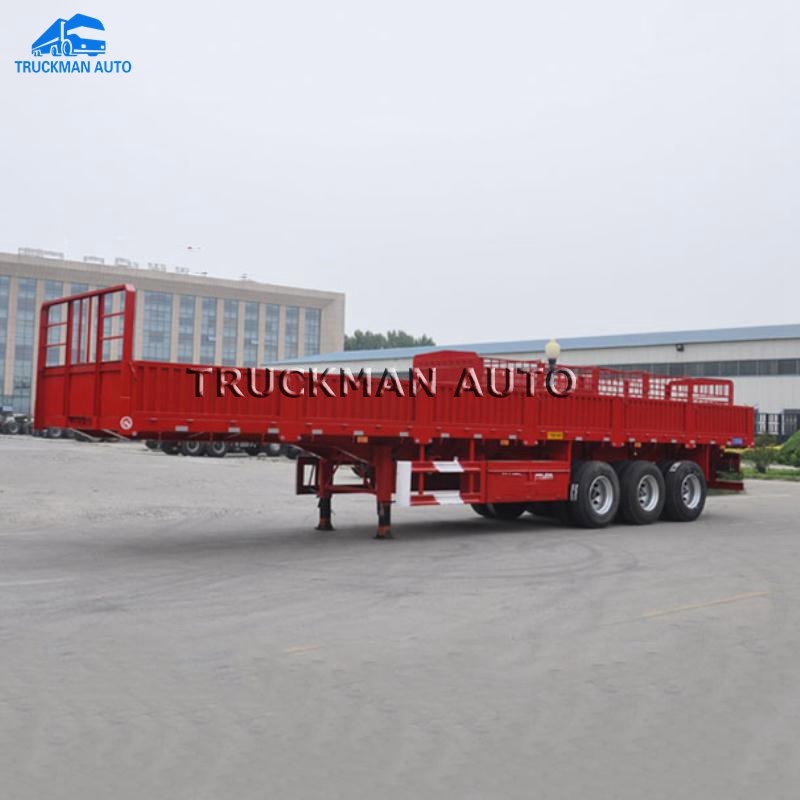

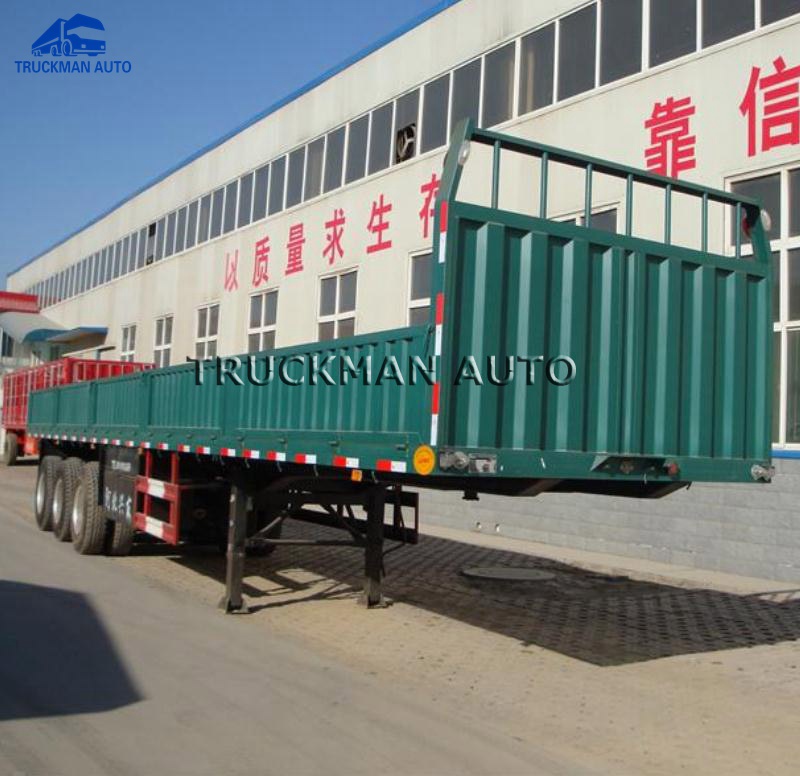

3 Axles 60 Tons Loading Side Wall Semi Trailer
| Model NO. | TMA360130SWT |
| Overall Size | 13000*2500*2900mm,Bottom 3mm side 1.5mm |
| Axles | Fuua Brand Axles 16T*3 |
| Tires | China brand 12.00R20,12+1 Pcs,18 layers |
| Brakes | Air brake With WABCO brake valve |
| Suspension | Mechanical spring Steel,6 sets*120*90mm |
| Landing Gear | JOST A400 |
| Color | Red |
| Kingpin | 90# |
| Others | Tool Box,Spare Tire Carrier,Patch,Cable Holders,Container Lock |
1. The vehicle body is made of high-quality steel, advanced technology and strict production. The vehicle structure is reasonable, the performance is reliable, the operation is simple, and the appearance is beautiful.
2. The series of semi-trailer frames are through-beam structure, and the longitudinal beam is straight or gooseneck. The web height is welded from 400mm to 550mm manganese plate. The longitudinal beam is welded by automatic submerged welding. The frame is shot blasted. The beam penetrates the longitudinal beam and is welded as a whole.
3. The suspension adopts non-independent steel plate stamped rigid suspension, which is made of tandem leaf springs and suspension bearings; the structure is reasonable, and it has strong rigidity and strength, which is used to support the load to reduce shock.
