3 axle cargo trailer side wall height is 800mm, also could add 600mm for more goods loading
3 axle cargo trailer mainly design the transport the cropper, the tire adopt the 12R22.5 or 315/80R22.5 tubeless model, more faster and lower maintenance cost. Also the chassis design for heavy duty loading, confirm the trailer could loading 60 tons, chassis parts thickness enhance.
3 Axle Cargo Trailer Main Specification.
Product Name: 3 axle cargo trailer
Loading Capacity: 60,000kg
Tare Weight: 10,000kg
Axle: 3 axle, 3x13000kg
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 315/80R22.5, 12 pcs, tubeless tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: middle 8mm, lower plate 16mm, “I” type main beam.
Cargo Box Size: 12300x2300x800mm, bottom 3mm, size wall 1.5mm
Dimension: 12500x2500x3100mm.
The 3 axle cargo trailer could design according to your request
3 Axle Cargo Trailer Shipment Picture.

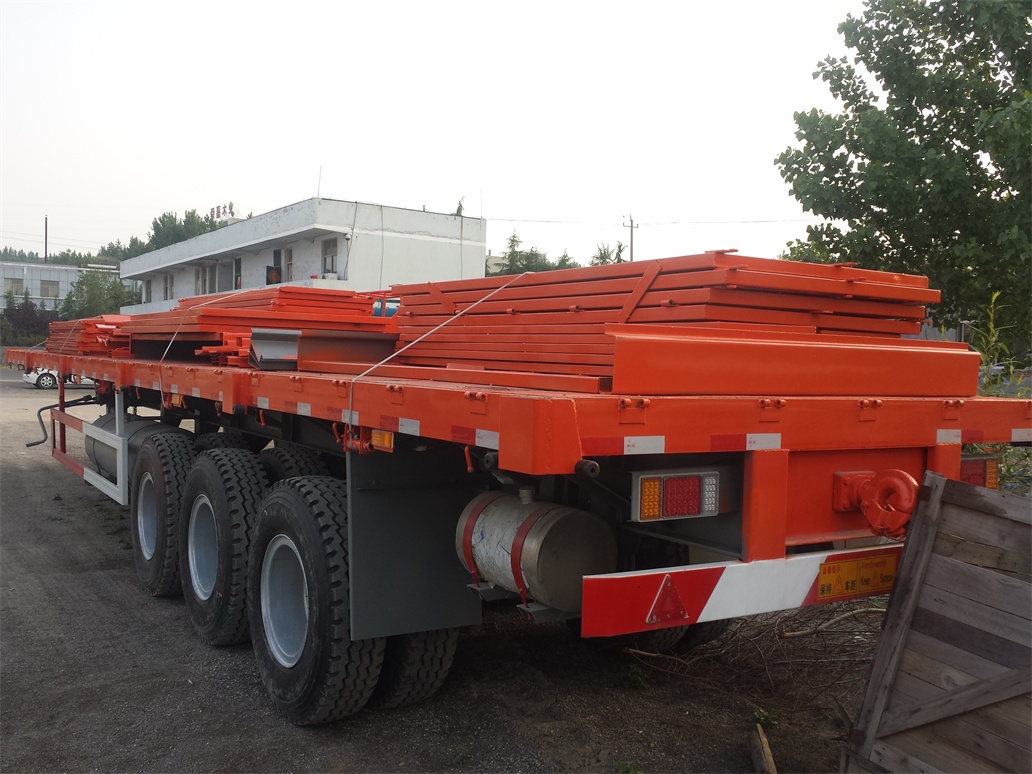

Due to 3 axle cargo trailer side wall could remove, so we need remove it reduce the total volume avoid the high freight cost. The picture as follow:
