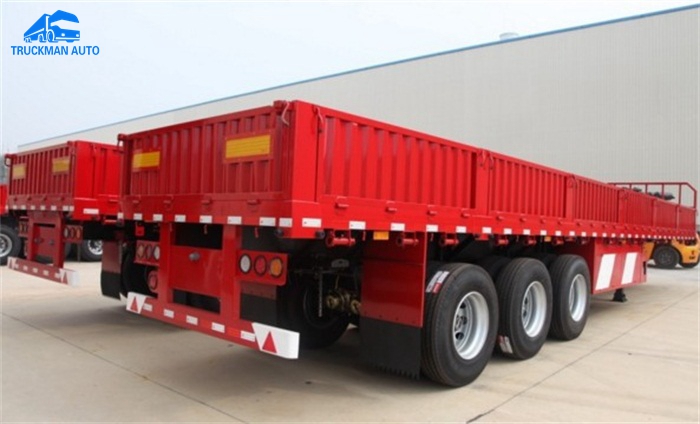

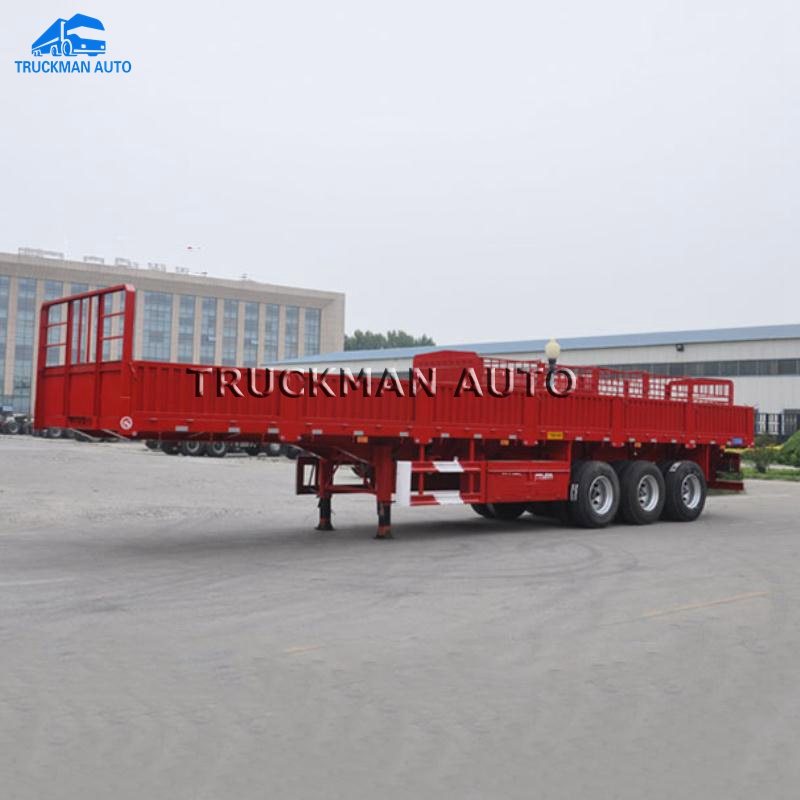

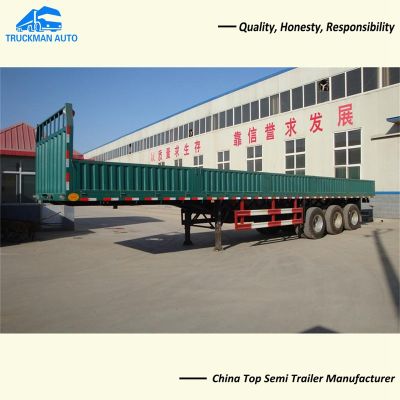

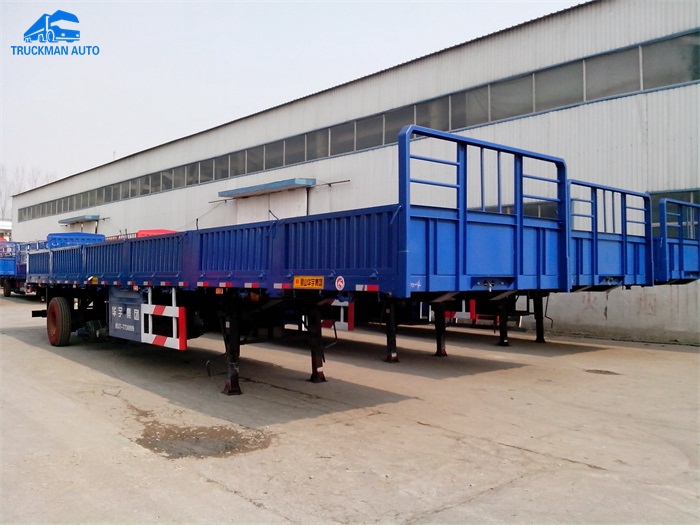

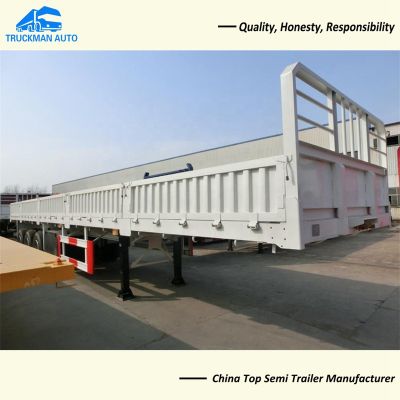

Side wall semi trailer is very suitable for transport the bulk cargo and container. The side wall could remove and with 12 pcs container lock.
As the TOP semi trailer manufacturer, TRUCKMAN design the side wall fence semi trailer is a
specialized for carrying 40ft cargo trailer, two 20ft containers, or one 20ft container without removing
the side walls or frame. The main spare parts is choose famous brand, such as WABCO, JOST, FUWA,
TRIANGLE etc, confirm the customers get good trailer with reasonable cost.
Side wall semi trailer is mainly used for the haulage food, construction material, and other some bulk
cargo. The side wall usually is 800mm, also could made according to your request.
The Main Specificaition For The Side Wall Trailer.
Dimension:12.5m×2.5m×3.2m (Outside)

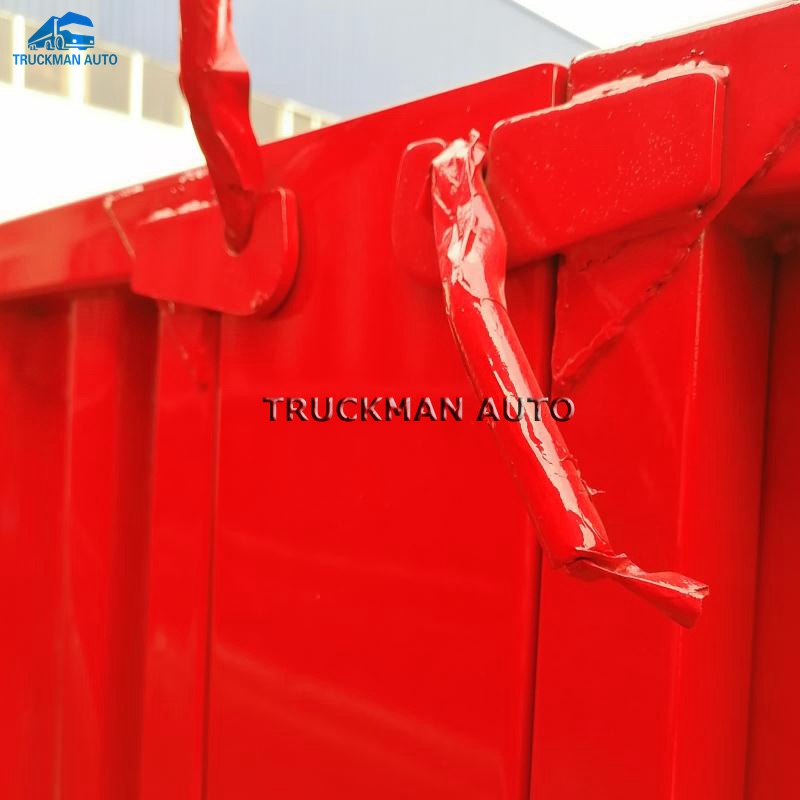

Fence: Front 1.5m Rear and side 0.6m (could be remove)
Payload: 70 Tons
Bottom Platform: 4mm thick checkered plate or flat plate
Frame: Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Upper and lower plate is 18mm, middle is 8mm. height is 500 mm

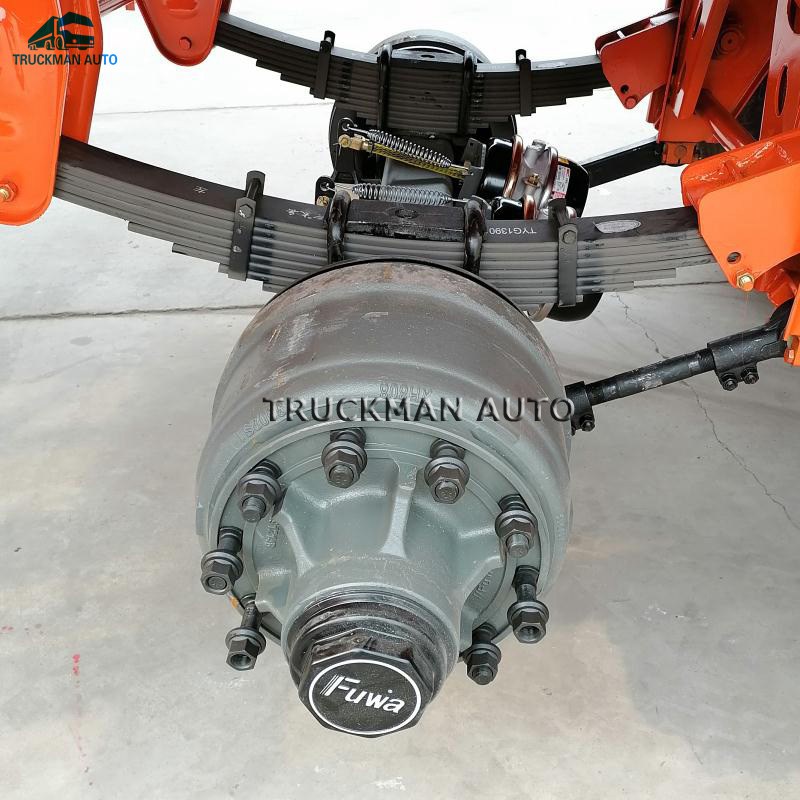

Axle: 3 axles, BPW/FUWA/HJ brand
Landing Gear: JOST E100. 28T
King Pin: JOST 3.5 inch bolt-in king pin
Suspension: Mechanical suspension/Germany or America type/air suspension
Leaf Spring: 120mm(W)*16mm(T)*10 Layer

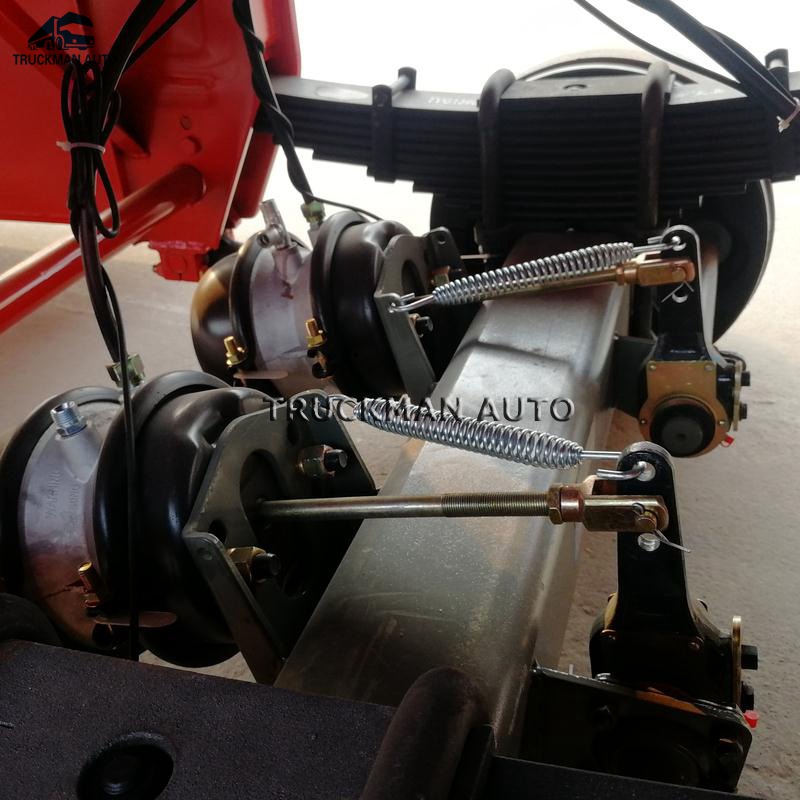

Braking System: WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Tire: 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
Accessories: One standard tool box
Voltage: 24V
