Side wall semi trailer used for transport the cocoa, soybean, sesame etc cropper
-1. 60 Tons Side Wall Semi Trailer Main Detail.
-. 600mm height side wall for the cocoa, grain etc transport.
-. Side wall semi trailer bottom use diamond plate.
-. Inhance the leaf spring, rim, suspension thickness.
-. Suitable for coal, sand, bauxite, manganese ore transit.
-2. 60 Tons Side Wall Semi Trailer Main Specification.
Product Name: 60 tons side wall trailer
Loading Weight: 60,000kg
Tare Weight: 9,000kg
Axle: 3 axle, 3x13 tons
Suspension: America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 18mm thickness
Tire: 12R22.5, 12 pcs, tubeless tire
Brake System: WABCO brand, ABS and 6 pcs brake chamber
Thickness Of Frame: Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam
Material: Q345, high strength steel
Dimension: 12500x2500x3450mm
The 60 tons side wall trailer could design according to your request.

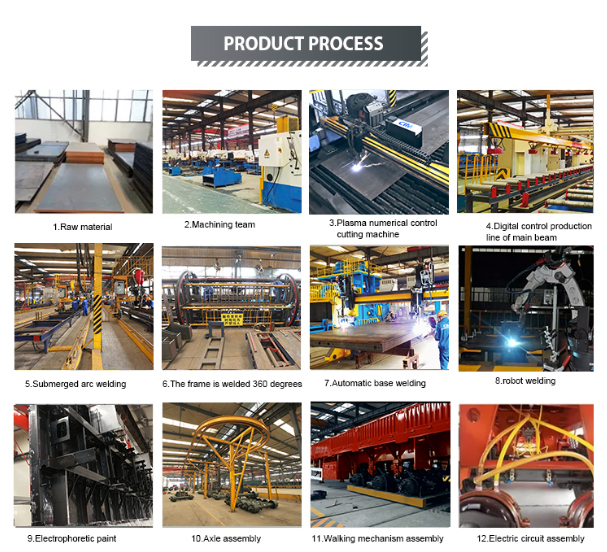

-3. 60 Tons Side Wall Semi Trailer Product Process Picture.
