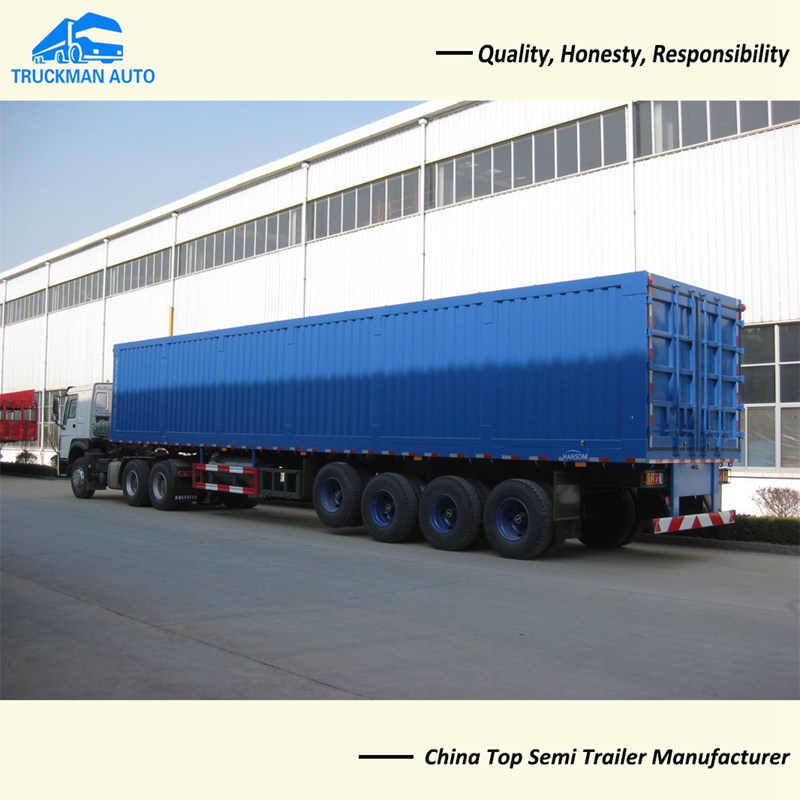

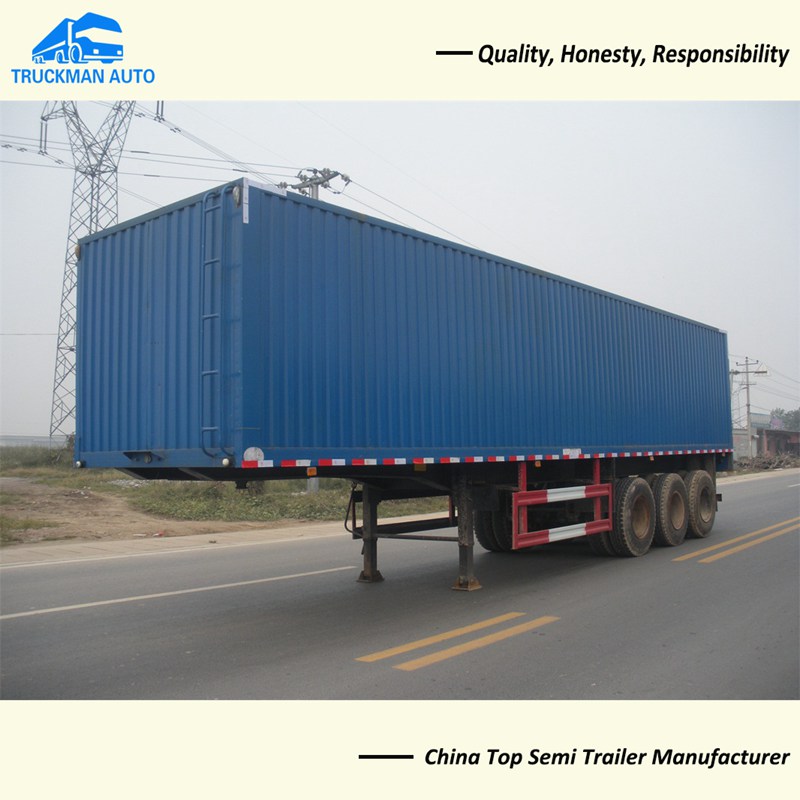

The van semi-trailer is modified or separately manufactured on the chassis of a van, and can be divided into a passenger van type and a van type according to the difference of its carriages. The passenger compartment and the cab are generally integrated structures, such as ambulances, lodging cars, environmental inspection cars, dining cars, TV broadcast cars, express cars, etc.
Chassis model: Rated mass: 41000 (kg)
The main technical parameters of the product
product name:Van transport semi-trailer
Dimensions:13000X2550X3380,3580,3780,3980(mm)
Chassis model:TMA350TO130VT
Cargo compartment size:11850X2380X1800,2000,2200,2400 (mm)
Total mass:50000(Kg)
Vehicle remarks:The top of the car is closed and cannot be opened. The optional side does not open the door, and the one-door cargo compartment structure; the curb quality change caused by the optional height is less than 3%; the ABS system controller manufacturer is: Wanan Group Shanghai Automotive Control System Co., Ltd., The ABS system controller model is: 4SRM, the side guard material is Q345, the cross-sectional width is 130×30mm, and it is welded to the frame, the rear guard material is 345, the cross-sectional width is 160×63mm, and the frame is welded For connection, the ground clearance of the side protection is 450mm; the ground clearance of the rear protection is 530mm.
