TRUCKMAN Brand 3 Axles Skeleton Container Semi Trailers

Product ID : TMA350TO123CT

Product Attributes :

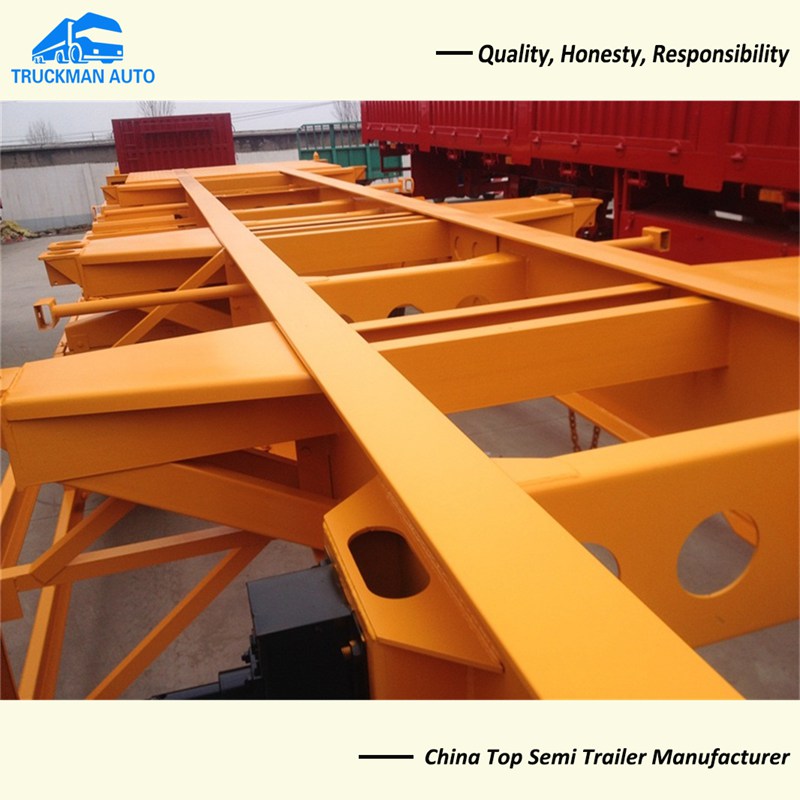

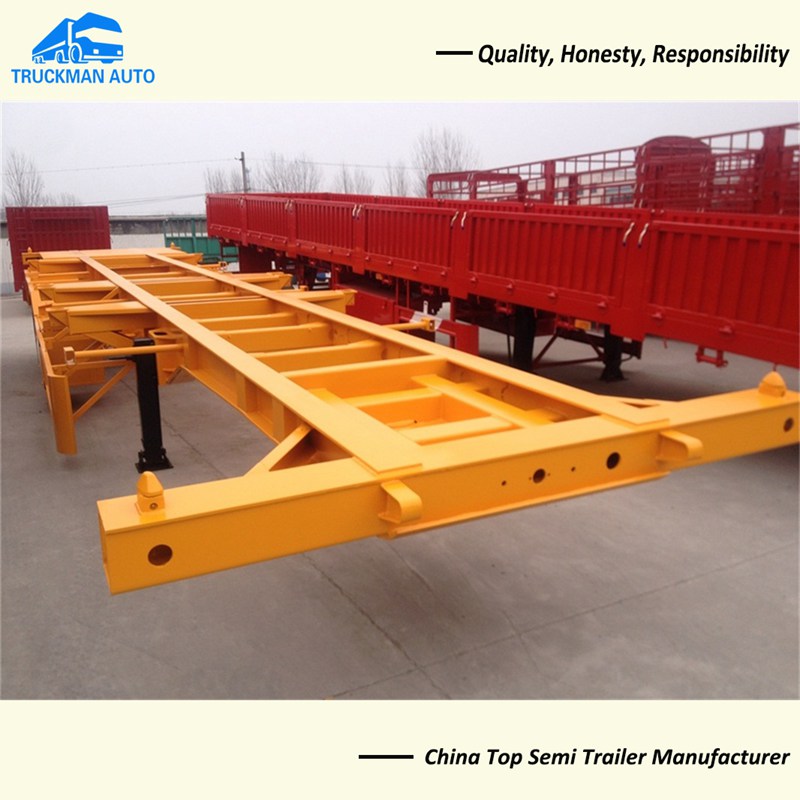

Skeleton container semi Trailers is a kind of container transport semi-trailer frame, and the other is the flatbed type. Skeleton container semi Trailer is welded by the longitudinal beams, the cross beams and the front and rear end beams. The longitudinal beams are made of high-quality steel plate 16Mn submerged arc welding into an I-shape (the main dimensions are 450, 500), and the cross beams are punched into grooves with high-quality steel plates. The beam is a welded rectangular section. An integral long beam is installed at the middle container locking device to improve the carrying capacity of the container locking device.

Product Description

The difference between TRUCKMAN Brand 3 Axles Skeleton Container Semi Trailers and flatbed semi trailer

The difference between the flat type and the skeletal type is that the flat type adds a frame and a patterned floor.

Skeleton Container Semi Trailers is all shot blasted, and the entire frame is assembled and welded on a dedicated positioning table, with reasonable structure, high strength and beautiful appearance. A container compaction device is installed on the frame, which can load two standard containers of 40 feet and 20 feet. The four container shrinking devices at the front and rear ends are of a fixed structure, and the middle container shrinking device is a concealable structure. When loading containers, the intermediate container locking device can be lowered below the level of the cargo platform as required.

TRUCKMAN Brand 3 Axles Skeleton Container Semi Trailers Specs:

Axle: 13T*3, FUWA brand

Brake valve: WABCO brand

Outrigger: JOST brand E100

Beam: upper 12mm, middle 8mm, lower 12mm

Container lock: 12 sets

Tires: 12R22.5, Linglong brand, 12pcs

Traction pin: 2" or 3.5" JOST brand

Full car size: 12300*2500*1550mm

One tool box and one spare tire rack

Others standard
