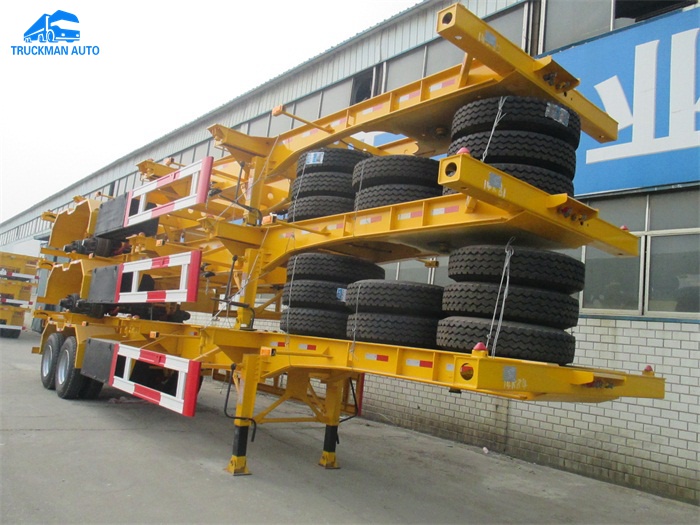

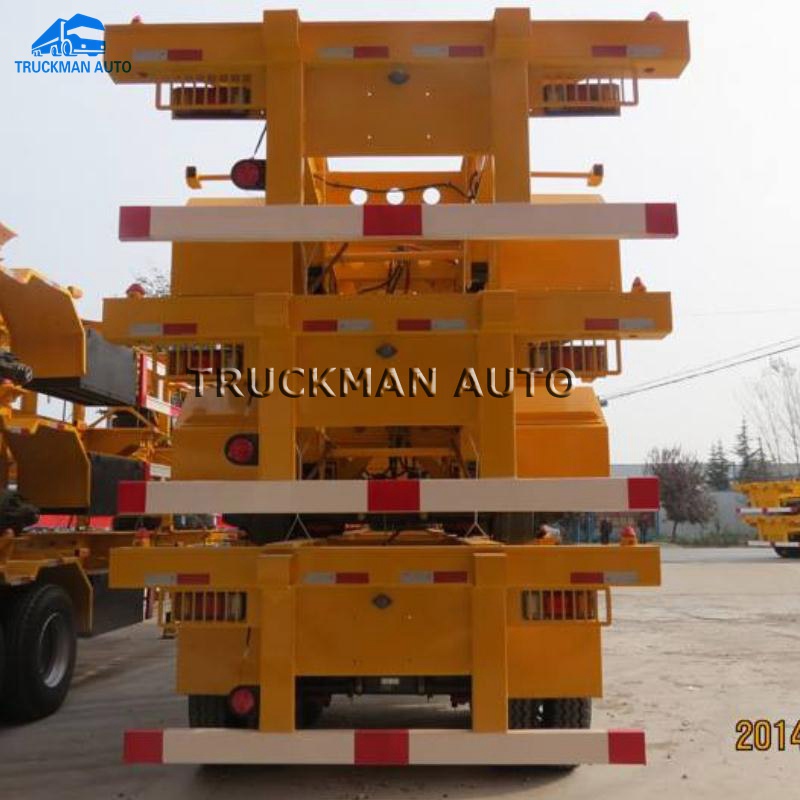

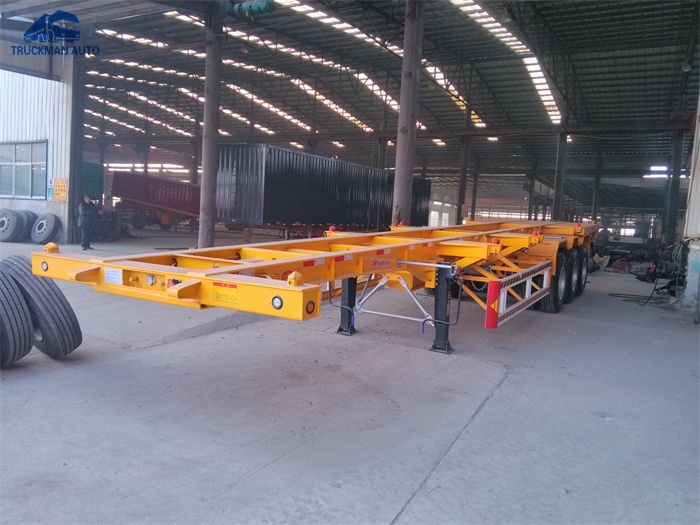

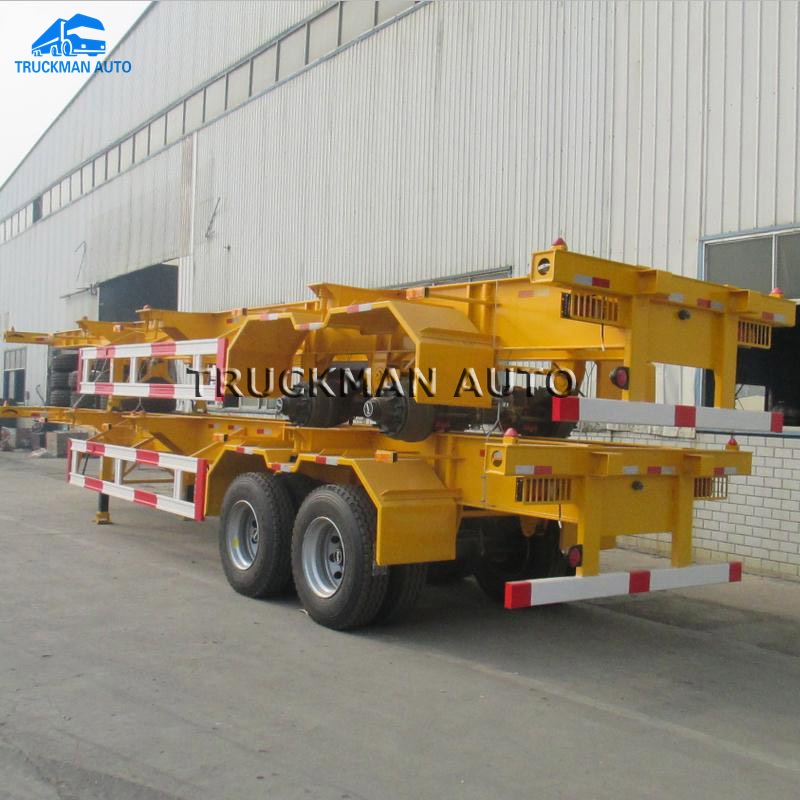

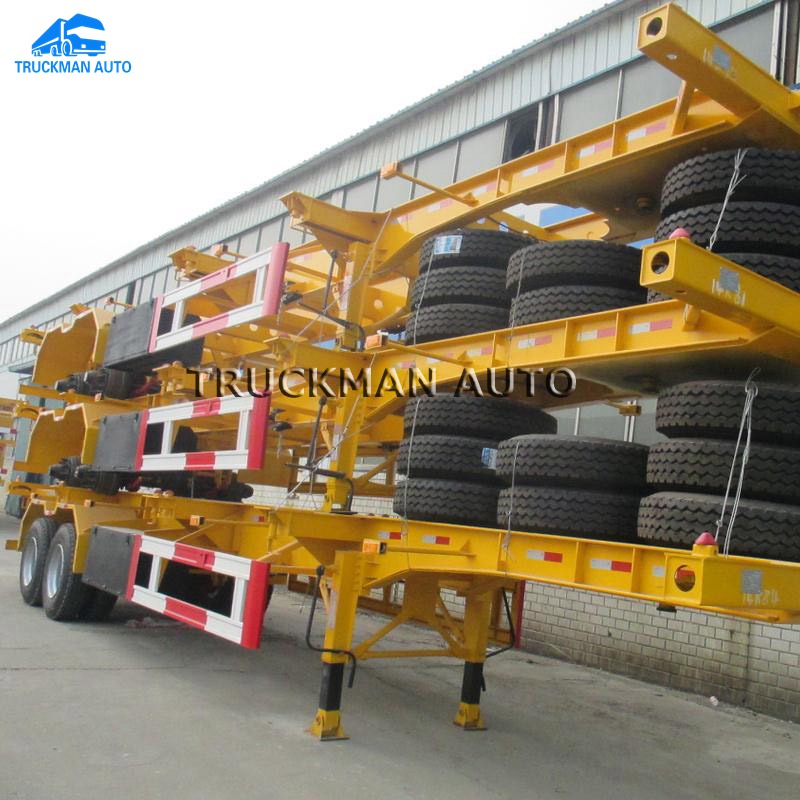

2 Axles 40FT Container Flatbed Semi Trailer With Loading 40 Tons

-1. Container Flat Bed Trailer Main Specification.

With the 2 axles, 13 tons, 16 tons axles, and could optional 3 axles, 4 axles etc.
Max loading 40 tons, adopt the more thickness leaf spring.

The tire could use the 295/80R22.5, 315/80R22.5, 12R22.5, 12.00R20 etc.

WABCO and ABS confirm the driving safety.

Outer side dimension(mm): 12450 × 2490 × 1557 (three or two axles) 40FT; 7160 × 2490 × 1557 (two axles) 20FT

Loading Capacity (Ton): ≤ 45 T (40FT) or ≤ 45 T (20FT)

Axles: 13 T /PER , FUWA Brand, BPW Brand, or HJ Brand

Tire: 12.00R22.5 or 315/80R22.5, LINGLONG, TRIANGLE brand.

Rim: 9.00-22.5 China Brand

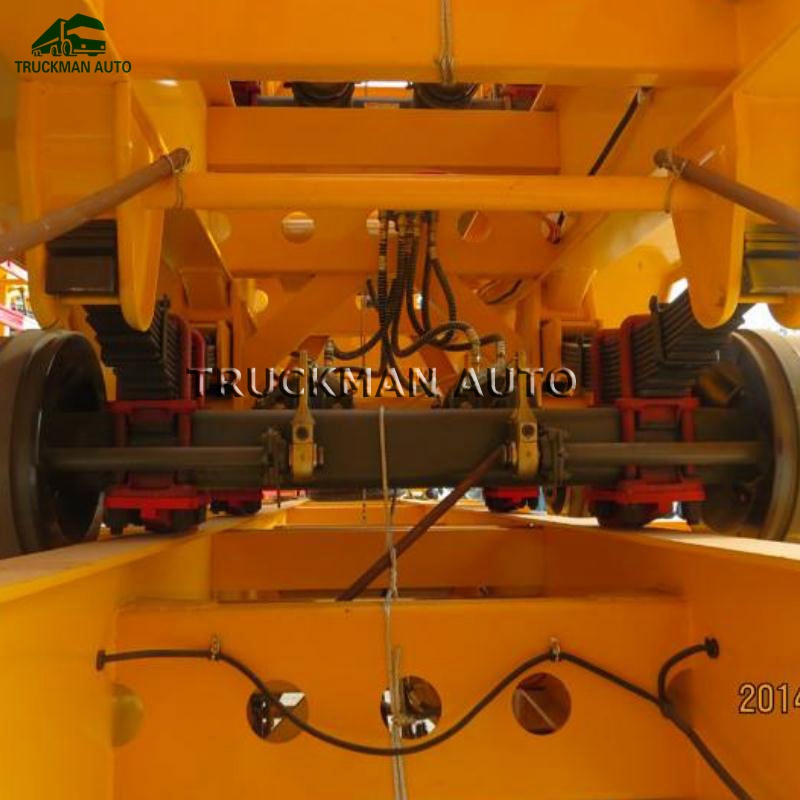

Suspension: Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Spring leaf: 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

King pin: JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg: JOST brand D200T or China brand 28Tons (Double speed)

Main beam: Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .

Brake chamber: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); One piece of 45L air tank

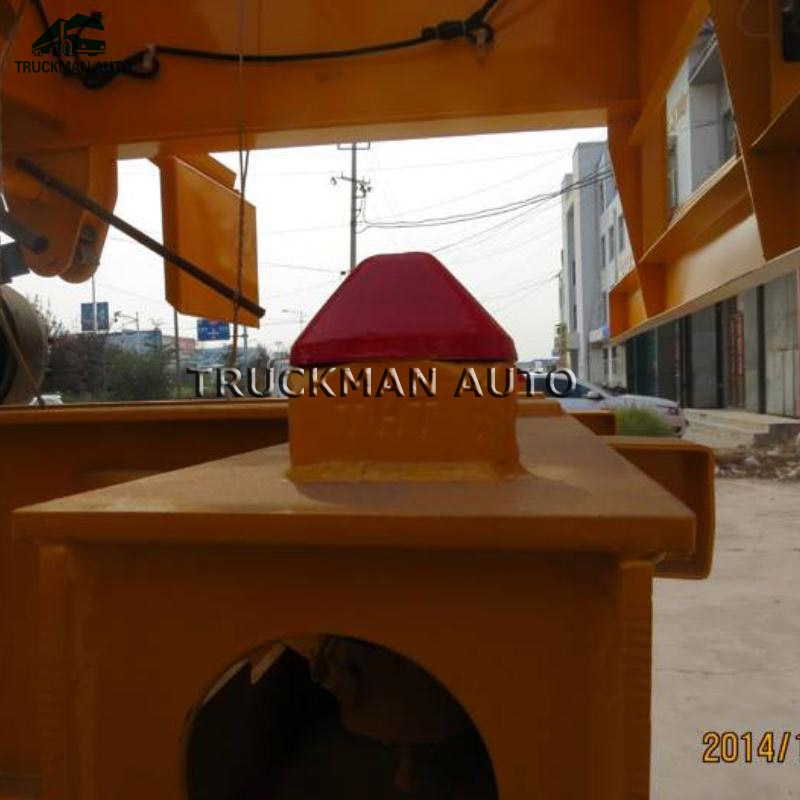

Twist Locks: Four, Eight or Twelve pieces (Lifting type or Twist Screw Type)

Valve: WABCO valve

ABS: Optional

Light: LED light

Voltage: 24V

Receptacle: 7 ways (7 wire harness)
