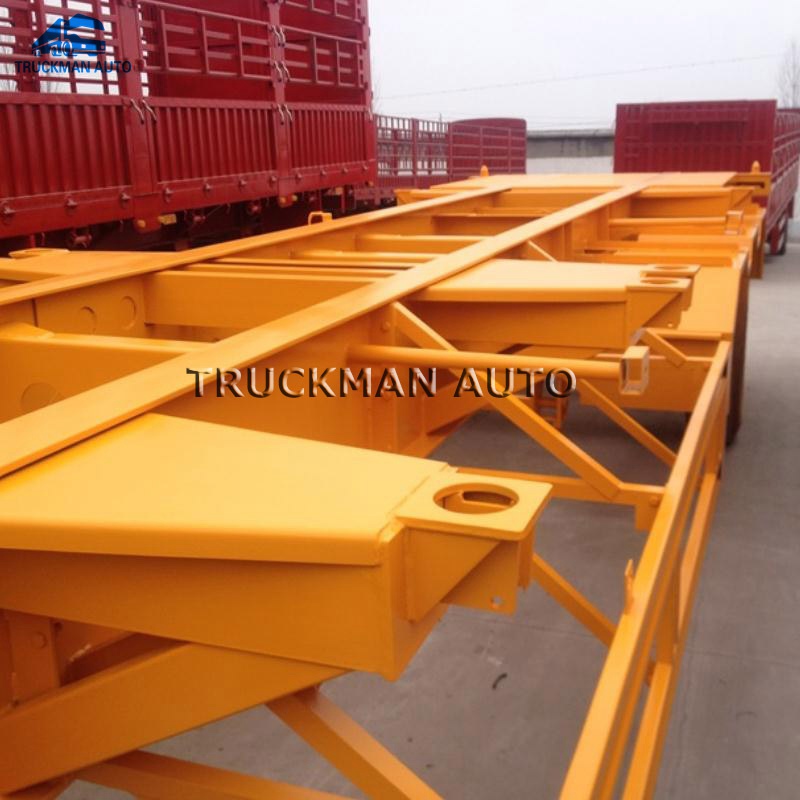

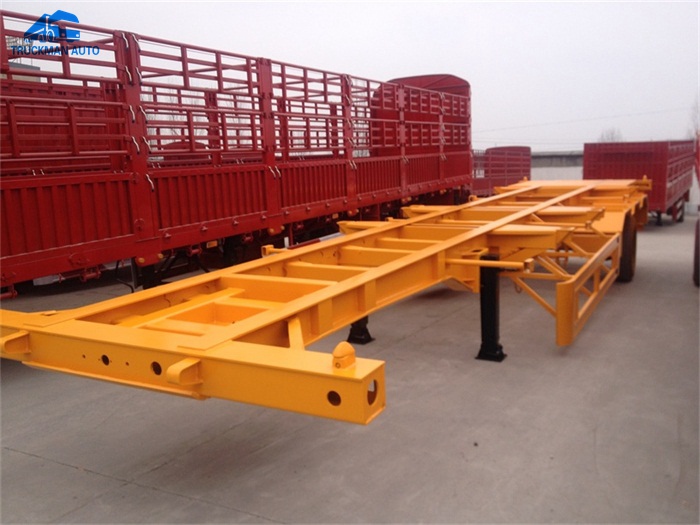

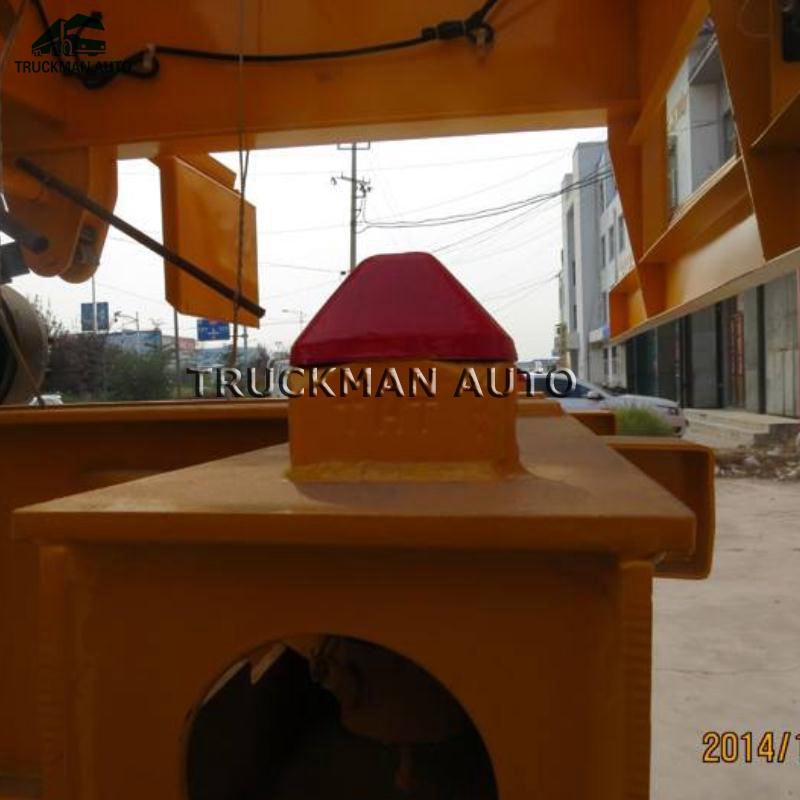

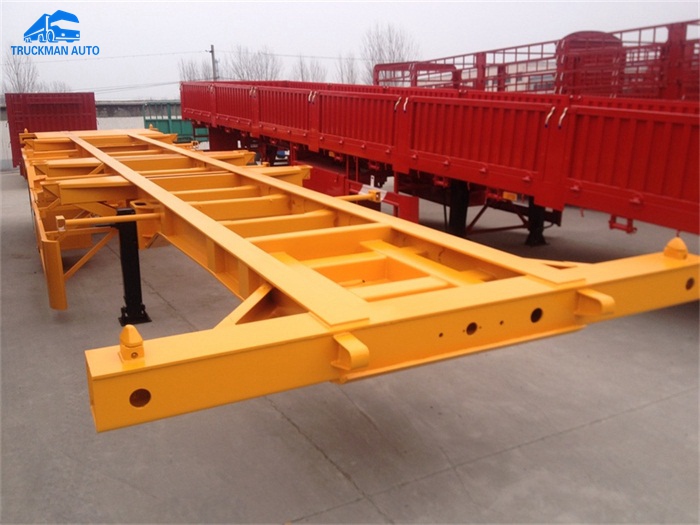

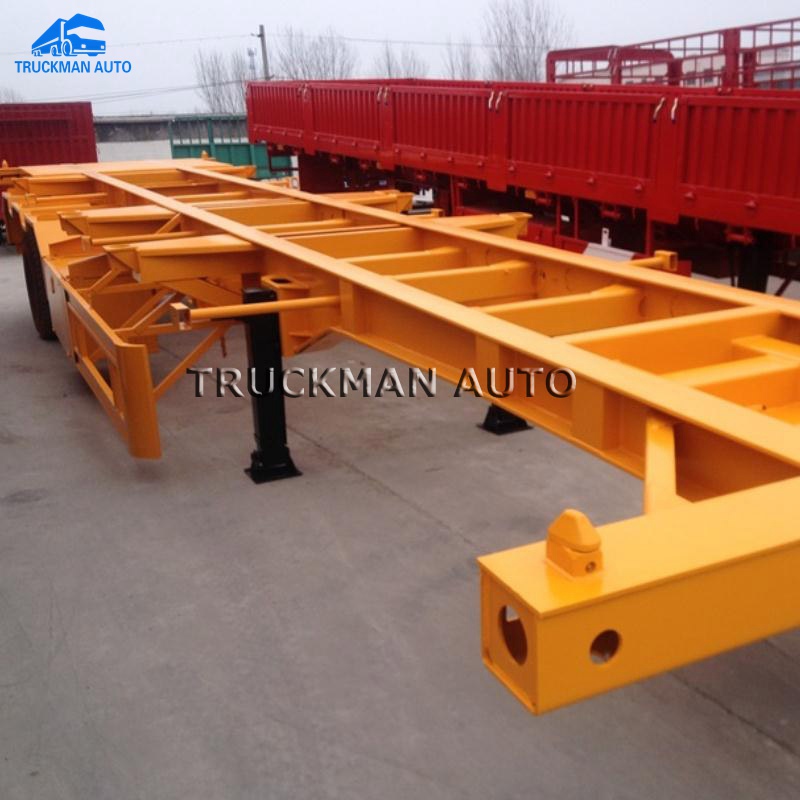

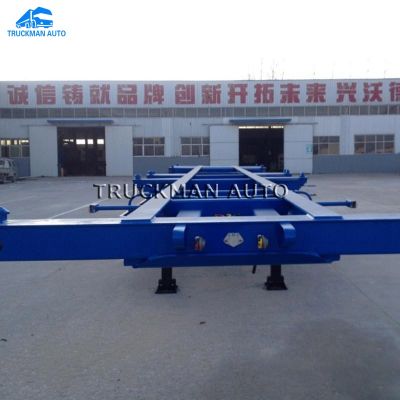

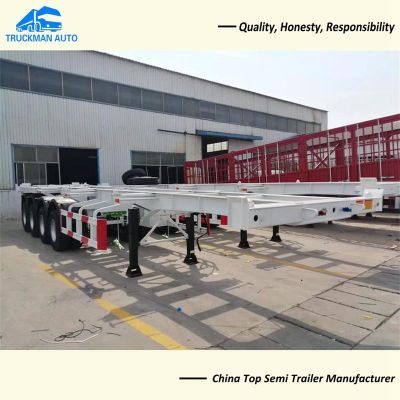

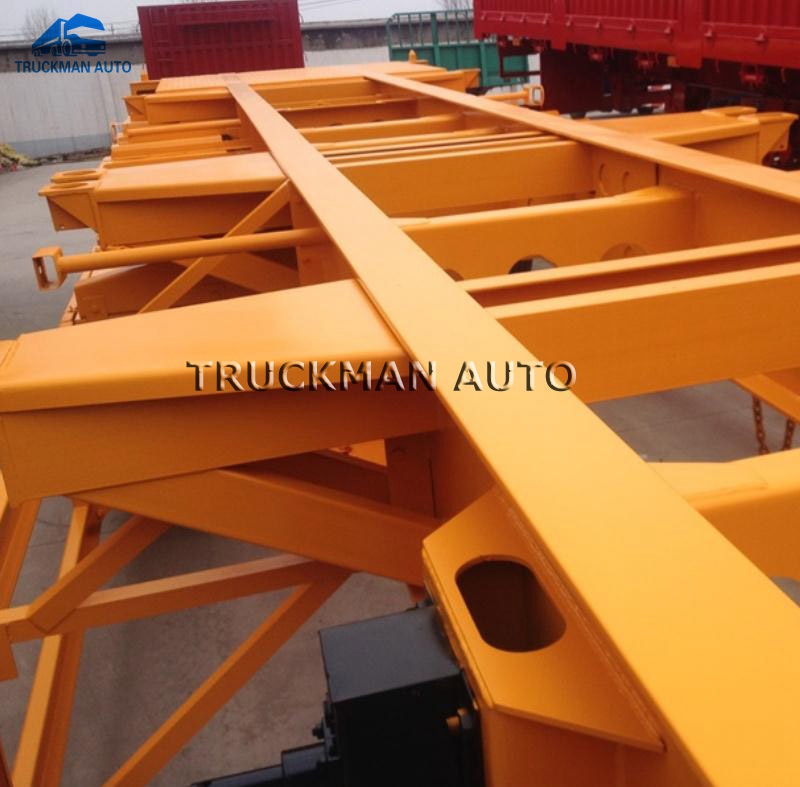

Skeleton chassis container trailer with the 12 pcs container lock for the goods transportation.
If the local traffic regulations restrict overweight, the skeleton chassis container trailer will be good choose.
Cause the skeleton chassis container trailer self weight is soft than normal container semi trailer, and
could loading more tons. Also will reduce fuel consumption, make the economic profit biggest. The
main parts such as the axles, tire, brake etc, all use good brand parts, with 12 month quality support also.
3 Axles Skeleton Chassis Container Trailer With High Strength Steel Material.
The Main Specification For The Skeleton Container Semi Trailer
Dimension: 12400mm*2500mm*1575mm(Size can be choose freely)
Loading Capacity: 30T-50T

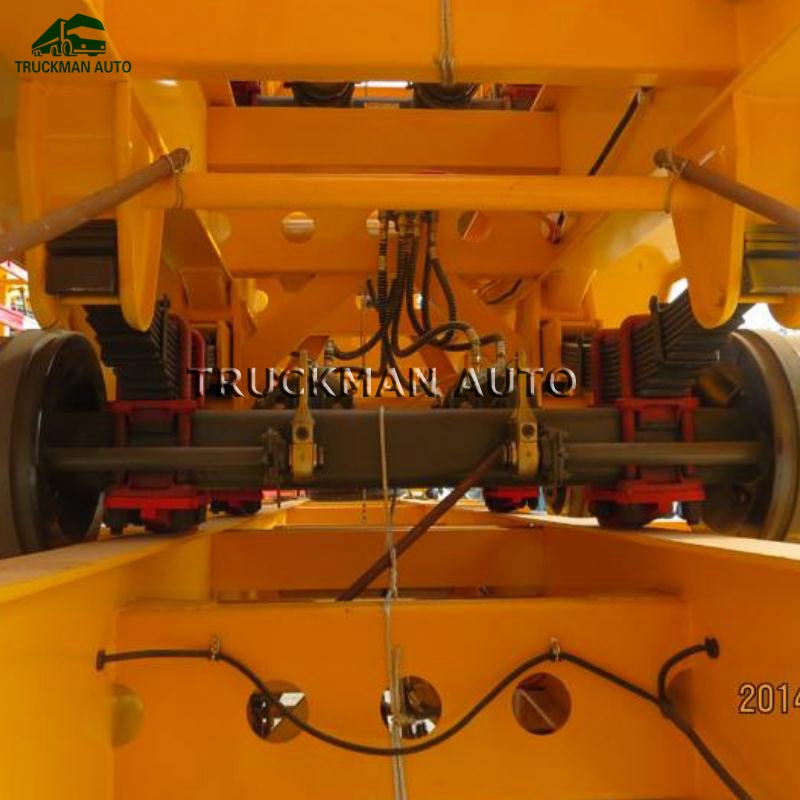

Axle: 13T/16T, FUWA/BPM Brand
Rim: 9.00-22.5/8.00-20/8.5-20
Tire: 12.00R22.5, 315/80R22.5, 11.00R20,12.00R20 Brand can be Optional
Suspension: Mechanical suspension(Germany Type or America Type)or Air suspension
Spring leaf: 120(W)mm*16(Thickness)mm*10 Layer(especial for exporting market)
King pin: JOST brand 2.0 or 3.5 inch
Support leg: JOST brand
Main beam: Height:500mm,upper plate is 14mm,middle plate is 8mm,
Down plate is 16mm; Material is Q345B Steel.
Side beam 16mm channel steel(Material is Q235steel).
Bottom platform 3mm diamond steel plate
Brake chamber: WABCO RE 6 relay valve
