3 Axles Container Skeleton Chassis Semi Trailer With JOST Brand Parts

Container semi trailer have the flat bed and skeleton chassis type, both of them all could transport

the different model container, such as the 20FT, 40FT, 45FT container. And main different is the loading

area. The flatbed container semi trailer have a flatbed top of chassis, but the skeleton container semi

trailer only have the chassis and with some support legs. Also the skeleton container trailer weight is

soft for the flatbed container semi trailer, mainly used for the good road condition transport. But the

same place is the key parts, we all use good brand, such as FUWA, JOST, WABCO etc, confirm the

trailer durable and long use time.

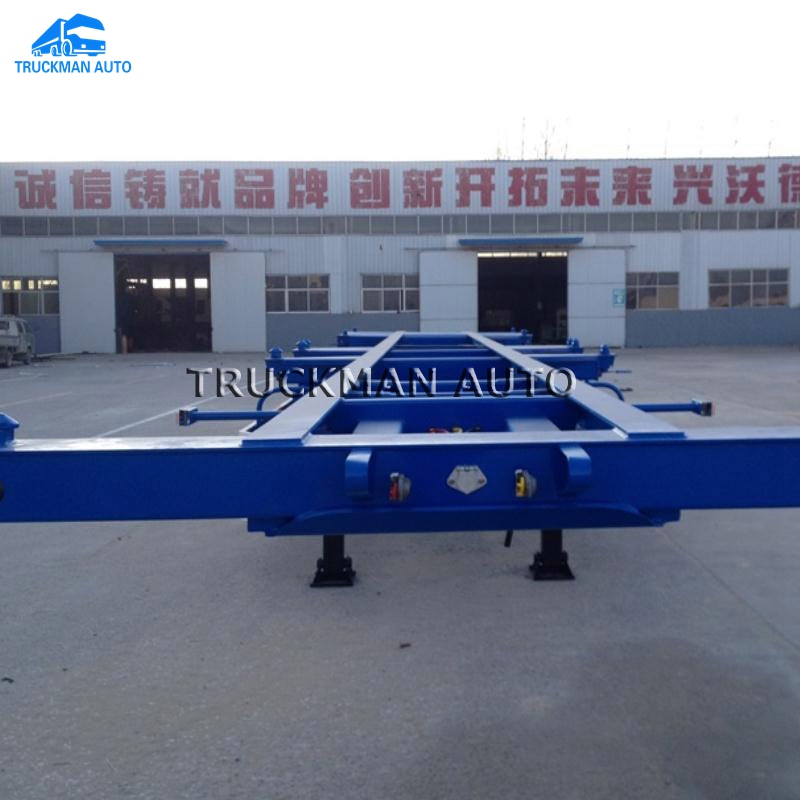

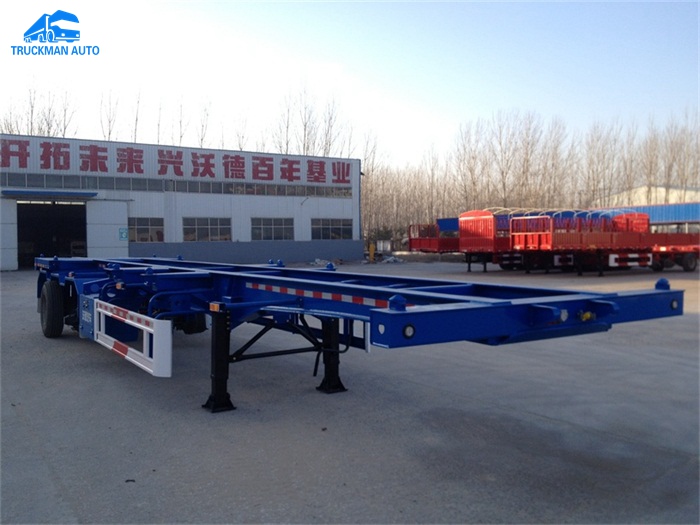

Skeleton Type Chassis Container Semi Trailer

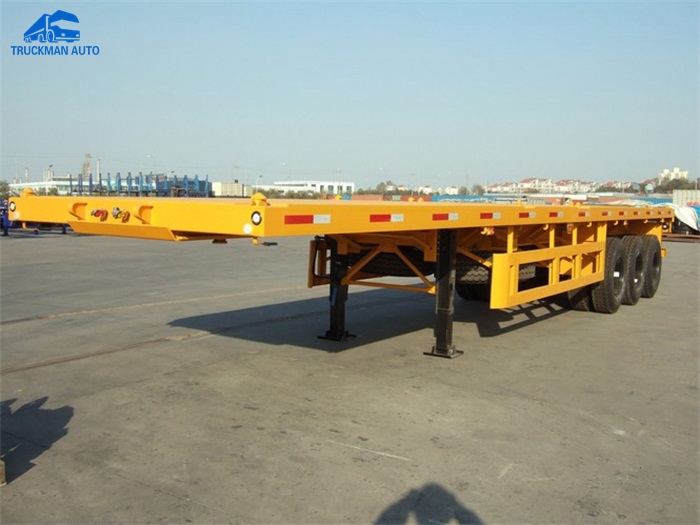

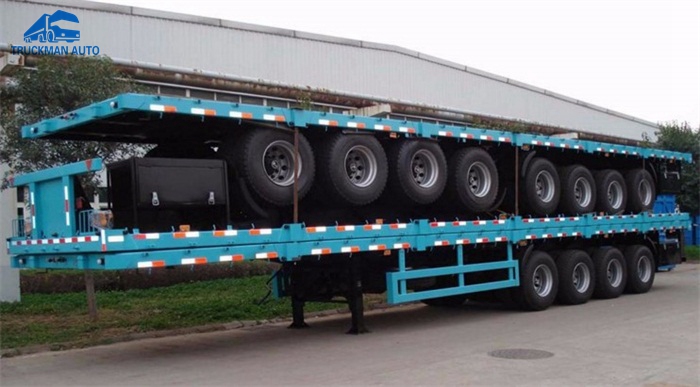

Flatbed Type Container Semi Trailer

The Main Specification For The Skeleton Container Semi Trailer

Dimension: 12400mm*2500mm*1575mm(Size can be choose freely)

Loading Capacity: 30T-50T

Axle: 13T/16T,FUWA/BPM Brand

Rim: 9.00-22.5/8.00-20/8.5-20

Tire: 12.00R22.5, 315/80R22.5, 11.00R20,12.00R20 Brand can be Optional

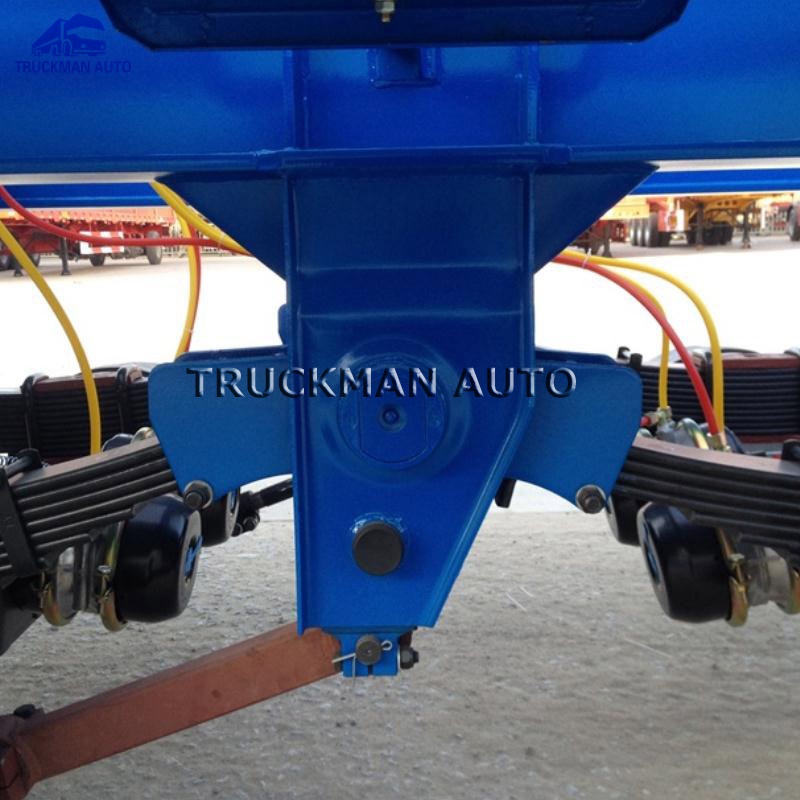

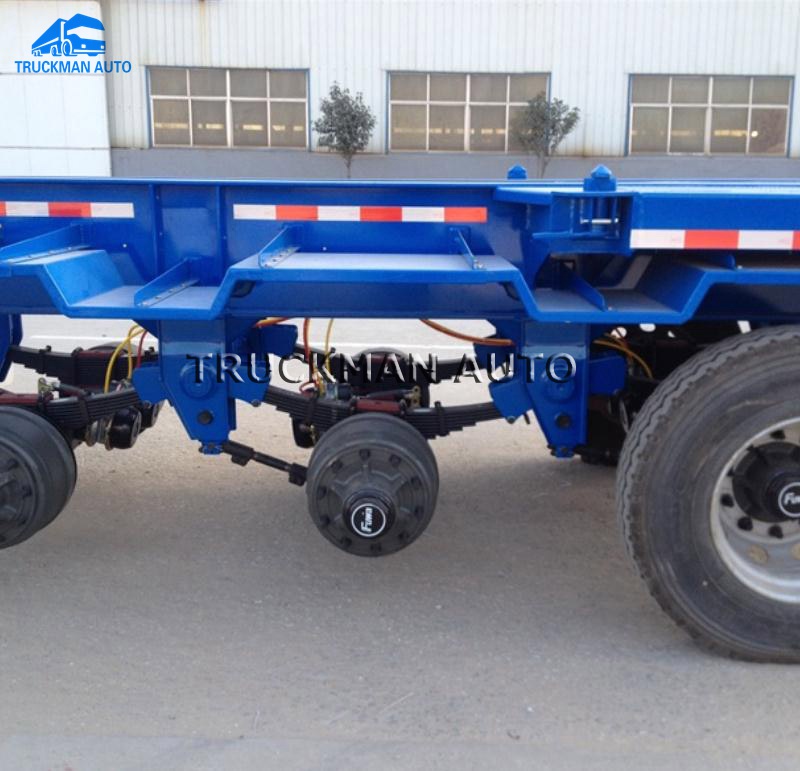

Suspension: Mechanical suspension (Germany Type or America Type)or Air suspension

Spring leaf: 120(W)mm*16(Thickness)mm*10 Layer

King pin: JOST brand 2.0 or 3.5 inch

Support leg: JOST brand

Main beam: Height: 500mm,upper plate is 14mm,middle plate is 8mm,

Down plate is 16mm; Material is Q345B Steel.

Side beam 16mm channel steel(Material is Q235steel).

Bottom platform 3mm diamond steel plate

Brake chamber: WABCO RE 6 relay valve
