3 Axles Skeleton Type Container Semi Trailer Used For Transit 20FT & 40FT Container

TRUCKMAN AUTO brand Skeleton Container Trailer with the self weight soft, durable chassis etc

characteristic, fairly used for the terminal, warehouse etc. The main specification choose the high quality

brand parts, for example FUWA or BPW brand axles, with America type suspension etc. And most important

we upgrade some parts, like replace the 90x13mm leaf spring to 120x16mm thickness, also the tire rim thickness

increase to 18mm, up to now no customers give the leaf spring damage broken feedback. and our company

will supply the 12 months quality warranty for our TRUCKMAN brand semi trailers.

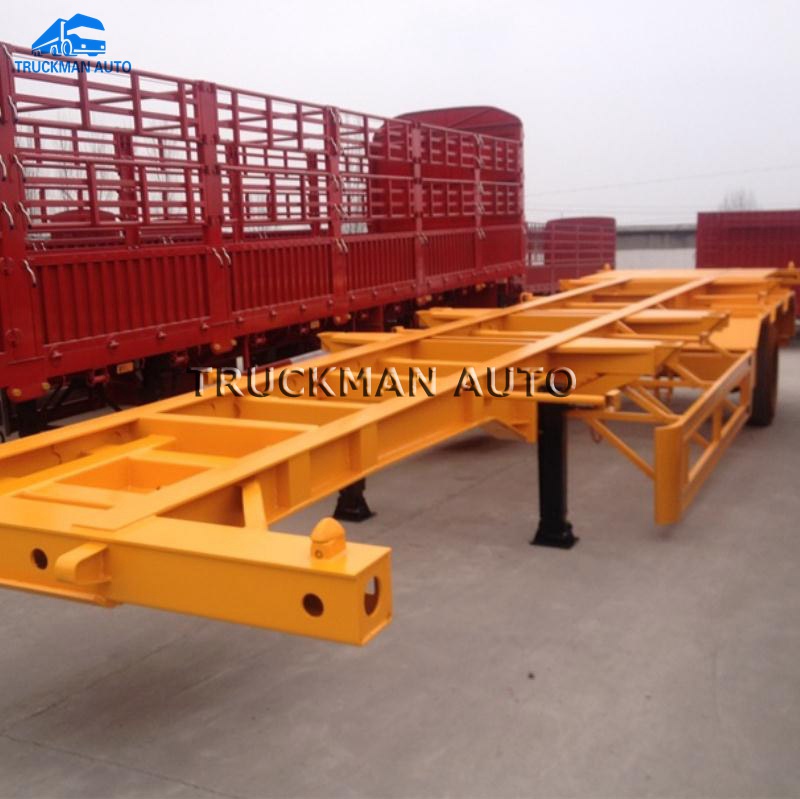

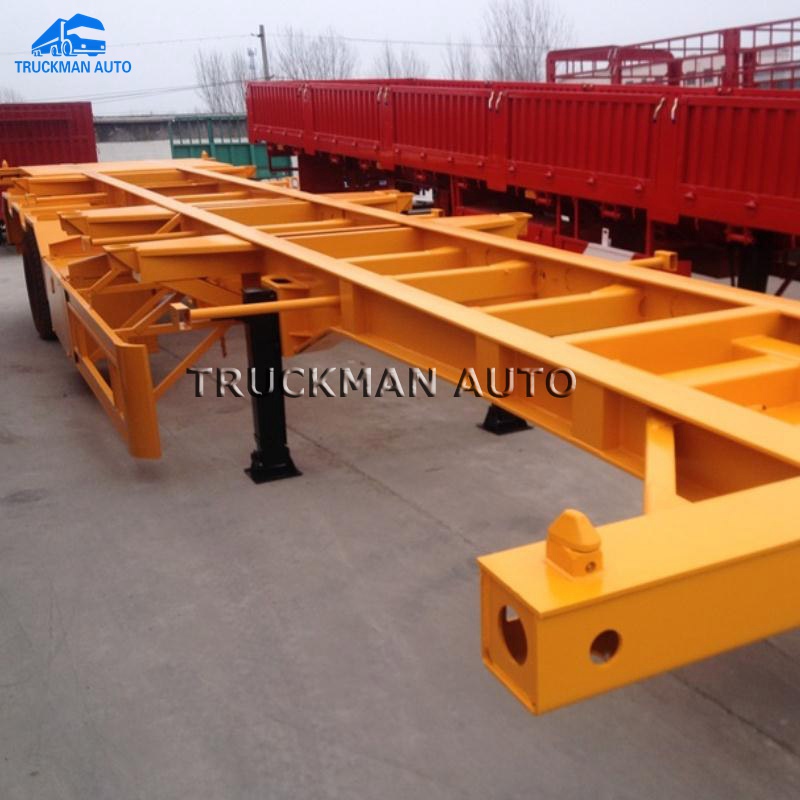

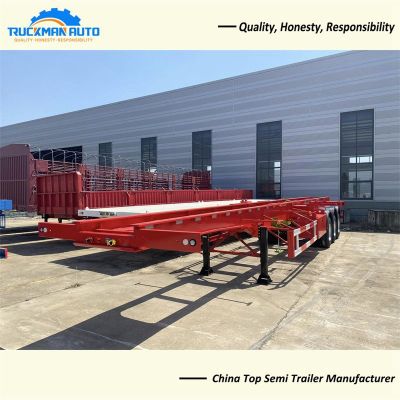

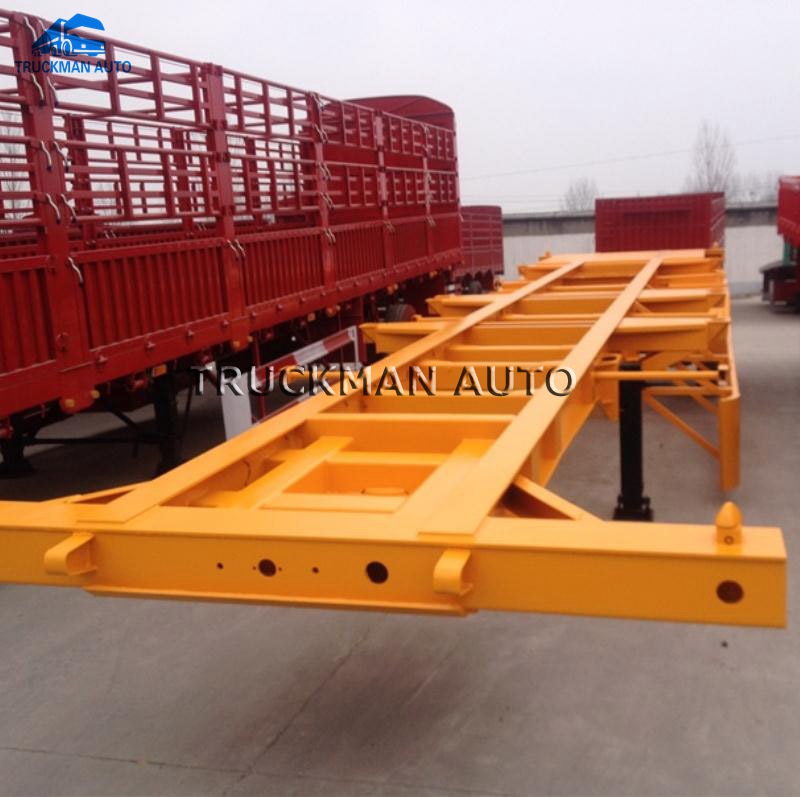

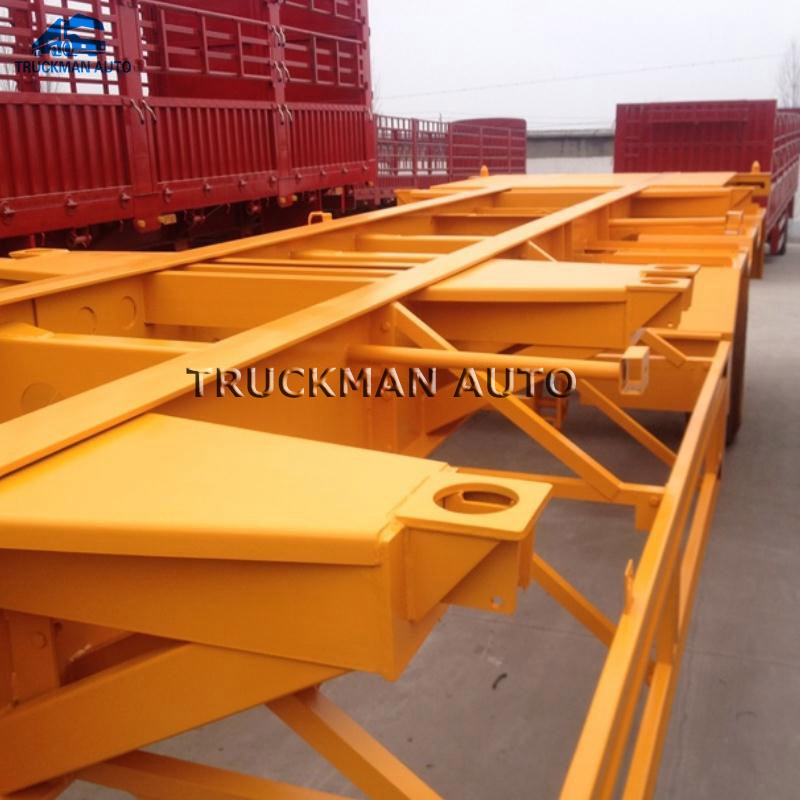

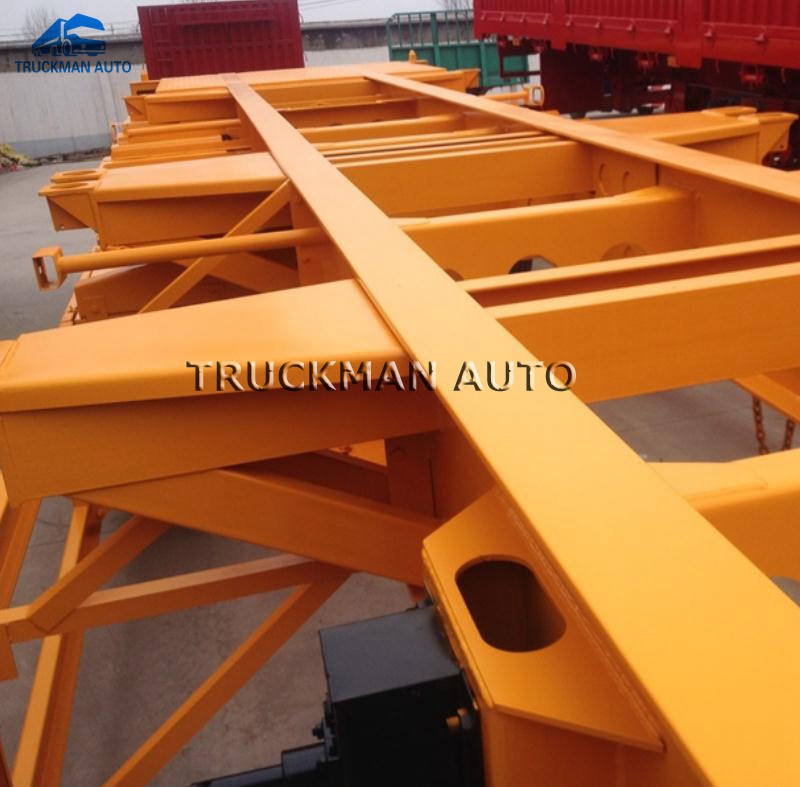

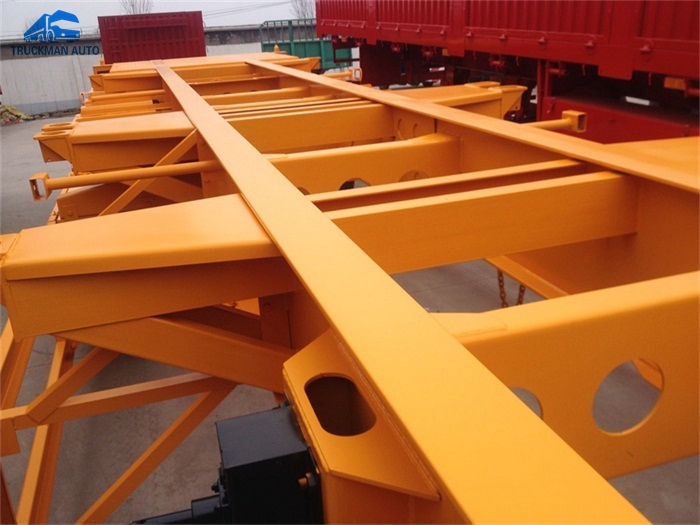

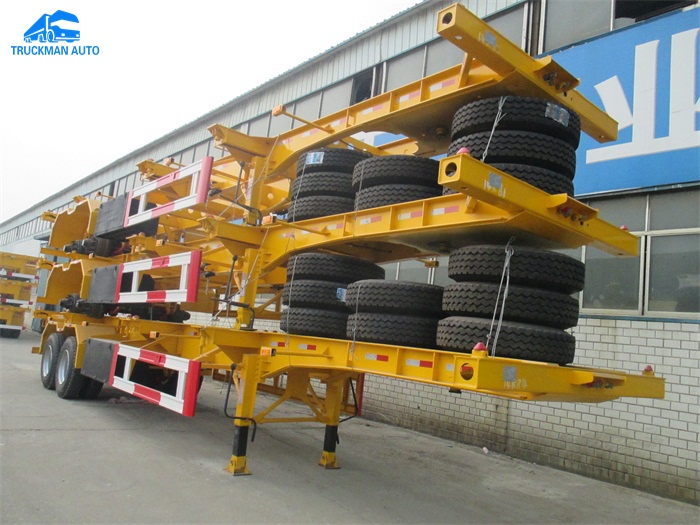

3 Axles Skeleton Container Delivery Picture.

Main Specification For The Skeleton Container Trailer

Curb Weight: 6500KG

Loading Capacity: 40Tons

Axle: 3x13T, FUWA

Tyre: 9.00R15,9.00R20,10.00R20,11.00R20

Suspension: Heavy Duty Mechanical Suspension

Leaf Spring: 120x16mm, 10 PCS

Main Beam: Q345B

Electric System: 24V, 7core socket, lights according to European standards.

Kingpin: 2" Or 3.5"

Spare Tyre Carrier: 1 Unit

Tool Box: 1 box of standard tools
