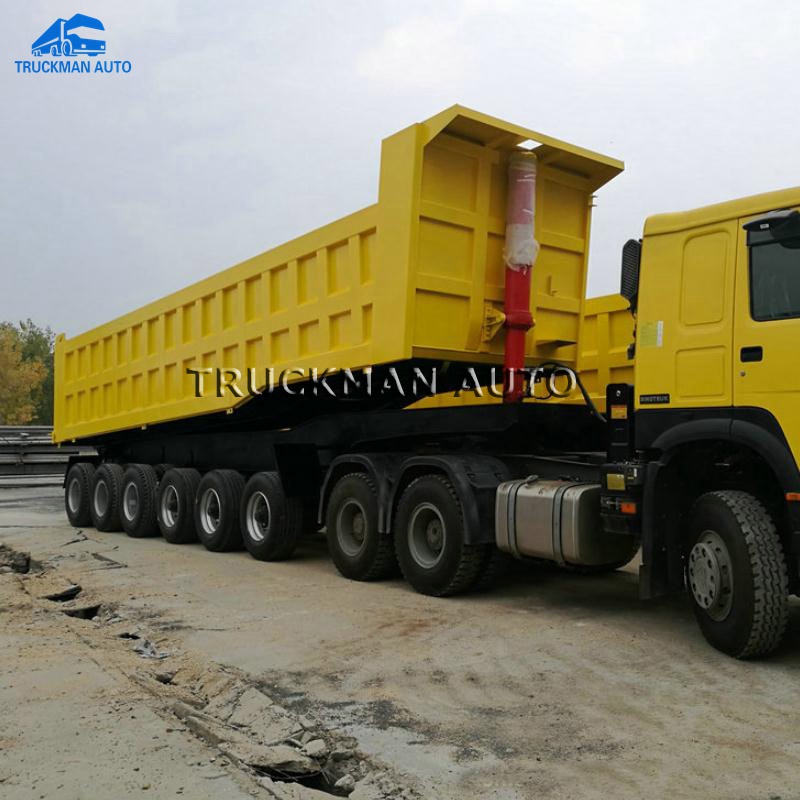

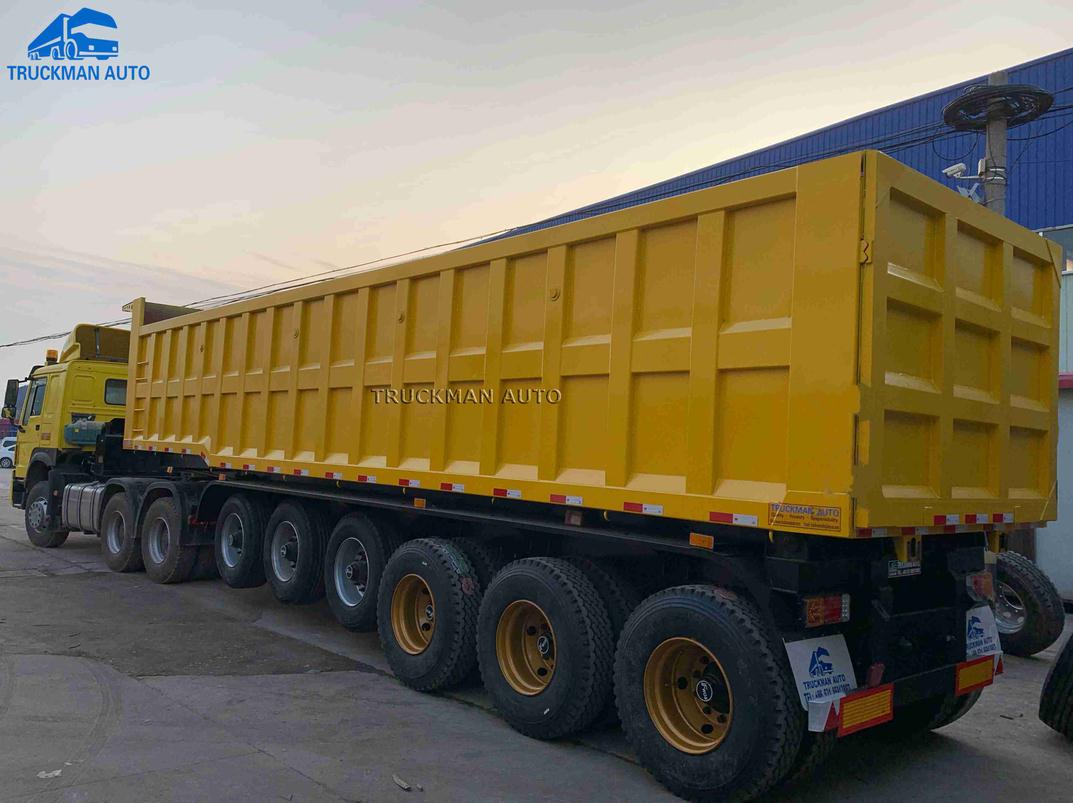

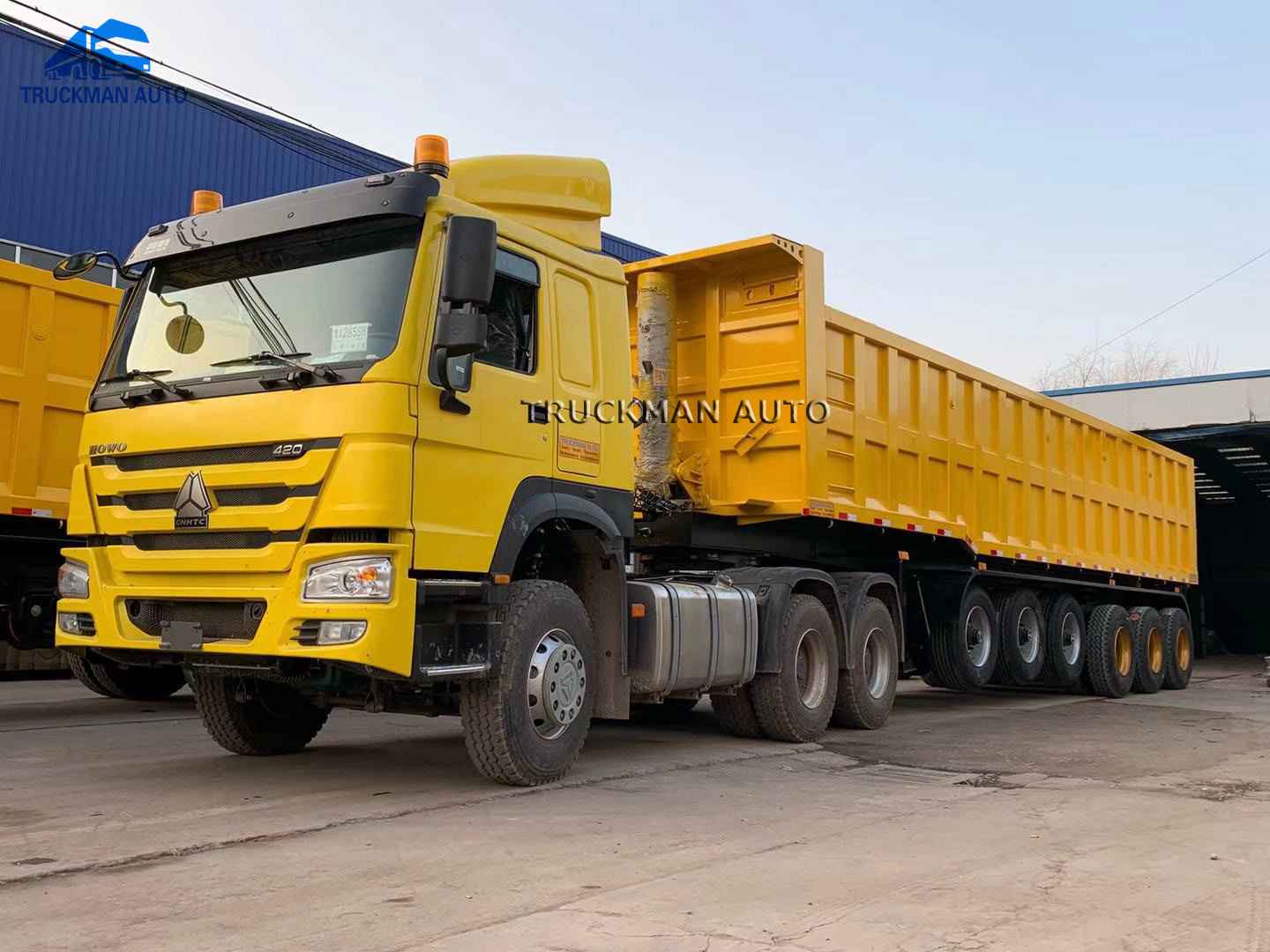

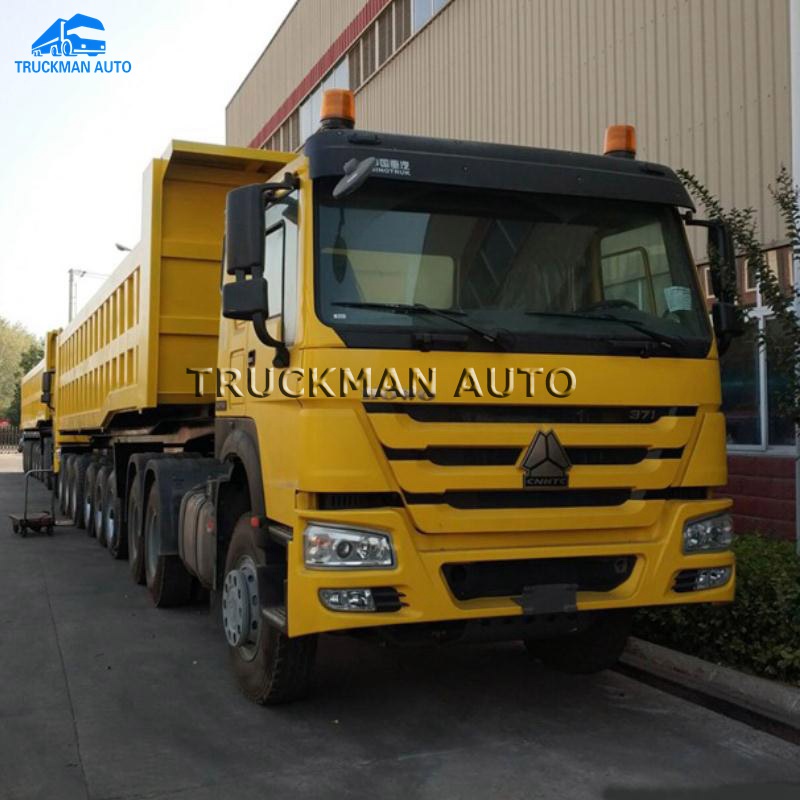

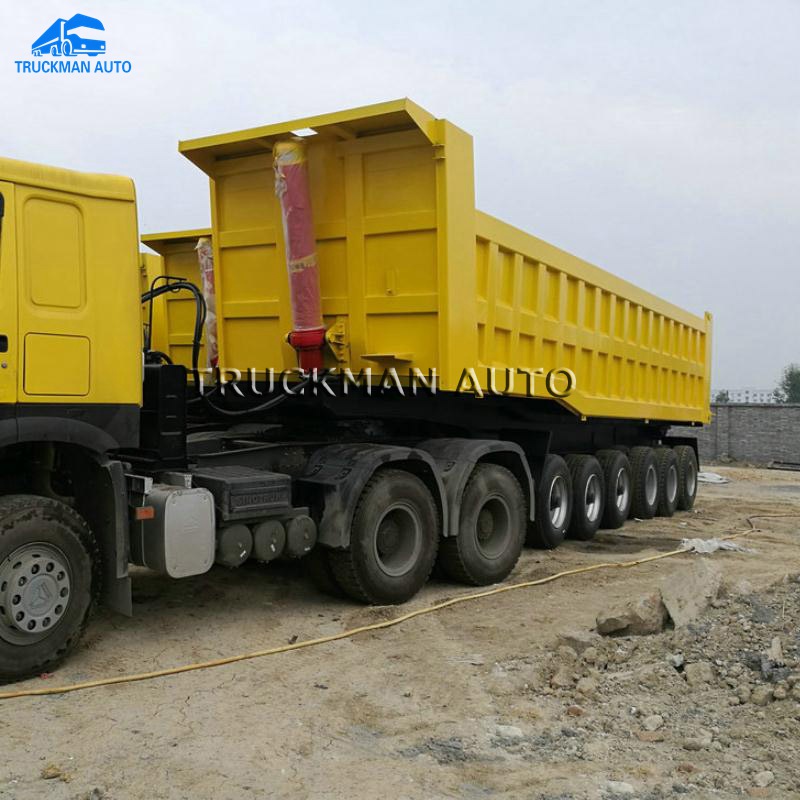

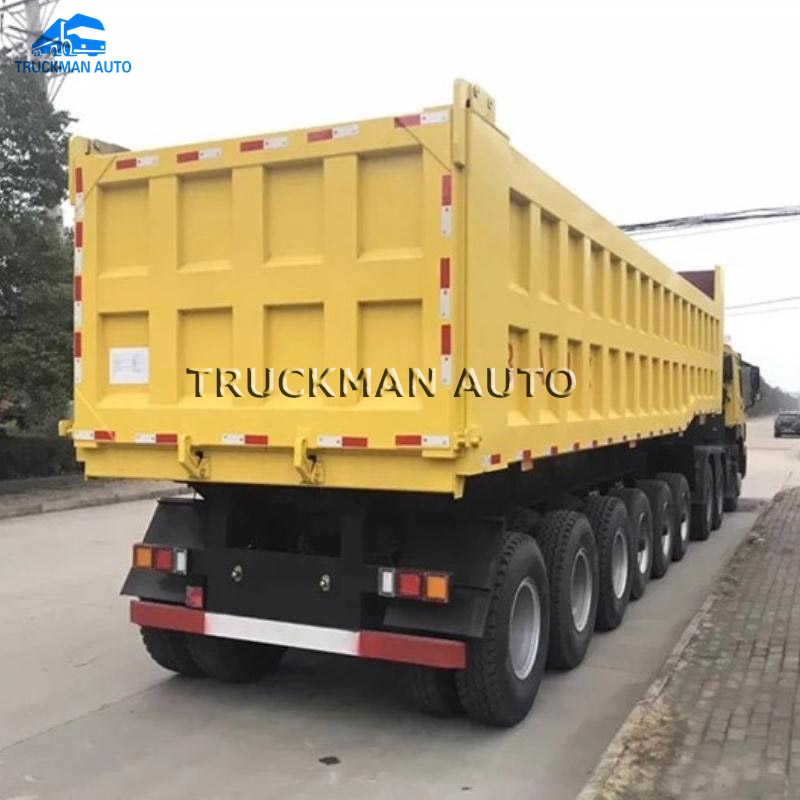

6 axles dump trailer is fairly used for the haulage the bauxite, coal, manganese ore etc from mining area to TAKORADI port. With the front 3 axles could lifting, and use the big tire 385/65R22.5.
6 axles dump trailer is fairly used for the haulage the bauxite, coal, manganese ore etc from mining area
to TAKORADI port. With the front 3 axles could lifting, and use the big tire 385/65R22.5. For the loading
tons limit. Our TRUCKMAN AUTO brand 6 axles dump trailer is very popular in local, cause we choose
famous brand parts for our dump semi trailer with low cost, most important our TRUCKMAN AUTO
brand trailer with one year quality warranty.
Main Specification For The 6 Axles Dump Trailer.
Dimension: 11700×2500×3950mm (Outside)
Cargo Box: 11000x2400x1700mm, 45m3
Payload: 40 Tons - 80 Tons
Lifting system: HYVA hydraulic system or Chinese brand
Frame: Automatic welding design I beam, Q345B carbon steel material
Thickness: Upper and lower plate is 18mm, middle is10mm. height is 500mm
Axle: 3 axles, BPW/FUWA/HJ brand
Landing Gear: JOST CHINA BRAND 28T
King Pin: JOST 2.00 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension/Germany or America type/air suspension
Leaf Spring: 120mm(W)*16mm(T)*10 Layer
Braking System: WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim: 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire: 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
Accessories: One standard tool box
Voltage: 24V
The Specification Only For Your Reference, We Could Accept The Custom Made.
6 Axles Dump Trailer Make Test Before Shipment.
