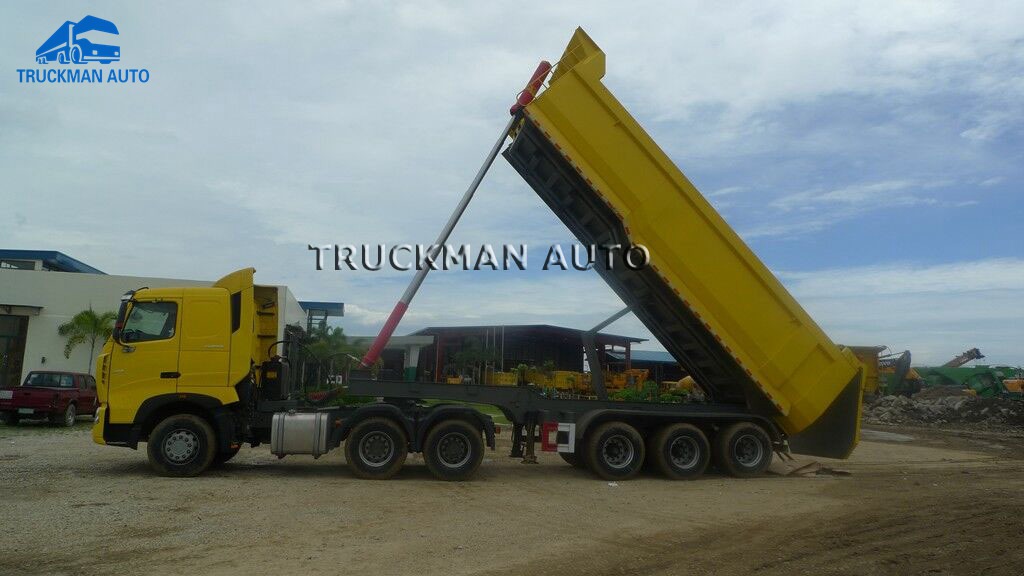

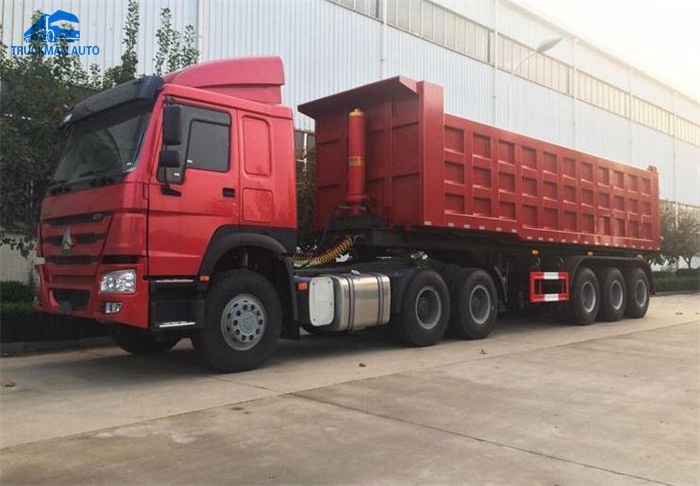

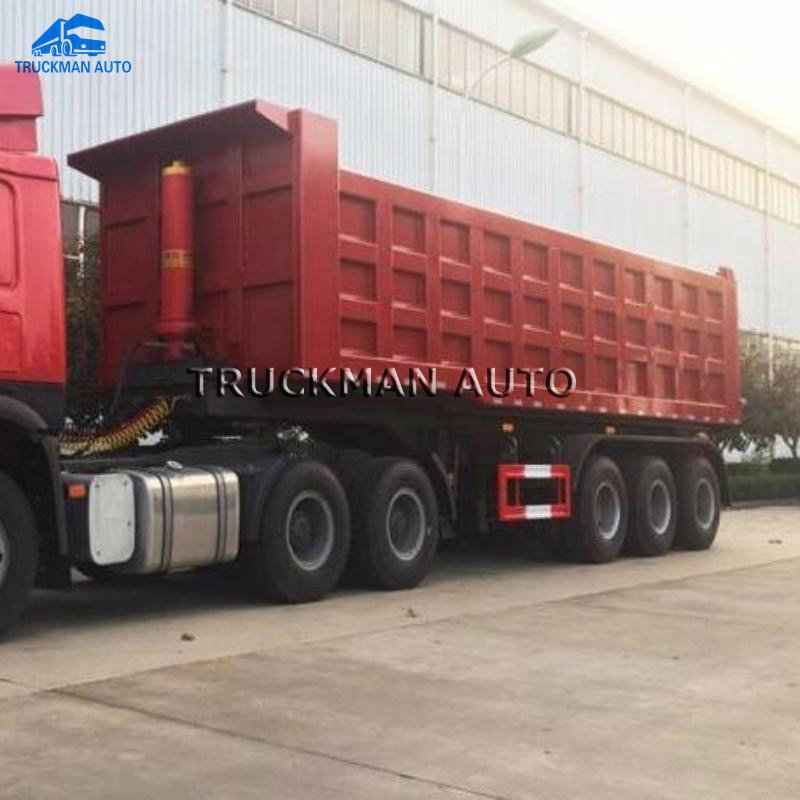

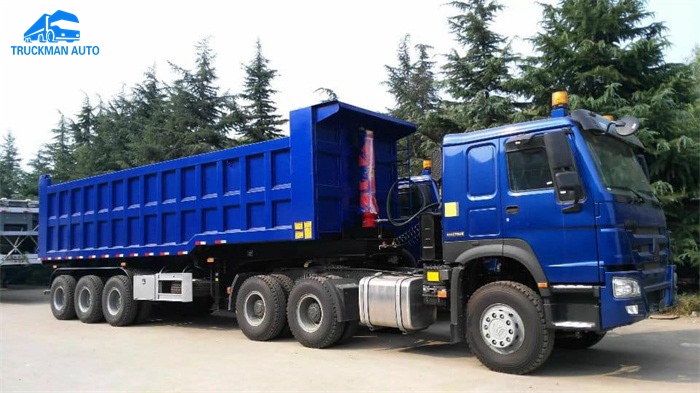

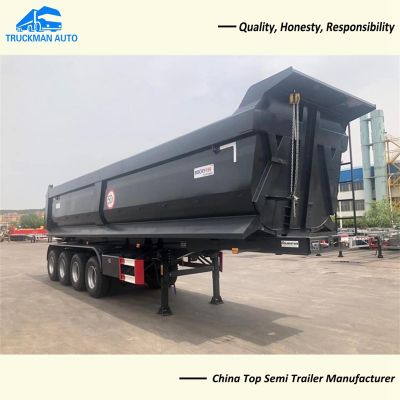

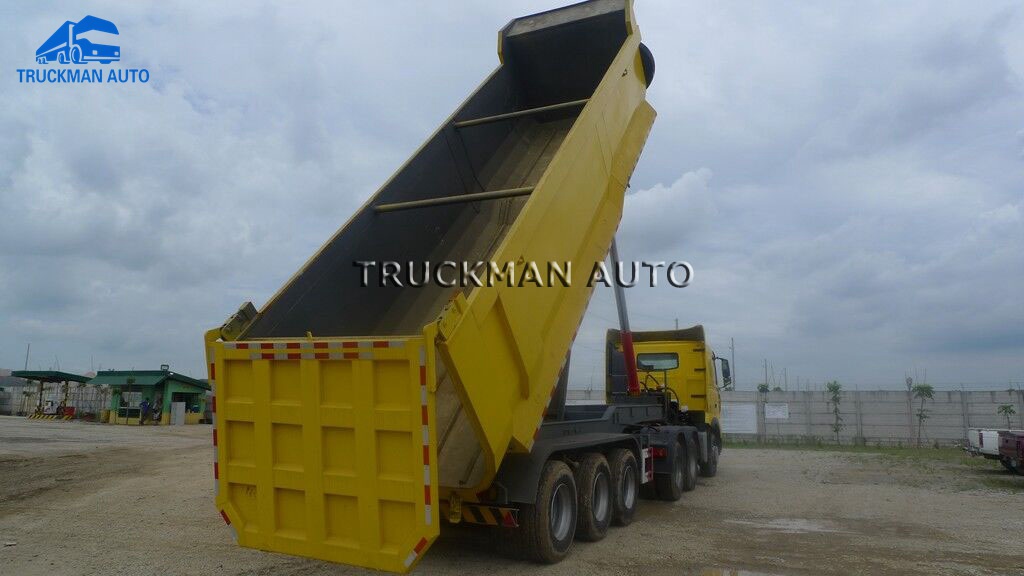

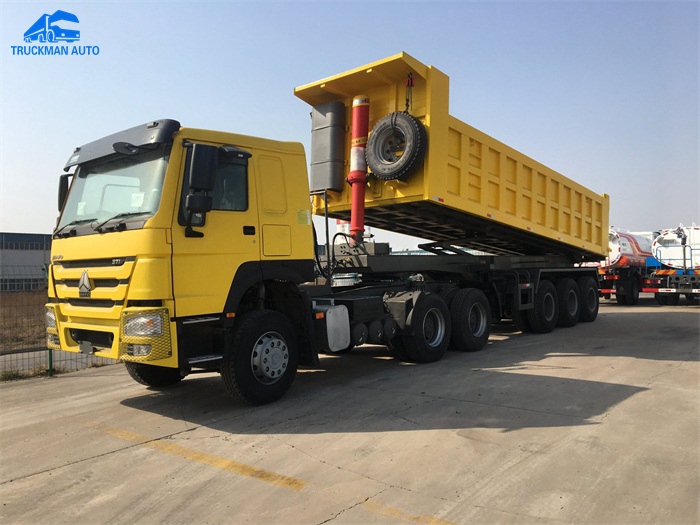

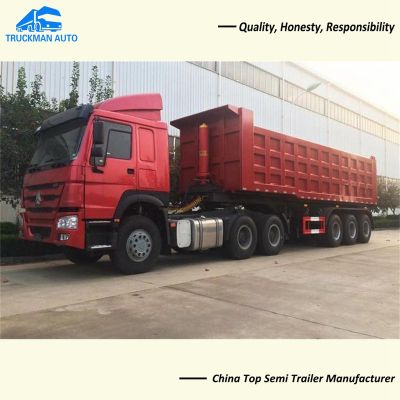

35 Cubic Cargo Box 3 Axles Dumping Semi Trailer

Our TRUCKMAN AUTO brand dumping semi trailer material is adopt the Q345B high strength steel,

confirm the chassis and cargo box long time use. For the tire we have radial and tubeless type, we will

recommend the suitable tire according to your trailer work condition. all of them use the famous brand,

such as LINGLONG, TRIANGLE etc. Now the production time only 20 working days, and with fast shipment.

The Main Specification For The Dumping Semi Trailer

Dimension: 9000×2500×3890mm (Outside)

Cargo Box: 8500x2400x1500mm

Payload: 50 Tons

Lifting system: HYVA hydraulic system or Chinese brand

Frame: Automatic welding design I beam, Q345B carbon steel material

Thickness: Upper and lower plate is 16mm, middle is10mm. height is 500mm

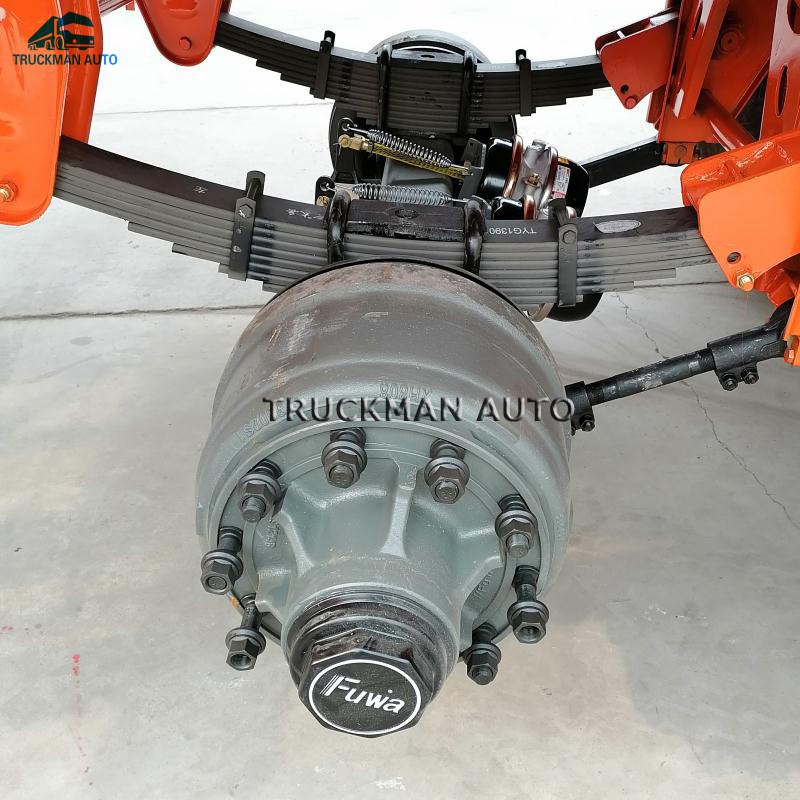

Axle: 2, 3, 4, 5, 6 axles, BPW/FUWA/HJ brand

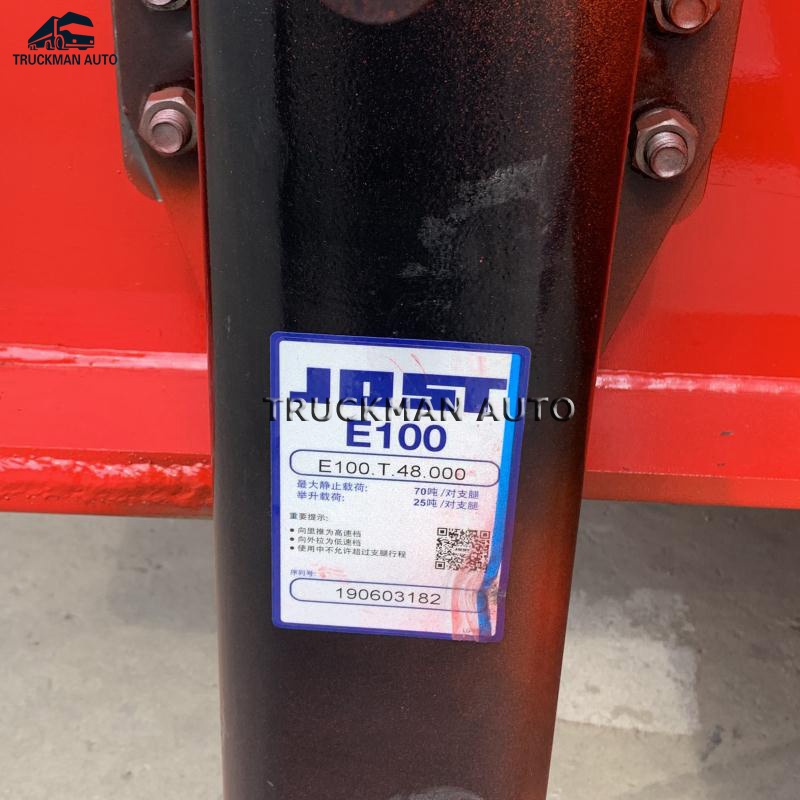

Landing Gear: JOST CHINA BRAND 28T

King Pin: JOST 2.00 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension/Germany or America type/air suspension

Leaf Spring: 120mm(W)*16mm(T)*10 Layer

Braking System: WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.

Rim: 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional

Tire: 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional

Accessories: One standard tool box

Voltage: 24V

The Specification Only For Your Reference, We Could Accept The Custom Made.

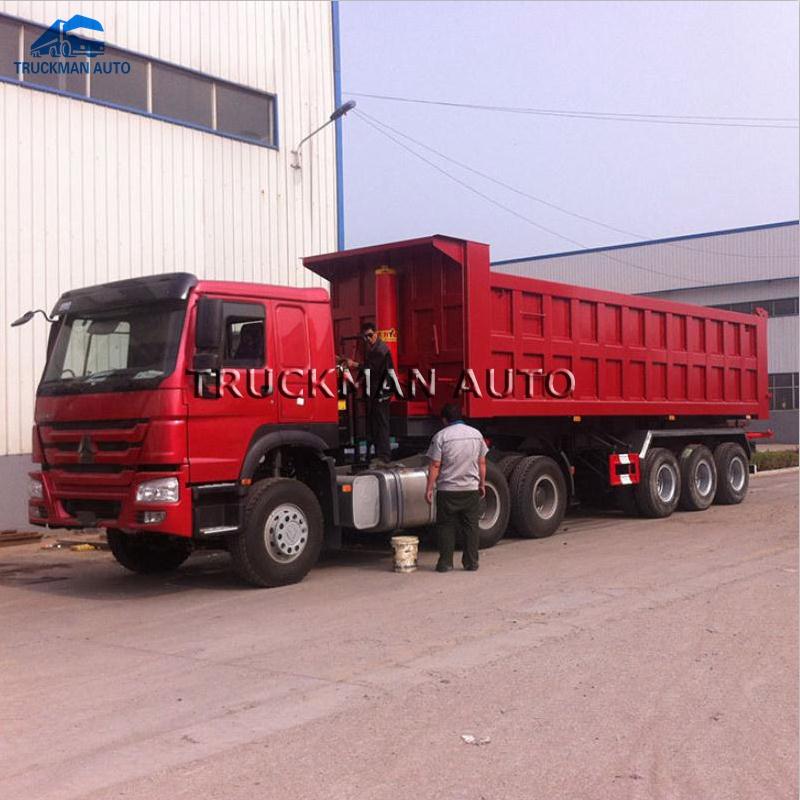

-2. Customers Received Dumping Semi Trailer.
