Tipper semi trailer could used for transport all kind of cargoes, like bauxite, sand, stone, coal, manganese, copper ore etc.
-1. 60 Tons Tipper Semi Trailer Main Detail.
-. Cargo box adopt the high strength steel, more durable.
-. The tipper semi trailer use the front hydraulic lifting system.
-. With the buffer lock, mark lamp, push rod.
-. Suitable for coal, sand, bauxite, manganese ore transit.
-2. 60 Tons Tipper Semi Trailer Main Specification.
Product Name: 60 Tons Tipper Semi Trailer
Loading Weight: 60,000kg
Tare Weight: 13,000kg
Axle: 3 axle, 3x13 tons
Suspension: America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 16mm thickness
Tire: 12.00R20, 12 pcs, radial tire
Brake System: WABCO brand, ABS and 6 pcs brake chamber
Thickness Of Frame: Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam
Material: Q345, high strength steel
Cargo Box: 9500x2300x1500mm, bottom 8mm, side 6mm thickness
Dimension: 10500x2500x3750mm
The 60 Tons Tipper Semi Trailer could design according to your request.
-3. 60 Tons Tipper Semi Trailer Shipment Picture.

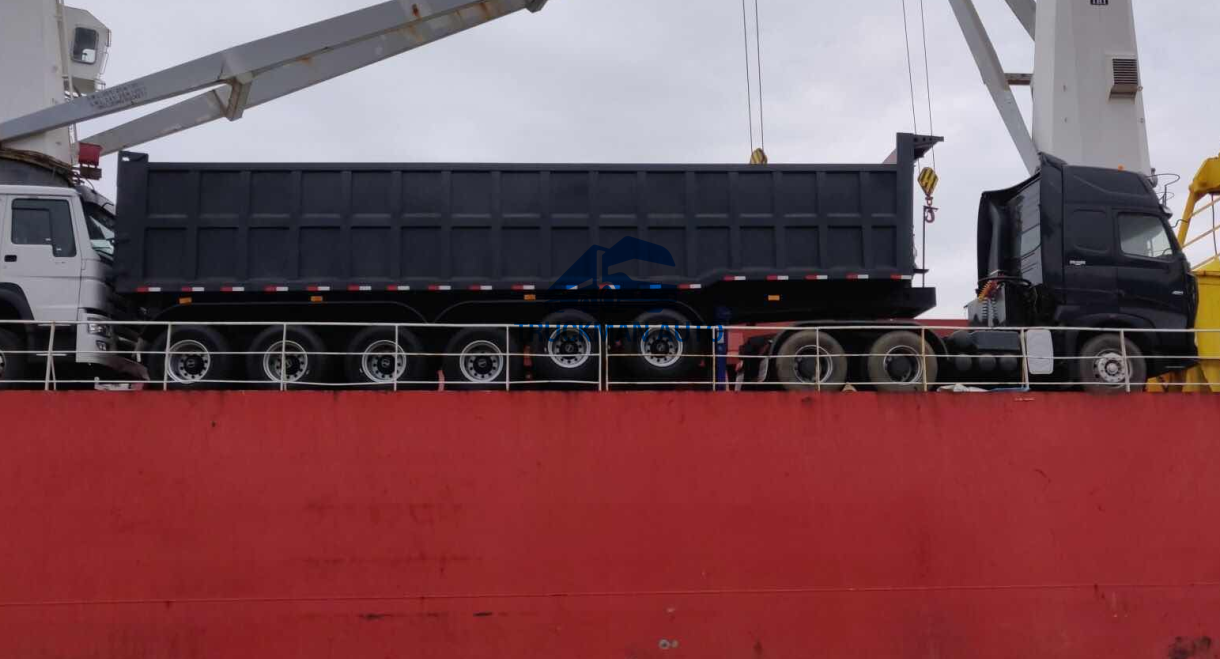

60 tons tipper semi trailer shipment by bulk cargo vessel.

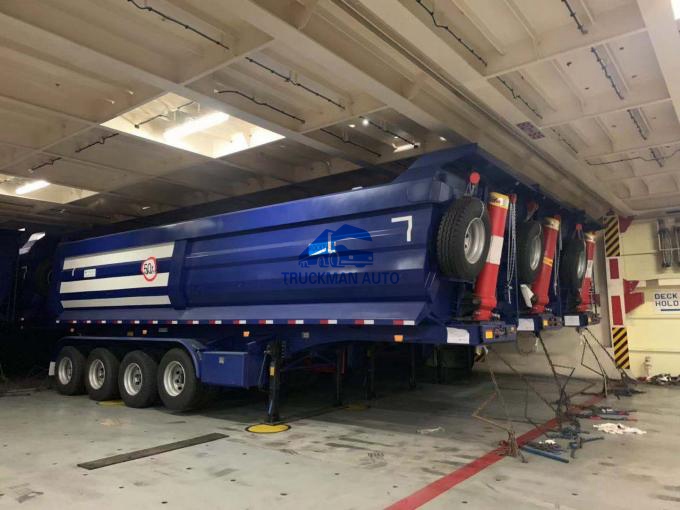

60 tons tipper semi trailer shipment by ro-ro vessel.

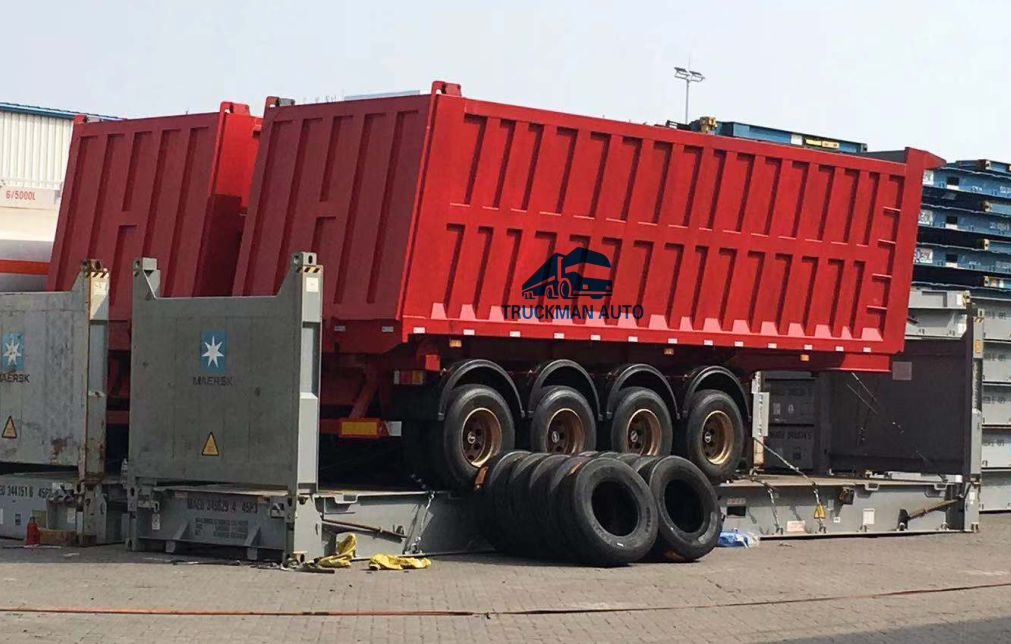

60 tons tipper semi trailer shipment by flat rack container vessel.
