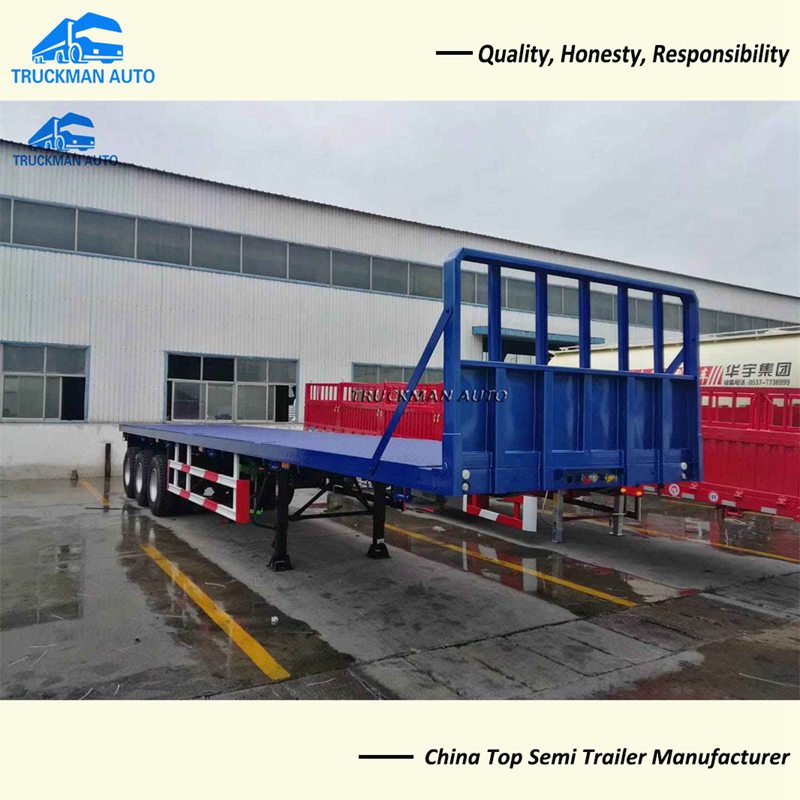

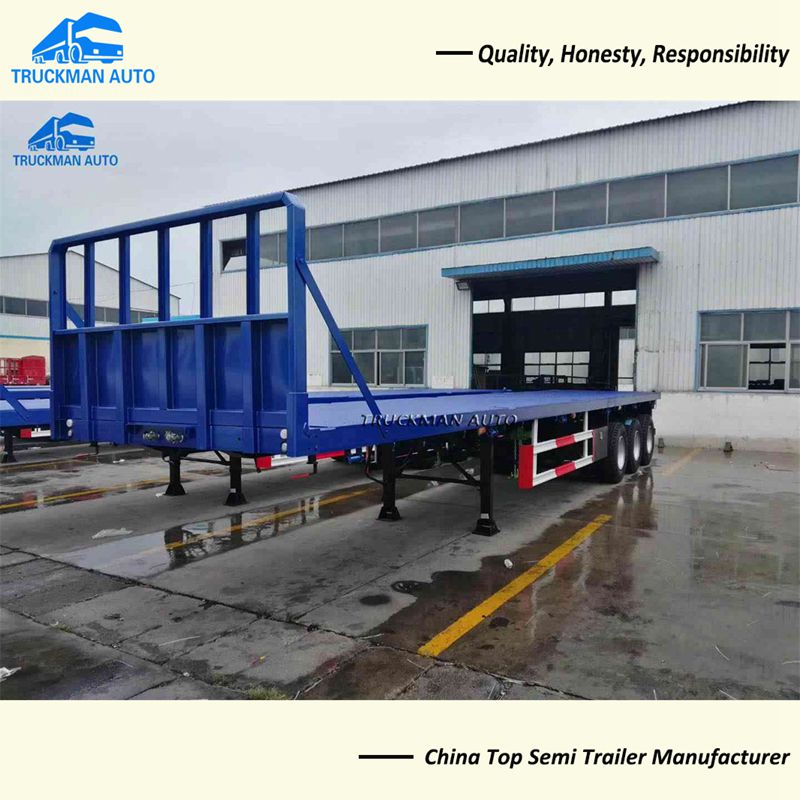

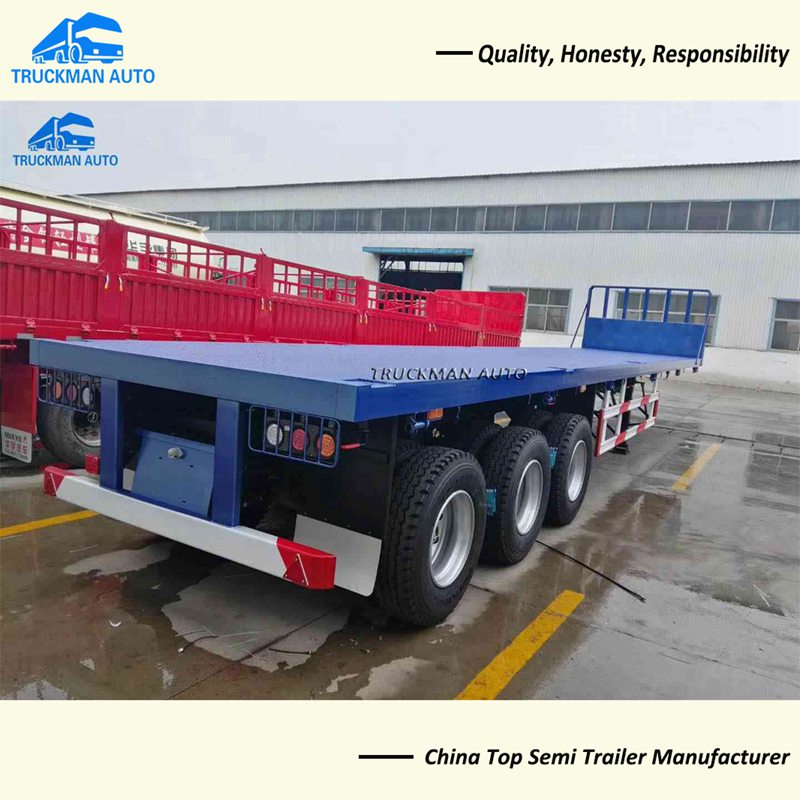

70 Tons Cement Bag Transport Trailer With Front Wall

Special design for the cement bag transport, with 1400mm front wall. The trailer design with stronger hooks, and rope tightener for fixed the cement bag. Main structure adopt the automatic welding and material is high strength steel, long service life.

Cement Bag Transport Trailer Main Specification.

Product Name: Cement Bag Transport Trailer

Loading Capacity: 70,000kg

Tare Weight: 10,500kg

Axle: 3 axle, 3x13000kg

Suspension: mechanical suspension, america type, 8mm thickness

Leaf Spring: 90x16mmx10pcsx6sets

Rim: 16mm thickness

Landing Gear: JOST, 28 tons.

Tire: 12.00R20 and 315/80R22.5, 12 pcs tire.

Brake System: WABCO brand, ABS and 6 pcs brake chamber.

Thickness Of Frame: upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam.

Dimension: 12500x2500x3200mm.

The cement bag transport trailer could design according to your request.

Cement Bag Transport Trailer Packing & Shipment Detail.

A. Spray Wax & Rain Clothes:

Do wax spray and rainclothes process to against the trailer body suffer seawater corrosion during shipping.

B. Package:

Stable fixing with steel wire,to protect the trailer during shipping

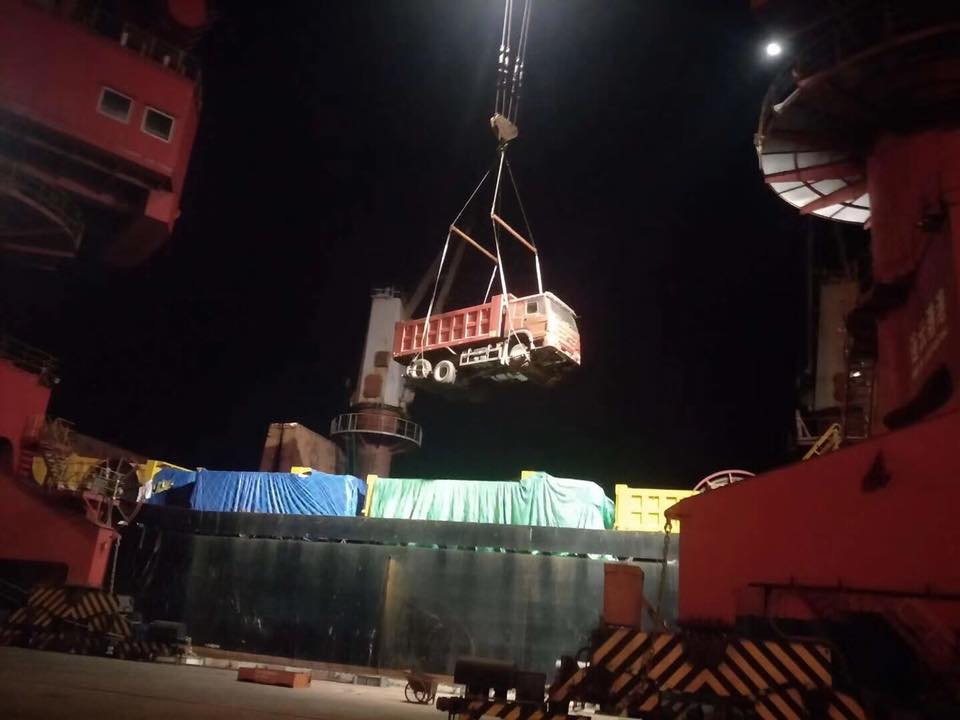

C. Shipping:

Reliable logistic service from famous freight supplier makes transport process safely and promptly
