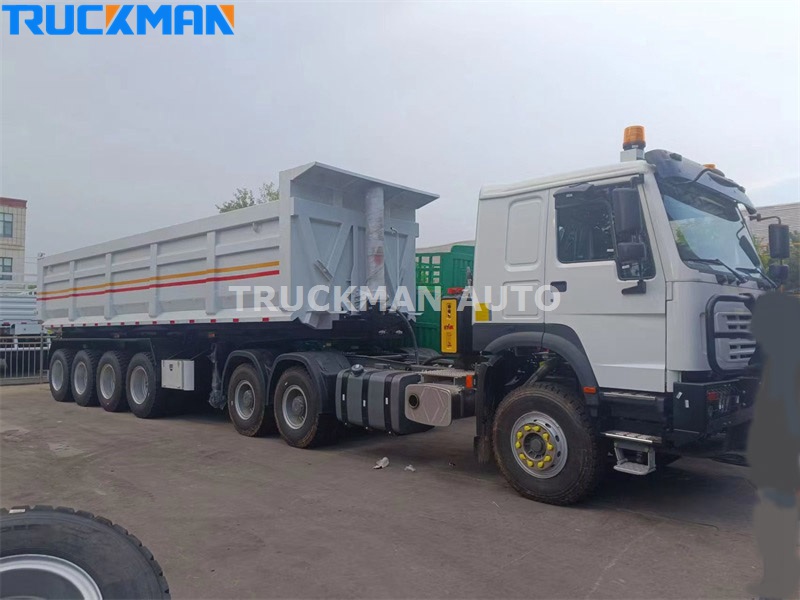

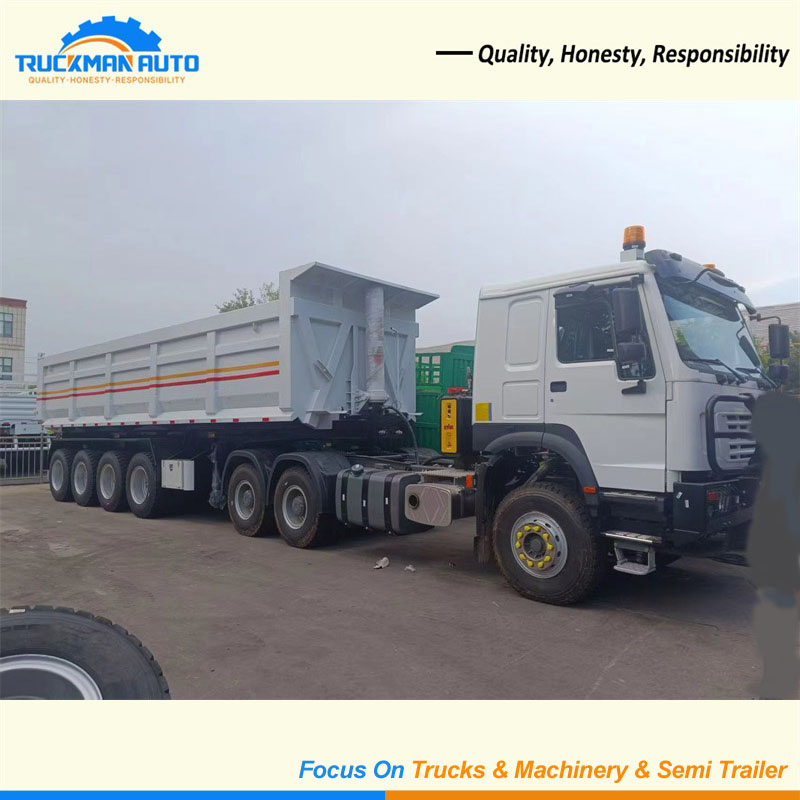

4 Axles 80 Tons U Type Tipper Semi Trailer For Bauxite Transportation

About 4 Axles 80 Tons U Type Tipper Semi Trailer

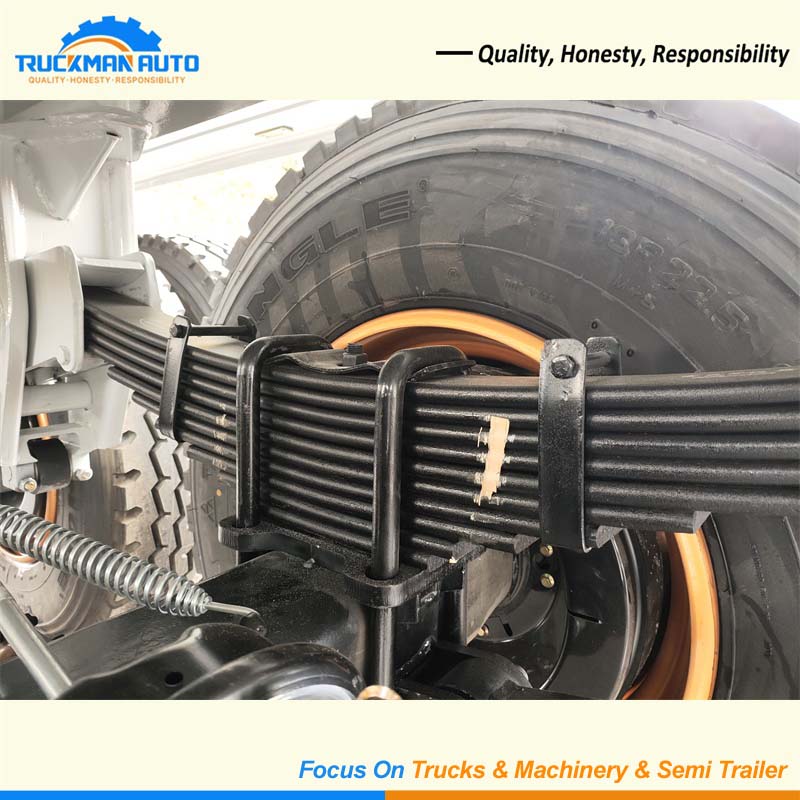

The 4 axles tipper trailer features a U-shaped design, making it ideal for transporting materials like clay, which are prone to slipping. The steel plate suspension ensures a very smooth ride on the road and maximizes stability during tipping. The trailer is equipped with shrouded lights on both sides for added safety. Integral fenders reduce the impact of soil splashing on the trailer, extending its service life. To prevent cargo from falling, a tarp can be added to the cargo box, both manual and electric tarps are available.

4 Axles 80 Tons U Type Tipper Semi Trailer Specification

Product Name: 4 Axles 80 Tons U Type Tipper Semi Trailer

Application: Cargo transportation

Axle: 4 axle, 4x16 tons, ZY brand

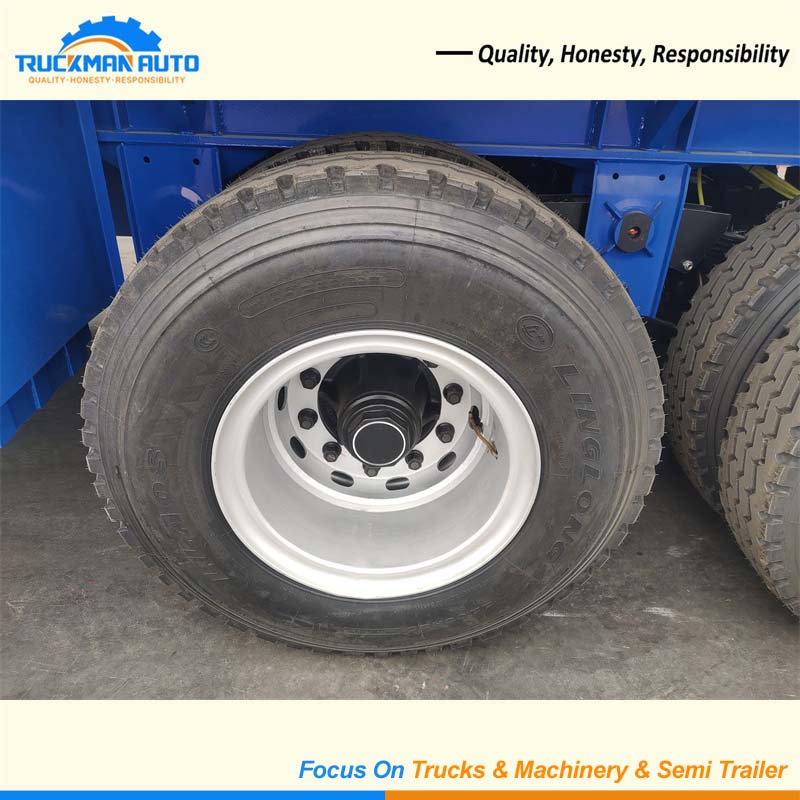

Tire: 315/80R22.5, 16 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Dimension: 10780x2550x3720mm

4 Axles 80 Tons U Type Tipper Semi Trailer specification only for your reference, we will recommend other model Tipper Semi trailer basic your request.

4 Axles 80 Tons U Type Tipper Semi Trailer Cargo Box

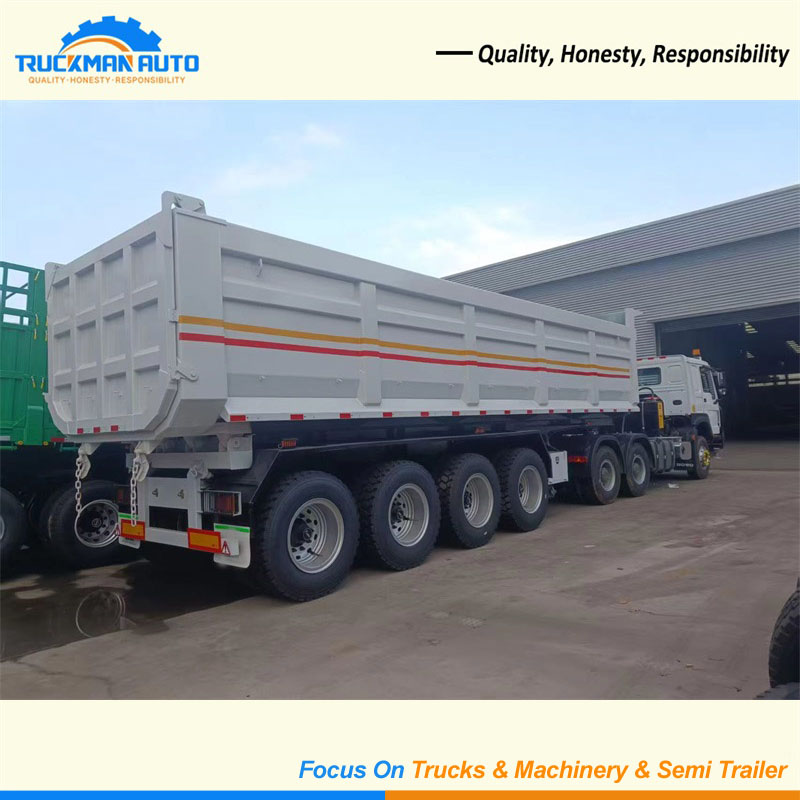

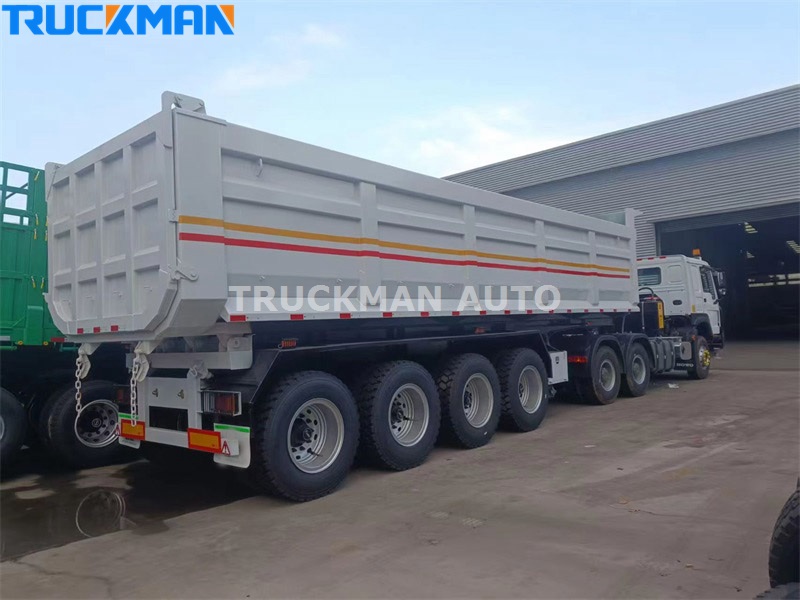

The tipper semi-trailer features a U-shaped cargo box with curved corners and a no-dead-angle design. This prevents materials from sticking to the box during unloading, especially in winter or humid conditions. This effectively prevents unloading difficulties caused by materials freezing in the box, reduces residual material, and improves unloading efficiency. By using high-strength steel plates and optimizing the structure, the plate thickness can be reduced by approximately 20% compared to traditional thickened steel boxes, reducing the deadweight by approximately one ton, effectively improving the load utilization factor and increasing the actual cargo capacity. The U-shaped structure gives the cargo box a lower center of gravity, making driving more stable. It effectively prevents cargo from spilling when cornering or navigating uneven roads, reducing the risk of rollover and improving driving safety.

4 Axles 80 Tons U Type Tipper Semi Trailer Lifting Cylinder

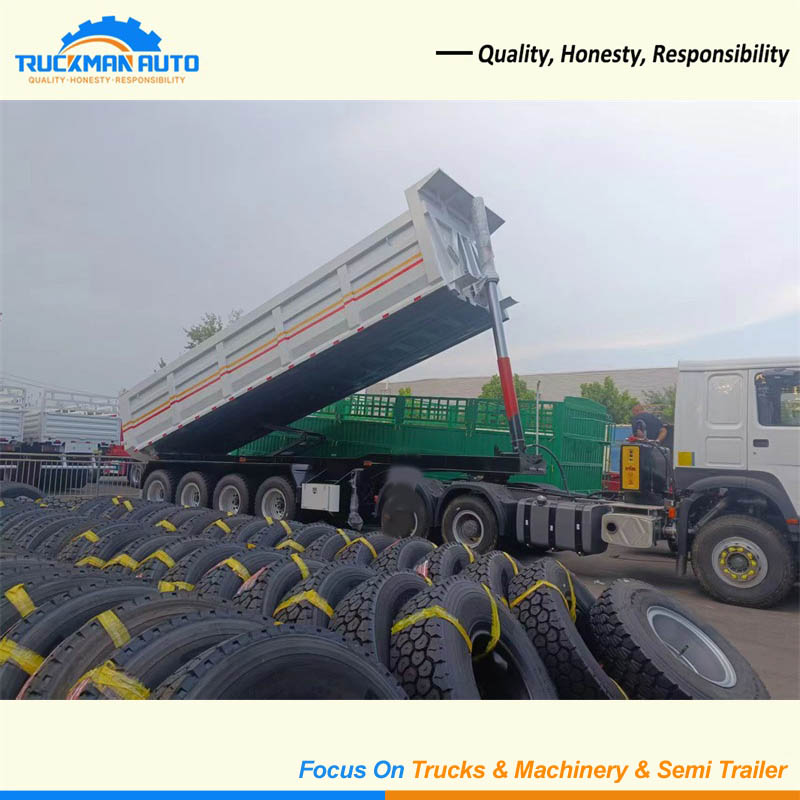

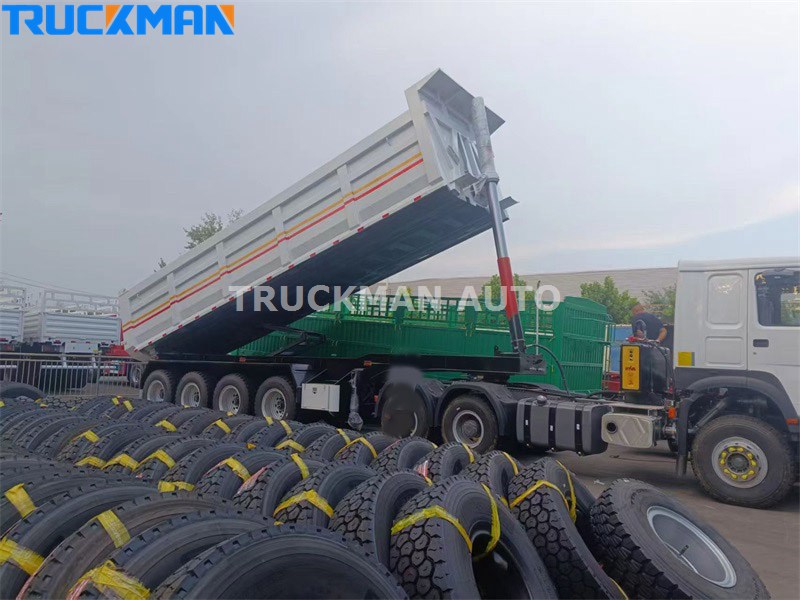

The tipper semi trailer utilizes HYVA hydraulic cylinders, which are multi-section cylinders mounted at the front of the vehicle body. Compared to cylinders in a center-mounted lift mechanism, these require less lifting force. For a 40-ton load, a front-mounted multi-section cylinder requires only approximately 20 tons of force, while a center-mounted lift mechanism cylinder requires over 60 tons. Because the required lifting force is lower, the pressure requirements for the pump, valves, and piping are also lower. This also reduces the forces acting on the cylinder support shaft, vehicle body, and frame, extending the service life of the entire lifting system and mechanism.
