Oil tanker trailer is used to transport liquid fuels, such as gasoline, diesel, natural gas and so on. It adopts closed tank compartment, which has the characteristics of leakage-proof, explosion-proof and stable transportation.

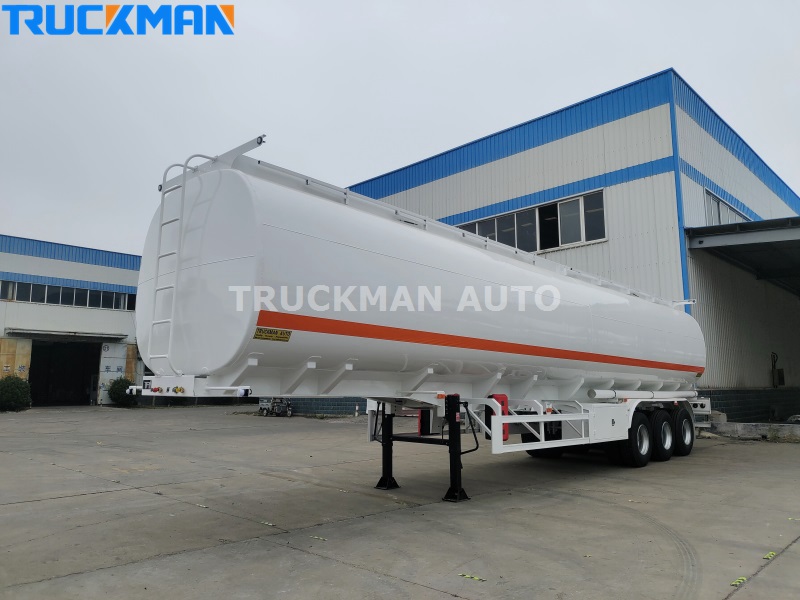

About 3 Axle 60000 Liters Oil Tanker Trailer
The oil tanker trailer adopts assembled traction pins, which are easy to replace and reduce the post maintenance cost. The legs are composed of screw drive mechanism, bevel gear drive mechanism, double-speed reduction gearbox, transmission rod and operation handle. When the handle is pushed in, the rotation can lift at high speed, and when the handle is pulled out, the rotation can lift at low speed. The left and right sides are equipped with fire extinguishers to improve traveling safety. The beam adopts reinforced steel plate, which is more solid and sturdy.
3 Axle 60000 Liters Oil Tanker Trailer Specification
Product Name: 3 Axle 60000 Liters Oil Tanker Trailer
Application: Oil transportation
Axle: 3 axle, 3x16 tons, FUWA brand
Tire: 315/80R22.5, 12 pcs, TRIANGLE brand
Kingpin: 3.5 inch, JOST brand
Brake System: WABCO brand
Support Leg: 28 tons, JOST brand
Tank Body: 60000 Liters
Dimension: 14070x2500x3900mm
3 Axle 60000 Liters Oil Tanker Trailer specification only for your reference, we will recommend other model Oil Tanker Trailer basic your request.
3 Axle 60000 Liters Oil Tanker Trailer Manhole Cover
One of the important parts of the manhole cover is the breather valve, also known as the safety valve. The function of this valve is to automatically adjust the pressure in the oil tanker trailer. This helps in keeping the pressure within a certain range. The safety valve protects the tank and reduces the loss of volatile oil by evaporation. The body of the breather valve is made of nickel-chromium stainless steel. All other parts are made of stainless acid-resistant steel to prevent rusting. All compartments of small and medium sized tanks have one breather valve. On the other hand, large tanks have breathing valves in each compartment.

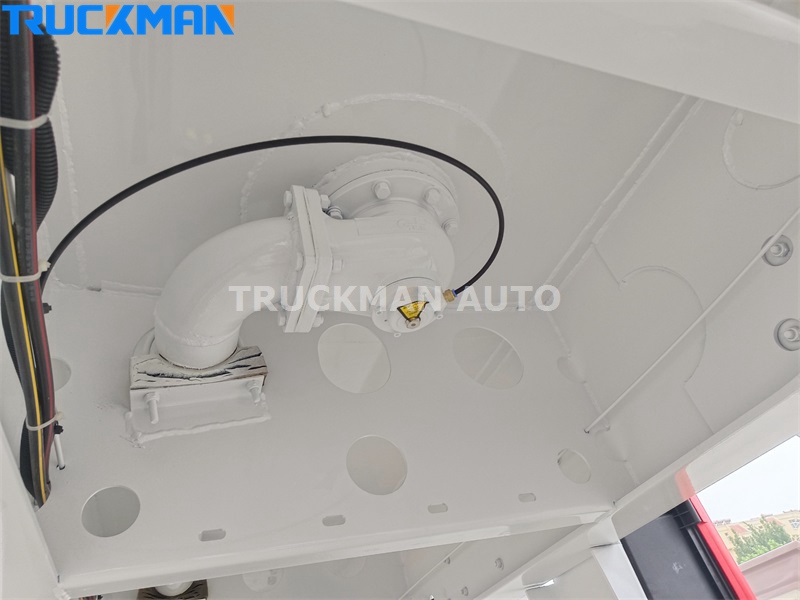

What Is The Function Of The Bottom Valve?
Bottom valves are typically installed at the outlet of the tank. Fracture groove is set at the root of the shell, which can effectively absorb the energy transferred from the impact of the vehicle destroying the pipeline, and the valve body breaks from the fracture groove, separating the tank from the pipeline, thus ensuring the integrity of the sealing mechanism, avoiding the leakage of materials, and greatly improving the safety of transportation. If a collision occurs in an accident, the valve can cut off the pipeline within 5 seconds. This ensures the safety of the goods and people in the vehicle.
