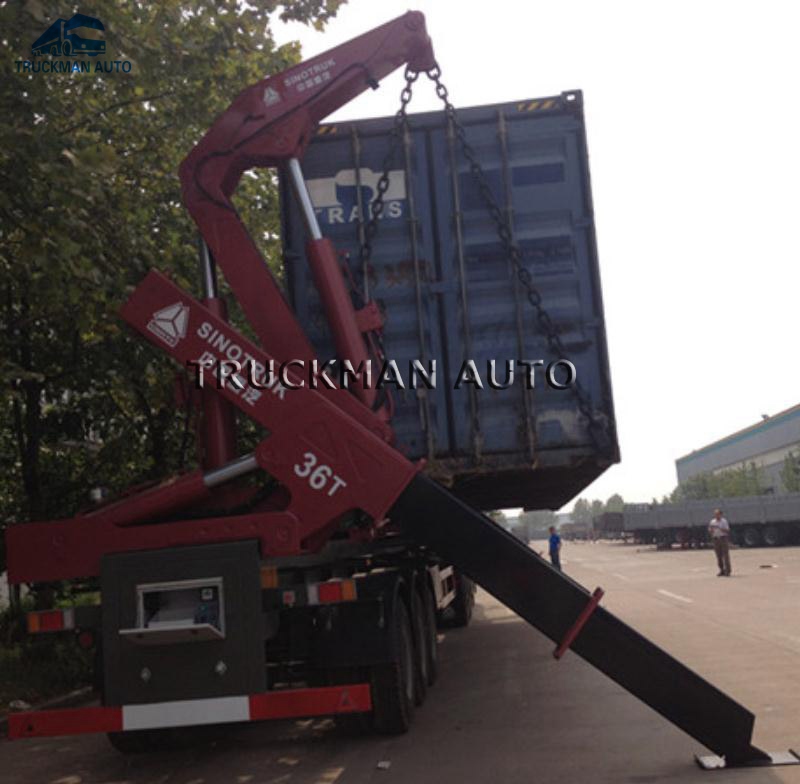

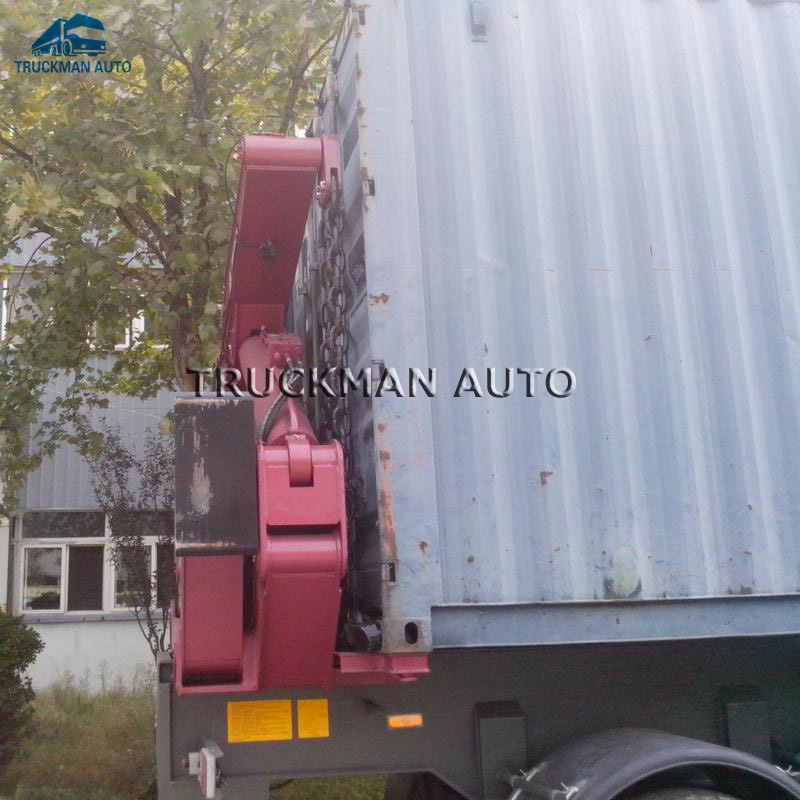

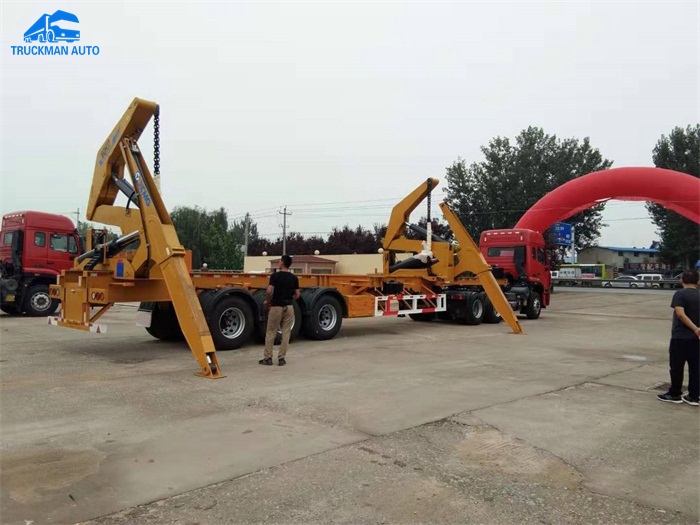

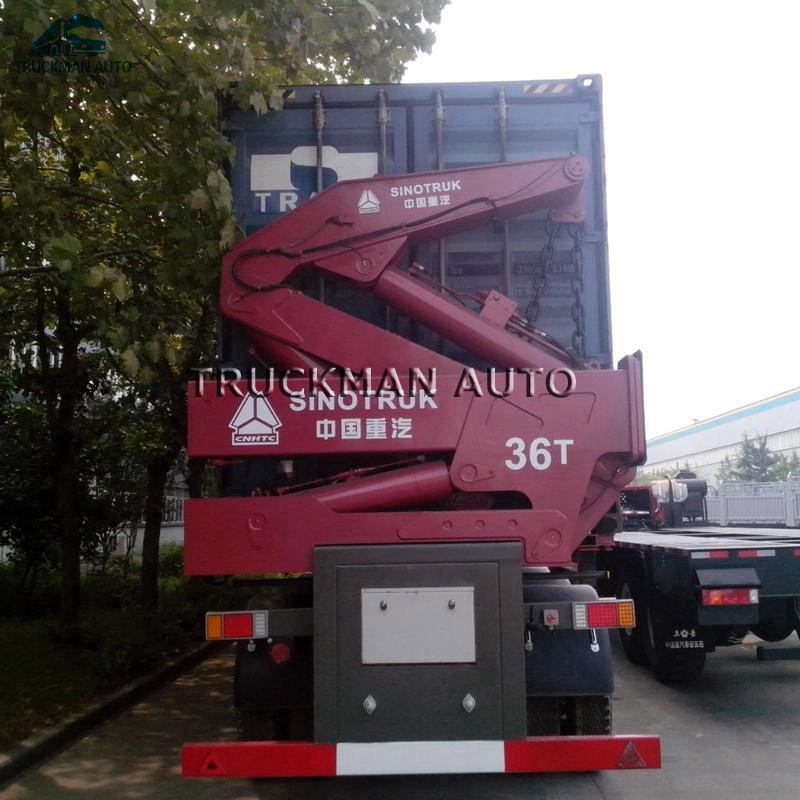

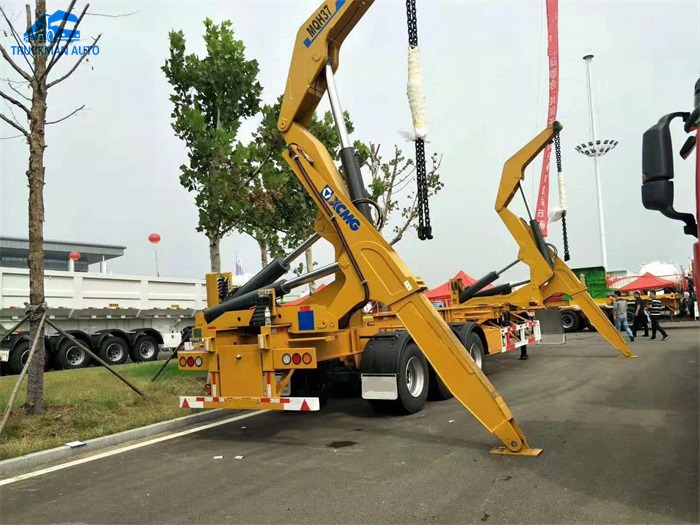

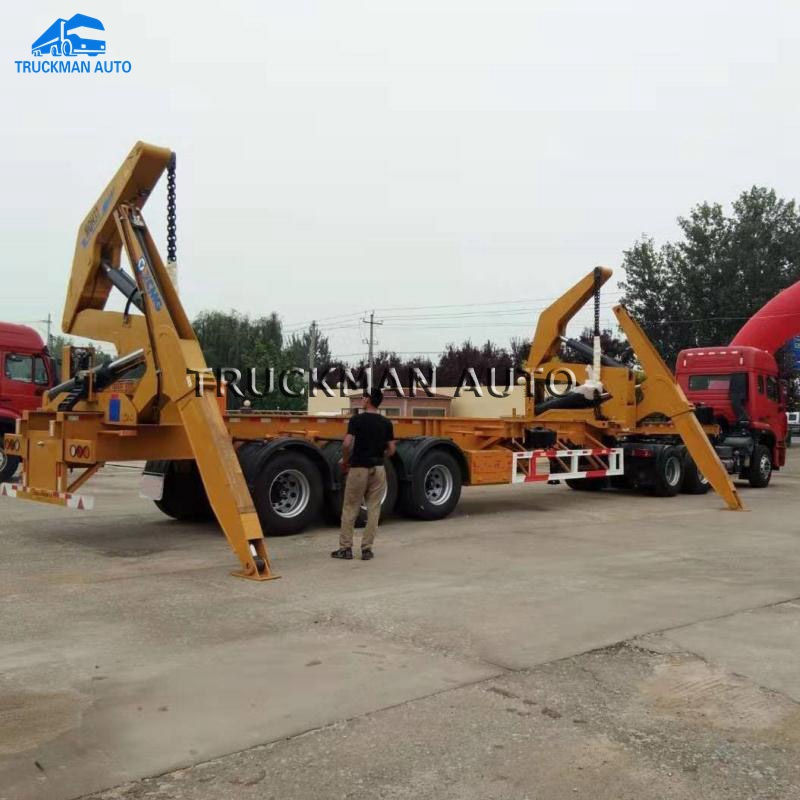

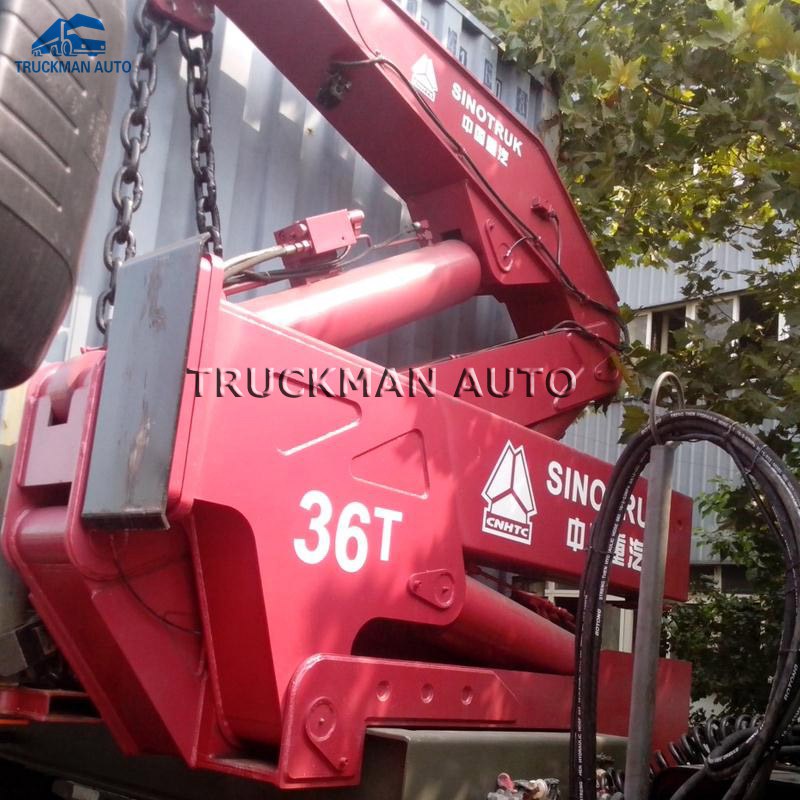

Container side loader trailer with the self lifting container ability, fairly used at terminal etc.
-1. Main Specification For The Container Side Loader Lifting.
Overall dimension: 12000mmx2500mmx3750mm.
Axles: 3x13 tons axles, FUWA, HJ, BPW optional.

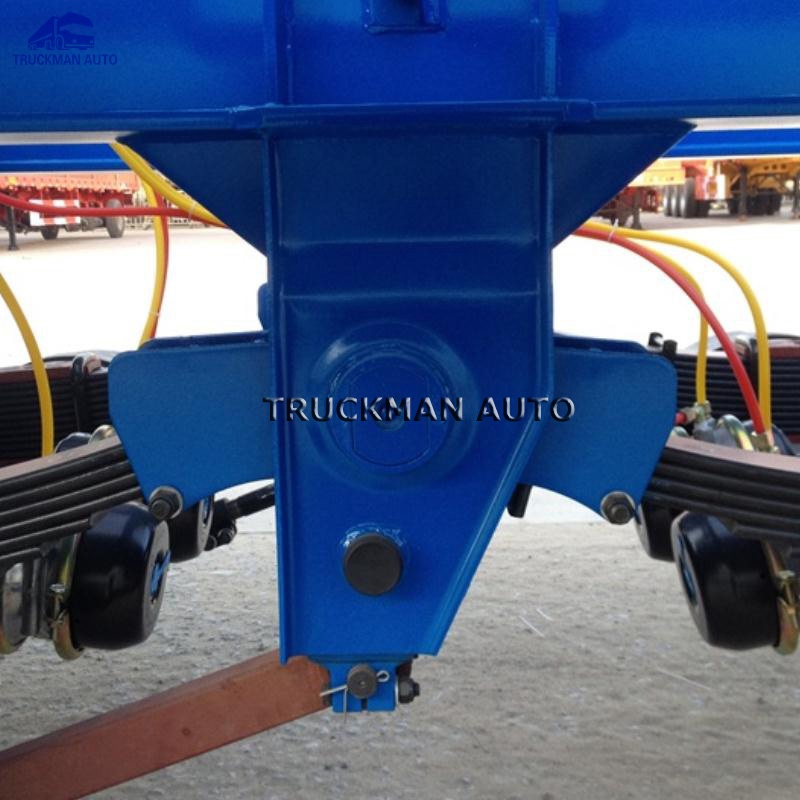

Suspension: Heavy duty mechanical suspension or air lift suspension.
Tire: 12 units, LINGLONG or TRIANGLE brand.
King pin: 90#
Landing gear: JOST brand, 28 tons.
Brake system: WABCO and ABS.
Electrical system: 24V, LED lights.
Max. lifting capacity: 37000kg
Max. working range: 4000mm
Max. stabilizer outreach
