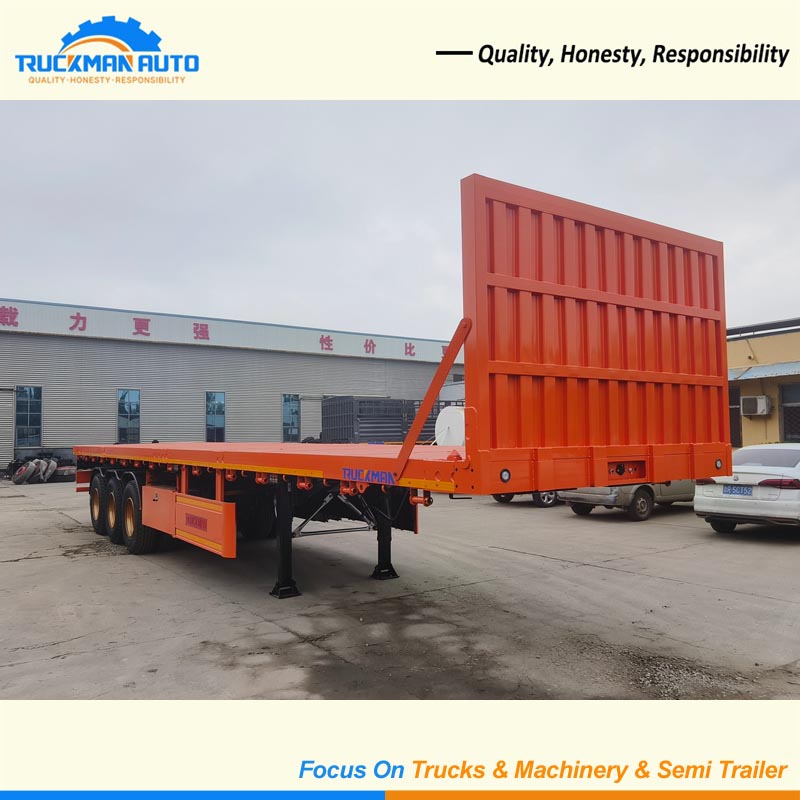

Cost-effective 3 Axle 60 Tons Flatbed Semi Trailer For Senegal

Introduction

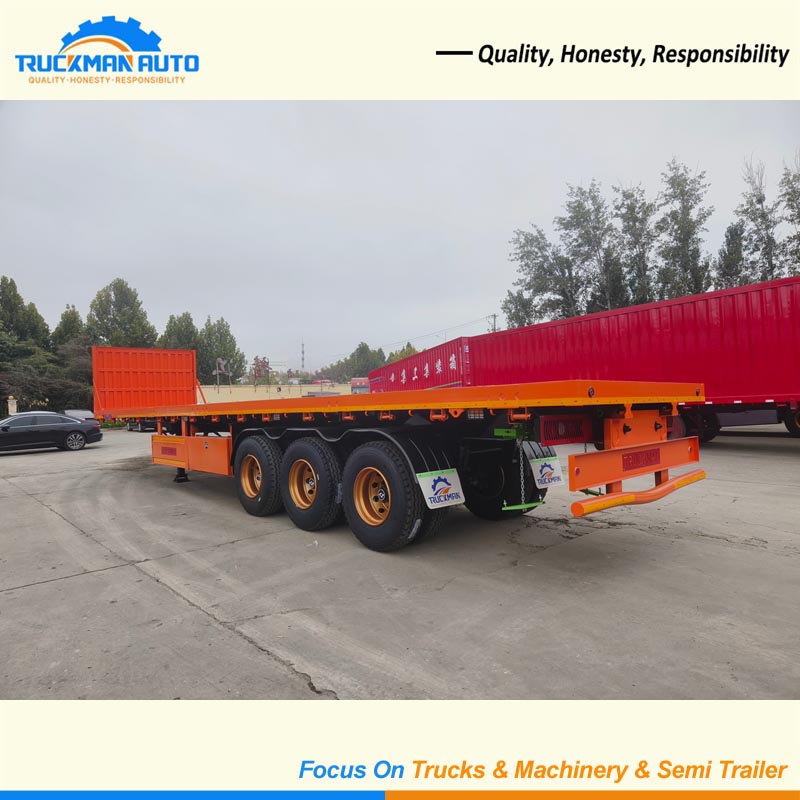

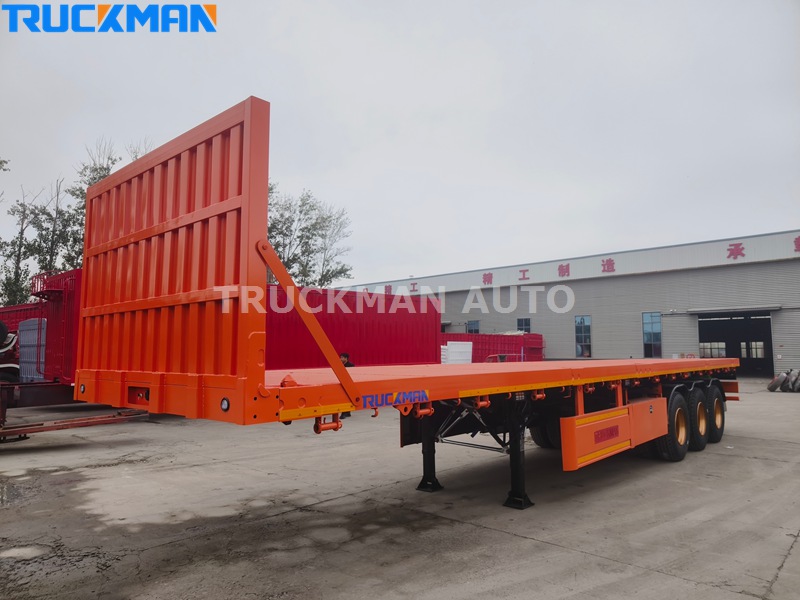

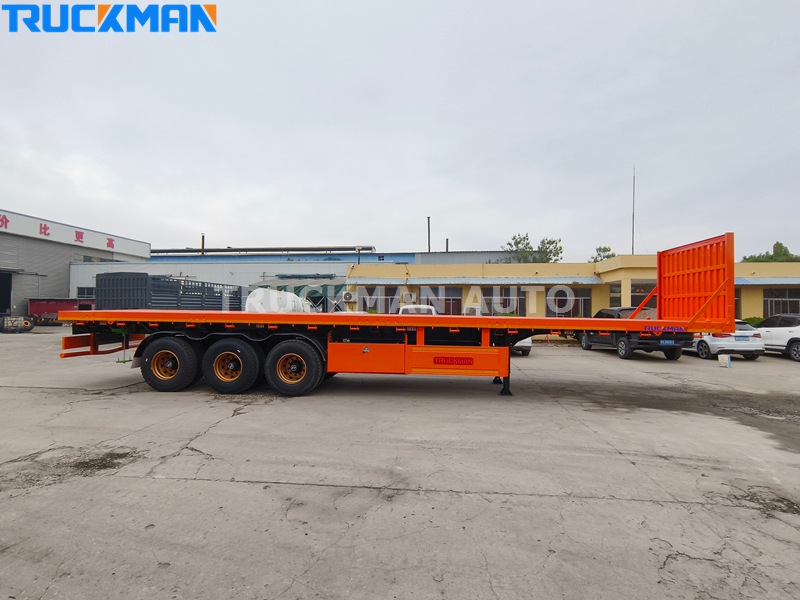

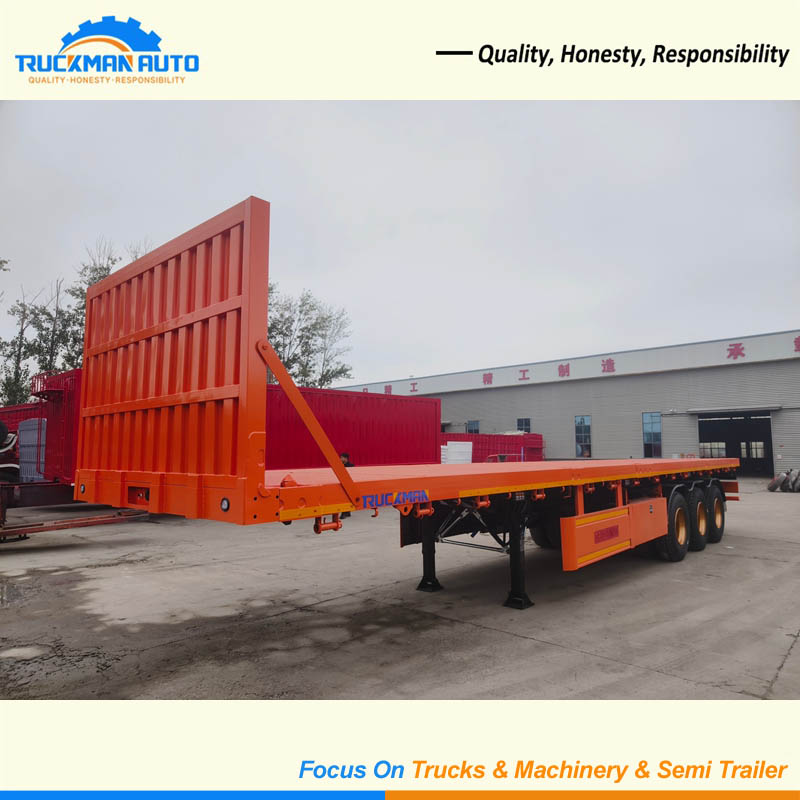

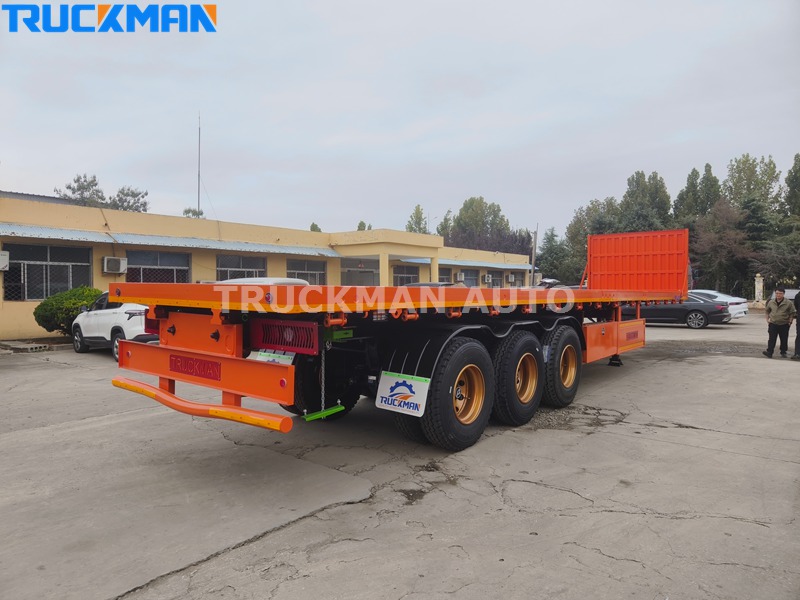

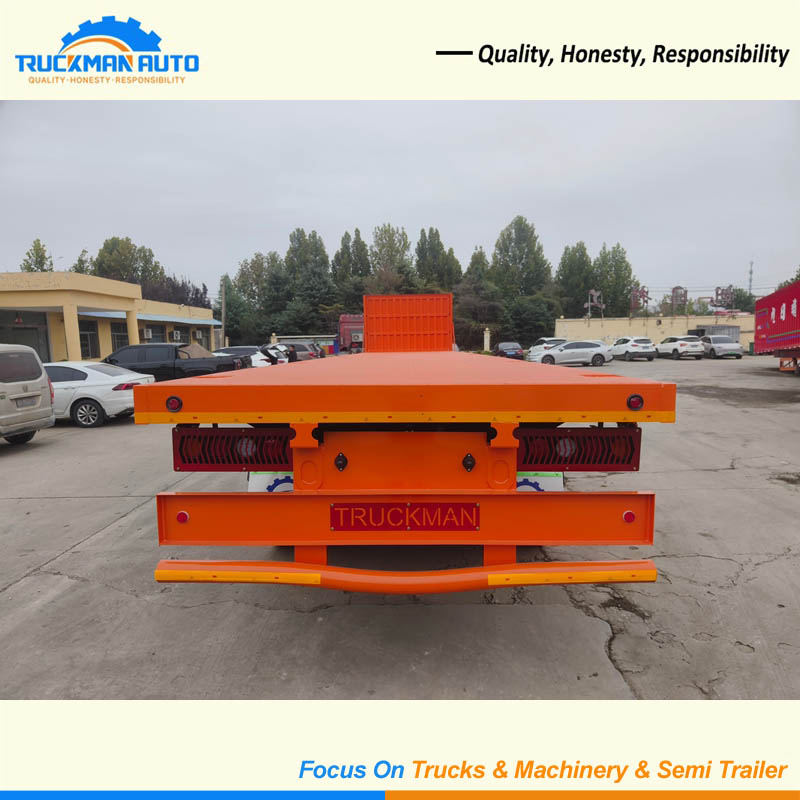

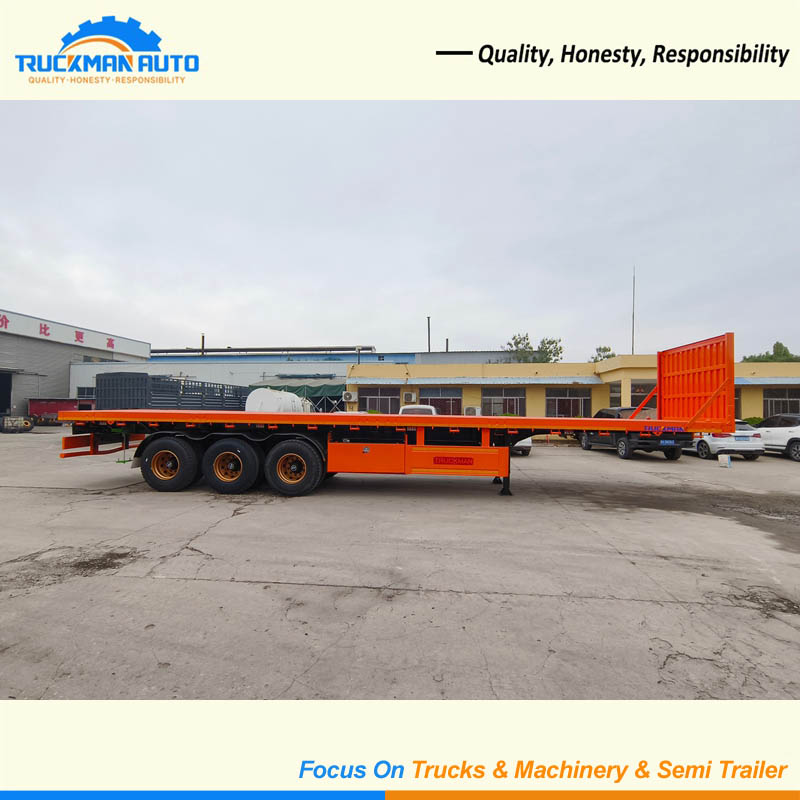

The TRUCKMAN 3 axle 60 ton flatbed semi trailer is a heavy duty transport platform built for Senegal's growing construction, logistics and industrial sectors.

Engineered for intensive cargo hauling, it combines a high strength main beam with a densely reinforced chassis for strong load capacity on both paved highways and rugged site roads.

With a well-know brand spare parts made running gear, it delivers a long service life for fleets moving construction materials, container and general cargo.

What Is a 3 Axle 60 Tons Flatbed Semi Trailer?

Built for heavy and general cargo transport, this flatbed semi trailer delivers outstanding strength and durability. Key highlights include:

● Heavy Duty Main Beam: A 500mm high straight main beam with a 14mm upper flange and 16mm lower flange resists bending under 60 ton loads.

● Densely Reinforced Chassis: Cross beams and side supports are spaced under 400mm, with a reinforced 6-beams gooseneck to have high load capacity.

● Reliable Running Gear: Three 13 ton ZY axles, TAIYUE 10 leaf 16mm springs, TRIANGLE TR668 tires and a FUWA 28 ton landing gear deliver stable performance.

● Protected Electrical System: Integrated wiring lights with guards, a WABCO valve and European standard gladhand connectors suit SCANIA, MAN, BENZ tractor trucks.

● Secure Cargo Handling: Cast iron rope hooks and tighteners, a 1.6m corrugated front guard and 12 container locks keep loads secure.

Technical Specifications

Why It Is Suitable For Senegal Heavy Cargo Transport

1. Heavy Cargo and Structural Strength

Senegal's construction, mining and logistics sectors move bulk cargo, building materials and containers, which puts extreme stress on the platform:

● Heavy concentrated loads bend and twist an undersized main beam.

● Sparse cross members allow the floor to dent under point loads.

● Repeated heavy loads crack a weakly supported gooseneck.

To counter this, the trailer features an oversized, heavily reinforced main beam and densely spaced cross members to resist bending. Additionally, the robust gooseneck is engineered with multiple support beams and structural plates to keep the entire frame fully rigid under immense pressure.

2. Mixed Road Conditions

Hauling cargo across Senegal's paved highways and rough laterite site roads stresses the running gear and chassis:

● Rough roads cause heavy shock and twisting on the chassis.

● Misaligned suspension accelerates tire and component wear.

● Dust and flying stones damage exposed lights and electrical connections.

Premium heavy-duty leaf springs and a reinforced suspension system keep the load exceptionally stable. Meanwhile, the electrical system is fully protected by integrated wiring, durable light guards, reliable braking valves, and standardized secure connectors built for harsh environments.

3. Secure Cargo and Long Service Life

Loading, securing and unloading varied cargo demands flexibility and safety:

● Unsecured cargo shifts during transport and causes accidents.

● Loose ropes and hooks wear out and fail under tension.

● Corrosion and wear shorten the trailer's service life.

To keep cargo completely secure, the trailer includes abundant heavy-duty rope hooks, advanced tighteners, reinforced container locks, and a tall corrugated front guard. These upgraded features significantly extend the trailer's overall service life.

TRUCKMAN Flatbed Semi Trailer VS Standard Flatbed Trailer

For Senegal's demanding heavy cargo logistics, the TRUCKMAN 3 axle 60 ton flatbed semi trailer is a strong, durable and versatile choice.

Do you also need a tractor truck to pull this flatbed trailer? Please contact us for a complete transport solution.

Export Case

Country: Senegal

Client Type: Construction and Logistics Company

Quantity: 2 Units

Application: Transporting bulk cargo, building materials and containers across Senegal.

Feedback: The reinforced main beam and densely spaced cross members handle heavy bulk cargo without any bending. The durable platform resists wear from daily loading, and the ZY axles with TRIANGLE tires perform reliably on both highways and rough site roads. Click here for more information

FAQ About 3 Axle 60 Tons Flatbed Semi Trailer

Q: Who are we?

A: We are TRUCKMAN AUTO, a manufacturer with years of experience in research and development, design, and manufacturing in China.

Q: How long is the delivery time for shipping of the 3 Axle Flatbed Semi Trailer?

A: It depends on the order quantity, and generally takes 15 to 40 days.

Q: How do we ensure the quality of the 60 Tons Flatbed Semi Trailer?

A: Our products use only genuine, original components from well known brands and come with official brand warranties. Furthermore, we conduct thorough factory inspections on every product before it leaves the factory.

Q: What's our MOQ of the Flatbed Semi Trailer?

A: For most products, the MOQ is 1 unit.
