TRUCKMAN 3 Axles 80 Tons Low Bed Semi Trailer For DRC

Introduction



The TRUCKMAN 3-axle 80-ton lowbed semi-trailer is an ultra-heavy-duty transport solution specifically engineered for the demanding logistics market of the DRC.

Engineered to meet the stringent demands of cross-regional heavy machinery distribution from major inland logistics hubs to remote mining zones, it boasts unparalleled impact resistance, massive load-bearing capacity, and exceptional operational safety on severely unpaved dirt roads.

Its highly reliable chassis and premium axle make it the absolute first choice for large-scale procurement by Congolese mining fleets and logistics companies building a resilient transport network.





What Is a 3 Axle 80 Tons Lowbed Semi Trailer?



Built to thrive in the harsh realities of Central African logistics routes, this lowbed trailer configuration is designed to withstand extreme overload and deep mud. Key highlights include:

● Ultra-Strong Chassis: Features wider main beams and side beams, a double-layer reinforced main beam bottom plate, and three specific gooseneck reinforcement points to ensure zero deformation under 80-ton payloads.

● Oversized Platform: The 9000x3000mm working deck utilizes denser cross and vertical supports for maximum structural stability. It also features pull-out hinged 25cm side wideners, making operation highly convenient when loading extra-wide equipment.

● Premium Running Gear: Three 16-ton Zhengyang axles and twelve Triangle 315/80R22.5 tires on 16mm golden rims deliver massive load capacity and grip.

● Ultimate Safety: Features WABCO brakes, a welded JOST 90# kingpin, and JOST 28-ton landing gear. Heavy-duty cast iron hooks secure cargo firmly.

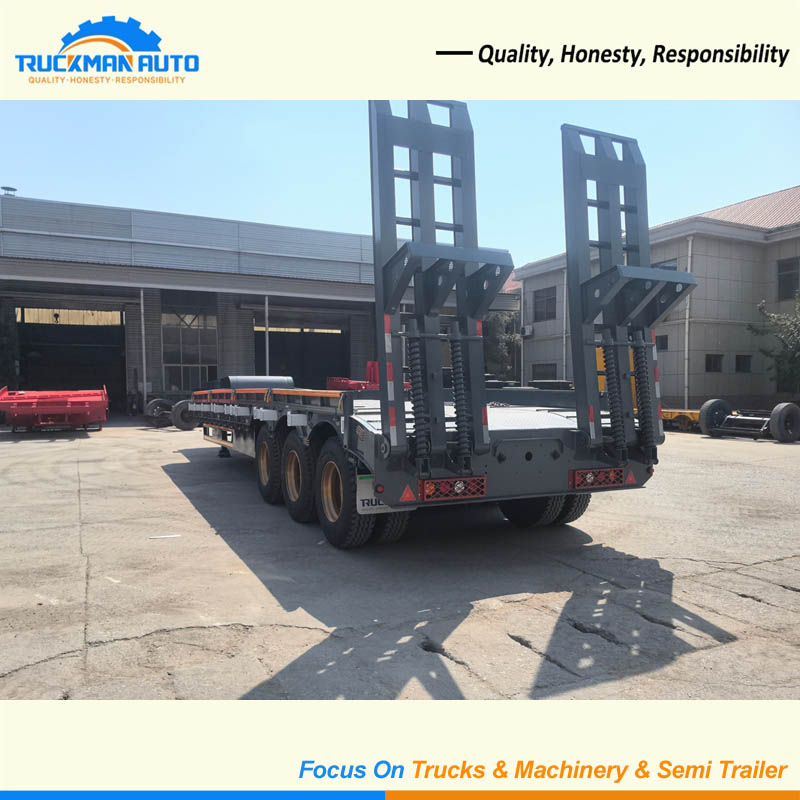

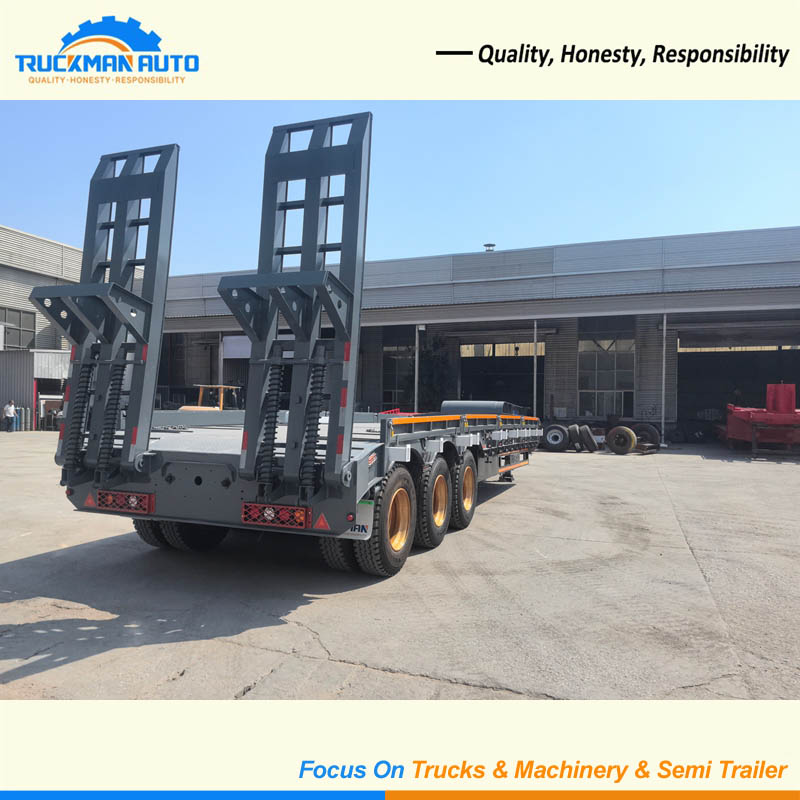

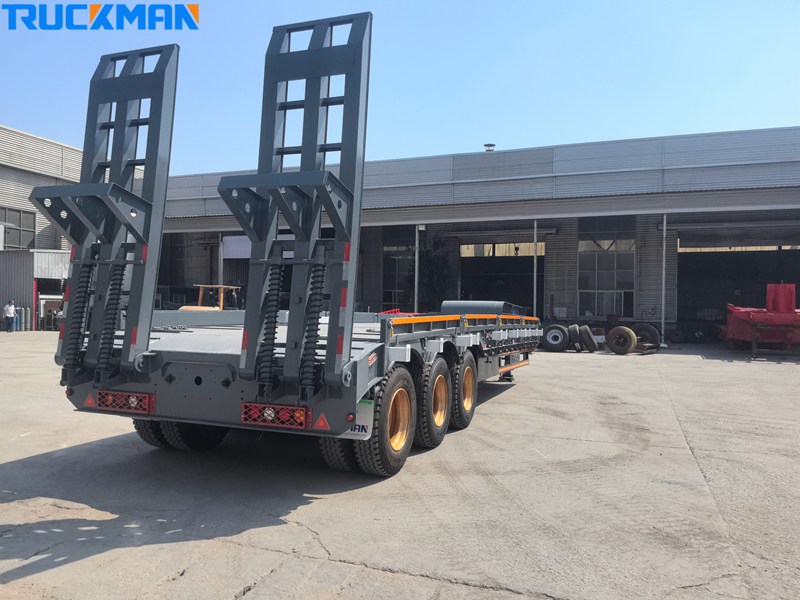

● Heavy Duty Ramps: Upgraded wider spring-assisted ladders ensure safe, stable, and efficient loading of heavy crawler machinery at remote sites.





Technical Specifications



Feature	Value
Capacity	80 Tons
Axle	3 x 16 Tons, ZY brand
Tyre	315/80R22.5
Rim	16mm thick
Main Beam	Upper 18mm, down 20mm, middle 14mm, height 500mm
Side Beam	20# Channel steel
Cross Beam & Side Support	10# Channel steel, denser cross and vertical supports
Leaf Spring	90mmx16mmx10pcs
Landing Gear	JOST 28 Tons
Kingpin	JOST 90#
Other	Pull-out hinged 250mm extension on each side



Why It Is Suitable For Cameroon Logistic Project



1. DRC Inland Road Conditions

Transporting heavy machinery from major cities to remote DRC mining areas faces severe structural challenges:

● Unpaved, rugged dirt roads causing extreme continuous vibration

● Persistent deep potholes creating massive vertical impact forces

● Severe chassis bending moments during heavy-load operations on undulating terrains

To counter this, the trailer features a double-layer bottom plate and three gooseneck reinforcement points. Combined with an 8mm heavy-duty suspension, it completely eliminates the risk of structural fractures on the most punishing Congolese dirt roads.



2. Oversized Machinery Transport Risks & Efficiency

Moving large excavators into Central African mining sites requires both stability and operational efficiency:

● Traditional detached side wideners require time-consuming manual assembly in harsh environments

● Massive lateral forces warping the chassis when cornering on uneven roads

● Cargo shifts during emergency braking or severe swaying

Wider main and side beams with denser cross supports offer an indestructible base. The integrated pull-out hinged wideners eliminate the hassle of assembly, making loading effortless, while heavy-duty cast iron hooks guarantee absolute cargo stability.



3. Fleet Maintenance & Repair Demands

Long-distance transport to isolated DRC mining zones demands extremely high vehicle reliability:

● Limited repair facilities in remote mining regions

● Unexpected downtime from broken substandard parts

● Huge financial losses caused by vehicle breakdowns

By utilizing an indestructible reinforced chassis alongside globally recognized JOST and WABCO components, we guarantee an exceptionally low failure rate. This drastically reduces structural maintenance downtime and maximizes fleet efficiency.





TRUCKMAN Lowbed Trailer Vs Standard Lowbed Trailer





For the diverse, extreme, and complex operating conditions in the DRC, this heavily reinforced lowbed trailer proves to be the most cost-effective and durable solution for delivering heavy machinery to continuous mining operations.



Do you also need a heavy-duty tractor truck? Please click here.



Export Case

Country: Democratic Republic of the Congo

Client Type: Mining Operation Contractor

Quantity: 2 Units

Application: Delivering heavy excavators, wheel loaders, and construction materials from Lubumbashi directly to remote mining sites.

Feedback: After months of rigorous operation, this semi-trailer has proven its extremely high reliability. The client specifically praised the wider platform, denser supports, and convenient pull-out hinged wideners. They are sturdy, convenient, and durable.

For more information, please visit



FAQ About 3 Axle 80 Tons Lowbed Semi Trailer.



Q: Who are we?

A: We are TRUCKMAN AUTO,a manufacturer with years of experience in research and development, design, and manufacturing in China



Q: How long is the delivery time for shipping of 3 Axle Low Bed Trailer?

A: It depends on the order quantity, and generally takes 15-40 days.



Q: How do we ensure quality of 80 Tons Lowboy Semi Trailer?

A: Our products use only genuine, original components from well-known brands and come with official brand warranties. Furthermore, we conduct thorough factory inspections on every product before it leaves the factory.



Q: What’s our MOQ of Lowbed Semi Trailer?

A: For most products, the MOQ is 1 unit.
